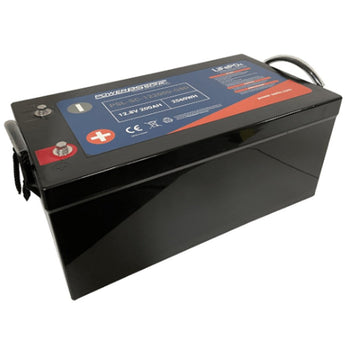

Power-Sonic PSL-SC-122000-G8D 200AH 12.8V Group 8D Rechargeable Deep Cycle Lithium Iron Phosphate (LiFePO4) Battery - M8 Terminals
- Lithium Iron Phosphate chemistry gives this battery a 200AH capacity and 12.8V
- Battery Management System protects against a wide array of conditions
- Chemistry and protections enable life cycles lasting 10x longer than lead acid
| Brand | Power-Sonic |
|---|---|
| MPN | PSL-SC-122000-G8D-M8 |
| Size | 122000 |
| Chemistry | LiFePO4 |
| Lithium Iron Phosphate | |
| Voltage | 12.8V |
| Capacity | 125AH |
| Charge Cycles | 2000 |

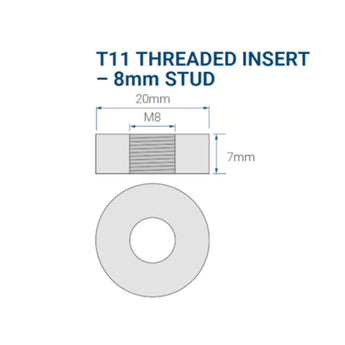

| Terminal | M8 |
| Protected | Yes |
| Watt Hours | 2560WH |
| Max Continuous Current | 150A |
|---|---|
| Max Charging Current | 150A |
| Internal Resistance | ≤20Ω |
| Recommended Discharge Cut-off Voltage | 11V |
| Series & Parallel Connections | 4 per series, 4 per parallel |
| Operating Temperature Ranges | |
| Charge | 32°F (0°C) - 113°F (45°C) |
| Discharge | -4°F (-20°C) - 140°F (60°C) |
| Recommended | 59°F (15°C) - 95°F (35°C) |
| Self-Discharge Rate | ≤3% per month |
| Long Term Storage | Charge every 6 months or when OCV is 12.8V |
| Life Expectancy | 5 Years / One Cycle per Day |
| Short Circuit Protection | Will automatically recover after removal of short |
| Length | 20.5" / 520mm |
|---|---|
| Width | 10.6" / 268mm |
| Height | 9.0" / 228mm |
| Weight | 853.63oz / 24200g |
| Certifications | CE, FC, UL 1642, IEC 62133, UN 38.8, ISO9001:2015 |
|---|---|
| Country of Origin | China |
| UPC | 00813340015999 |
| Warranty | Power-Sonic Limited Warranty |
| Battery Junction 30-Days | |
| Return Policy | Battery Junction Return Policy |
Power-Sonic PSL-SC-122000-G8D 200AH 12.8V Group 8D Battery
Lithium Iron Phosphate Power
Reliable power is a set of M8 terminals away with the Power-Sonic PSL-SC-122000-G8D! Its Lithium Iron Phosphate chemistry gives this rechargeable battery a 200AH capacity and 12.8V voltage, making it a great option for use in utility, transport, or even medical appliances. Its M8 terminals give wide-ranging compatibility to nearly any electronic device you need.
Battery Management and Protection Done Right
The PSL-SC-122000-G8D's specialized Battery Management System provides a wide array of protections. With over-charge, over-discharge, over-temperature, and over-current protections, as well as cell function balancing, this battery's life expectancy will last 10 times longer than lead acid equivalents. These also ensure the safest possible user experience regardless of power demands. With is ABS housing, this battery can also endure heavy impacts and rough working conditions with ease.
- Notable Features
- » Lithium Iron Phosphate chemistry gives this battery a 200AH capacity and 12.8V
- » Battery Management System protects against a wide array of conditions
- » Chemistry and protections allow for life cycles that last 10x longer than lead acid
- » ABS housing protects against impacts and rough working environments
-
