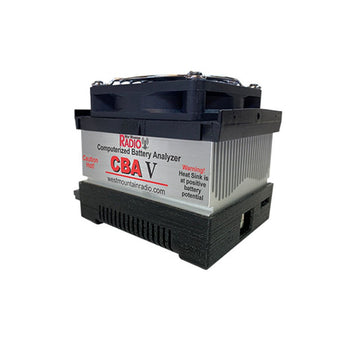

West Mountain Radio CBA V - Computerized Battery Tester
- Improved cooling system which enables longer, continuous testing loads
- LED status indicators are more easily readable in comparison to similar products
- Discharge test current with selections from 0 to 40 Amps depending on the user's needs
- Fail safe protection for temperature, current, and power allows for greater longevity
- Batteries Included?: No
Recently viewed
Description
West Mountain Radio CBA V
Computerized Battery Analyzer
Get your true constant current battery capacity test results within ~2% accuracy for any type of battery, even for currents as low as 10mA. Test results are easily readable through the clarity of the West Mountain Radio CBA V's graphic display. This product also includes the option to use Watts as a parameter when performing multiple discharge tests. The CBA V can test up to 55 volts and perform power profile tests to measure the maximum power output of either a regular power supply or even a solar cell.
The overall high accuracy and precision of the CBA V allows you to perform tests for even the toughest jobs with higher demands thanks to its remote voltage testing. This is further improved by the on-board computer designed to automatically range its measurements for not one, but two currents ranges as well as three voltages, displayed with 12 bit resolution. For ease of access, the CBA V uses a TTL UART port compatible with systems using a TTL serial port such as Raspberry PI, Arduino, and others.
| Typical | Max | ||
| Current Accuracy | 0.1A - 1.5A | +/-25ma | +/-75ma |
|---|---|---|---|
| Percentage Accuracy | 1.5-40A | +/-2% | +/-5% |
- Notable Features
- » Improved cooling system which enables longer, continuous testing loads
- » LED status indicators are more easily readable in comparison to similar products
- » Discharge test current with selections from 0 to 40 Amps allow for a wider range of uses depending on the user's needs
- » Fail safe protection for temperature, current, and power allows for greater longevity
Item Details
| Brand | West Mountain Radio |
| SKU | WEST-MOUNTAIN-CBA-V |
| Manufacturer Part Number | CBA-V |
| Color | Black |
| Length | 3.5 in (89 mm) |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Length | 3.5 in (89 mm) |
| Width | 2.8 in (71 mm) |
| Height | 3.6 in (91 mm) |
| Weight | 16.0 oz (454 g) |
Packaging/Shipping Dimensions
| Length | 8.23 in |
| Width | 6.19 in |
| Height | 4.44 in |
| Shipping Weight | 1.67 lb |
Additional Details
| Warranty | Battery Junction Warranty |
