Fenix ARE-D1 Single Channel Smart Charger for Li-ion, NiMH and Ni-Cd

fenix are-d1 sitting vertically
fenix are-d1 laying at an angle to the left
fenix are-d1 angled to the right
fenix are-d1 with battery charging
fenix are-d1 manufacturing slide with key features
fenix manufacturing slide with explanation of product
manufacturer slide about battery compatibility
manufacturer slide about micro usb charging
manufacturer slide about usb discharging power bank function
manufacturer slide about built in protection features
manufacturer slide about size and weight
Fenix ARE-D1 Single Channel Smart Charger alternate view 10
Fenix ARE-D1 Single Channel Smart Charger alternate view 11
Fenix ARE-D1 Single Channel Smart Charger alternate view 12
fenix are-d1 sitting vertically
fenix are-d1 laying at an angle to the left
fenix are-d1 angled to the right
fenix are-d1 with battery charging
fenix are-d1 manufacturing slide with key features
fenix manufacturing slide with explanation of product
manufacturer slide about battery compatibility
manufacturer slide about micro usb charging
manufacturer slide about usb discharging power bank function
manufacturer slide about built in protection features
manufacturer slide about size and weight
Click to Enlarge Image
$14.95
Usually ships the next business day
Battery Junction Wholesale Account Signup
Battery Junction Free Keylight On Purchases Over $20 Promo
Description

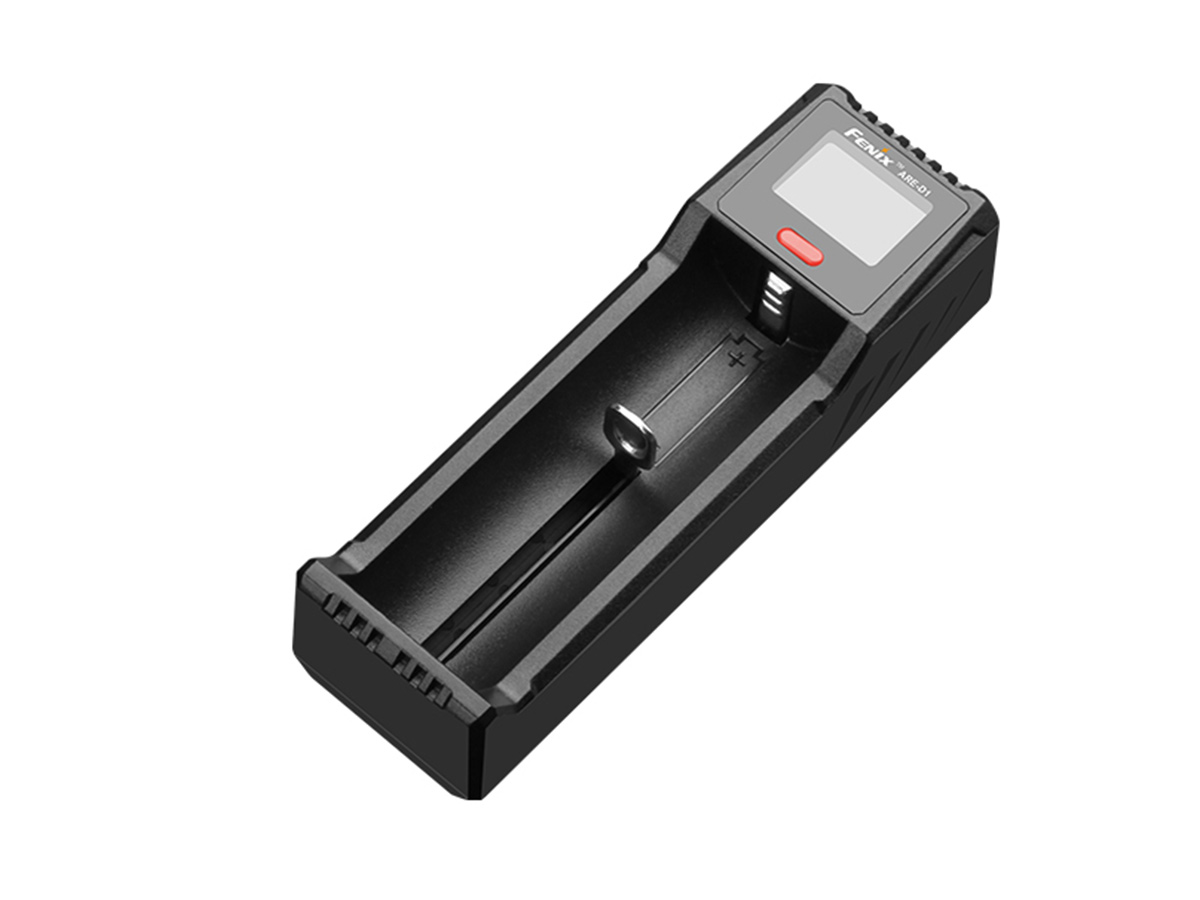

Fenix ARE-D1 Single Channel Smart Charger for Li-ion, NiMH and Ni-Cd Batteries

Compact Portable Charging

The Fenix ARE-D1 Smart Charger is a small, single bay charger that is perfect for anyone with varying charging needs, even if you are on the go. This charger has micro USB charging and USB discharging capabilities. The micro USB charging port can fit a USB adapter, power bank and solar panel for more power input options. The large charging current of 2A powers up your drained cells quickly. A Fenix 2600mAh battery only takes a little over an hour to fully charge. Three different charging currents gives you the power to choose the level at which you want your battery charged. The smart circuitry keeps the charger and your battery safe from overheating, over discharging, and over charging, but it also identifies cells the moment they are installed. With a single click of the power button, choose your desired charging current, another click will cycle through the required charging current, the battery voltage, charging capacity, and the charging time. When your battery is discharging, this smart charger can double as a power bank so you can charge other essential devices at the same time! The ARE-D1 is lightweight and compact, so it can easily go with you in any bag or pack, or take up little to no room in your home or office.

Features:

  • Accepts wide variety of battery types
  • Capable of micro USB charging and USB discharging
  • High 2A charging current for fast charging times
  • Three charging currents for more options
  • High definition LCD screen clearly displays charging status
  • User friendly one-button interface
  • Multiple built-in protections
  • USB discharging serves as power bank
  • Micro-computer chip controlled digitally regulated charging to extend battery life


Technical Specifications

  • Functions: Micro USB Charging, USB Discharging, Power Bank
  • Screen/Indicator Display: HD LCD Screen
  • Channels: 1
  • Input: Micro USB 5V/2A Charging (from external power source)
  • Rated Output Power: 3W (Ni-MH/Ni-Cd), 8.4W (Li-ion)
  • USB Output: 5V/2A (for external power source)
  • Charging Currents: 0.5A, 1.0A, 2.0A
  • Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
  • Storage Temperature Range: -4°F to 176°F (-20°C to 80°C)
  • Operating Humidity: 5% to 90%
  • Global Certifications: CE, FCC, WEEE, RoHs


  • Compatible Li-ion Batteries:

    • 10440
    • 14500
    • 16340
    • 18650
    • 21700
    • 26650


    Compatible Ni-MH/Ni-Cd Batteries:

    • AA
    • AAA
    • C


    Charging Batteries:

    Voltage 4.2V/3.65V 1.5V
    Current 0.5A/1.0A/2.0A 0.5A/1.0A
    Battery Types 10440, 14500, 16340, 18650, 21700, 26650 AA, AAA, C



    Includes:

    • 1 x ARE-D1 Charger
    • 1 x Micro USB Charging Cable
    • User Manual


  • Dimensions:
    • Length: 4.72" (120mm)
    • Width: 1.50" (38mm)
    • Height: 1.18" (30mm)
    • Weight: 2.15oz.±0.11oz. (61±3g) without charging cable


    Note: Only Li-ion batteries can be used in ARE-D1 for discharging functionality.
    Specifications
    Charge Channels:1
    Supported Chemistries:Li-Ion, Ni-Cd, Ni-MH
    Compatible Battery Sizes:10440, 14500, 16340 / RCR123A, 18650, 21700, 26650, AA, AAA, C
    Charge Current:2000mA
    Batteries Included:No
    Product Certifications:CE, FCC, RoHS
    Brand:Fenix
    Warranty:Battery Junction 30-Day Warranty
    Return Policy:Battery Junction Return Policy
    Product Weight:2.15oz
    Product Dimensions:4.72" (L) x 1.5" (W) x 1.18" (H)
    UPC:6942870306667
    MPN:ARE-D1
    Country of Origin:China
