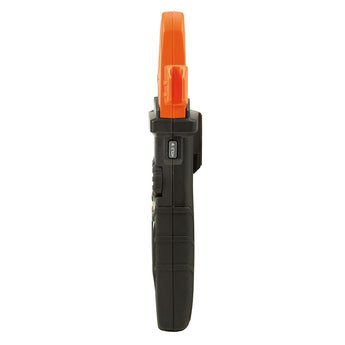

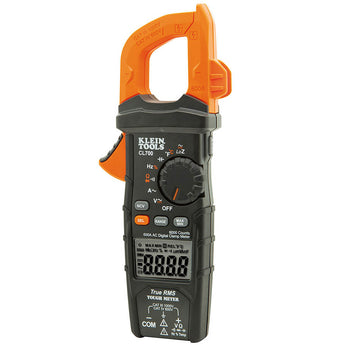

Klein Tools Digital Clamp Meter AC Auto-Ranging LoZ
Brand:Klein
MPN:CL700
- Batteries Included?: No
$120.97
Recently viewed
Description
Klein Tools Digital Clamp Meter
The Klein Tools Digital Clamp Meter is a must-have tool for electricians. With the ability to measure AC current and temperature with a thermocouple probe, it's easy to determine voltage, resistance, frequency, capacitance, and temperature of wires and circuitry. There's also a Low Impedance (LoZ) mode which identifies and eliminates ghost or stray voltages. This Digital Clamp Meter is built to withstand a 2 meter (6ft) drop and has a battery indicator that will warn you when batteries need to be changed.
Proudly Made in the U.S.A.
Features:
- Automatically ranging true mean squared (TRMS) technology for increased accuracy
- Clamp measures AC current and thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency, and capacitance and tests diodes
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office, and light-industrial locations

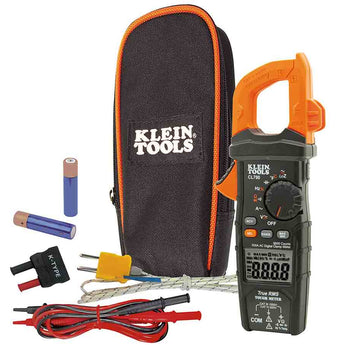

Included Accessories:
- Carrying Pouch
- Test Leads
- Thermocouple with Adapter
- Batteries
Specifications:
- Power Source: 2 x AAA Alkaline Batteries
- Display: 6000 Count LCD Screen
- Voltage: 1000V AC; 1000V DC
- Frequency: 1Hz - 500KHz
- Current: 600A
- Capacitance: 6000F
- Ohms (Resistance): 60MO
- Temperature Range: -14°F - 1000°F
- Standard: CAT IV 600V; CE Certified
- Drop Protection: 2 meters (6.6ft)
- IP Rating: IP40
- Jaw Size: 1.38"
- Dimensions: 9.09" x 3.81" x 1.55"
- Weight: 11.8oz
Warnings:
- Do not attempt to measure resistance or continuity on live circuits
- Read, understand and follow all instructions, cautions, and warnings attached to and/or packed with all test and measurement devices before each use
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged
- Before each use verify meter operation by measuring a known voltage or current
Item Details
| Brand | Klein |
| SKU | KLEIN-TOOLS-CL700 |
| Manufacturer Part Number | CL700 |
| UPC | 092673690150 |
| Color | Orange |
| Length | 9.09 in (231 mm) |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Length | 9.09 in (231 mm) |
| Width | 3.81 in (97 mm) |
| Height | 1.55 in (39 mm) |
| Weight | 11.8 oz (335 g) |
Packaging/Shipping Dimensions
| Length | 9.09 in |
| Width | 3.81 in |
| Height | 1.55 in |
| Shipping Weight | 0.73 lb |
Additional Details
| Warranty |
Klein Tools Commercial and Industrial Products Warranty Battery Junction Warranty |
| Return Policy | Return Policy |
