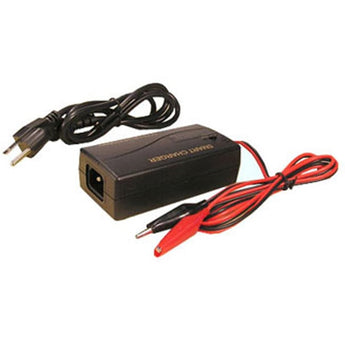

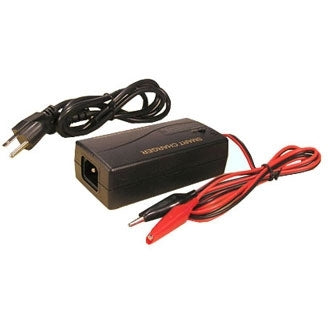

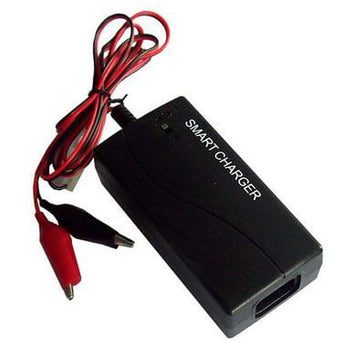

Powerizer Lead Acid Smart Charger (3.0 A) for 6V & 12V Lead Acid Battery with 3 stages floating for 100-240V

The Powerizer CH-ULLA0612A Lead Acid Smart Charger is designed for rapid charging of either 6V or 12V 3A Lead Acid Batteries. Easily select the batteries charging voltage with the toggle switch on the top. To charge, select your voltage and attach the alligator clips (red is positive) to your battery, the 45" cable makes it easy to put your charger somewhere safe (out of the reach of children). Usable worldwide, the smart charger has three stages to easily charge your batteries without overcharging.

Specifications:

• Input:
  • AC Input Voltage: 100 to 240 VAC Worldwide Power Support
  • Input Frequency: 50-60Hz
  • Inrush Current: 10A at 25°C Cold Start
  • Input Current Max: 2.0A
  • Efficiency 80% at 115VAC 50Hz
• Charge:
  • Battery Range: 6Ah to 20Ah
  • Reverse Polarity Protection: NO
  • Short Circuit Protection: Yes
• Charging Current: 3.0A with 45" long cable and one set of clips
• Charging time:
  • 3.0 hours for 7Ah
  • 8.0 Hours for 20Ah
  • Max. Output power: 48W
• Weight: 15Oz (425 grams)
• Manufacturer's Part#: H01200030-XX-D2

For Charging 6V SLA Battery:

• Fast Charge
  • Model: CC mode
  • Output Current: 3.0A
  • Output Voltage: 7.3V
  • Bi-color LED: Red
• Continue Charge
  • Model: CC&CV mode
  • Output Current: 3.0A or below
  • Output Voltage: 6.9V ±0.20V
  • Bi-color LED: Red
• Stand-by charge
  • Model: CV mode
  • Output Current: <0.6A
  • Output Voltage: 6.9V Max
  • Bi-color LED: Green

For Charging 12V SLA Battery::

• Fast Charge
  • Model: CC mode
  • Output Current: 3.0A
  • Output Voltage: 14.5V
  • Bi-color LED: Red
• Continue Charge
  • Model: CC&CV mode
  • Output Current: 3.0A or below
  • Output Voltage: 13.8V ±0.20V
  • Bi-color LED: Red
• Stand-by charge
  • Model: CV mode
  • Output Current: <0.6A
  • Output Voltage: 13.8V Max
  • Bi-color LED: Green
