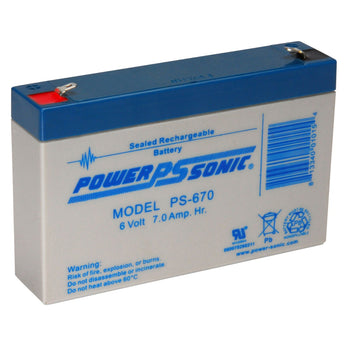

Power-Sonic AGM General Purpose PS-670 7Ah 6V Rechargeable Sealed Lead Acid (SLA) Battery - F1 Terminal

Power-Sonic PS-670 Sealed Lead Acid Battery

Power-Sonic batteries are the most dependable sealed lead acid batteries in the business. Housed inside a durable ABS plastic body, the Absorbent Glass Mat technology gives them incredibly efficient energy storage and dispersal. Spill-proof construction allows you to mount these batteries in any position and orientation. Discharge and recharge easily via the F1-type terminals.

• Absorbent Glass Mat (AGM) technology for superior performance
• Valve regulated, spill proof construction allows safe operation in any position
• Power/volume ratio yielding unrivaled energy density
• Rugged impact resistant ABS case and cover (UL94-HB)
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
• U.L. recognized under file number MH 20845

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: F1
• Nominal Voltage: 6 Volts (3 Cells)
• Nominal Capacity:
  • 20-Hour (350mA to 5.25V)........ 7.00 Ah
  • 10-Hour (630mA to 5.25V)......... 6.30 Ah
  • 5-Hour (1.19A to 5.10V)......... 5.95 Ah
  • 1-Hour (4.34A to 4.50V)......... 4.34 Ah
  • 15-Min. (13.5A to 4.50V)......... 3.38 Ah
• Energy Density (20-Hour Rate): 1.42 W-h/in³ (86.88 W-h/l)
• Specific Energy (20-Hour Rate): 17.36 W-h/lb (38.26 W-h/kg)
• Internal Resistance (approx.): 15 milliohms
• Max Discharge Current (7 Min.): 21.0 amperes
• Max Short-Duration Discharge Current (10 Sec.): 70.0 amperes
• Shelf Life (% of nominal capacity at 68°F (20°C)):
  • 1 Month ......... 97%
  • 3 Months ........ 91%
  • 6 Months ........ 83%
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (LxWxH): 5.95" x 1.34" x 3.94" (151mm x 34mm x 100mm)
• Approximate Weight: 2.42 lbs. (1.10 kg)
