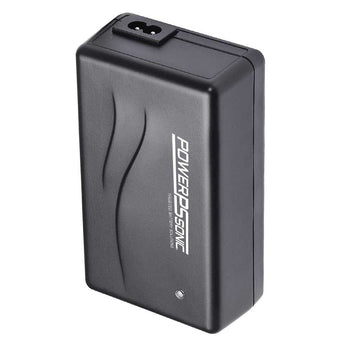

Power-Sonic 12V 4A 4-Cell LiFe Battery Charger for 12.8V 4Ah - 40Ah LiFePO4 Batteries - US Plug (PSC-124000-LIFE)
Item #:
POWERSONIC-PSC-124000-LIFE
Brand:
Power-Sonic
Item #:
POWERSONIC-PSC-124000-LIFE
Brand:
Power-Sonic
- 3 Step charger for the PSC LiFeP04 battery series.
- 4 cell 4.0A charger equipped with current detection.
- Universal standard input voltage of 90-240V AC.
- LED charge control indicator for user convenience.
Description
Brand | Power-Sonic |
---|---|
MPN | PSC-124000-LIFE |
Applicable Battery Chemistry | Lithium Iron Phosphate |
Kind of Charger | 3 Step LiFeP04 |
Designed For | 4-Cell PSC-LiFe Series Batteries |
Operating Temperature | -13°F to 104°F (-25°C to 40°C) |
Storage Temperature | -13°F to 185°F (-25°C to 85°C) |
Input Terminal | 2 Pin IEC 320 Connector |
Output Terminal | Alligator clips with insulated sleeves |
IP Rating | IP41 - Protected from tools, small wires and condensation |
Input Voltage | 90-264V AC |
---|---|
Nominal Voltage | 12.8V |
Standby Voltage | 14.0V |
Charge Voltage | 12.6V |
Output Current | 4000mA |
Line Frequency | 47-63Hz |
Switch Frequency | 40kHz |
Leakage Current with Mains Off | <0.7mA at 12.8V |
Ripple | <100mV p-p |
Max Output Power | 58W |
Restart Voltage | |
---|---|
Protection | Protected against reversed polarity and short circuit proof |
Insulation Class | Class II |
Primary Insulation Voltage | 3000V AC |
Secondary Insulation Voltage | 5700V DC |
Electrical Safety | EN/EIC 60335-2-29, EN/IEC/ANSI 60601-1(3.1 Ed) & EN/IEC 60601-1-11 |
EMC Standards | EN 55014-1&-2, EN/IEC 61000-6-3, EN/IEC 61000-6-1, EN/IEC 60601-1-2 |
Indicator Type | LED Display |
---|---|
See charger diagram in downloadable specification sheet | |
Step 1 - Orange | Charge Current: 4.0A±0.2A |
Step 2a - Orange | Charge Voltage: 14.6V±0.1V |
Step 2b - Yellow | To yellow when current is <1.6A±0.1A |
Step 3 - Green | Float charge when current is: 300mA ±25% |
Step 3 - Green | Float charge voltage: 14.0V±0.1V |
Power-Sonic PSC 124000 LiFe Charger |
Alligator Clip Connectors with Insulated Sleeves |
User Manual |
Length | 5.31" / 135mm |
---|---|
Width | 3.15" / 80mm |
Height | 1.73" / 44mm |
Weight | 13.76oz / 390.08g |
Certifications | CE, DOE, UL, ISO9001:2015, EN60601-1 3.1 & EN60601-1-11 |
---|---|
Country of Origin | EU |
Warranty | Power-Sonic 2 Years |
Battery Junction 30-Days | |
Return Policy | Battery Junction Return Policy |
Power-Sonic PSC 124000 LiFeP04 Charger
Safe and Reliable
The Power-Sonic PSC 124000 is a charger designed specifically for the Power-Sonic PSC series of LiFeP04 batteries. This 4 cell charger uses optimized charging technology to safely recharge even the most discharged batteries. Certified to be used with medical applications, the PSC 124000 is guaranteed safe and reliable.
3 Step Charging
The PSC 124000 charger uses a three step charge control with current detection for safe, predictable charging of this line of lithium batteries. The LED indicator provides real-time step progress for monitoring the process easily without use of another device.
- Notable Features
- » 3 Step charger for PSC LiFeP04 series of batteries
- » 4 cell 4.0A charger with current detection
- » Designed for universal standard input voltages of 90-240V AC
- » LED charge control indicator for real time monitoring of each step
- » Includes alligator clips with insulated sleeves
- » Certified for use with medical applications safely
- » Made in Europe with quality materials
