7 Amp Charge Controller

Maintenance Free Protection for your Batteries and Solar Panels

A Solar Charge controller regulates the voltage and current or amperage coming from the solar panels going to the battery and prevents the solar panel from overcharging the battery. It also prevents reverse currents to panels during the night and regulates the voltage that comes from the solar panel which can vary with the sun conditions. A Solar Charge Controller is needed when you have 15 Watts of solar energy or more, and is recommended at 10 Watts.

> Product Details:

• Protects Battery from Overcharge and Discharge
• For Use with 12 Volt Solar Panels and Batteries Only
• Handles up to 7 Amps of Array Current
• Handles up to 105 Watts of Solar Power
• Maintenance Free Protection of Your Solar Panel and Batteries
• Maintains Battery Voltage
• Maintain 12V Batteries in a Fully Charged State
• Dimensions: (L x W x H) 7 5/8" x 4 5/8" x 2 1/4"
• Weight: 0.35 lbs

Operation:

• Charging Light Indicates Battery Charging
• Green Light Indicates Full Battery

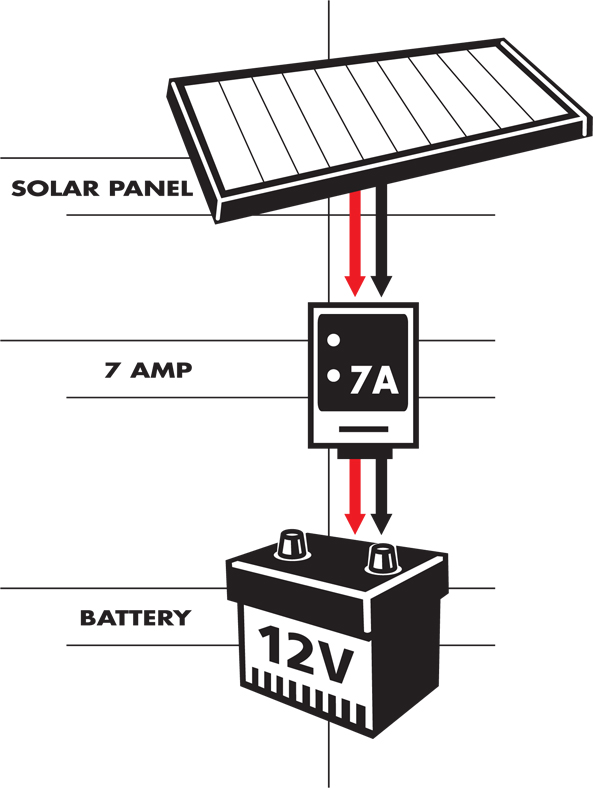

Installation:

• Connect the Solar Panel Terminals to the Solar Controller Terminals
• Connect the Solar Controller 0-Rings to the Battery Terminals
