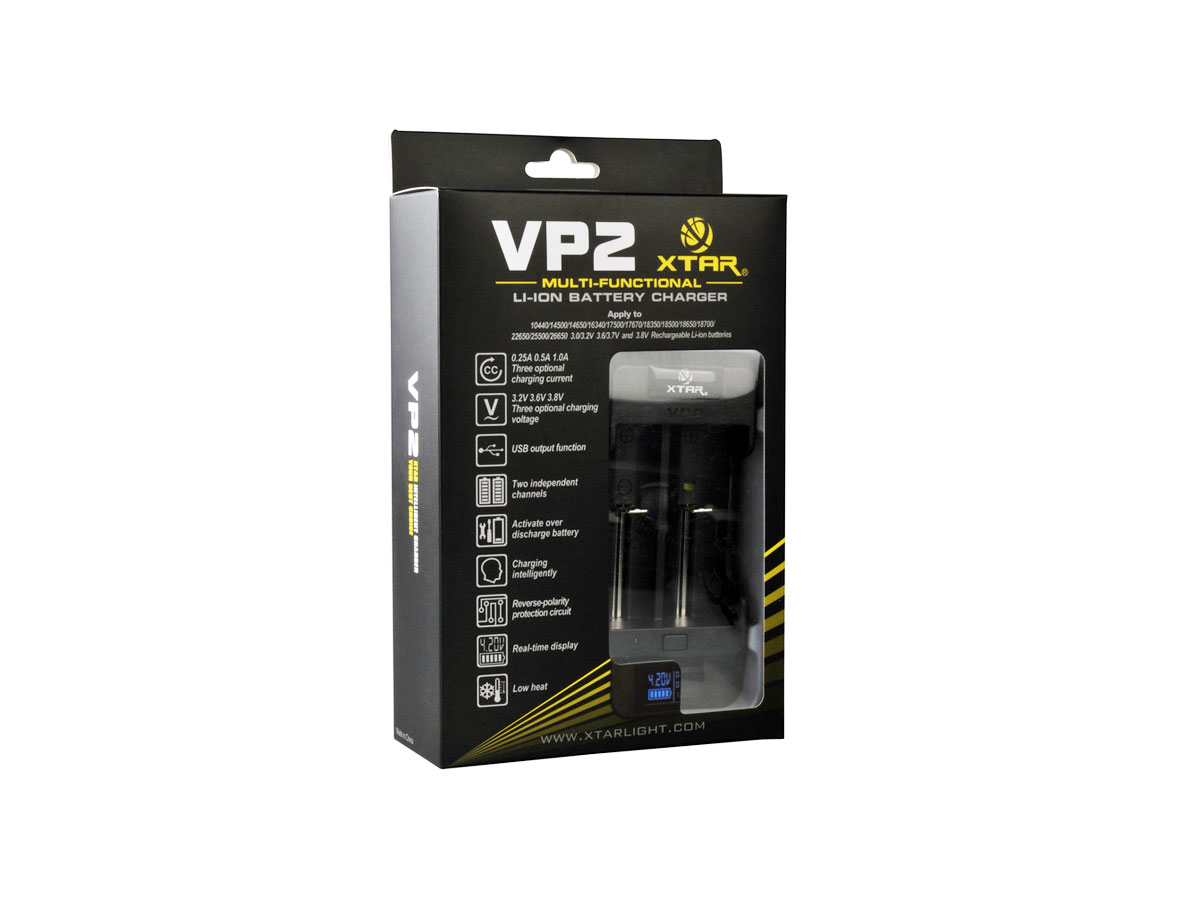

XTAR VP2

2-Bay Li-Ion/Li-Po Charger

The VP2 from XTAR is a 2-bay battery charger that can charge Lithium Ion and Lithium Polymer batteries. With two independent charging channels, you can switch between three voltage options and three different charging current options, making the VP2 a true versatile battery charger. The switchable LCD display gives you real time information for the charging voltage and battery status. Also, you don't have to worry about shorting out the batteries or the charger because there is reverse polarity protection and a short circuit protection board. Reviving overly discharged batteries is also possible with the VP2. If you are looking for a Li-Ion/Li-Po battery charger with lots of safety features and options, the the VP2 is the way to take charge.

Features:

• Two independent charging channels
• Compatible with Li-Ion 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, and 26650 batteries
• Switchable LCD indicator to display the real-time charging voltage and battery status
• Reverse polarity and short circuit protection board
• Activation function for over discharging battery
• Algorithm (TC/CC/CV) charging system
• Three charging current options (250mA, 500mA, and 1A)
• Three charging voltage options (3.2V, 3.6V, and 3.8V)
• Revive overly discharged batteries
• Included accessories: US/EU/JP AC adaptor and DC car adapter

Specifications:

• USB output: 5.0V/1.0A
• Cut-off Voltage: 4.2V±0.05V
• Detection precision:±0.03V
• Input AC: 12V DC 1000mA


  • 0.25A CC :250mAh±30mAh
  • 0.5A CC :500mAh±50mAh
  • 1.0A CC :1000mAh±80mAh
• Output: DC 3.0/4.35v
  • 3.0v/3.2v LiFePO4 Battery Charger (Charges to 3.2v)
  • 3.6v/3.7v Li-ion Battery Charger (Charges to 4.2v)
  • 3.8v Li-ion Battery Charger (Charges to 4.35v)
• Dimensions: 4.6" (118mm) x 2.4" (62mm) x 1.3" (34mm)
• Weight: 3.35 oz (95g)

NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc.
