Description

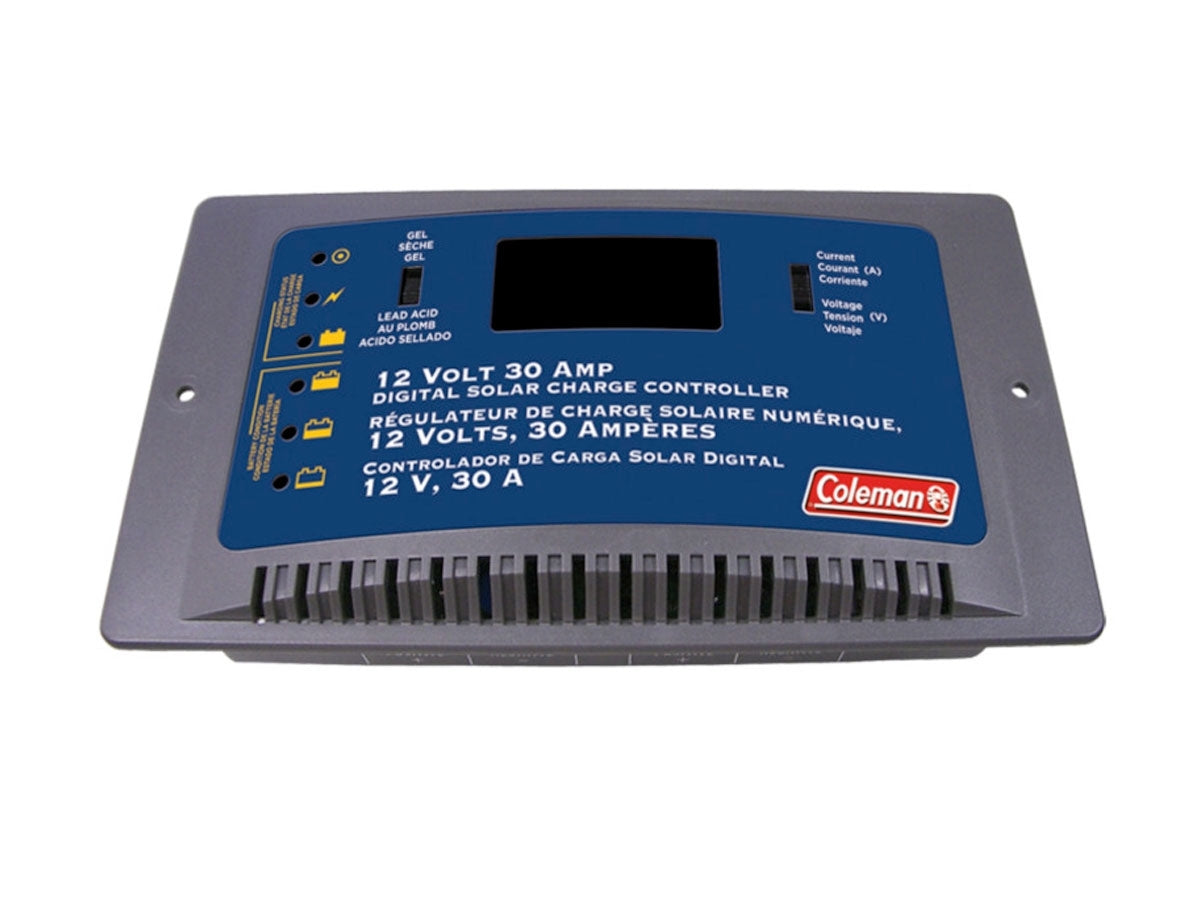

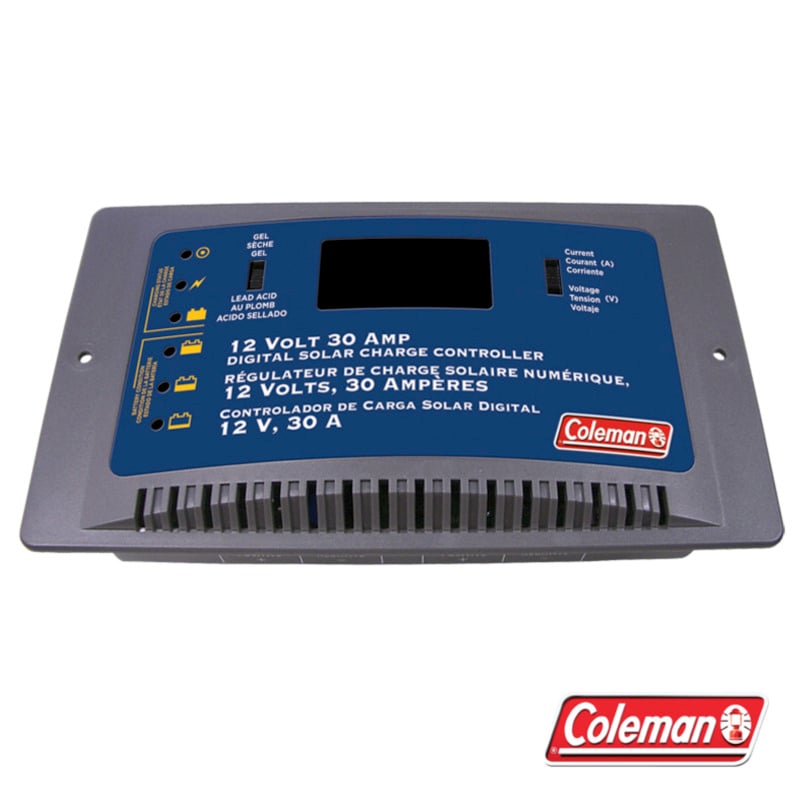

The Coleman 68032 is a 30A digital charge controller that goes between your solar panel and your 12V battery to prevent over-charging or over-discharging of your battery.
Features and Benefits:- Protect your battery from overcharge and discharge
- For use with 12 Volt solar panels and batteries only
- Handles up to 30 Amps of array current
- Handles up to 450 Watts of solar power
- Maintenance-free protection of your solar panel and batteries
- Maintain 12V batteries in a fully charged state
- Dimensions (L x W x H): 8 3/4" x 10 1/4" x 2 5/8" (22.5 x 26 x 6.5cm)
- Weight: 0.85 lbs
- Manufacturer's Part Number: 68032
- Electrical
- Normal input (Solar cell array voltage): 17-22 volts
- Maximum input: 25 volts
- Maximum charging current: 30 amps
- Current consumption without battery: 35mA Max
- Current consumption without array: 25mA Max
- PWM constant voltage for gel cell battery: 14.1 volts ±0.4
- PWM constant voltage for lead acid battery: 14.5 ±0.4
- Float mode voltage: 13.4 ±0.4
- Battery condition display
- LED color: Indicated range
- LOW (Red): <11.5 ±0.4
- FAIR (Yellow): 11.5 to 12.5 ±0.4
- GOOD (Green): >12.5 ±0.4
- LCD Meter accuracy DC voltage: 1.25%
- LCD meter accuracy DC current: 3%
- Protection
- Over-temperature protection engages at (stop charging): >80°C (176°F)
- Over-temperature protection resets at (restart charging): <65°C (149°F)
- Operation temperature: -5° to 50°C (23° to 122°F)
- Storage temperature: -10° to 70° C (14° to 158°F)
- Operation humidity range: 0 to 80% RH
Item Details
| Brand | Coleman |
| SKU | COLEMAN-68032 |
| Manufacturer Part Number | 68032 |
| UPC | 787769680321 |
Specifications
Unit Dimensions
| Length | 8.75 in (222 mm) |
| Width | 10.25 in (260 mm) |
| Height | 2.625 in (67 mm) |
| Weight | 13.6 oz (386 g) |
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
