Purchased multiple sizes as backups
"Purchased multiple sizes as backups as some of my lights were starting to feel a bit-tired battery wise. This measure should provide additional years of worry-free useable life."
ARE YOU A PRO? Join for FREE!

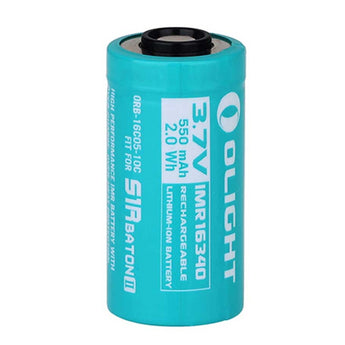

Olight IMR RCR123A / 16340 550mAh 3.7V Protected Lithium Ion (Li-ion) Button Top Battery for S1R II (ORB-163C05-10C)
Brand:Olight
MPN:ORB-163C05-10C
- Compact 16340 lithium ion rechargeable battery delivering 3.7V output for high-performance flashlights
- 550mAh capacity designed for reliable everyday runtime
- Protected cell helps guard against overcharge and over-discharge
- Button top design ensures compatibility with supported Olight devices like the S1R II
- Size: 16340 / RCR123A
- Voltage: 3.7
- Rechargeable: Yes
- Chemistry: Li-Ion
- Capacity (mAh): 550
- Terminal Type: Product Specific
$5.50
Recently viewed
Description
Olight IMR 16340 for S1R II
550mAH 3.7V Proprietary Battery
The premiere power source for the Olight S1R II EDC flashlight, this Olight IMR 16350 for the S1R II is packed with power and will bring out the most in your light. This battery features stable IMR chemistry that provides a 3.7 volt charge, allowing the S1R II to reach peak output levels. Not short of capacity, the Olight IMR 16340 has a 550mAh rating that will keep the S1R II running longer and stronger. This battery is the official recommended power source for the S1R II.
Specifications:
- Battery Size: 16340
- Battery Chemistry: Li-ion
- Nominal Voltage: 3.7V
- Nominal Capacity: 550mAh
- Max Discharge Current: 10C
-
Dimensions:
- Length - 1.57" (40mm)
- Diameter - 0.62" (16mm)
- Weight: 0.634oz. (18g)
Item Details
| Brand | Olight |
| SKU | OLIGHT-ORB-163C05-10C |
| Series | S (Everyday Carry) |
| MPN | ORB-163C05-10C |
| UPC | 6926540927338 |
| Size | 16340 / RCR123A |
| Voltage | 3.7 |
| Battery Rechargeable | Yes |
| Capacity (mAh) | 550 |
| Chemistry | Li-Ion |
| Sub-Chemistry | LiMn2O4 IMR |
| Shelf Life | 3 Years |
| Packaging | Boxed |
| QTY Per Package | 1 |
| California Residents | see Prop 65 WARNINGS |
Specifications
| Size | 16340 / RCR123A |
| Voltage | 3.7 |
| Battery Rechargeable | Yes |
| Capacity (mAh) | 550 |
| Watt Hours (wH) | 2 |
| Terminal Type | Product Specific |
| Protected | true |
| Integrated Charge Port | No |
| Equivalent Types | 16340, CR123A, R123, RCR123, RCR123A |
Unit Dimensions
| Length | 1.57 in (40 mm) |
| Diameter | 0.62 in (16 mm) |
| Weight | 0.634 oz (18 g) |
Packaging/Shipping Dimensions
| Length | 4.54 in |
| Width | 2.22 in |
| Height | 0.84 in |
| Shipping Weight | 0.07 lb |
Documents
Additional Details
| Packaging | Boxed |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
Bright Buys
Titanium Innovations CR123A 1600mAh 3V 3A Lithium Primary (LiMnO2) Button Top Photo Battery - Bulk
$1.50
as low as
$1.23
In Stock
- Trusted and reliable; consistently rated as a top customer pick for LED flashlights
- Superior 1,600mAh capacity means longer runtimes and less frequent battery changes
- Optimized for both high and low drain devices
- State-of-the-art automated production lines ensure the highest quality and safety protections
Energizer Industrial EN91 (24PK) AA 1.5V Alkaline Button Top Batteries - Box of 24
$10.95
In Stock
- Ideal for low-drain applications that require a primary battery to provide constant power
- 10-year shelf life - stock up for emergencies!
- The best choice for consistent power, great in low-drain devices like remotes
- Safe and reliable - capable of performing in high or low temperatures
Titanium Innovations MT11 Survival Tool Card - 11 Tools in One - Black or Silver Stainless Steel
$2.34
as low as
$1.32
In Stock
- 11-in-1 card sized tool fits in your wallet or on a keychain!
- Packed with handy tools including a screwdriver & 7 wrench settings
- Serrated saw and straight-edge knife for quick cutting jobs
- Can + bottle openers for campsite meals or end-of-shift relaxation
Nitecore Digicharger D4 4-Channel Smart Battery Charger for Li-ion, Ni-Cd, and NiMH Batteries
$39.95
In Stock
- Four-channels saves time by charging multiple batteries at once.
- Capable of charging multiple chemistries by automatic battery detection.
- LCD display reveals the charging progress, battery type, voltage, and charging current.
- Automatic power-off function cuts off the current when charging is complete.
Titanium Innovations CR123A 1600mAh 3V Lithium Primary (LiMNO2) Button Top Photo Battery - 1 Piece Retail Card
$1.60
as low as
$1.50
In Stock
- Trusted and reliable; consistently rated as a top customer pick for LED flashlights
- Superior 1,600mAh capacity means longer runtimes and less frequent battery changes
- Optimized for both high and low drain devices
- State-of-the-art automated production lines ensure the highest quality and safety protections
Fitorch P25 LED Flashlight - 4 x CREE XP-G3 -3000 Lumens - Uses 1 x 26350 (included)
$66.95
Only 7 Left In Stock
- Extremely compact and powerful EDC
- Max output of 3,000 lumens with a max throw of 229 meters
- Dual fuel and available with extender for use with a 26650
- Equipped with 4 x CREE XPG3 LEDs for maximum illumination
Panasonic CR123A 1550mAh 3V Lithium (LiMnO2) Button Top Photo Battery - Box of 12
$17.40
as low as
$16.80
Save $1.80
In Stock
- Reliable lithium chemistry with a 10 year shelf life
- Regarded as one of the highest quality CR123A batteries on the market
- Used in LED flashlights, alarm systems, ranger finders and more
- Cells are lightweight, durable and ideal for long term storage
- Jacket style may vary
Duracell Duralock DL CR2032 (6PK) 225mAh 3V Lithium (LiMNO2) Watch/Electronic Coin Cell Batteries - 6 Pack Retail Card
$9.00
as low as
$7.60
In Stock
- 225mAh capacity drives long runtimes for watches and electronics
- CR2032 coin cells packed with 3V of power
- Convenient 6-piece retail card provides backup batteries
- Easily replaceable primary lithium cells
- Top recommended battery for Apple AirTags
Titanium Innovations CR123A (50PK) 1600mAh 3V 3A Lithium Primary (LiMNO2) Button Top Photo Batteries - Box of 50
$70.00
as low as
$61.50
In Stock
- Trusted and reliable; consistently rated as a top customer pick for LED flashlights
- Superior 1,600mAh capacity means longer runtimes and less frequent battery changes
- Optimized for both high and low drain devices
- State-of-the-art automated production lines ensure the highest quality and safety protections
Fitorch EA25 LED Flashlight - Luminus SST70 - 3000 Lumens - Includes 1 x 21700 with Built-in USB-C Charging Port
$74.95
In Stock
- 3,000 lumens and a 250-meter throw - fierce illumination to light up your backyard
- Multiple output modes are accessible via easy side switch operation
- Strobe, SOS, and beacon modes offer distinct signaling capability
- High-capacity battery supports the light with a maximum 227-hour runtime
Reviews
Overall rating: 5.0 / 5 from 13 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["works","buy","batteries","baton","variation","cells","base"].
Review highlights
Reviews
Excellent experience
"This is exactly what I could not purchase on the O light website. Shipped quickly and I am a very satisfied customer."
Works in my flashlight, need I say more?
"!"
Baton 3 battery replacement
"This is identical to what I have in my baton 3. I use this carry light it seems like every day and also to take the dog at night. I see they also make a 650 mah for the baton 4 but I didn’t see it in time when I ordered this. In the end since I have two of these lights and the wireless charger I don’t find it dead much at all."
Exact battery I needed, fast shipping
"Very good product but wanted more to keep Olight functional well into the future if they stop making this specialized battery. Battery Junction had it in stock, was less expensive, shipped next day. Amazon and Olight store were both back ordered on this battery which is required for the S1R Baton II and III if you want a rechargeable. 5 stars!"
Good to have a spare
"This battery is used in Olight's rechargeable models, S1R Baton II and Baton 3, which require the use of this cell. I preferred their S1 Baton, which had a similarly strong magnetic base, but could use the long shelf life, higher capacity CR123 primary Lithium and more standard 16340 Lithium Ion rechargeable cells. This cell is a proprietary mechanical variant that might not work in other brand lights that take 16340's. It is a shame that the S1R Baton II is no longer offered, since it is a much more versatile design, especially for uses such as glovebox emergency light and bug out bag lights as well as EDC light. Given that the S1R II and Baton 3 require this proprietary battery, I decided to get spares."
Great purchase ❗️
"Batteries arrived in a timely manner and work perfectly."
Works just like it should!
"Fit right in the s1r baton ii! Works great!"
The only battery that'll do!
"Baton 3 will ONLY use this battery, which is a little bit of a shame, but these are cheap so I have purchased 2 extra ones and I'll cycle through them to keep them all equalized and in good shape."
Proprietary Battery For The Ages
"Olight has designed a line of batteries to rival them all with this little powerhouse. This 2 watt hour delivers reliable performance over many other batteries in their size range, like the CR123A line which usually only packs 200-300mAh. The IMR16340 packs a whopping 550mAh into a similar form factor. However, it is a proprietary battery designed for the Olight S1RBatonII, so you must use this battery. Olight did it right though! A very impressive cell that performs much better than others in their size range."
Q&A
- my new battery from B J doesnt work in my s1r baton 2 olight ,but my old one does . when i put the new battery on my disc chargher it works , when its off it doesnt work ?
- Good day, Tom - If you indeed have the S1R II then the battery you are referencing will work. If you have the Olight S2R (not the II) then this battery will not work. Please confirm which light you have. We do not see that you ordered the light from Battery Junction so we have no way to confirm.
- I have an rcr123a rechargeable battery but I do not have the charging device. Do you have the charger
- I am including a link here - these chargers should be able to handle a rechargeable RCR123/16340 https://www.batteryjunction.com/chargers/shop-by-type-chargers/smart-chargers?charger_battery_sizers=335
- Do you still sell the s1 light that utilizes the 123 batteries?
- That light was discontinued and we do not have any more. Sorry.
- will this battery work in an Acebeam TK16
- No, it will not. This is a proprietary battery specifically made for the Olight flashlights it is meant for. I do not see that the Acebeam uses any type of proprietary battery so would get a different 16340 such as the Jetbeam LR160 - or another brand.
- what do you use to charge it
- This is a proprietary battery that is meant to be charged in the flashlight it is meant to be used in. This battery cannot be charged in a charger.
