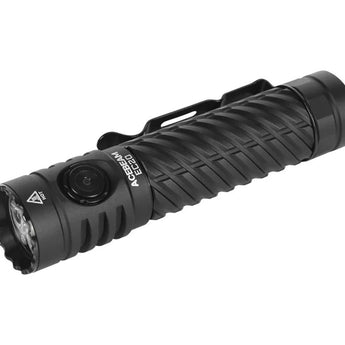

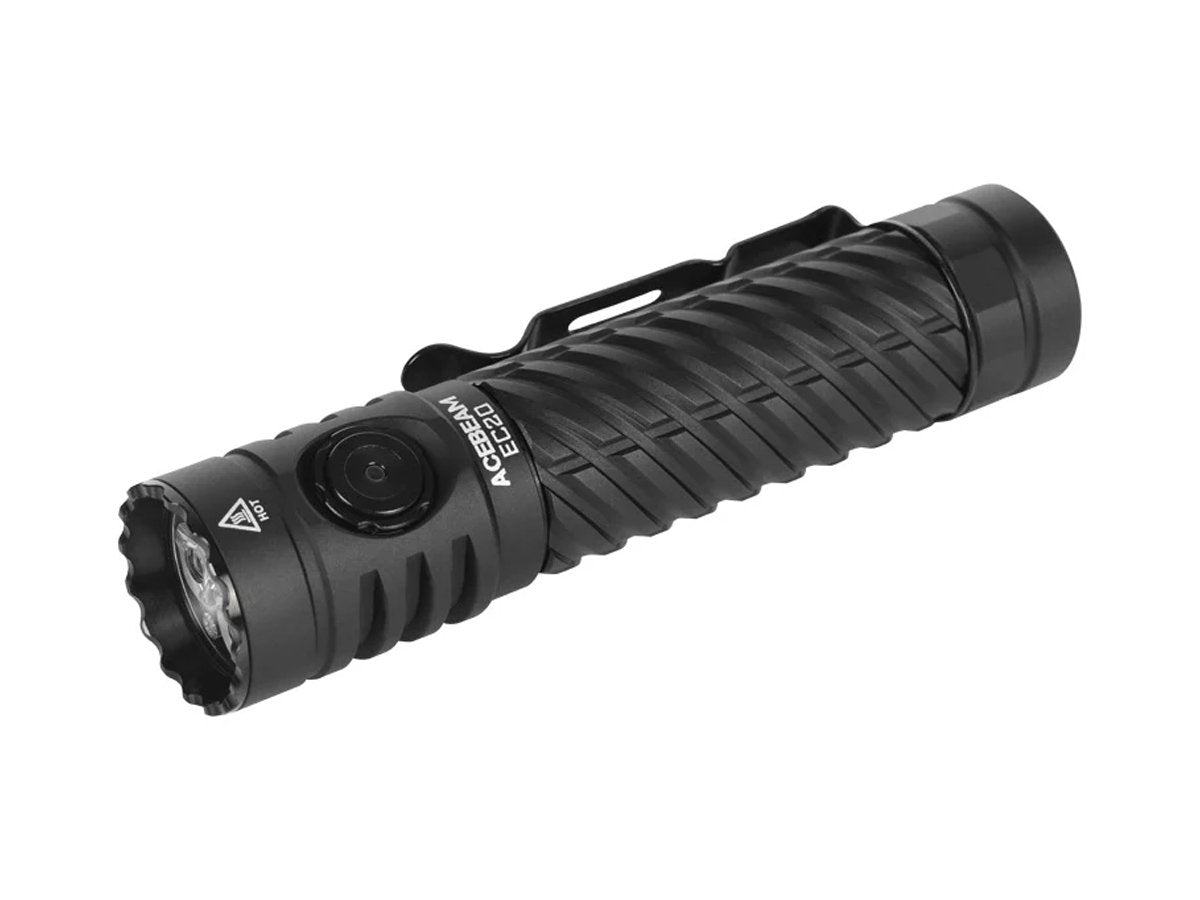

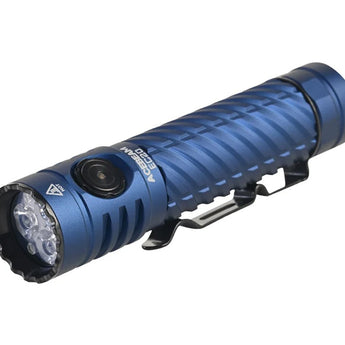

Acebeam EC20 EDC LED Flashlight - Includes 1 x 18650 with USB-C Charging Port - 1900, 2500, or 2800 Lumens - Multiple LED and Color Options
Brand:Acebeam
MPN:EC20-LUXEON-BLACK
- Single switch accesses all-purpose white & RGB light modes
- Multiple body color and LED options so you can choose your build
- Uses included USB-rechargeable 18650 or two single-use CR123As
- Handheld size and all-weather construction for true EDC use
- Magnetic tailcap provides optional hands-free illumination
- IP Rating: IP68
- Batteries Included?: Yes
- Rechargeable: No
$59.90
Recently viewed
Description

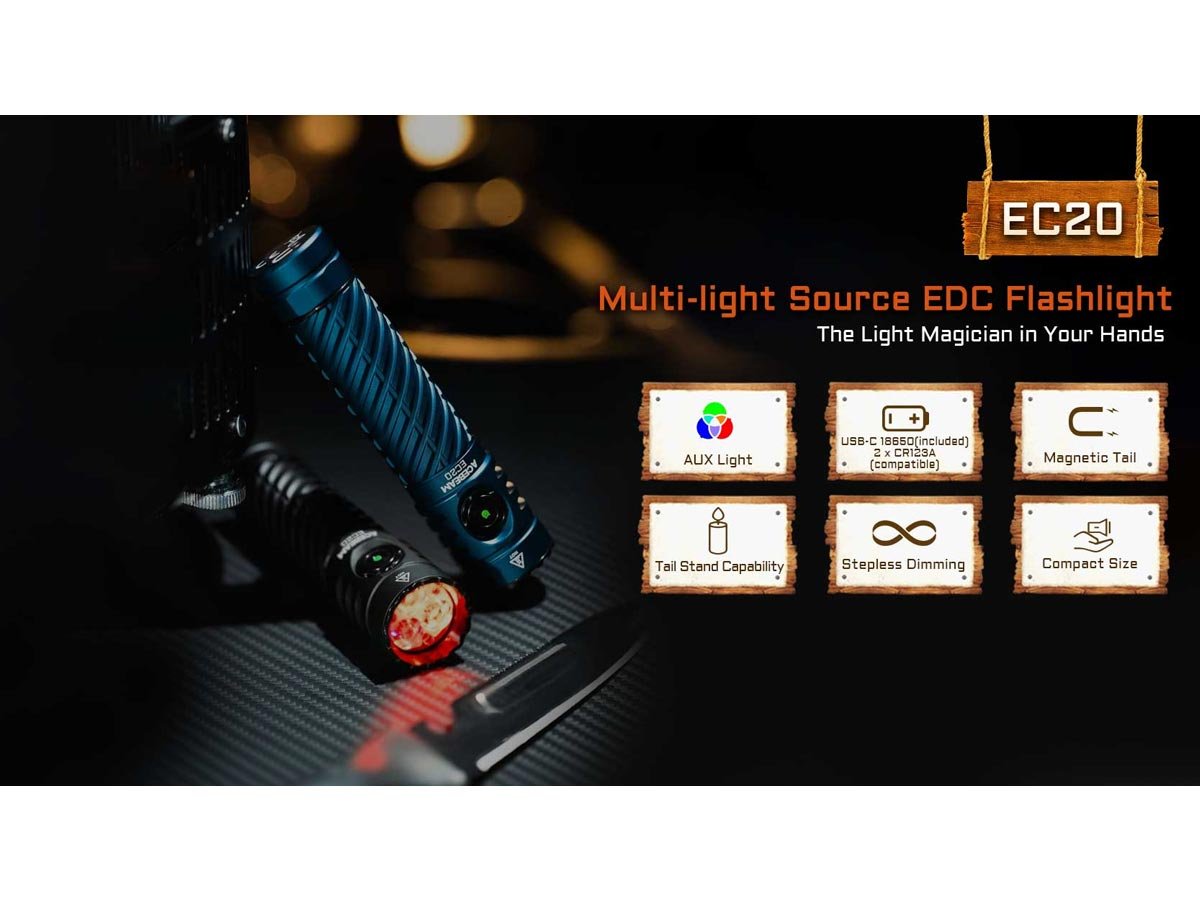

Acebeam EC20 - Multiple Color and LED Options
All-Purpose White + RGB Light Outputs

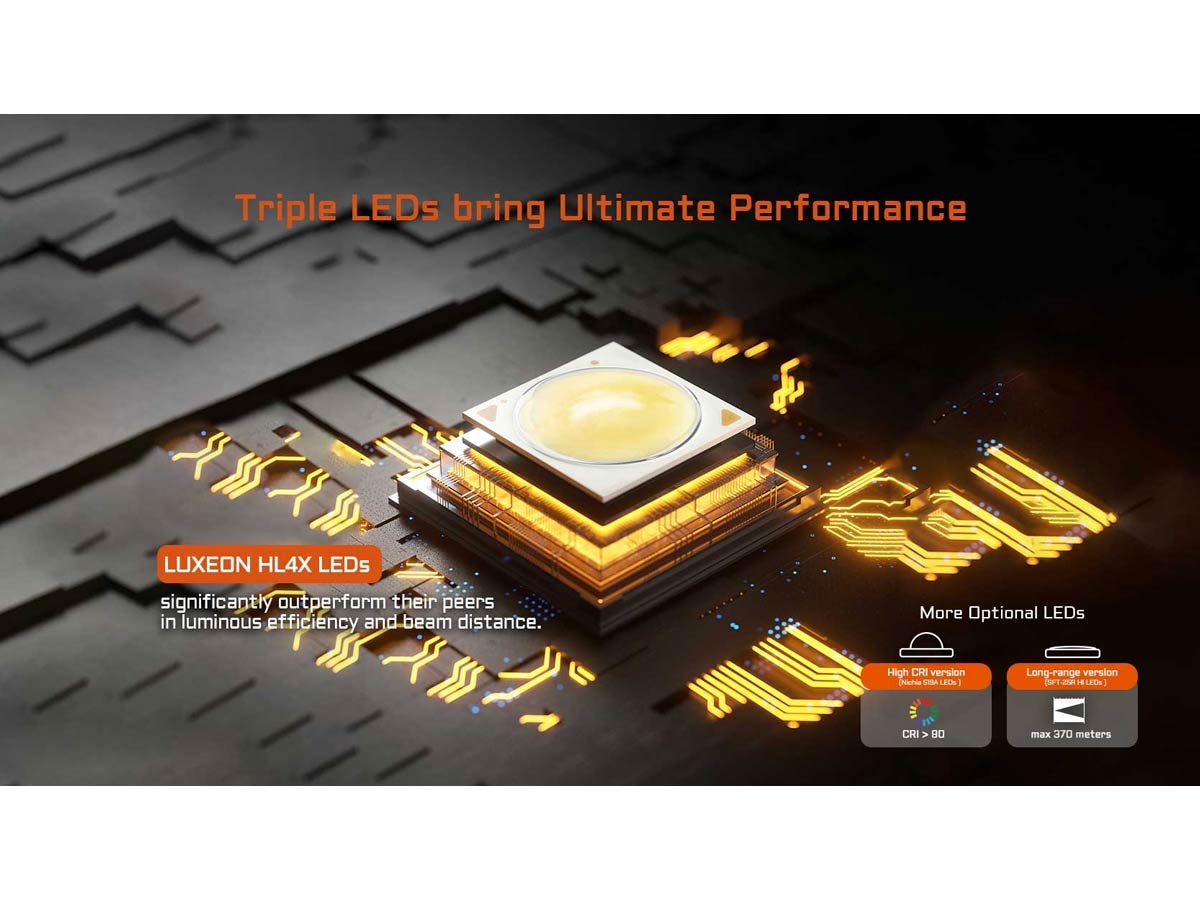

The Acebeam EC20 is incredibly innovative in the field of illumination for many reasons. It is equipped with 3 powerful white light LEDs with an output reaching up to 2,800 lumens. You'll be able to pick from max-brightness LUXEON, high-intensity Luminus, or High-CRI Nichia light engines: choose the LUXEON for the greatest output (2800 lumens), Luminus for the longest range (1,213ft), or Nichia for a Neutral White LED for the best color quality (CRI90). Mix and match the LED package with your desired use, whether it be for everyday carry, a late-night/early-morning walk, or for camping.

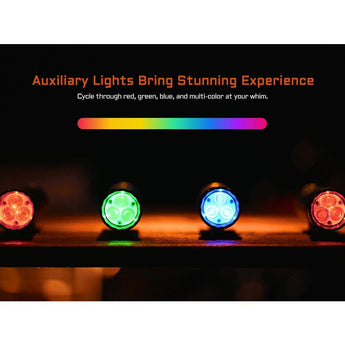

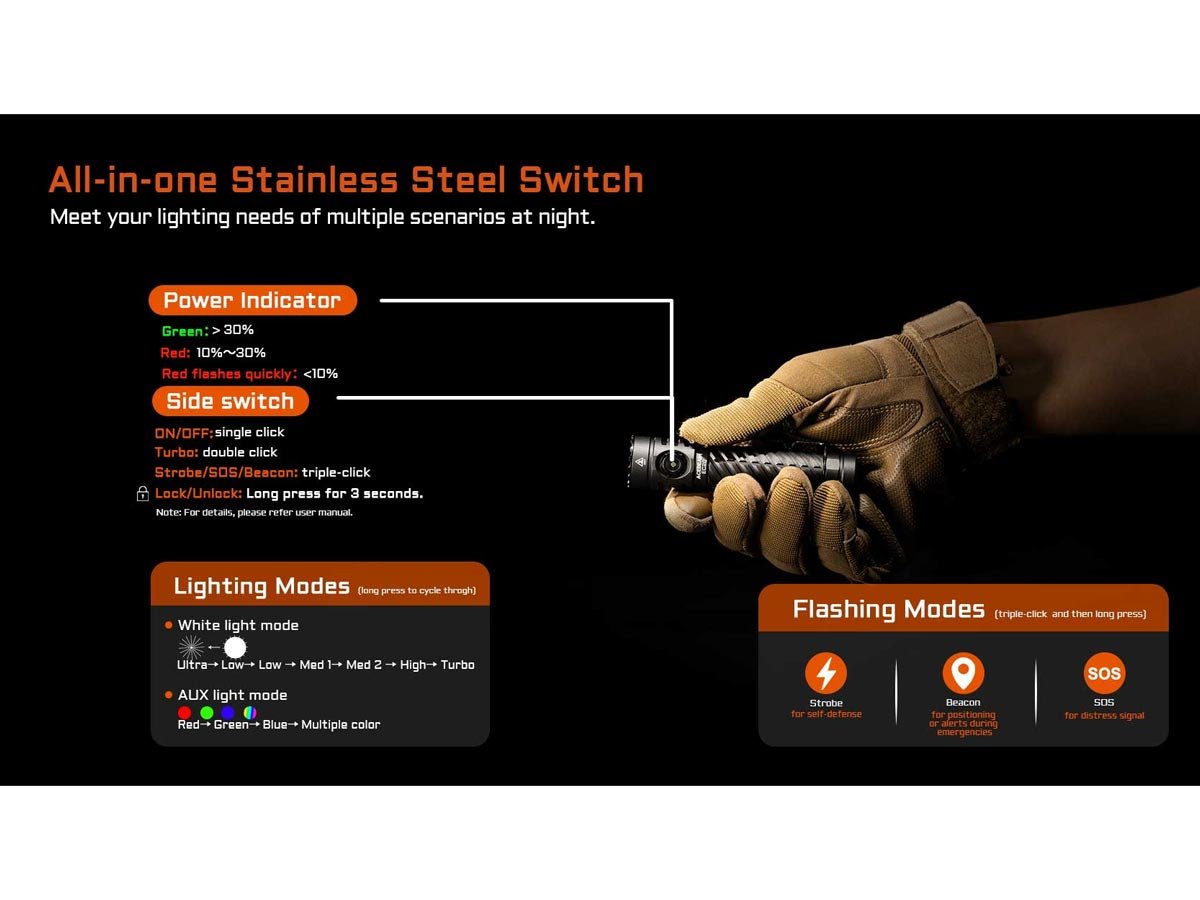

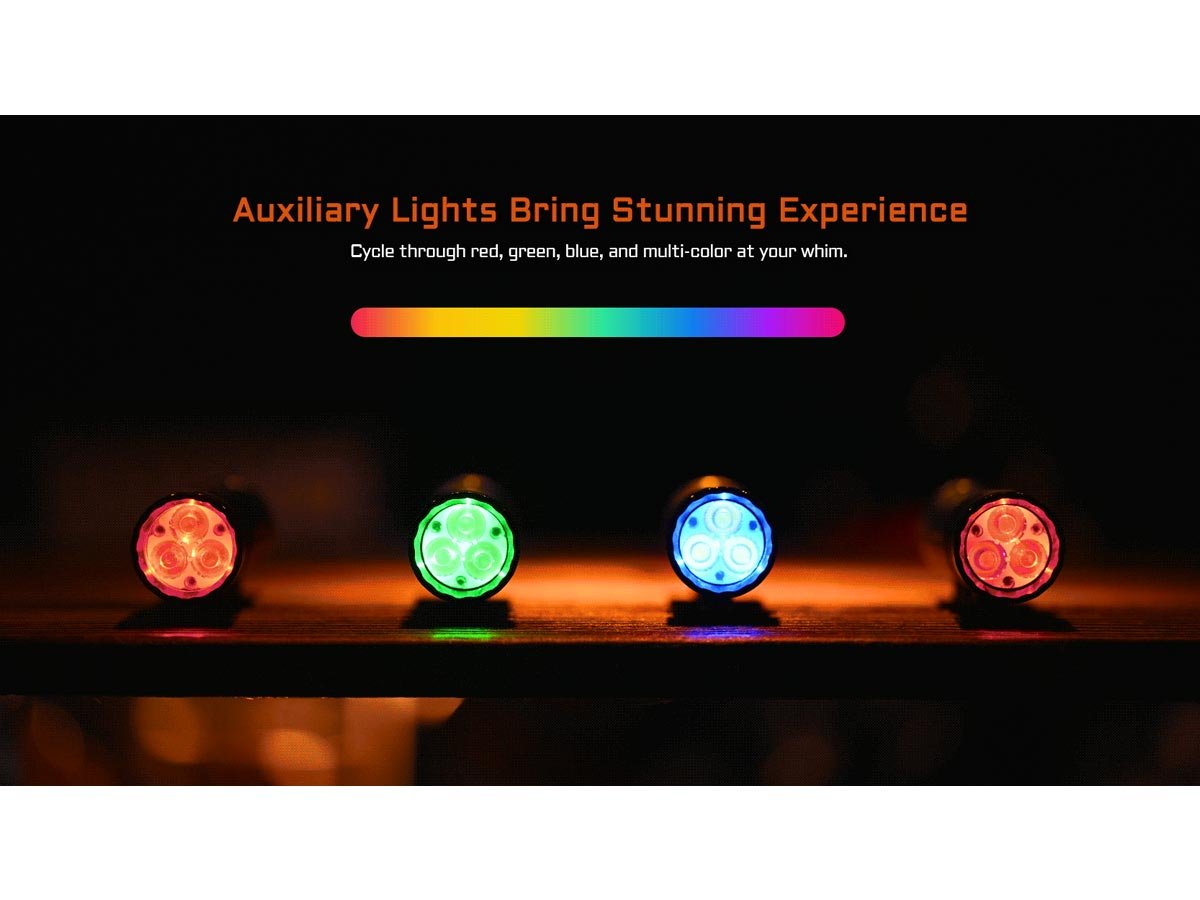

The EC20 also has an RGB Auxiliary light source that makes it even more useful for hunting, fishing, and ambient lighting. The light has 6 brightness levels as well as Strobe, SOS, and Beacon modes for emergencies. All modes are accessed by the durable metal side switch, which has an integrated power indicator to keep you apprised of your remaining battery level.

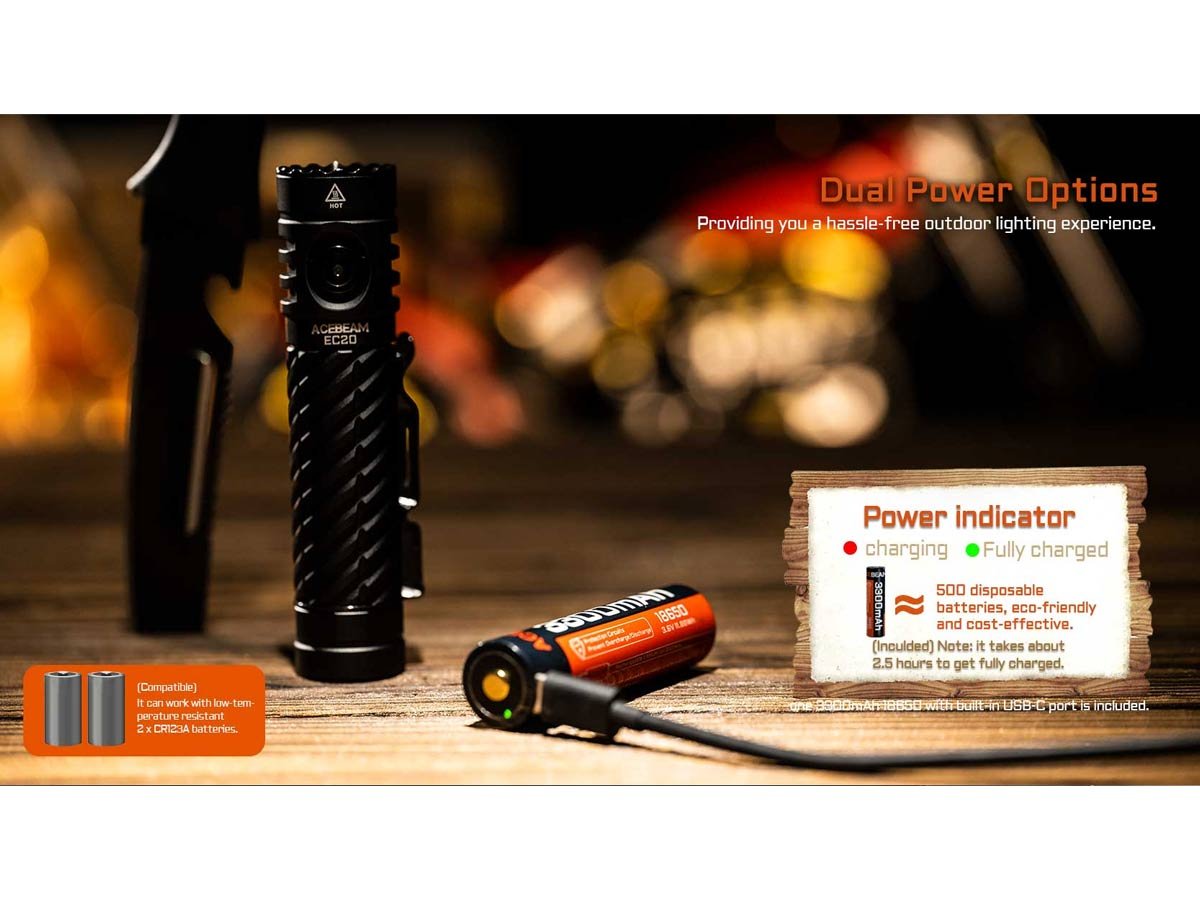

Dual Fuel - Rechargeable or Single-Use Battery Options
It's easy to keep the EC20 powered thanks to dual fuel battery compatibility with 1 x rechargeable 18650 or 2 x single-use CR123A lithium batteries. A high-performance li-ion 18650 with a 3300mAh capacity and built-in USB-C port is included for your convenience, which you can recharge from outlets, power banks, computers, and more. This battery provides a maximum runtime of 36 hours on the Ultra-Low output, and fully recharges in only 180 minutes to keep you on-the-move.
Rare & Innovative: Stepless Dimming and a Magnetic Tailcap
The Acebeam EC20 has available stepless dimming programming, meaning you can quickly and easily access the amount of light you need without the arbitrary restrictions of brightness levels! The EC20 also features a flat, magnetic tail cap, which allows for indoor tail-stand illumination as well as mounting on metal surfaces when you need hands-free illumination.

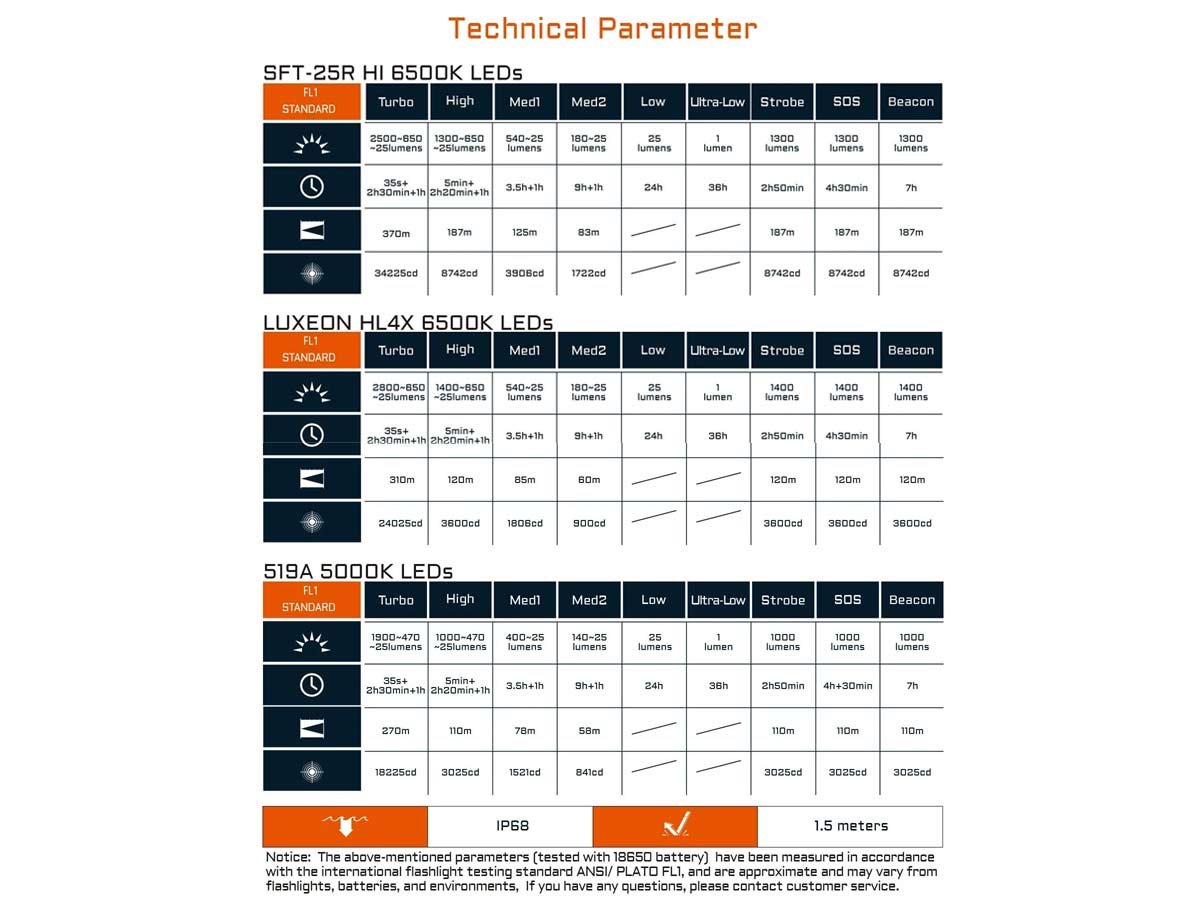

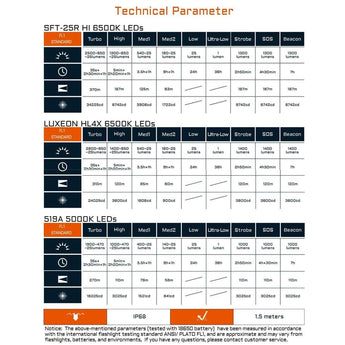

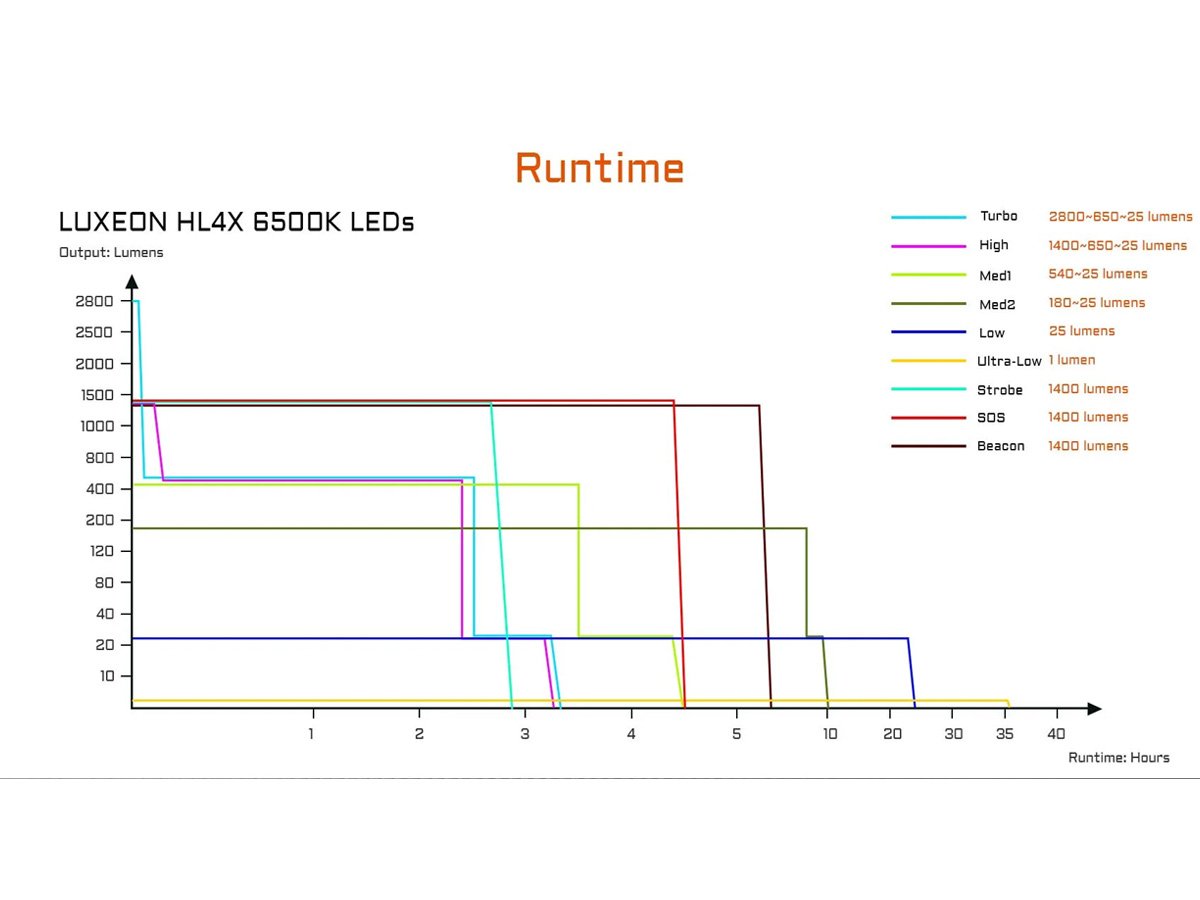

| Turbo | High | Med1 | Med2 | Low | Ultra-Low | Strobe | SOS | Beacon | |
| Brightness | 2800↓650↓25lumens | 1400↓650↓25lumens | 540↓25lumens | 180↓25lumens | 25lumens | 1lumens | 1400lumens | 1400lumens | 1400lumens |
|---|---|---|---|---|---|---|---|---|---|
| Runtime | 0.58 + 160 + 60minutes | 5 + 140 + 60minutes | 3.5 + 1hours | 9 + 1hours | 24hours | 36hours | 2.83hours | 4.5hours | 7hours |
| Distance | 310meters | 120meters | 85meters | 60meters | - | - | 120meters | 120meters | 120meters |
| Intensity | 24025candela | 3600candela | 1806candela | 900candela | - | - | 3600candela | 3600candela | 3600candela |
| Turbo | High | Med1 | Med2 | Low | Ultra-Low | Strobe | SOS | Beacon | |
| Brightness | 2500↓650↓25lumens | 1300↓650↓25lumens | 540↓25lumens | 180↓25lumens | 25lumens | 1lumens | 1300lumens | 1300lumens | 1300lumens |
|---|---|---|---|---|---|---|---|---|---|
| Runtime | 0.58 + 160 + 60minutes | 5 + 140 + 60minutes | 3.5 + 1hours | 9 + 1hours | 24hours | 36hours | 2.83hours | 4.5hours | 7hours |
| Distance | 370meters | 187meters | 125meters | 83meters | - | - | 187meters | 187meters | 187meters |
| Intensity | 34225candela | 8742candela | 3908candela | 1722candela | - | - | 8742candela | 8742candela | 8742candela |
| Turbo | High | Med1 | Med2 | Low | Ultra-Low | Strobe | SOS | Beacon | |
| Brightness | 1900↓470↓25lumens | 1000↓470↓25lumens | 400↓25lumens | 140↓25lumens | 25lumens | 1lumens | 1000lumens | 1000lumens | 1000lumens |
|---|---|---|---|---|---|---|---|---|---|
| Runtime | 0.58 + 160 + 60minutes | 5 + 140 + 60minutes | 3.5 + 1hours | 9 + 1hours | 24hours | 36hours | 2.83hours | 4.5hours | 7hours |
| Distance | 270meters | 110meters | 78meters | 58meters | - | - | 110meters | 110meters | 110meters |
| Intensity | 18225candela | 3025candela | 1521candela | 841candela | - | - | 3025candela | 3025candela | 3025candela |
The above-mentioned parameters (tested with 18650 battery) have been measured in accordance with the international flashlight testing standard ANSI/PLATO FL1, and are approximate and may vary from flashlights, batteries, and environments.
- Notable Features
- » Triple-LED, all-purpose flashlight with multiple white & RGB light outputs to suit any situation

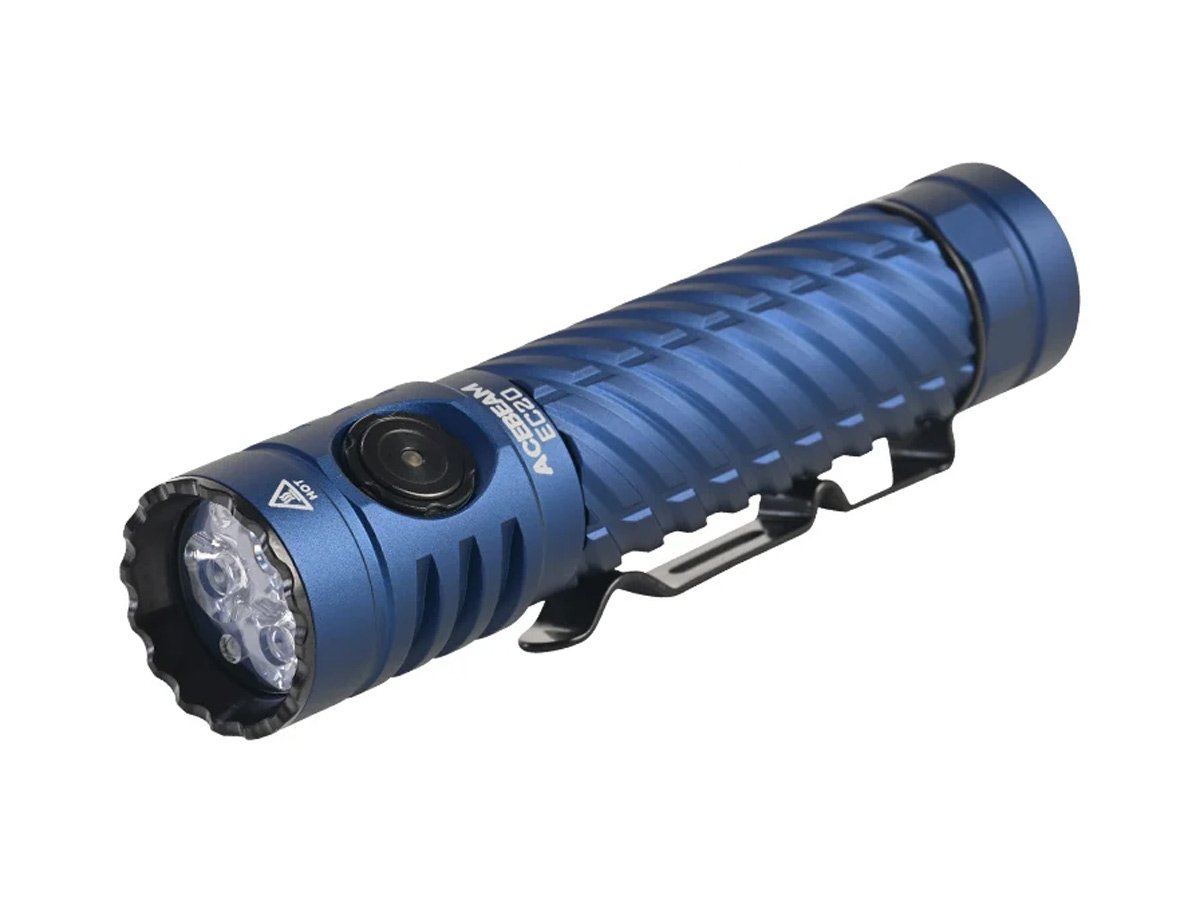

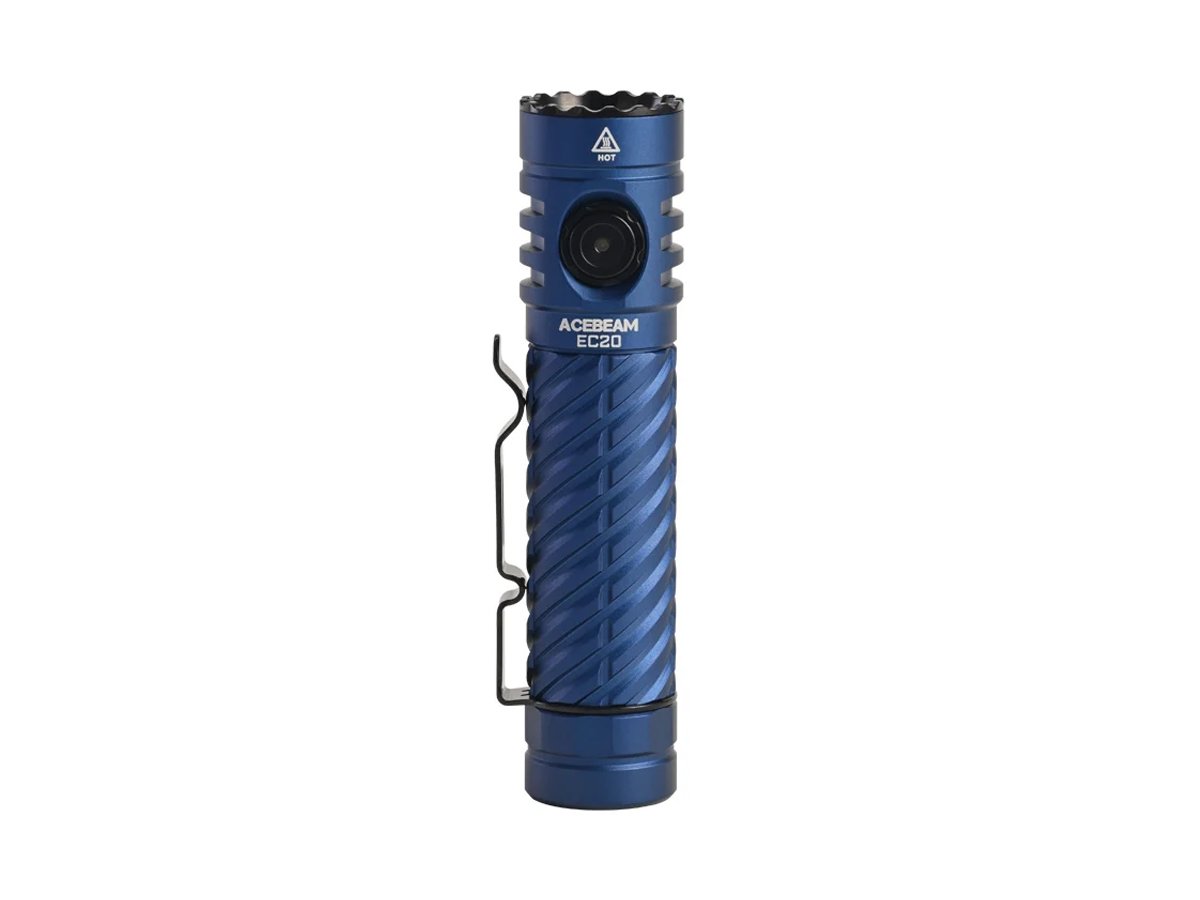

- » 2 color and 3 LED options - Black (LUXEON, Luminus, or Nichia LEDs) or Blue (Luminus LEDs) for a highly customizable build
- » Dual fuel compatibility with 1 x 18650 (3300mAh, USB-C rechargeable model included) or 2 x CR123As for when you're able to charge up from wall or car adapters, computers, power banks, or other power sources - or you need to stand the test of time out in the field
- » Optional pocket clip and lanyard for simple standby storage, plus a magnetic tailcap for hands-free lighting
- » Safety-first lockout function preserves battery and prevents accidental activations
- » Non-PWM constant current circuits provide anti-flicker illumination

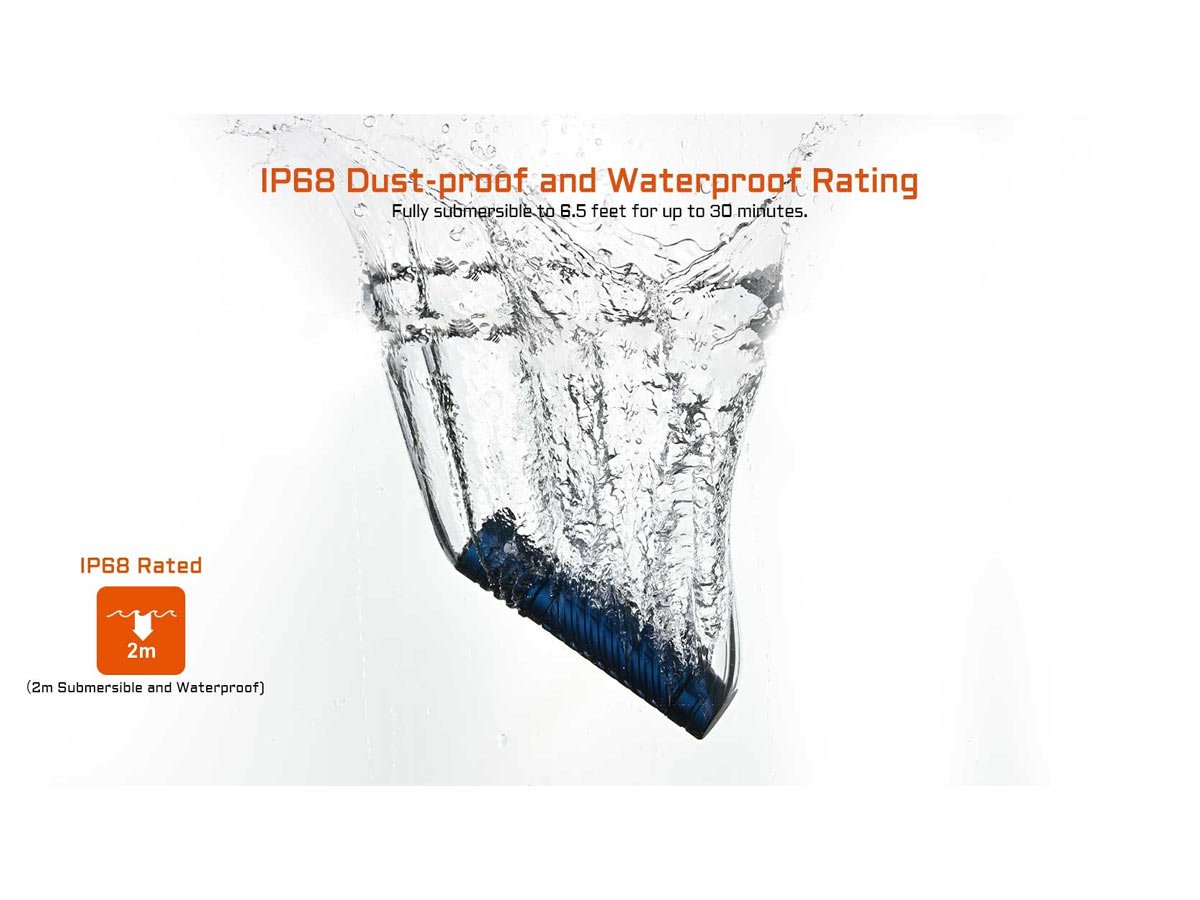

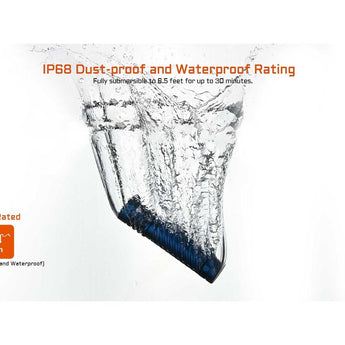

- » IP68 weather rating protects against everything from rainstorms to snowy tundras and sand dunes to dusty industrial buildings

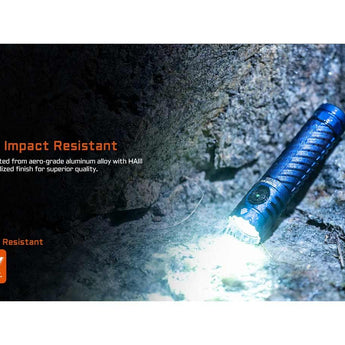

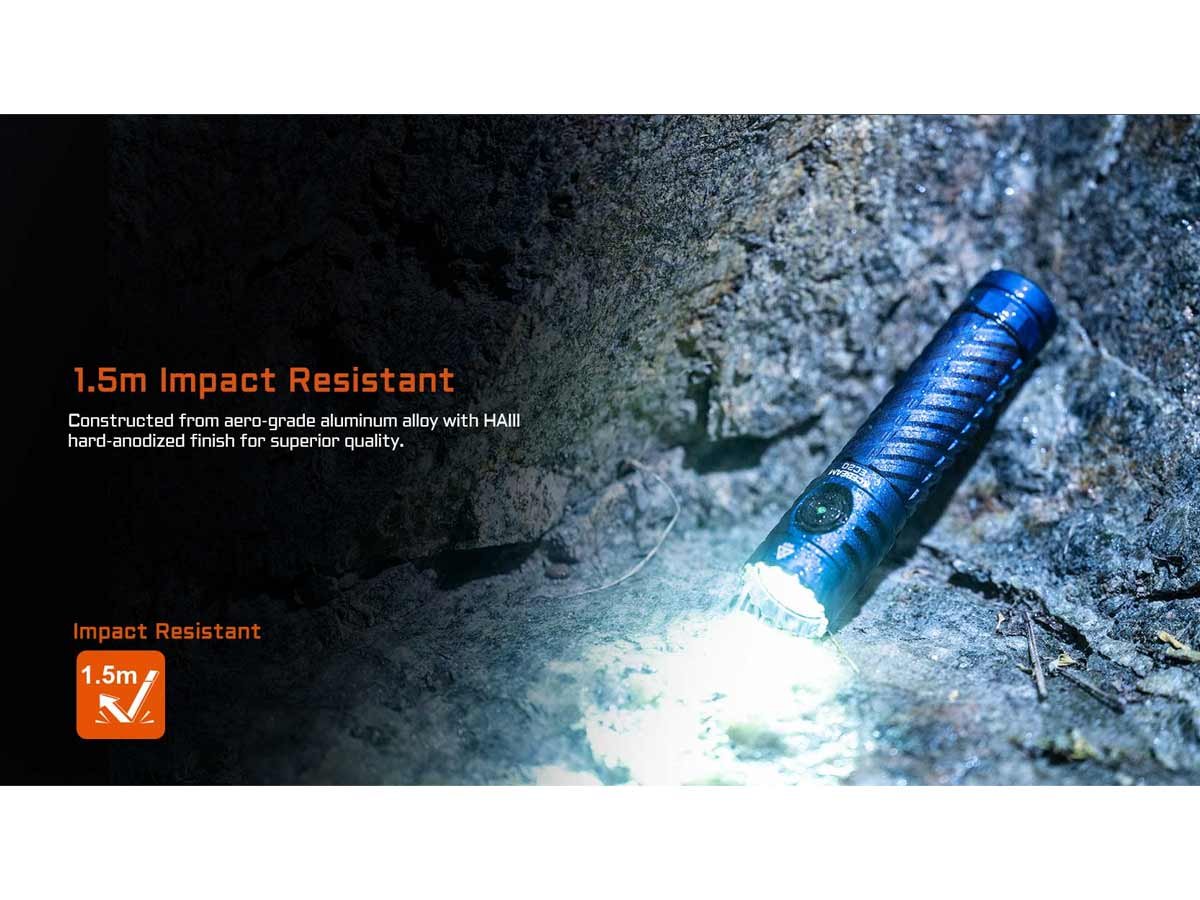

- » 1.5m impact resistance safeguards against drops from 4.92ft in height, so the light remains ready for use in rough-and-tumble conditions
Item Details
| Brand | Acebeam |
| SKU | ACEBEAM-EC20-LUXEON-BLACK |
| Series | EC (All Purpose) |
| Manufacturer Part Number | EC20-LUXEON-BLACK |
| UPC | 6970526501227 |
| Primary Material | Anodized Aluminum |
| Max Lumens (lm) | 2800 |
| Max Throw (m) | 270 |
| Rechargeable | No |
| Batteries Included? | Yes |
| Switch | Body |
| Light Color | Neutral White |
| Color Temperature | 5000K |
| Length | 4.31 in (109 mm) |
| IP Rating | IP68 |
| Typical Uses | Camping, Every Day Carry, Hiking, Hunting, Outdoor, Photography, Walking |

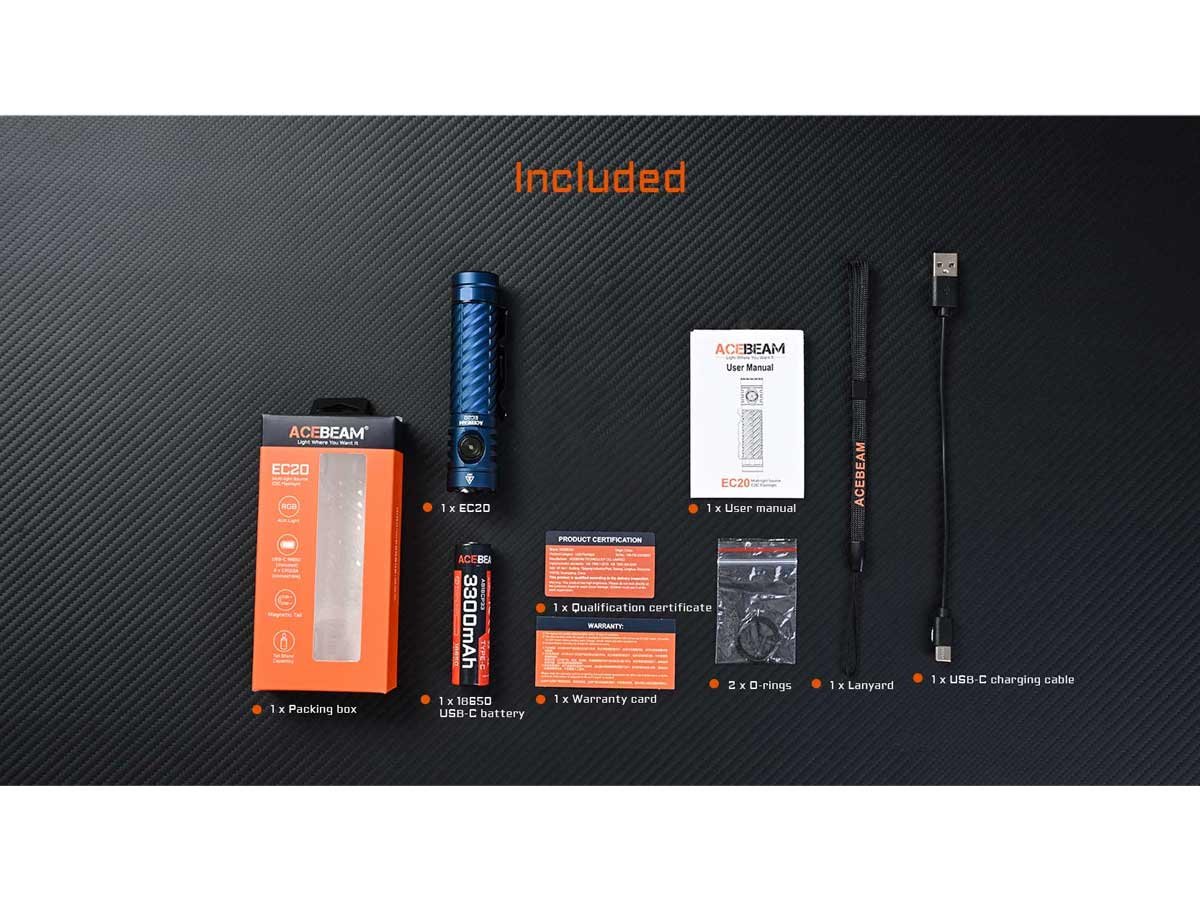

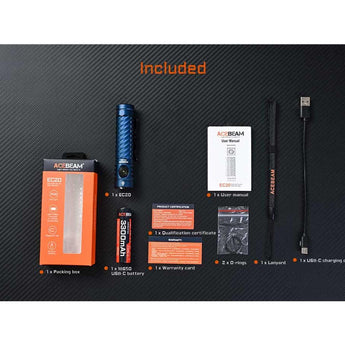

| In the Box | Batteries, Lanyard, Spare O-ring(s), USB Cable, User Manual |
Specifications
| IP Rating | IP68 |
| Drop Resistance | 5 ft (1.5 m) |
| Switch | Body |
| Primary Material | Anodized Aluminum |
Output Details
| Max Lumens | 2800 |
| Max Throw | 270 m (886 ft) |
| Light Color | Neutral White |
| Color Temperature | 5000K |
Power Details
| Batteries Included? | Yes |
| Rechargeable | No |
| Charge Style | Battery w/ Charge Port |
| Charge Connector | USB-C |

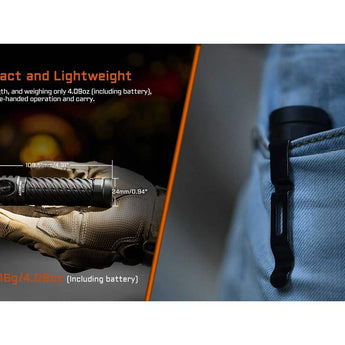

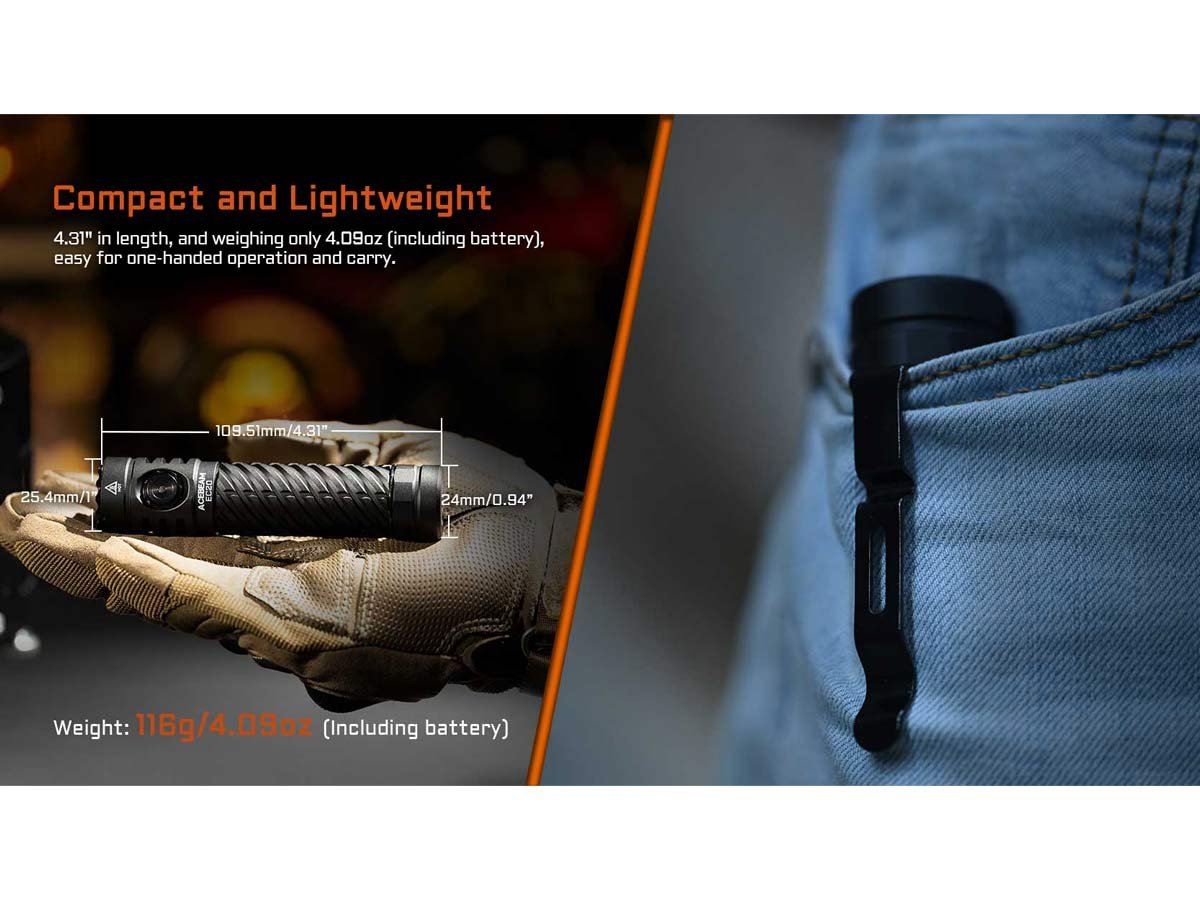

Unit Dimensions
| Length | 4.31 in (109 mm) |
| Head Diameter | 1.0 in (25 mm) |
| Body Diameter | 0.94 in (24 mm) |
| Weight | 4.09 oz (116 g) |
Certifications & Transport
| Certifications/Standards | ANSI, CE |
Packaging/Shipping Dimensions
| Length | 5 in |
| Width | 2 in |
| Height | 2 in |
| Shipping Weight | 0.355 lb |
Documents
Additional Details
| Packaging | Boxed |
| Warranty |
Acebeam 5 Year Warranty Battery Junction Warranty |
| Return Policy | Return Policy |
| Glossary | Flashlight Glossary |
