Klein Tools HVAC Clamp Meter with Differential Temperature
- Batteries Included?: No
Recently viewed
Description

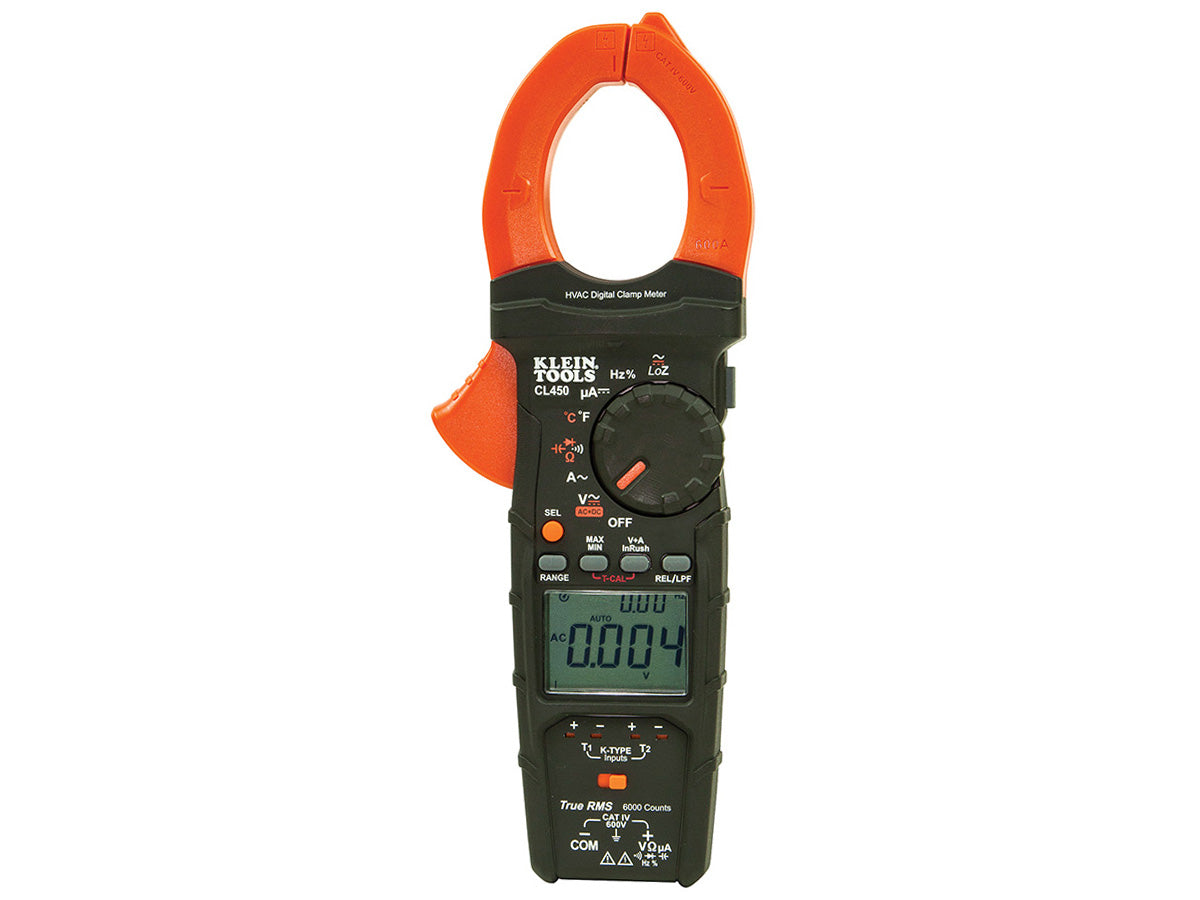

Klein Tools HVAC Clamp Meter with Differential Temperature
True RMS Measurement Technology
The new Klein HVAC Clamp Meter is the preferred meter used by HVAC professionals. Its two K-type thermocouple ports for differential temperature reading can be used to troubleshoot numerous applications and is an invaluable tool on the road. Through the use of the amp clamp, the automatic ranging True Root Mean Squared (TRMS) measurement technology is used for AC current and inrush current. Inrush current measures surges when an electrical device is started up - this is vital for installation, diagnostics and maintenance of electrical motors. The DC microamp measures DC current across flame sensors, and confirms flame rectification. The Clamp Meters' test leads can measure a range of voltage, amperage, resistance, continuity, frequency and much more. Built tough and user-friendly, it can survive a drop from two meters high and has a digital temperature calibration button - no more fussing with screwdrivers to adjust meters.
Proudly Made in the U.S.A.
Features:
- Electrical tester used in a variety of HVAC applications
- Amp clamp with automatically ranging TRMS measurement technology
- Clamp measures AC current and inrush current
- Capable of using a variety of K-Type thermocouples
- Double insulation safety rating, multiple certifications
- Differential temperature with digital calibration - used for troubleshooting
- Dedicated mode for capturing DC Micro AMP and Inrush current
- Integrated non-contact voltage tester
- Low-pass filter and low impedance mode - identify ghost and stray voltages easier
- Backlit LCD screen - ideal for low lit jobs
- Replacement parts available - sold separately
- Klein Tools 2 Year Limited Warranty

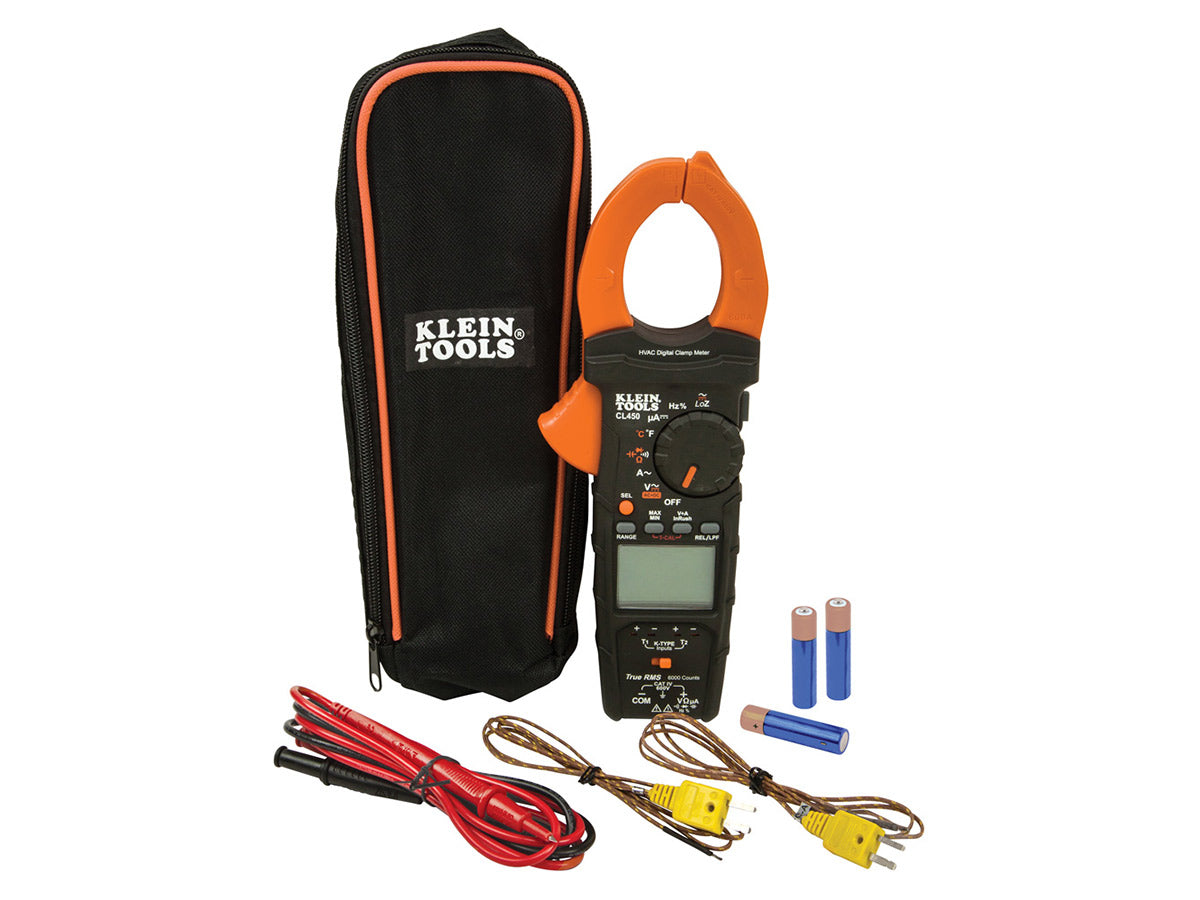

Included:
- 1 x Carrying Case
- 1 x Straight Input Test Leads
- 2 x K-Type Thermocouples
- 3 x AAA Batteries
- User Manual
Technical Specifications:
- Environment: Indoor/Outdoor
- Material: Plastic/Electronics
- Power Source: 3 x AAA Batteries
- Auto-Power Off: Yes
- Calibration: Accurate for one year
- Jaw Size: 2" (50.8mm)
- Impact Resistance: 2 meters (6.6 feet)
- Display: 6000 Count LCD, Backlit
- Frequency: 999.9kHz
- Current: 600A AC
- Capacitance: 6000µF
- Resistance in Ohms: 60MΩ
- AC Voltage: 1000V
- DC Voltage: 1000V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 200 µA with 1µA Resolution
- Operating Temperature Range: -40°F to 1832°F (-40°C to 1000°C)
- Standards Met: CATIV 600V, CATIII 1000V, UL STD
- Certifications: CE, ETL, Intertek, CSA STD, IEC/EN
- Safety Rating: CAT IV 600V, Double Insulation
- UPC: 092644690631
Dimensions:
- Overall Length: 10.00" (254mm)
- Overall Width: 3.77" (95.75mm)
- Overall Height: 1.59" (40.38mm)
- Weight: 12.50 oz. (354g) without batteries
Note: Please see included or downloadable user manual for more detailed product map, information on instructions and certification details.
Warnings: Never use the meter on a circuit with voltages that exceed the category based rating of this meter. Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use. Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged. Before each use verify meter operation by measuring a known voltage or current. Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
Item Details
| Brand | Klein Tools |
| SKU | KLEIN-TOOLS-CL450 |
| UPC | 092672690631 |
| Color | Black |
| Length | 10.0 in (254 mm) |
Specifications
| Primary Material | ABS |
Power Details
| Batteries Included? | No |
Unit Dimensions
| Length | 10.0 in (254 mm) |
| Width | 3.77 in (96 mm) |
| Height | 1.59 in (40 mm) |
| Weight | 12.5 oz (354 g) |
Packaging/Shipping Dimensions
| Length | 12 in |
| Width | 10 in |
| Height | 8 in |
| Shipping Weight | 0.8 lb |
Additional Details
| Packaging | Boxed |
| Warranty |
Klein Tools Limited Warranty Battery Junction Warranty |
| Return Policy | Return Policy |
