Malkoff Devices M61 P60 Style Drop In Flashlight Upgrade Engine - 450 Lumens - CREE XP-G LED, (3.4-9V Input)
Brand:Malkoff Devices
MPN:M61
- 450-lumen output with CREE XP-G LED
- P60 drop-in upgrade module fits dozens of light models
- Wide 3.4–9V input compatibility for multiple battery configurations
- Durable, high-reliability design
- Batteries Included?: No
$56.95
Recently viewed
Description
Malkoff Devices M61 P60 Style Drop In Flashlight Upgrade Engine - 450 Lumens - CREE XP-G LED, (3.4-9V Input)

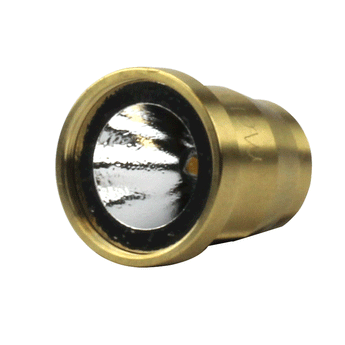

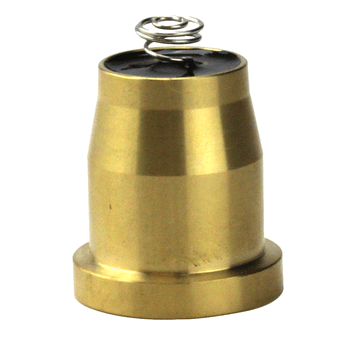

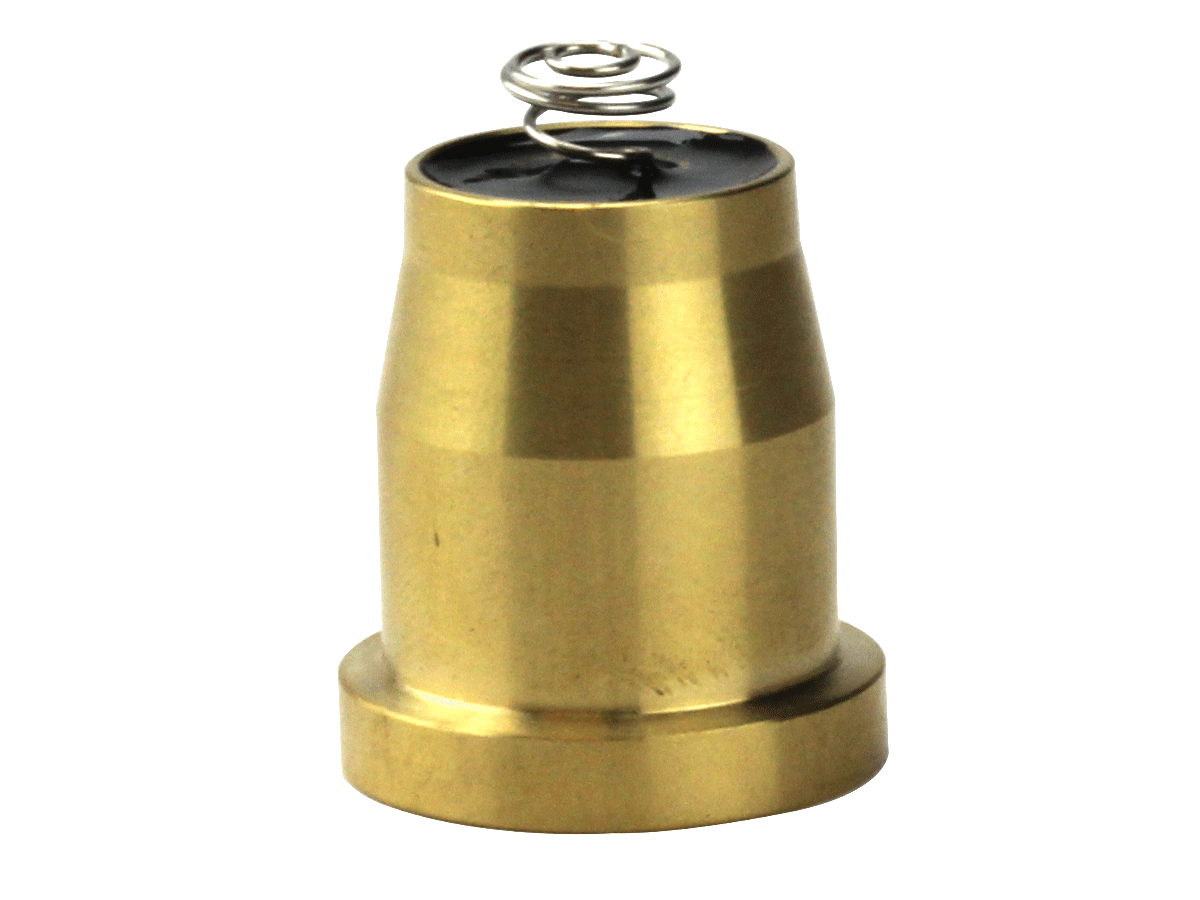

Malkoff Devices M61 LED UpgradeThe Malkoff M61 P60-style drop-in LED upgrade fits SureFire 6P, 6Z, C2, and G2 flashlights as well as the Malkoff MD2 and Elzetta ZFL-M60 lights. A solid brass body acts as a heat sink for optimal heat dissipation so you do not need to worry about your flashlight overheating. The orange peel reflector has been designed to give a balance of throw and spill.The M61 is made to run in lights using two CR123A batteries and operates with regulation within 3.4-9V. When the voltage falls below 3.4V, the light will run in direct drive. The bright output will blind anyone within a 100 foot radius or illuminate objects up to 350 feet away.The M61 is available in a few different varieties. All versions are made in the United States with the same rugged, durable build-quality. The two main differences between the models are: the tint of the LED (either standard or neutral white), and the output/runtime. Models with lower output (and greater runtime) are indicated by an 'L'. The neutral white tint versions are denoted by a "W". This version is the M61, with the greatest brightness of 450 lumens but lowest runtime of about 2 hours.A fitting ring is required if used with a shock-absorbing head (ie M2). An M61 Lens, or suitable equivalent, is required for use in the Malkoff MD2 and Elzetta flashlights.Note: This mod will not work in Wolf Eyes Lights.WARNING: This light is capable of causing eye damage at close range. Please use the light responsibly!!!Note: This drop-in module was intended to operate at maximum brightness for tactical usage similar to the original setup. Operating the unit for more than 15 continuous minutes in plastic lights may cause damage to the drop-in module. This is not an issue in metal lights or in plastic lights with a metal head. Specifications:
- Input: 3.4- 9 V
- Output: 450 Lumens
- LED: Cree XP-G.
- Draw: 650ma at 6 volts.
- Runtime: 2 hours on 2 x CR123 batteries
- Orange Peel Reflector
- Designed for use in Malkoff MD2, Elzetta ZFL-M60, and SureFire 6P, 6Z, C2, M2 and G2 flashlights (may or may not fit other models)
Item Details
| Brand | Malkoff Devices |
| SKU | MALKOFF-M61 |
| Manufacturer Part Number | M61 |
| Color | Brass |
| Length | 1.375 in (35 mm) |
Specifications
| Primary Material | Brass |
| Secondary Material | Glass |
Power Details
| Batteries Included? | No |
Unit Dimensions
| Length | 1.375 in (35 mm) |
| Weight | 1.5 oz (43 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.11 lb |
Additional Details
| Packaging | Retail Packaging |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
