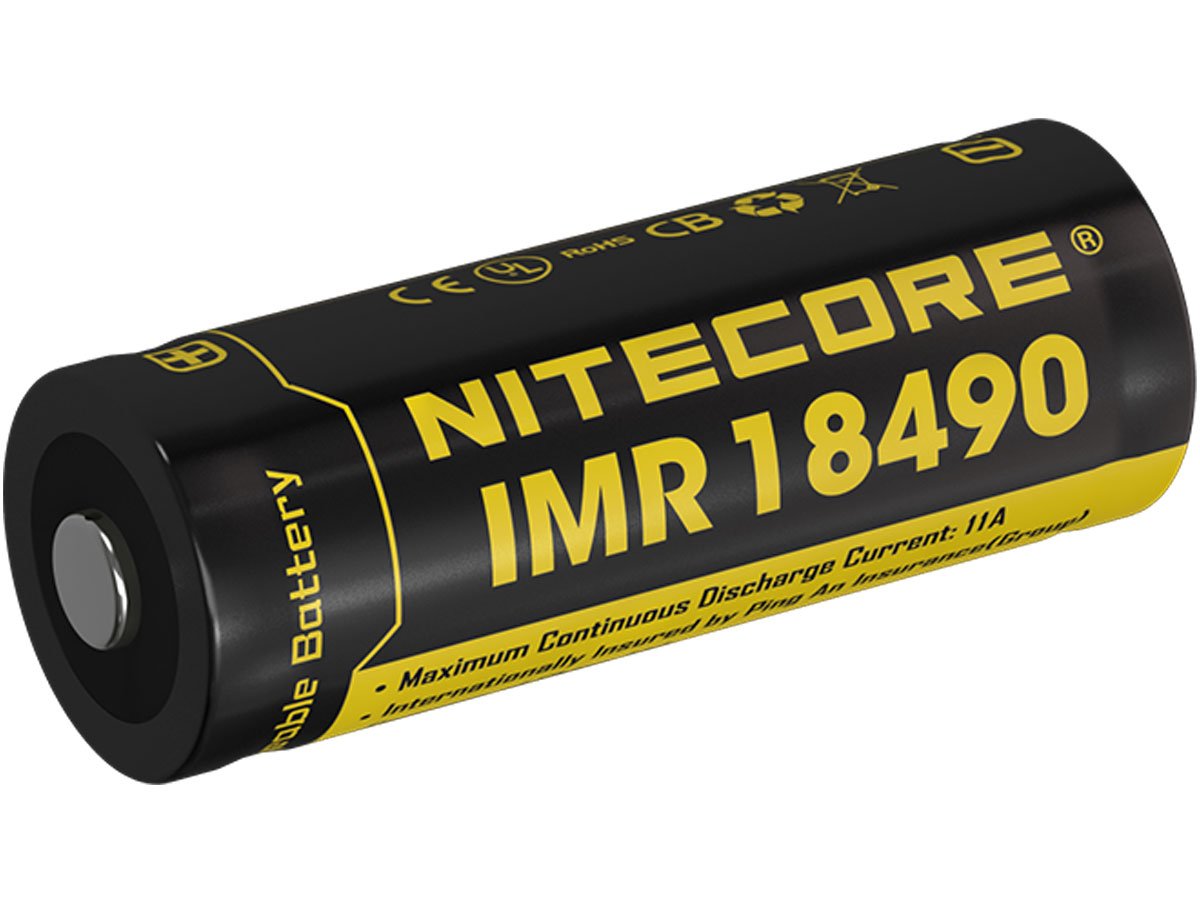

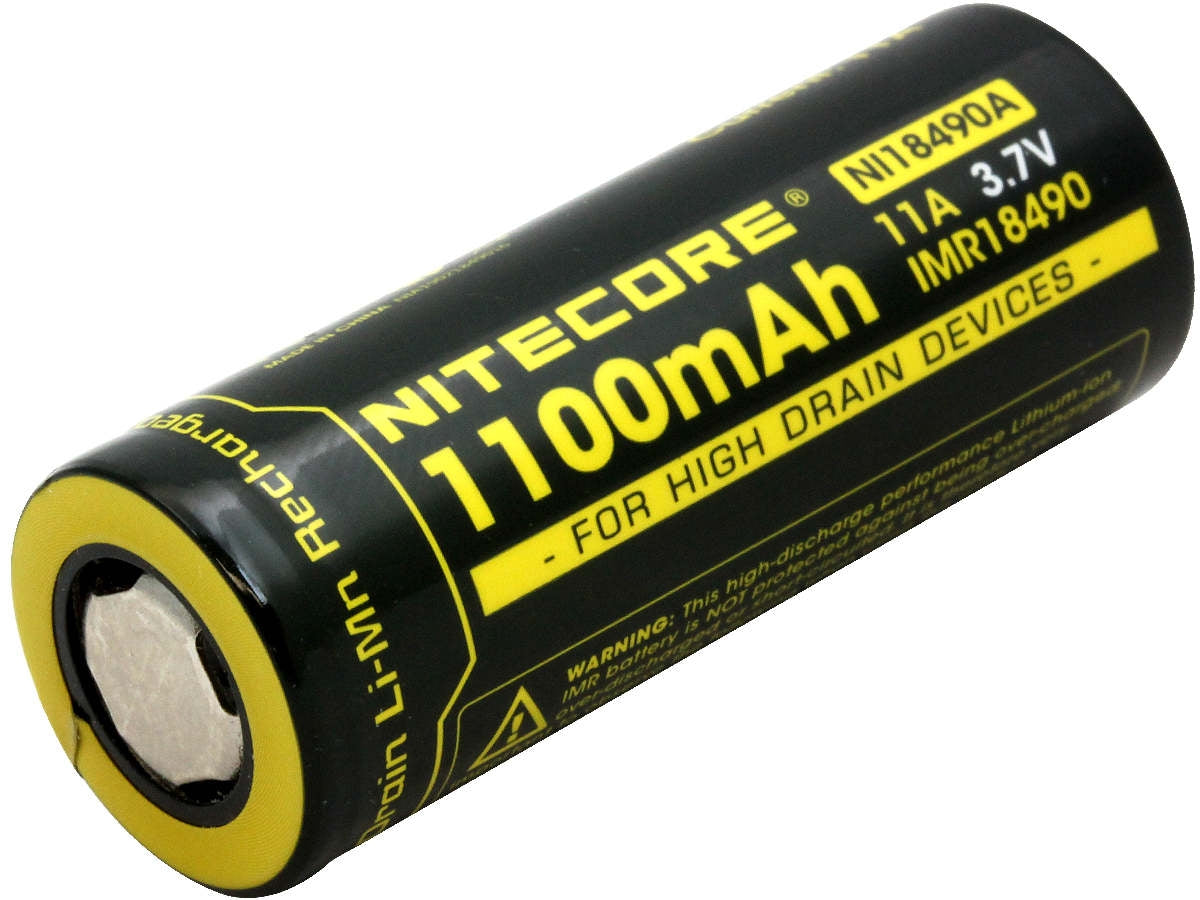

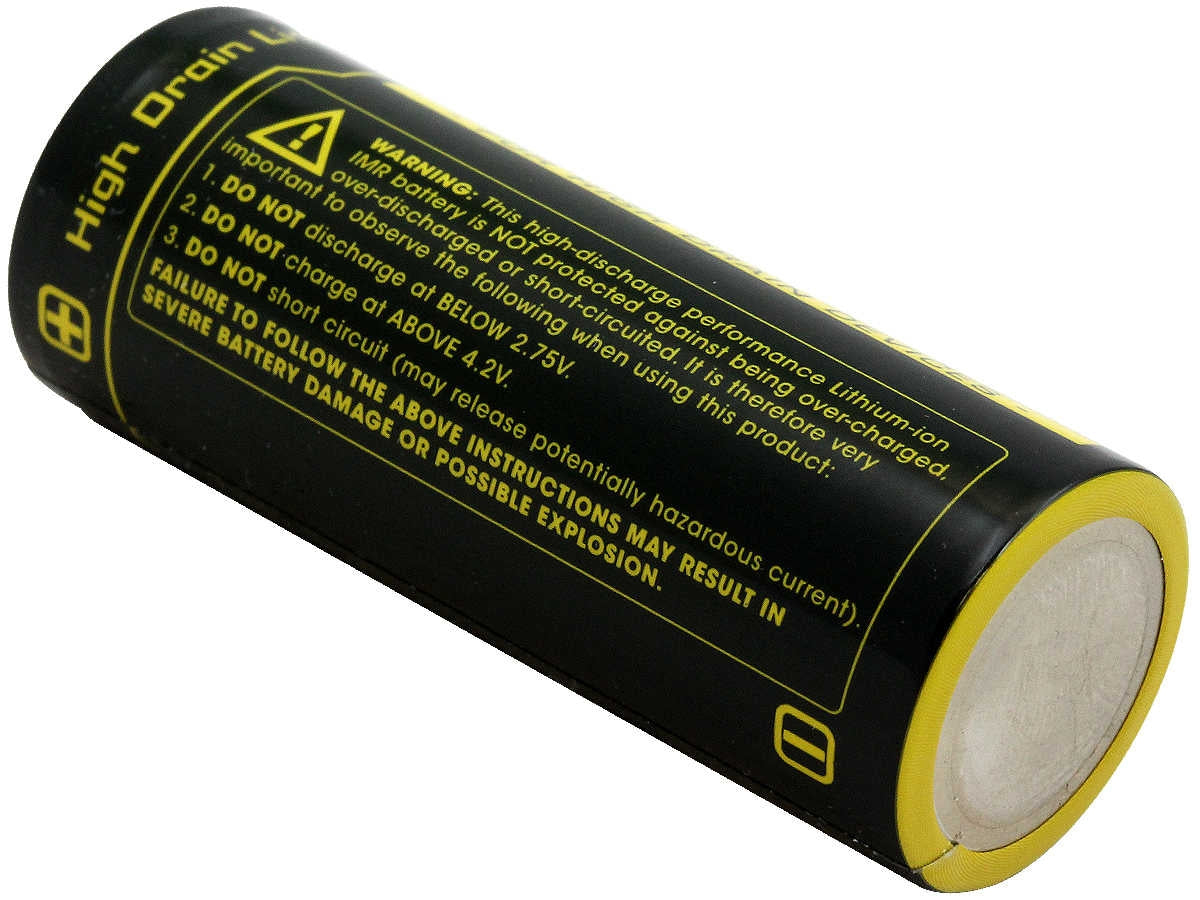

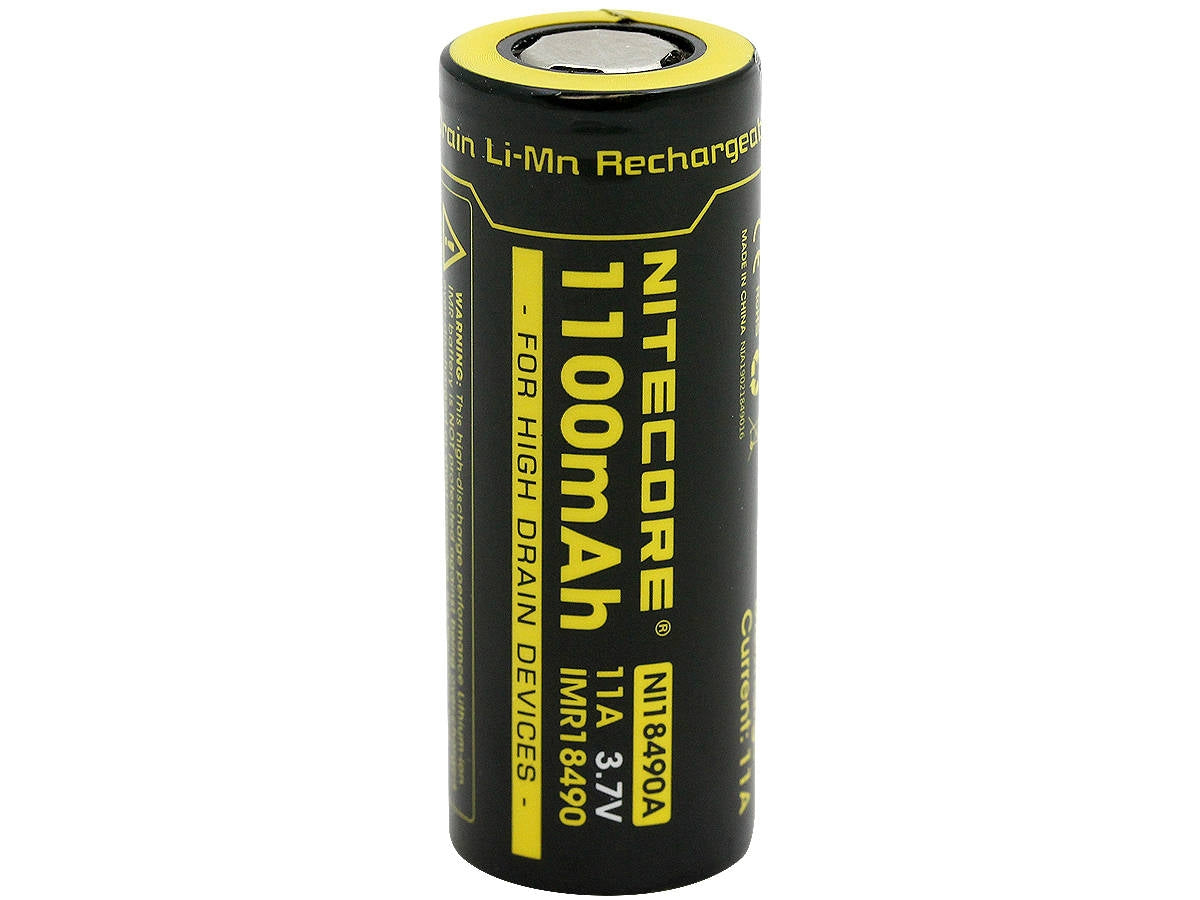

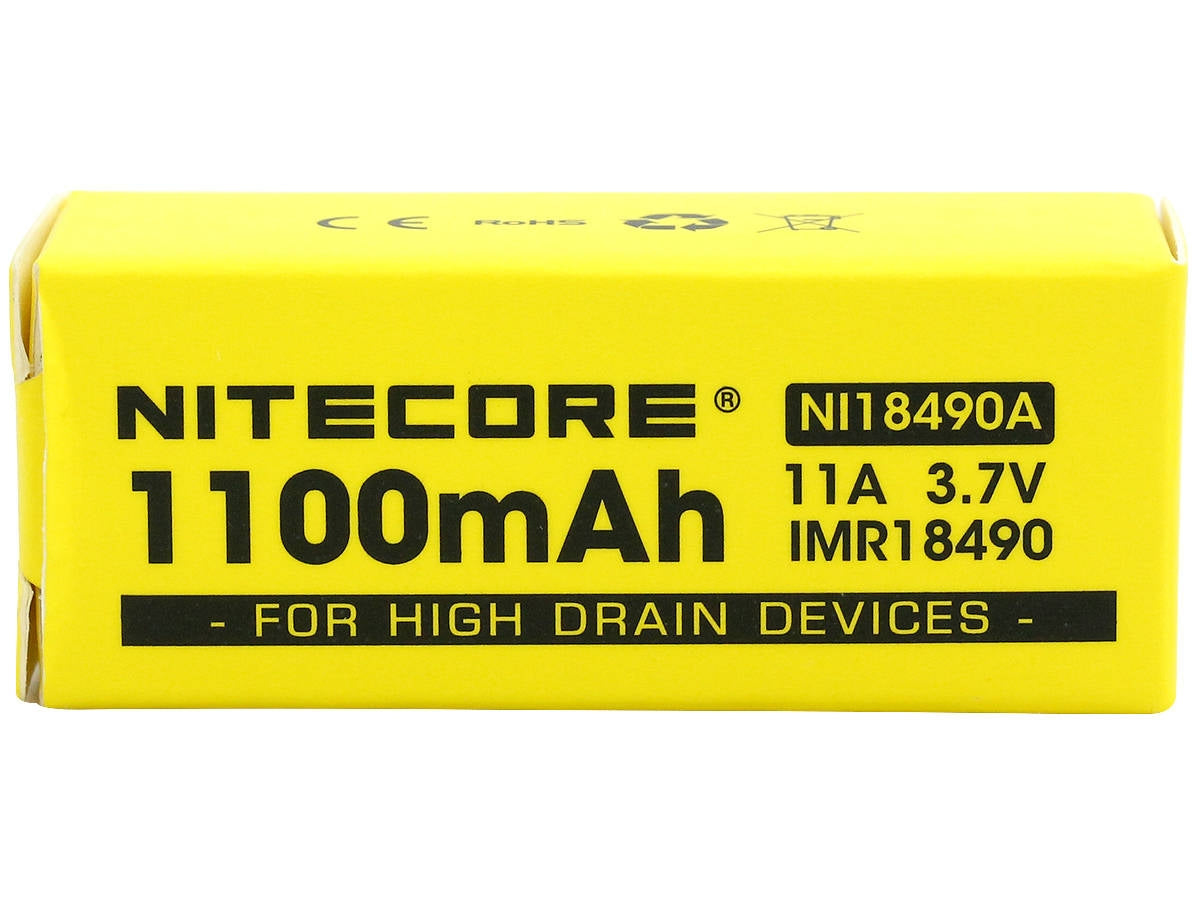

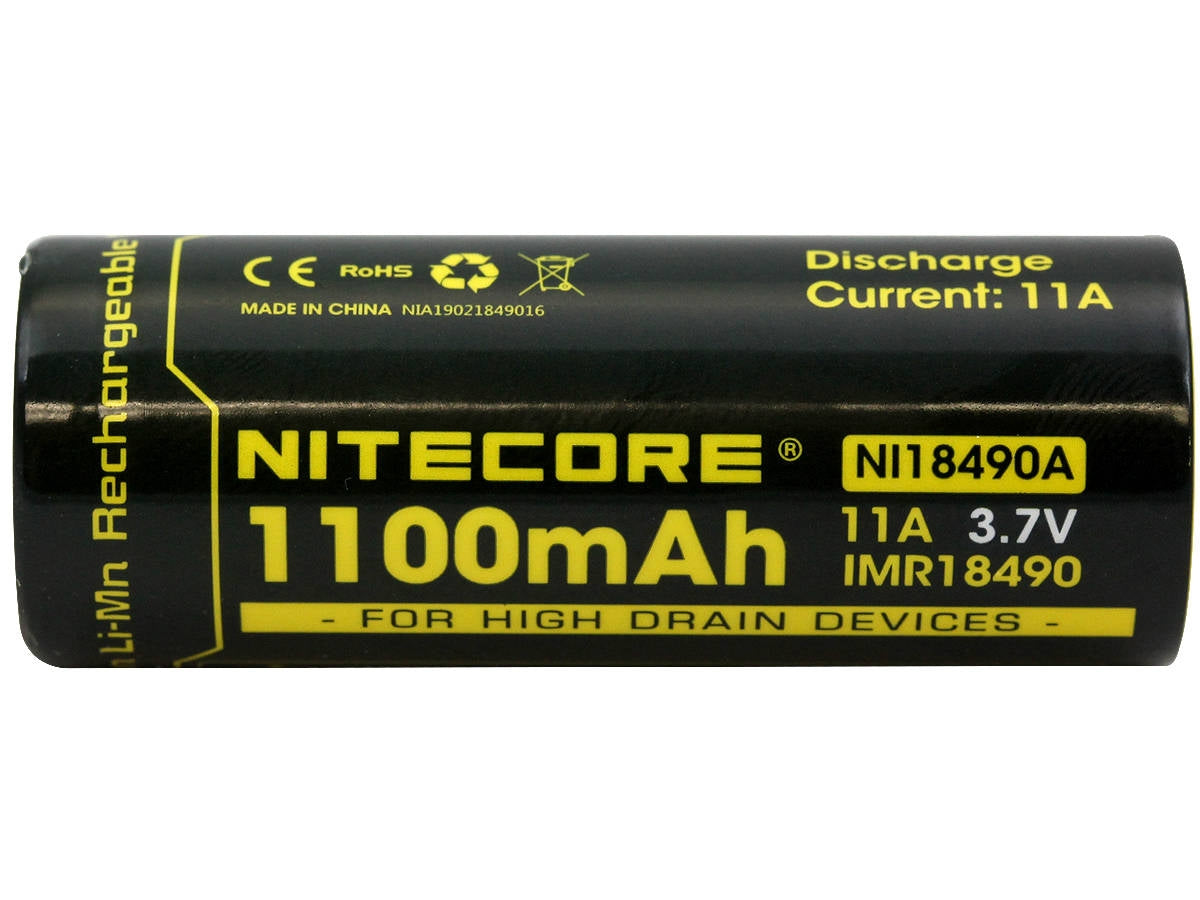

Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed

$9.95
Add To Cart
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed
Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed

Nitecore NL18490A IMR 18490 1100mAh 3.7V Unprotected High-Drain 11A Lithium Manganese (LiMn2O4) Battery - Flat Top or Button Top - Boxed

Brand:Nitecore
MPN:NL18490A-BUTTON
Terminal Type: Button Top
  • Size: 18490
  • Voltage: 3.7
  • Rechargeable: Yes
  • Chemistry: Li-Ion
  • Capacity (mAh): 1100
  • Terminal Type: Button Top
View Full Details
Discontinued
Free Shipping Over $50.00

Pickup currently unavailable at Shop location

$9.95
Discontinued
Free Shipping Over $50.00
Sold Out
BUYMORE
SAVEMORE
Request a Volume Quotation

Recently viewed

Description

Nitecore NL18490A

1100mAh High Discharge IMR Battery

18490 Sized Battery with IMR Chemistry

A favorite for use within the power tool and medical device industry, the Nitecore NL18490A is an 18490 sized battery that provides heavy duty power coupled with unbeatable reliability. The cell's IMR chemistry makes it a perfect addition to your high-drain electronics, so stable it can be used without protection circuitry. The NL18490A runs at 3.7 Volts and can store an impressive 1100mAh of energy, specifically made for use in applications that need a high-discharge current.

The NL18490A has Lithium-ion Manganese Oxide (LiMn204) or IMR Li-ion chemistry. This chemistry is not only rechargeable, but stable and utilized in high-drain devices. Its internal structure uses a cathode made from Lithium Manganese Oxide in a three-dimensional spinel construction that allows for enhanced ion flow. This improved flow lowers internal cell resistance, giving you a faster charge, and high-current discharge. IMR batteries were made particularly for high-drain applications, such as lights, power tools, electronics and medical devices.

By purchasing a rechargeable battery, you are not only saving money, but you are also helping the environment. Reusing your drained cells has never been easier. Don't have a charger for your specific size battery? We offer a variety of smart chargers for your convenience. The Nitecore Digicharger D2 2-Channel Smart Battery Charger is one of the most versatile chargers we offer that can charge your 18490 Li-ion battery as well as a wide range of other sizes too.

Features & Specifications:
  • Available with Flat Top or Button Top terminals
  • Typical Capacity: 1100mAh
  • Nominal Voltage: 3.7V
  • Discharge Voltage: 2.8V
  • Charging Voltage: 4.20±0.05V
  • Max Continous Discharging Current: 11A
  • Dimensions:
    • Length: 1.94" (49.4 mm)
    • Diameter: 0.72" (18.3 mm)
    • Weight: 0.99 oz. (28 g)
collection: 10% Applicable; product type: Batteries - Li-Ion Rechargeable
CAUTION: Unprotected Li-Ion Battery
Unless equipped and 'protected' with a PCB (protection circuit module) and/or similar device, lithium-ion (li-ion) rechargeable battery cells are not recommended by BatteryJunction.com or our parent and associated companies, or the respective manufacturers, as a stand-alone product. Misuse of lithium-ion rechargeable battery cells can pose a serious risk of personal injury or property damage.
Use caution when working with li-ion cells, as they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has appropriate understanding of li-ion rechargeable batteries in charging, discharging, and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any shape or form (including but not limited to pack making). We are not responsible for any damage caused by misuse or mishandling of li-ion batteries and chargers.
No express or implied guarantee of compatibility with any device can be made. Please do your research and make sure this battery is compatible with the item you intend to use it with.
Charge only in a smart charger designed for the specific type of lithium-ion batteries. Do not mix and match old and new, used and unused batteries.
Do not dispose in a fire. Regulations and laws pertaining to the recycling and disposal of lithium-ion batteries vary from country to country, as well as by state and local governments. Please consult your local jurisdiction regarding appropriate disposal. Many retail stores offer free recycling of rechargeable batteries.
Item Details
Brand Nitecore
SKU NITECORE-NL18490A-BUTTON
Series NL
MPN NL18490A-BUTTON
UPC 6952506490981
Size 18490
Voltage 3.7
Battery Rechargeable Yes
Capacity (mAh) 1100
Chemistry Li-Ion
Sub-Chemistry LiMn2O4 IMR
Shelf Life 10 Years
Packaging Contractor Pack
QTY Per Package 1
California Residentssee Prop 65 WARNINGS
Specifications
Size 18490
Voltage 3.7
Battery Rechargeable Yes
Capacity (mAh) 1100
Terminal Type Button Top
Integrated Charge Port No
Max. Discharge Rate 11
Equivalent Types 18490
Unit Dimensions
Length 1.945 in (49 mm)
Diameter 0.72 in (18 mm)
Weight 0.988 oz (28 g)
Certifications & Transport
Certifications/Standards CE, RoHS
Country Of Origin China
Documents
MSDS
Additional Details
Packaging Contractor Pack
Warranty Nitecore 3 Month Warranty
Battery Junction Warranty
Return Policy Return Policy
