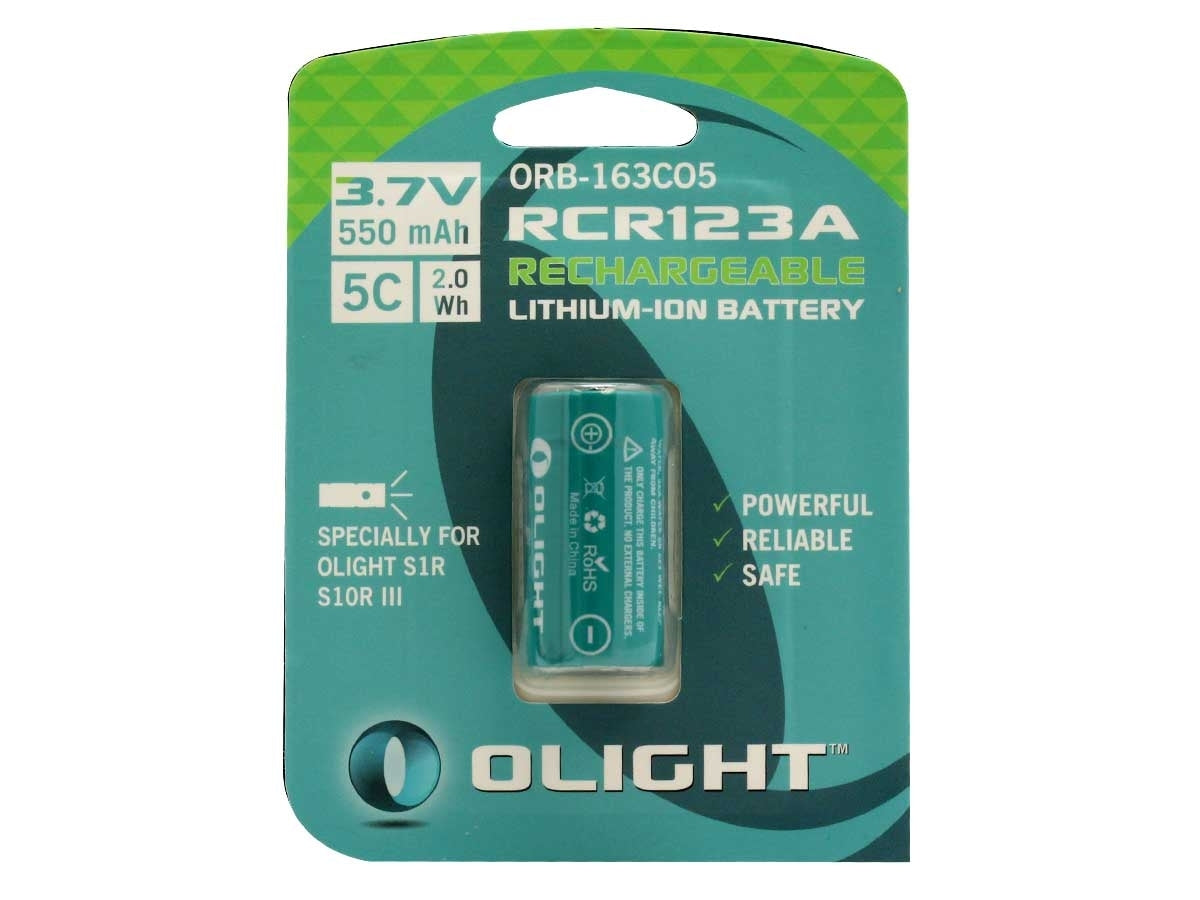

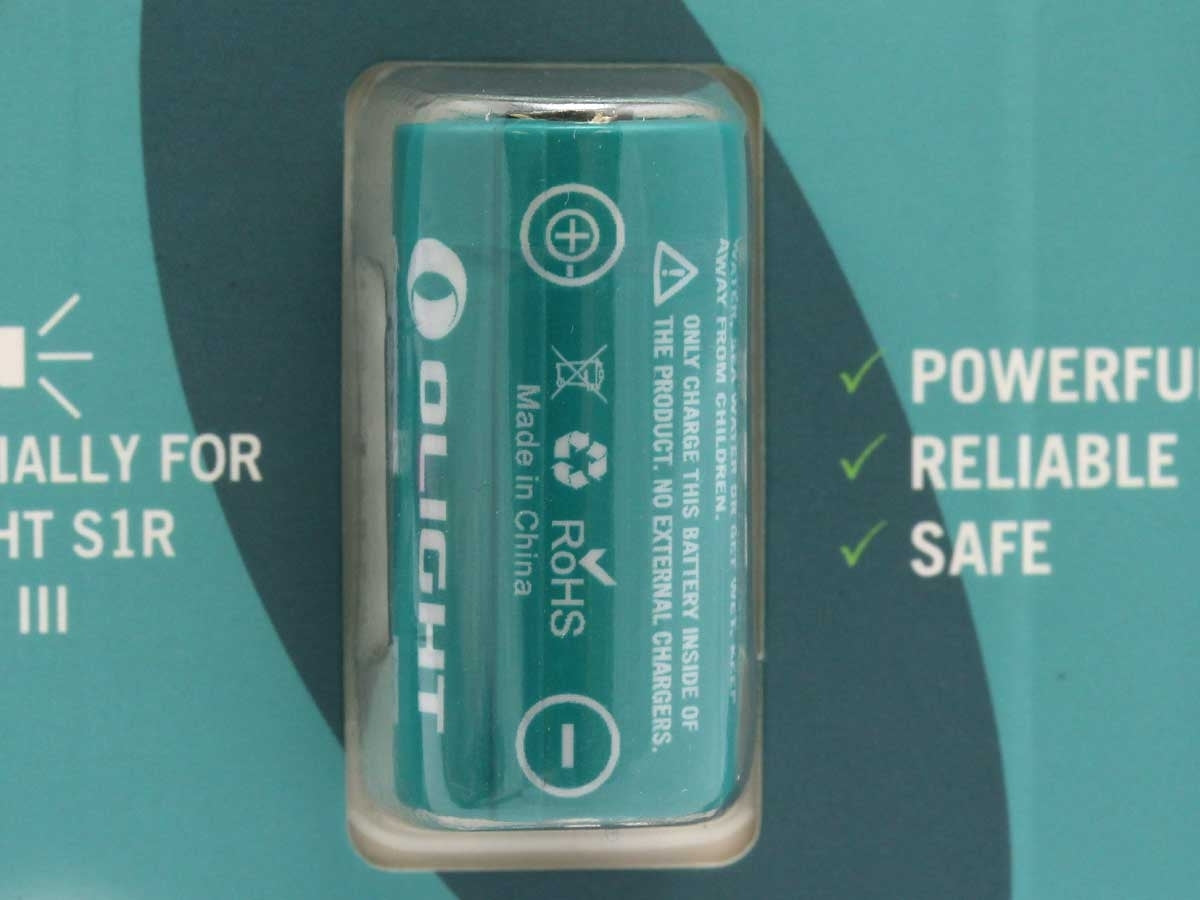

Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card

$5.50
Add To Cart

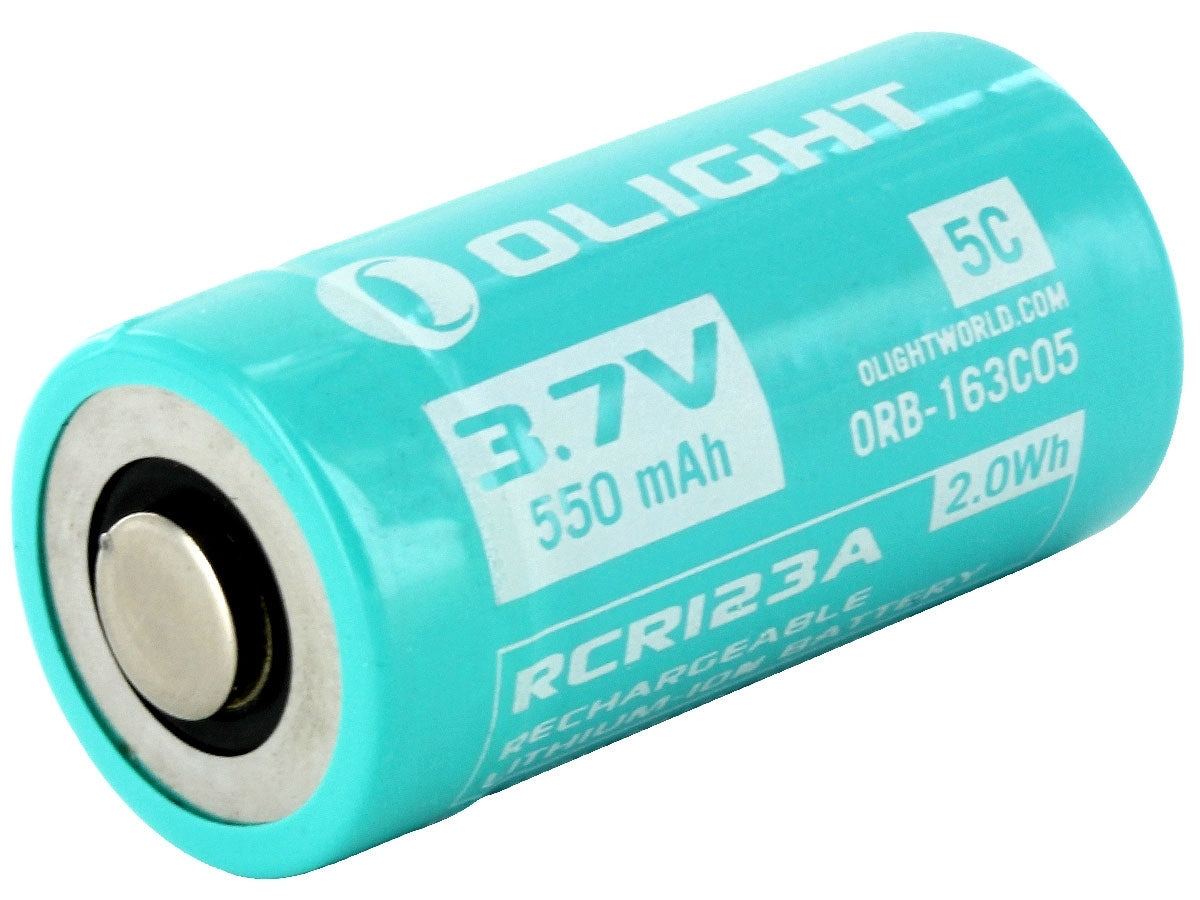

Olight IMR RCR123A Battery - Angle Shot

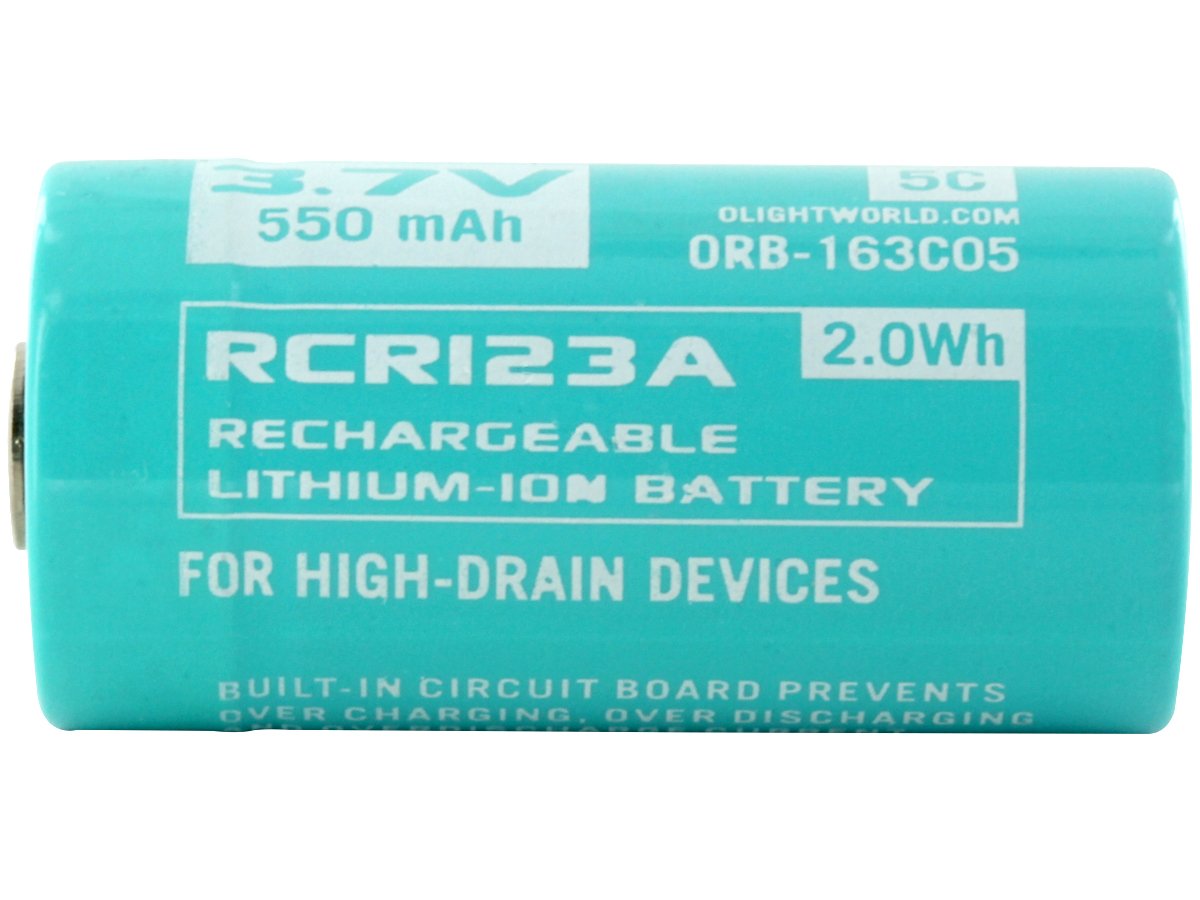

Olight IMR RCR123A Battery - Side Shot

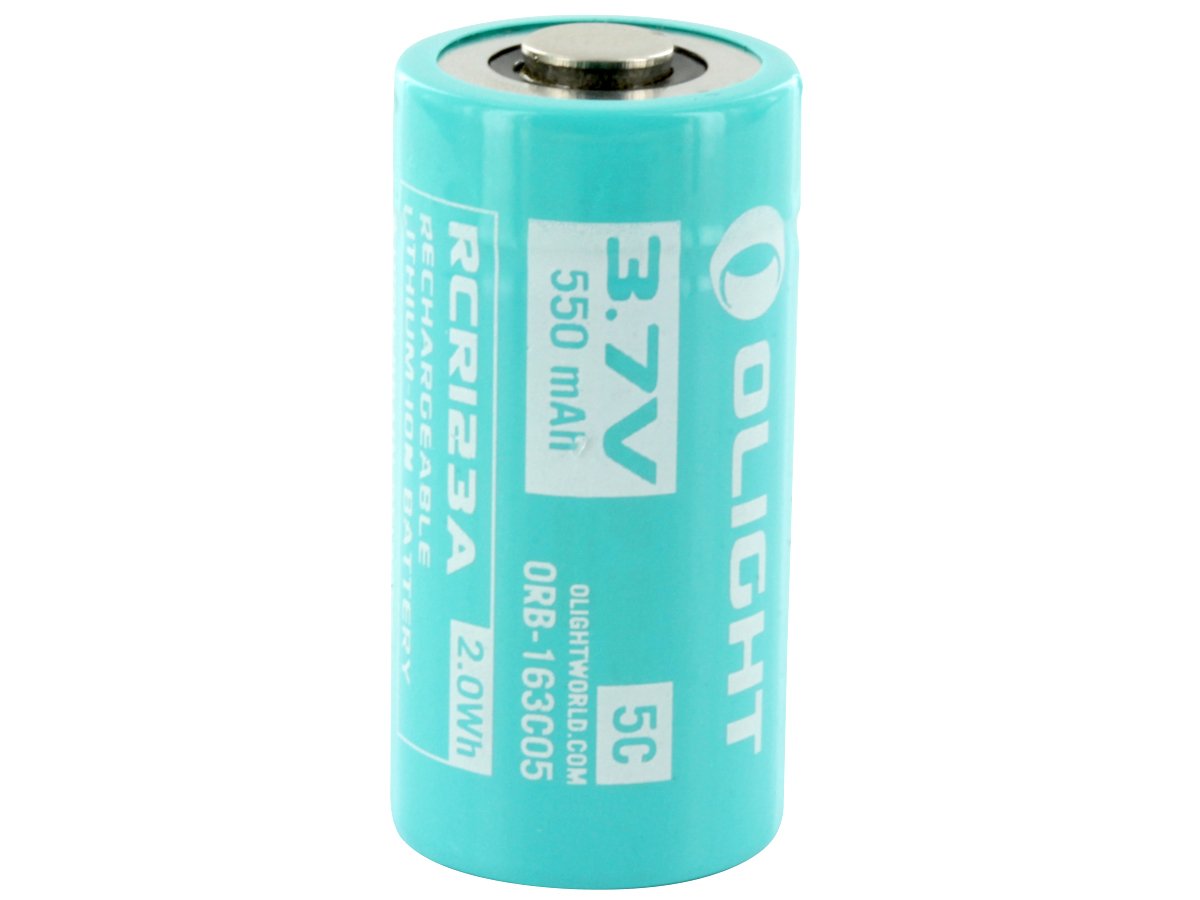

Olight IMR RCR123A Battery - Standing Shot
Olight IMR RCR123A Battery - Angle Shot

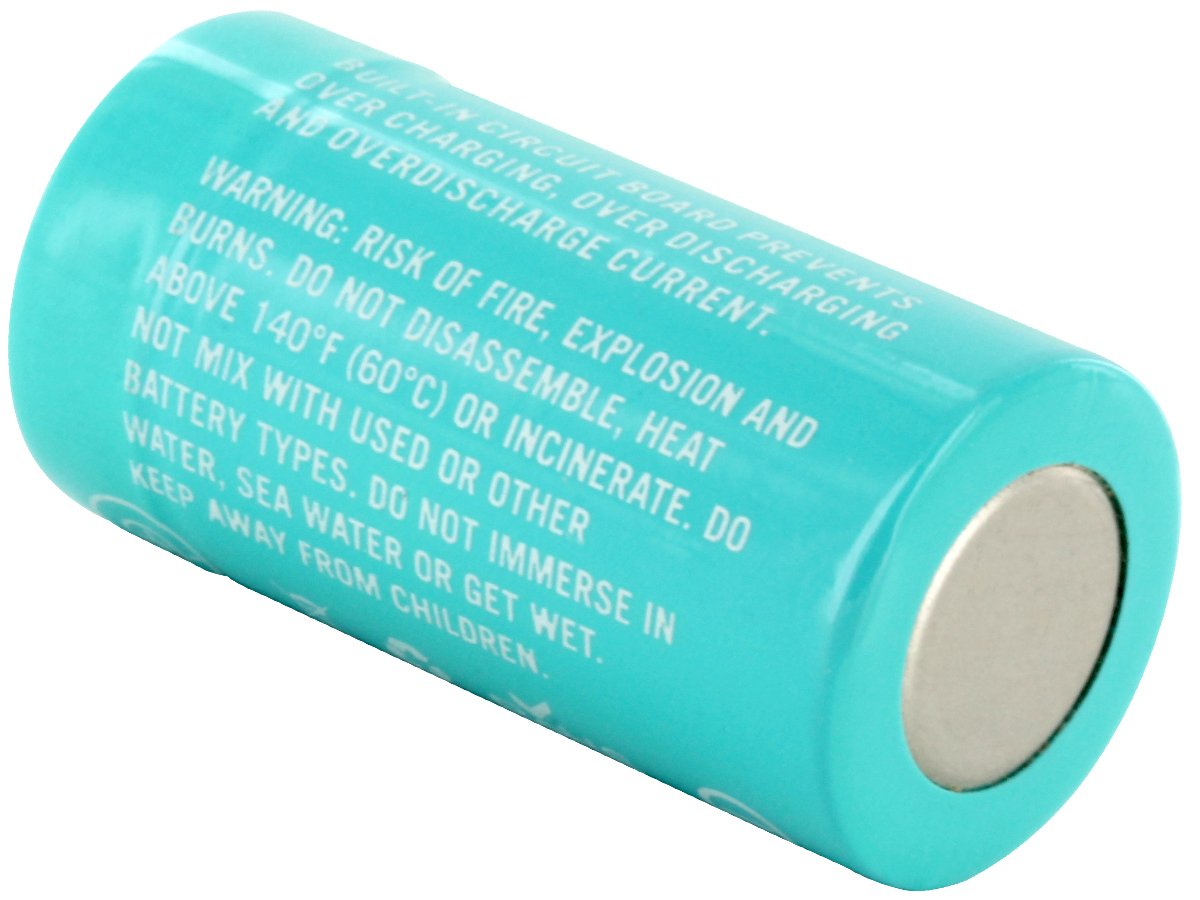

Olight IMR RCR123A Battery - Bottom Shot
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight IMR RCR123A Battery - Angle Shot
Olight IMR RCR123A Battery - Side Shot
Olight IMR RCR123A Battery - Standing Shot
Olight IMR RCR123A Battery - Angle Shot
Olight IMR RCR123A Battery - Bottom Shot
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card
Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card

Olight ORB-163C05 IMR RCR123A / 16340 550mAh 3.7V Protected High-Drain 2.75A Lithium Ion (Li-ion) Button Top Battery - Retail Card

Brand:Olight
MPN:ORB-163C05
  • Size: 16340 / RCR123A
  • Voltage: 3.7
  • Rechargeable: Yes
  • Chemistry: Li-Ion
  • Capacity (mAh): 550
  • Terminal Type: Button Top
View Full Details
Discontinued
Free Shipping Over $50.00

Pickup currently unavailable at Shop location

$5.50
Discontinued
Free Shipping Over $50.00
Sold Out
BUYMORE
SAVEMORE
Request a Volume Quotation

Recently viewed

Description

Olight IMR 16340 Li-Ion Battery

Potent Rechargeable Battery

The Olight IMR 16340 Rechargeable Li-Ion Button Top Battery is an incredibly powerful, long-lasting cell specifically designed for use in high-drain flashlights. Featuring a potent Lithium Manganese Oxide (LiMn2O4) chemistry, this impressive battery delivers 3.6 Volts of dynamic power and is able to hold a significant charge of 550 mAh, powering your flashlight for an extended period of time. The specialized chemistry also allows the battery to discharge power at a rate of 2.75 Amps, significantly more than a typical Lithium Ion battery, allowing its host to generate significantly brighter outputs.

Features & Specifications:

  • Specially designed for high-drain flashlights like the Olight S1R and S10R III
  • Battery Size: 16340 (RCR123A)
  • Battery Chemistry: Lithium Ion (LiMn2O4)
  • Nominal Voltage: 3.6V
  • Nominal Capacity: 550 mAh
  • Max Discharge Current: 2.75 A
  • Dimensions:
    • Length - 1.57" (40 mm)
    • Diameter - 0.63" (16 mm)
  • Weight: 0.63 oz. (18 g)

Please note: Only charge this battery inside of the product. Do not use an external charger.



lithium-ion safety warning
collection: 10% Applicable; product type: Batteries - Li-Ion Rechargeable
Item Details
Brand Olight
SKU OLIGHT-IMR-16340
MPN ORB-163C05
UPC 6926540927185
Size 16340 / RCR123A
Voltage 3.7
Battery Rechargeable Yes
Capacity (mAh) 550
Chemistry Li-Ion
Sub-Chemistry LiMn2O4 IMR
Shelf Life 10 Years
Packaging Retail Packaging
QTY Per Package 1
Master Case 1
California Residentssee Prop 65 WARNINGS
Specifications
Size 16340 / RCR123A
Voltage 3.7
Battery Rechargeable Yes
Capacity (mAh) 550
Terminal Type Button Top
Protected true
Integrated Charge Port No
Max. Discharge Rate 2.75
Equivalent Types 16340, CR123A, R123, RCR123, RCR123A
Unit Dimensions
Length 1.575 in (40 mm)
Diameter 0.63 in (16 mm)
Weight 0.635 oz (18 g)
Documents
MSDS
Additional Details
Packaging Retail Packaging
Warranty Olight 1 Year Warranty
Battery Junction Warranty
Return Policy Return Policy
