Panasonic CR1220/FCN 35mAh 3V Lithium Primary (LiMnO2) Coin Cell Battery with PC Pin (Vertical Mount) Termination
Brand:Panasonic
- 3V lithium coin cell battery with 35mAh capacity
- Features PC pin vertical mount termination for electronic applications
- Ideal for CMOS, industrial, and other machines that require long-term power
- Reliable chemistry offers stable, long-lasting performance
- Size: CR1220
- Voltage: 3
- Rechargeable: No
- Chemistry: Lithium
- Capacity (mAh): 35
- Terminal Type: PC
$1.40
Recently viewed
Description

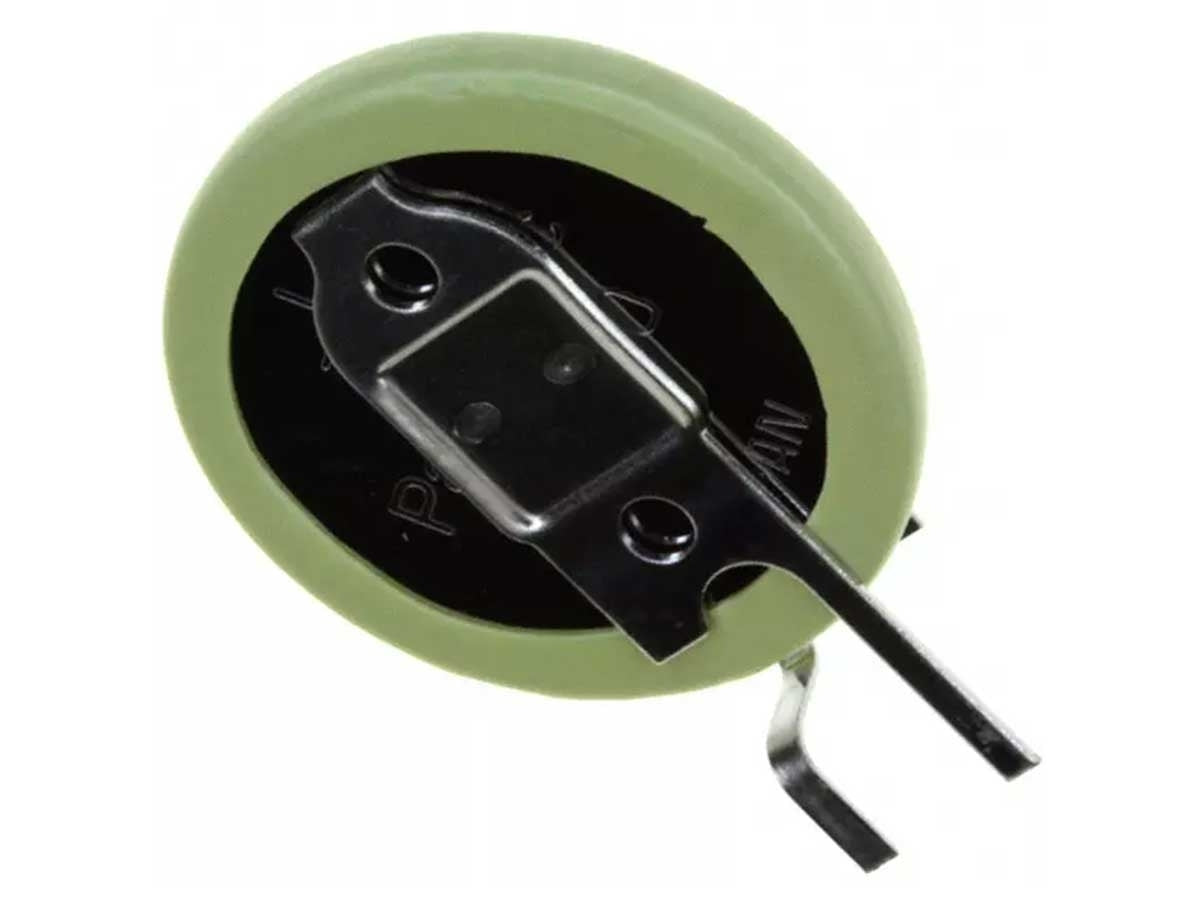

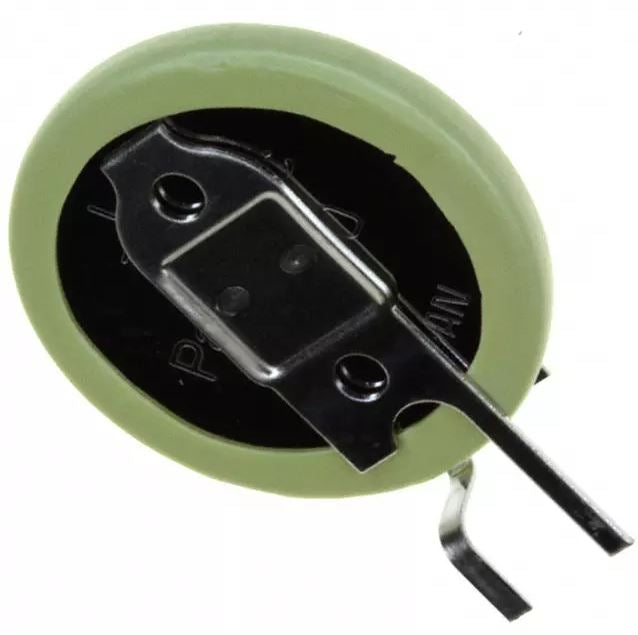

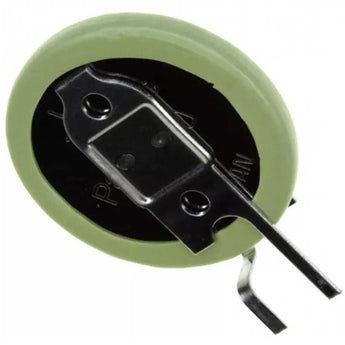

Panasonic CR1220
With PC Pin (Vertical Mount)
The Panasonic CR1220 offers 3 Volts of power in a compact, coin cell form. Long lasting 35mAh Capacity keep this battery running longer than competing cells, making it ideal for CMOS and industrial machines that require long term power. The CR1220 is fitted with vertical mount PC pin terminals and is meant for use in specialty electronics.
Specifications:
- Battery Size: CR1220
- Battery Chemistry: Lithium
- Nominal Voltage: 3V
- Nominal Capacity: 35mAh
- Max Discharge Current: 100mA
- Shelf Life:5 Years
-
Dimensions:
- Length - 0.08" (2.0 mm)
- Diameter - 0.49" (12.5 mm)
- Weight: oz. (1.2g)
CAUTION: These primary batteries are not rechargeable.
Risk of fire, explosion and burns, do not recharge, disassemble, incinerate, or heat above 212F°/100C°. Do not mix used & new or any other battery types. Keep away from children. Misuse of primary lithium batteries can pose a serious risk of injury or property damage. Dispose of used batteries properly, following local guidelines.
Item Details
| Brand | Panasonic |
| SKU | PANASONIC-CR-1220-FCN |
| Size | CR1220 |
| Voltage | 3 |
| Battery Rechargeable | No |
| Capacity (mAh) | 35 |
| Chemistry | Lithium |
| Sub-Chemistry | LiMnO2 (Lithium Manganese Dioxide) |
| Shelf Life | 5 Years |
| Packaging | Bulk |
| QTY Per Package | 1 |
| California Residents | see Prop 65 WARNINGS |
Specifications
| Size | CR1220 |
| Voltage | 3 |
| Battery Rechargeable | No |
| Capacity (mAh) | 35 |
| Terminal Type | PC |
| Integrated Charge Port | No |
| Equivalent Types | 1220, 5012LC, AWI L04, BR1220, CR1220, DL1220, ECR1220, KCR1220, LM1220, Seiko SB-T13, Timex PA |
Unit Dimensions
| Length | 0.08 in (2 mm) |
| Diameter | 0.49 in (12 mm) |
| Weight | 0.04 oz (1 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.1 lb |
Documents
Additional Details
| Packaging | Bulk |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
