Power-Sonic PSL-BTC-12120 Bluetooth Enabled 12AH 12.8V Rechargeable Lithium Iron Phosphate (LiFePO4) Battery - F2 Terminals

$147.95

Power-Sonic PSL-BTC-12120 Bluetooth Enabled 12AH 12.8V Rechargeable Lithium Iron Phosphate (LiFePO4) Battery - F2 Terminals

Brand:Power-Sonic
MPN:PSL-BTC-12120
Buy more save more!
$147.95
2 - 3 $142.75 ea
4 - 7 $137.50 ea
8 - 15 $132.25 ea
16 - 27 $127.00 ea
28 - 53 $121.50 ea
54+ $119.00 ea
Need more? RFQ
  • Size: SLA
  • Voltage: 12.8
  • Rechargeable: Yes
  • Chemistry: Li-Ion
  • Capacity (mAh): 12000
  • Terminal Type: F2
View Full Details
Discontinued

Pickup currently unavailable at Shop location

$147.95
Discontinued
Standard Shipping Rates Apply
BUYMORE
SAVEMORE
Request a Volume Quotation

Recently viewed

Description

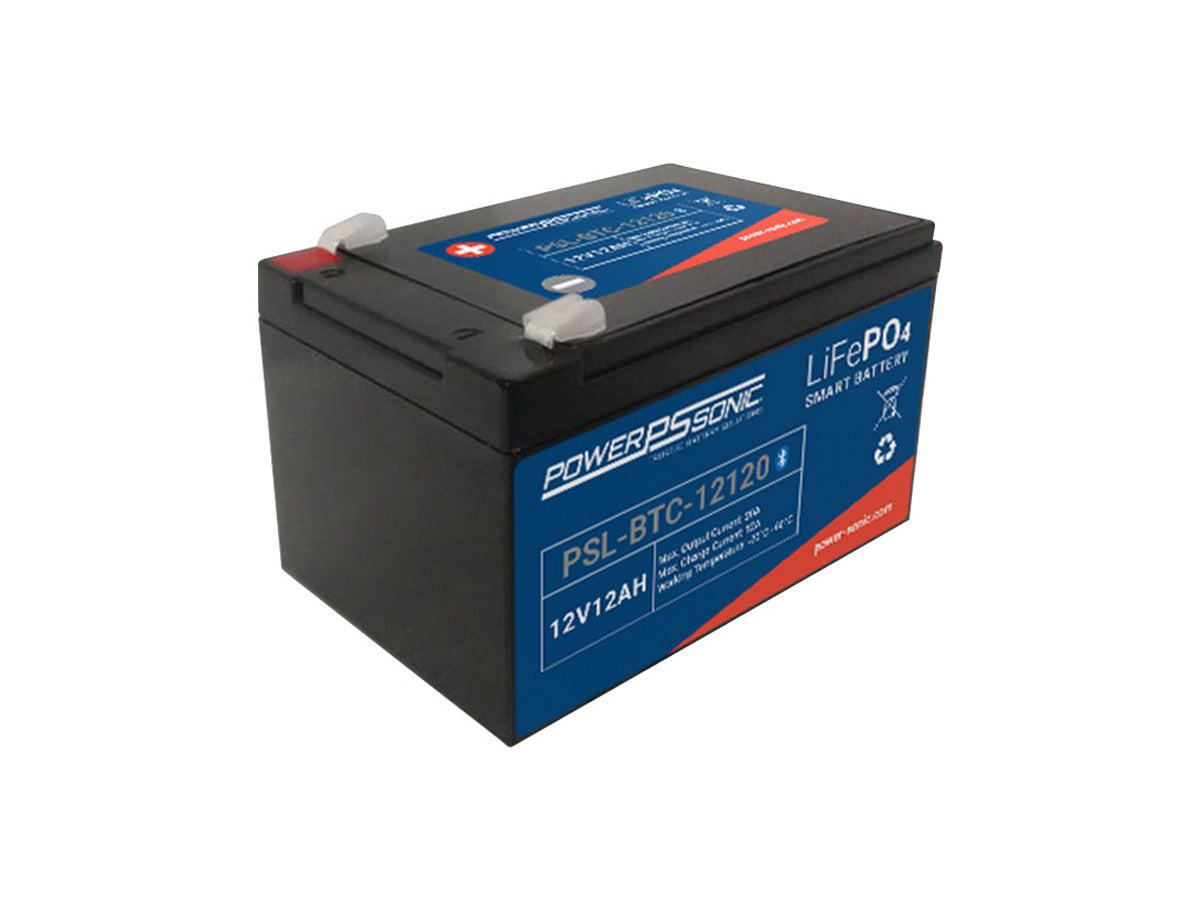

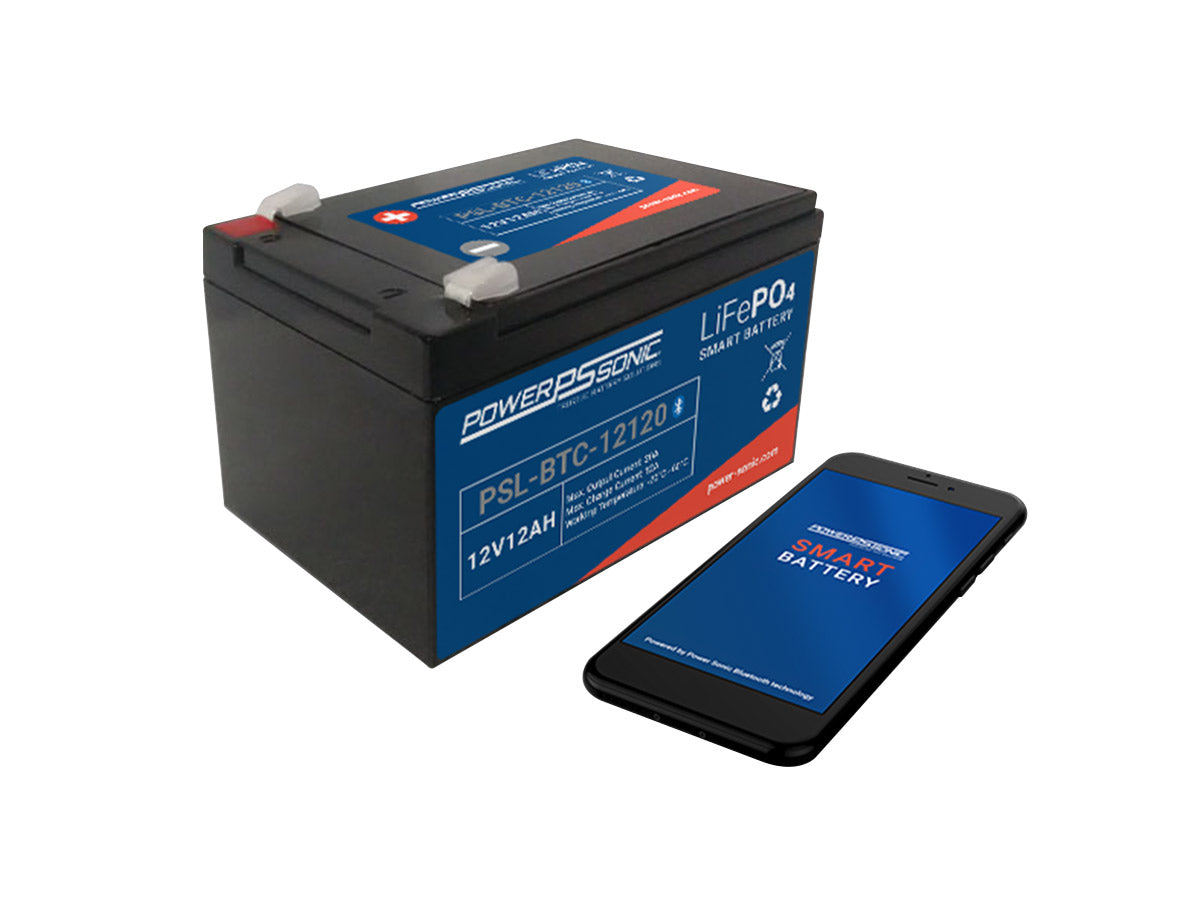

Power-Sonic PSL BTC 12120

LiFePO4 Bluetooth® Series

12.8 Volts, 12,000mAh

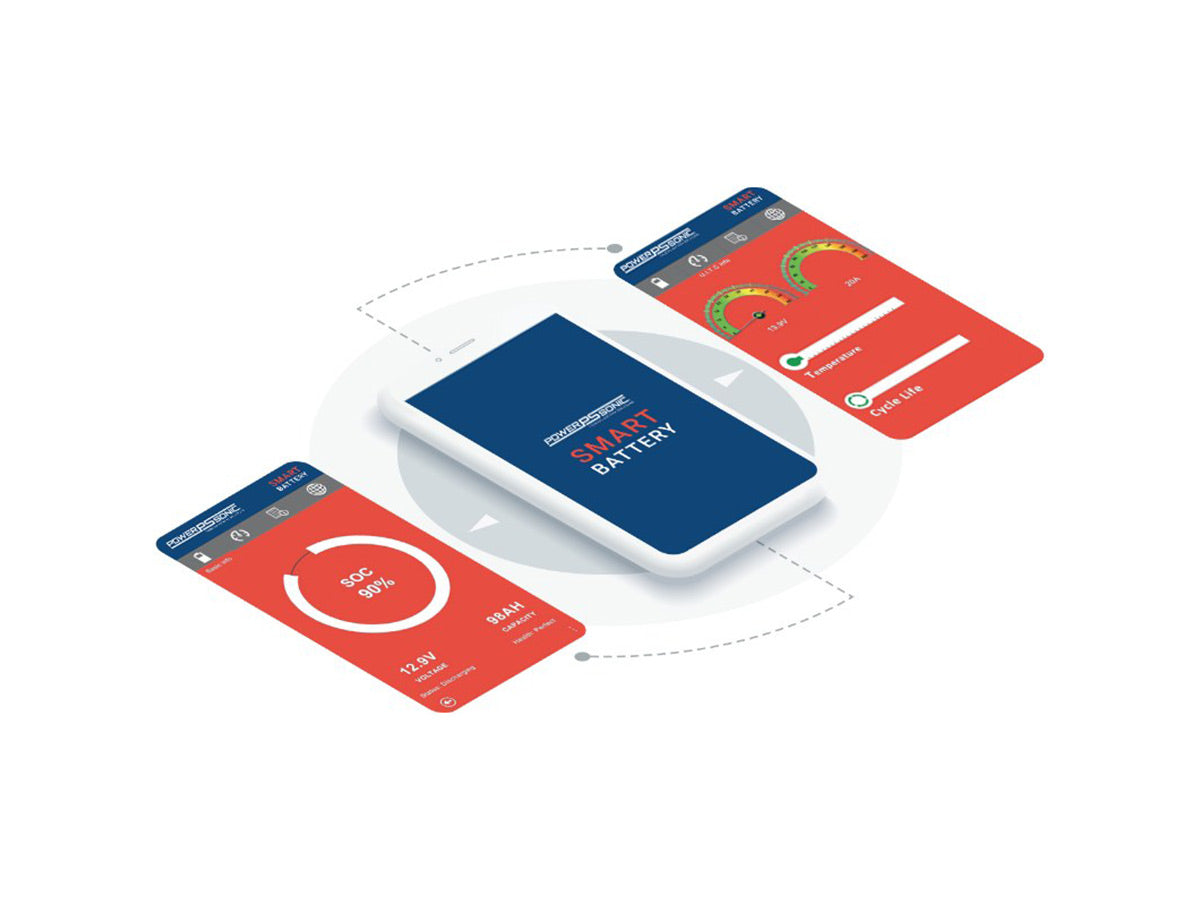

The Power-Sonic PSL BTC 12120 is a new kind of rechargeable lithium iron phosphate battery. The stable lithium chemistry used is the safest on the market today. LiFePO4 batteries are lighter, have faster charging, more power, more charge cycles, and lower self-discharge than SLA. This series has Bluetooth® capabilities for more efficient battery monitoring when using the Power-Sonic app. If you have a device or piece of equipment that needs daily or extra monitoring, why struggle to get to the battery, detach it, test it, and re-install when you can simply check it with the press of a button? These remarkable batteries allow you to do that.

Intelligent Battery, Advanced BMS

The PSL BTC 12120 has 12.8 volts of reliable lithium power with a high capacity of 12000mAh. It also features an intelligent battery management system (BMS) that controls the cells in the battery to ensure safety, constant voltage, over-charge and over-discharge. The housing is made from impact-resistant and fire-retardant ABS plastic for even more peace of mind. Try one of the new Power-Sonic PSL batteries for medical, data center, utility, mobility (and much more) applications and see what a difference it can make!

Features:

  • Bluetooth® communication capability for battery status monitoring with app
  • 12.8 volts of reliable power
  • Intelligent LiFePO4 battery
  • Super safe lithium chemistry
  • Impact resistant, flame retardant ABS plastic case
  • F2 Quick Disconnect Tab Terminals
  • Battery Management System (BMS) on board - multiple protections
  • Long lasting - even longer than lead acid!
  • Fast charging, low self-discharge
  • Ideal for devices that need constant monitoring

Technical Specifications:

  • Battery Size: BTC-12120
  • Battery Chemistry: Lithium-Ion (Li-ion)
  • Battery Sub-chemistry: LiFePO4 (Lithium Iron Phosphate)
  • Terminal Type: F2 - Quick Disconnect Tabs
  • Case Material: UL94:VO Flame Retardant Plastic
  • Rechargeable: Yes
  • Protected Cell: Yes - BMS
  • Nominal Voltage: 12.8V
  • Nominal Capacity: 12000mAh
  • Cycle Life: ≤2000 Cycles
  • Max Charging Current: 12A
  • Max Discharge Current: 12A
  • Pulse Discharge Current: 55A Withstand 3s
  • Discharge Cut-Off Voltage: 8.0V
  • Series/Parallel Connection: Up to 4 packs in parallel - Cannot be connected in a series
  • Operating Temperature Range: 59°F to 95°F (15°C to 35°C)
  • Discharging Temperature Range: -4°F to 140°F (20°C to 60°C)
  • Certifications: U.L. Recognized, ISO 9001:2015 - Quality Management Systems
  • Dimensions:

    • Length: 5.94" (151mm)
    • Width: 3.87" (98.5mm)
    • Height: 3.74" (95mm)
    • F2 Tabs: 0.250" x 0.032"
    • Weight: 3.53 lbs. (56.48 oz.)

    For more specific information about the terminals and battery specifications, please see the included or downloadable user manual and data sheets.

    collection: Batteries; product type: Batteries - Li-Ion Rechargeable
    Item Details
    Brand Power-Sonic
    SKU POWERSONIC-PSL-BTC-12120
    Series PSL-BTP/BTC
    MPN PSL-BTC-12120
    UPC 813340014534
    Size SLA
    Voltage 12.8
    Battery Rechargeable Yes
    Capacity (mAh) 12000
    Chemistry Li-Ion
    Sub-Chemistry LiFePO4 IFR
    Packaging Bulk
    QTY Per Package 1
    California Residentssee Prop 65 WARNINGS
    Specifications
    Size SLA
    Voltage 12.8
    Battery Rechargeable Yes
    Capacity (mAh) 12000
    Terminal Type F2
    Protected true
    Integrated Charge Port No
    Max. Discharge Rate 12
    Unit Dimensions
    Length 5.94 in (151 mm)
    Width 3.87 in (98 mm)
    Height 3.74 in (95 mm)
    Weight 56.48 oz (1601 g)
    Certifications & Transport
    Certifications/Standards ISO 9001:2015, UL, UL94 V0
    Country Of Origin China
    HTS Code 85076000
    Packaging/Shipping Dimensions
    Length 6.35 in
    Width 4.26 in
    Height 4.16 in
    Shipping Weight 3.85 lb
