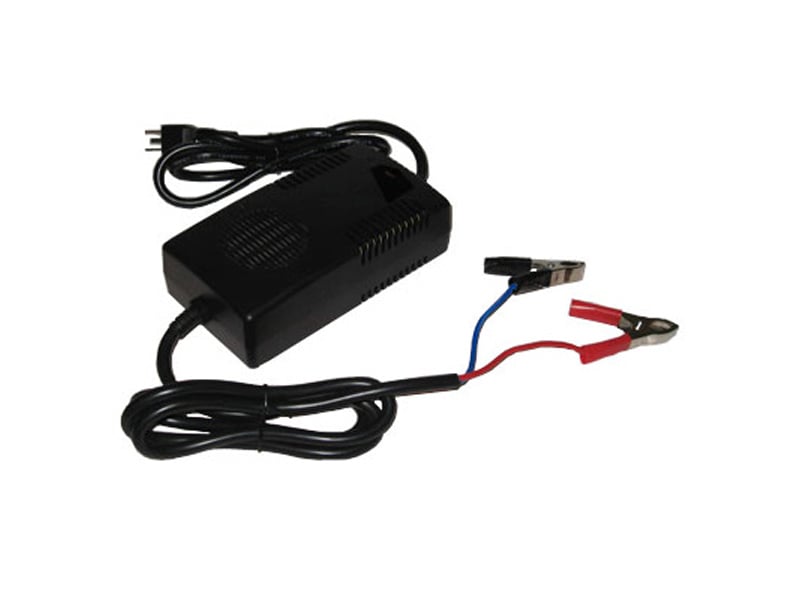

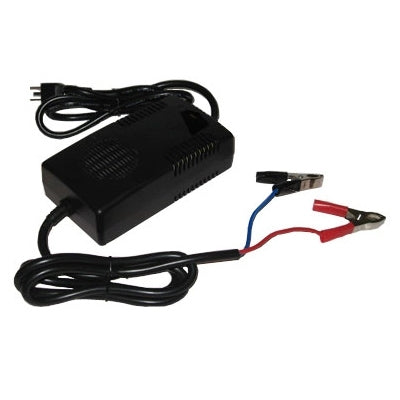

Powerizer Lead Acid Smart Charger (10 A) for 12V Lead Acid Battery for Worldwide Use
Brand:Powerizer
MPN:POWERIZER-CH-LA12V10A
- Charger Channels: 1
- Compatible Battery Sizes: SLA
- Supported Chemistries: SLA
$51.95
Recently viewed
Description
The Powerizer Smart Charger is designed to rapidly charge 12V lead acid batteries ranging from 20Ah to 100Ah. The smart charger featurers a three stage charging method to allow easy charging without the risk of overcharging.Specifications:
- Input:
- Easily toggle between US and International Voltages:
- 115VAC Switch for USA use
- 230VAC Switch for international use
- Input frequency 50-60Hz
- Easily toggle between US and International Voltages:
- Charging:
- Battery Rangew: 20AH to 100AH
- Charging Current: 10.0A
- Protection:
- Over Current Protection
- Over Voltage Protection
- Short Circuit Protection
- Alligator Clip is installed in output terminal with cable
- Red Alligator Clip = Positive
- Black Alligator Clip = Negative
- Yout MUST connect the battery with the correct polarity.
- Outputs
- Output Rating: 13.8VDC with 3 Stage Charge Mode
- Stage 1: Charging Current: 10.0A ±0.5A
- Stage 2: Charging Voltage: 14.7V ±0.3V
- Stage 3: Floating Voltage: 13.8V ±0.25V
- Cut-Off Current (Stage 2-3): 1.0 ±0.2A
- Charging Time:
- 2.5 Hours for 20Ah SLA cell
- 12.0 Hours for 100Ah SLA cell
- Maximum Power Output: 150W
- Ripple and noise: < 300 mV
- Efficiency: > 85%
- Output Rating: 13.8VDC with 3 Stage Charge Mode
- LED Status
- Start Mode: LED is Green, Cooling Fan is On
- Charging Mode: LED is Red
- Floating Mode: LED Toggles Red and Green, Charge is nearly complete, You can safely unplug the power at this point
- Fully Charged Mode: LED is Green, Reaching this stage may take some time, longer battery life can be preserved by avoiding fully charging.
- Operation Temperature: 0°C - +40°C
- Operation Humidity: 20% - 90%
- Storage Temperature: -40°C - 70°C
- Storage Humidity: 10% - 95%
- Dimension: 155mm (6.1") x 84mm (3.3") x 50mm (2.0")
- Weight: 680g (24oz)
- Yout MUST connect the battery with the correct polarity.
- The charger is designed for indoor use only.
- The charger should be horizontally place and operate in well ventilated condition, avoid from wet and keep it away from inflammable explosive material.
- Please do not disassemble the charger due to high voltage inside
Item Details
| Brand | Powerizer |
| SKU | POWERIZER-CH-LA12V10A |
| Manufacturer Part Number | POWERIZER-CH-LA12V10A |
| Charger Channels | 1 |
| Compatible Battery Sizes | SLA |
| Supported Chemistries | SLA |
Specifications
| Charge Rate | 0.0005 |
| Charger Channels | 1 |
| Compatible Battery Sizes | SLA |
Unit Dimensions
| Length | 6.1 in (155 mm) |
| Width | 3.3 in (84 mm) |
| Height | 2.0 in (51 mm) |
| Weight | 24.0 oz (680 g) |
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
