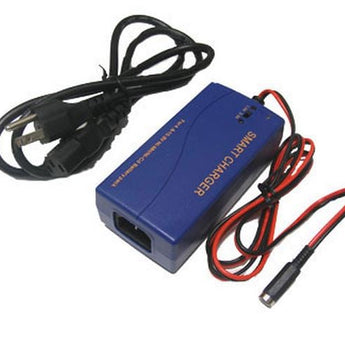

Multi-Current Smart Charger 1-2 A For 4.8V - 10.8V NiMH / NiCd Battery Packs / UL Listed

$35.00

Multi-Current Smart Charger 1-2 A For 4.8V - 10.8V NiMH / NiCd Battery Packs / UL Listed

Brand:Powerizer
MPN:CHUN-0409ARC
Buy more save more!
$35.00
5 - 9 $33.50 ea
10 - 14 $32.50 ea
15+ $31.75 ea
Need more? RFQ
  • Smart charger designed for 4.8V to 10.8V NiMH and NiCd battery packs
  • Selectable 1A or 2A charging for flexible power management
  • Automatic charging control helps prevent overcharging
  • UL listed design ensures safe and reliable operation
  • Charger Channels: 1
  • Compatible Battery Sizes: Custom / Battery Pack
  • Supported Chemistries: Ni-Cd, Ni-MH
View Full Details
Expected To Ship In 10 Days
Free Shipping Over $50.00

Pickup available at Shop location

Usually ready in 24 hours

$35.00
Expected To Ship In 10 Days
Free Shipping Over $50.00
BUYMORE
SAVEMORE
Request a Volume Quotation

Recently viewed

Description

Multi-Current Smart Charger 1-2 A For 4.8V - 10.8V NiMH / NiCd Battery Packs / UL Listed

Multi-Current Smart Charger ( 1-2 A ) For any 4.8V - 10.8V NiMH / NiCd Battery PacksFeatures:

  • Universal Fast and Smart Charger is designed for charging any NiMH / NiCd Battery Pack from 4.8V - 10.8V , e.g. 4 to 9 cells pack
  • One charger for all types of battery packs of RC airplane, RC car and Airsoft .
  • LED flashing red-green-red before charging in order to test the IC of the charger if ready to use.
  • It is a very smart charger. Just plug it in and wait for the battery to get charged. Red LED indicating charging, and Green LED means fully charged
  • Short circuit protection: No output voltage from the charger if the battery is not connected.
  • 120-240V AC input for worldwide use.
  • First smart charger that get UL safety approved on the market
Specs & Functions:
  • Detect battery pack voltage (from 4.8 - 10.8V) and choose proper charging voltage automatically
  • Cut-off power automatically by negative delta V IC when battery pack is fully charge.
  • Built in IC Protecting battery from over current, short circuit & reverse polarity.
  • Note:
    • If you try to charge mini airsoft battery, you must order a smart charger for Mini airsoft , or choose a connector adaptor from standard Tamiya to mini Airsoft tamiya
    • If you try to charge RC air or car battery with mini tamiya, you must order rc car adaptor .
Charging Current: Two current levels, 2A and 1 A, are selectable by a switch for both high capacity ( > 2100mAh) and low capacity battery pack ( < 2000mAh)
  • For battery pack between 1000 mah and 2000 mah, please use the low level switch -- charging rate: 1 A
  • For battery pack over 2000 mAh, please use the high level switch -- charging rate: 2A
Charging time:The smart charger will cut-off power automatically when battery is full. However, Charging time can be estimated as the follow:
  • Time ( Hrs ) = Battery capacity (Ah) / Charging current ( 1A or 2 A )
Dimension:
  • 1.5"H X 2.5"W X 5.5"L
Weight:
  • 0.6 lb.

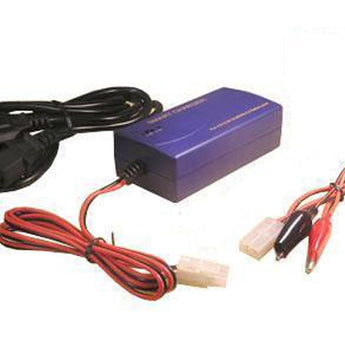

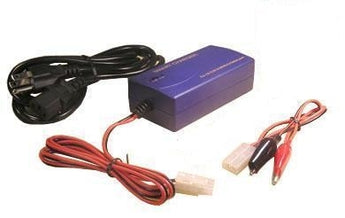

Accessories included:
  • One standard female Tamiya connector with 12" length cable is installed with the charger. It will fit with our RC car batteries from 6V - 12V
  • One 5' cable with female connector and two clips which allow you to connect a battery pack to the smart charger. one 4' cable with PC connector is included to connect charger to AC power.
Optional:
  • If you want to recharge mini Airsoft battery pack, you shall order a connector adaptor from standard female Tamiya to Mini Tamiyra here to connect charger to battery pack.
  • If you want to recharge RC air or the battery pack, you may consider ordering a matched connector adaptor to connect the charger to battery pack
Certificated:This smart charger has been certified by both CE & UL approved Precautions:
  • Please don't use the charger to charge battery pack with capacity less than 1000 mAh
  • If you have question on what current setting to use, please check the battery specification to find out what is the maximum charging current before selecting the charging current.
  • The charger is designed for indoor use only.
  • The charger should be horizontally positioned and work in well ventilated condition, avoid moisture and keep it away from inflammable explosive goods.
  • Ambient temperature shall not be more than 40 degree C when using the charger
  • Remove the AC power before connect or disconnect the charger with batteries.
  • Don't try to disassemble the charger.
collection: Battery Chargers
Item Details
Brand Powerizer
SKU POWERIZER-CHUN-0409ARC
Manufacturer Part Number CHUN-0409ARC
Charger Channels 1
Compatible Battery Sizes Custom / Battery Pack
Supported Chemistries Ni-Cd, Ni-MH
Specifications
Charge Rate 0.002
Charger Channels 1
Compatible Battery Sizes Custom / Battery Pack
Unit Dimensions
Length 5.5 in (140 mm)
Width 2.5 in (64 mm)
Height 1.5 in (38 mm)
Weight 9.6 oz (272 g)
Packaging/Shipping Dimensions
Shipping Weight 0.92 lb
Additional Details
Warranty Battery Junction Warranty
Return Policy Return Policy

Overall rating: 5.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Excellent for replacement charger

"I have an old Sears (Makita-clone) drill for which the batteries were toast. The charger is also long gone. I popped open the glue joint in the pack, fabricated replacement batteries with NiMH tabbed cells (6) and use this charger to energize the pack. Sears doesn't even have current replacement battery packs and the ones that they used to list were outrageously expensive, as were their chargers. The original pack used NiCd technology with less capacity than the replacement NiMH cells."
