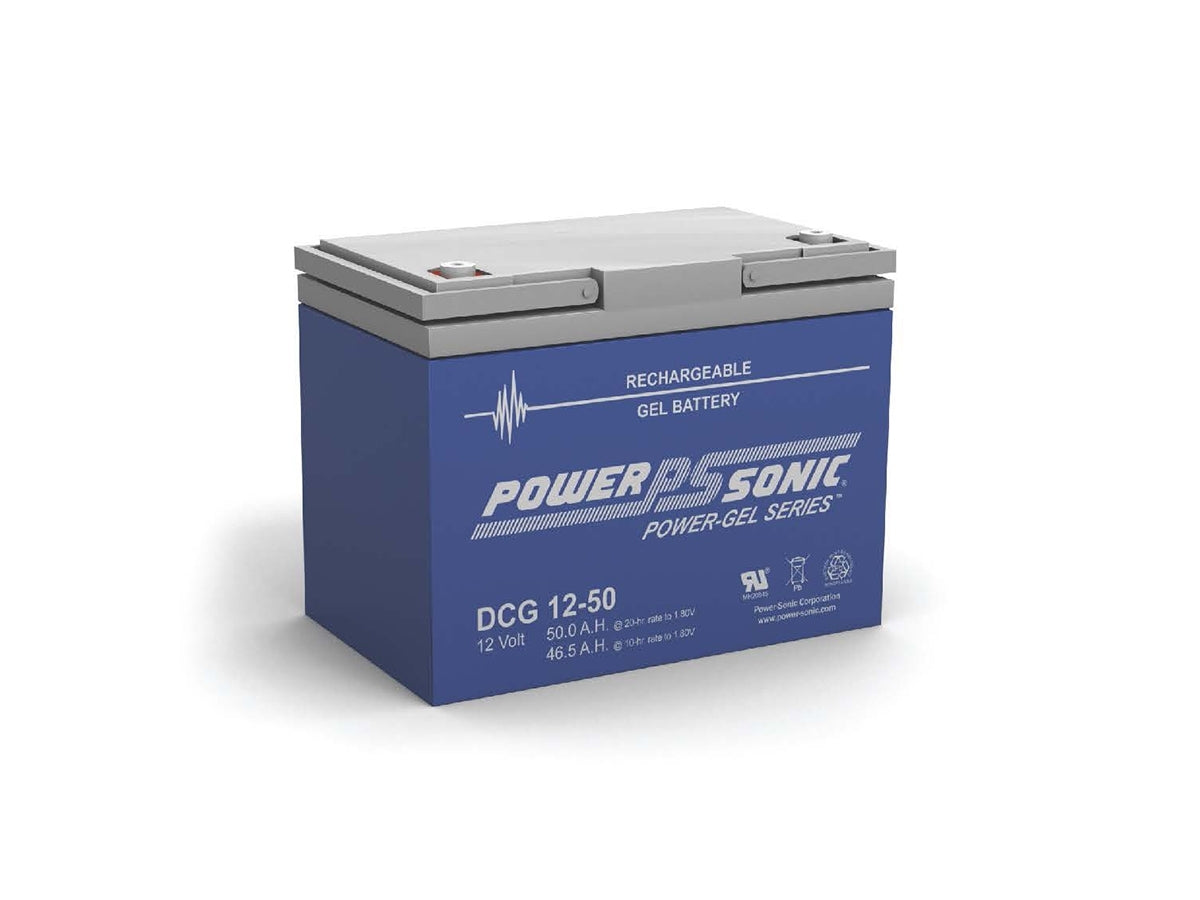

Power-Sonic Power-Gel DCG12-50 50Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - T6/U Terminal

Power-Sonic DCG12-50 Power Gel Battery

Power you can really gel with

Boasting a better than average energy density, the Power-Sonic DCG12-50 Power Gel Battery 12-Volt 50-AH T6 (U) Terminal has become a popular sealed lead acid battery among portable power customers. Rated with a capacity of 50 AH, this battery is a strong candidate for use with floor machines, forklifts, and even recreational vehicles.

The Power to Succeed

Power-Sonic batteries make better use of energy than average sealed lead acid batteries for overall improved performance.

Power-Sonic batteries have the fuel you need to succeed. Built on the foundation of Power Gel technology, Power-Sonic sealed lead acid batteries are filled with a thixotropic gel mixture that keeps electrolytes ready for immediate use. The gel mixture makes for a better overall energy performance, and an improved energy density.

Higher Standards, Peak Performance

Veteran battery builders bring top quality, highly effective sealed lead acid batteries to market.

Power-Sonic have been leaders in the battery industry for more than 40 years. Specializing in rechargeable batteries, Power-Sonic have designed their labs and manufacturing plants around the idea of building a better battery. Achieving high standards of excellence and performance, Power-Sonic presents high performance and efficiency with the DCG12-38 Power Gel Battery

• Thixotropic gel electrolyte creates a better environment for power to move
• VRLA design provides a safer battery experience
• Great power/volume ratio enhances energy density
• ABS Plastic Case (UL94-HB) created for tough, constant use.
• Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
• U.L. recognized under file number MH 20845
• CE compliant

• Chemistry:SLA (Sealed Lead Acid)
• Terminal Type: T6/U
• Nominal Voltage: 12 Volts (6 Cells)
• Nominal Capacity:
  • 20-Hour (2.5A to 10.8V)........ 50.0 Ah
  • 10-Hour (4.65A to 10.5V)......... 46.5 Ah
  • 5-Hour (8.0A to 10.5V)......... 40.0 Ah
  • 3-Hour (12.30A to 10.5V)......... 36.9 Ah
  • 1-Hour (27.5A to 10.0V)......... 27.5 Ah
• Energy Density (20-Hour Rate): 1.51 W-h/in³ (92.29 W-h/l)
• Specific Energy (20-Hour Rate): 16.30 W-h/lb (35.94 W-h/kg)
• Internal Resistance (approx.): 9.0 milliohms
• Shelf Life (% of nominal capacity at 68°F (20°C)):
  • 1 Month ......... 97%
  • 3 Months ........ 91%
  • 6 Months ........ 83%
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (LxWxH): 9.02" x 5.45" x 8.31" (229mm x 138mm x 211mm)
• Approximate Weight: 36.8 lbs. (16.7 kg)
