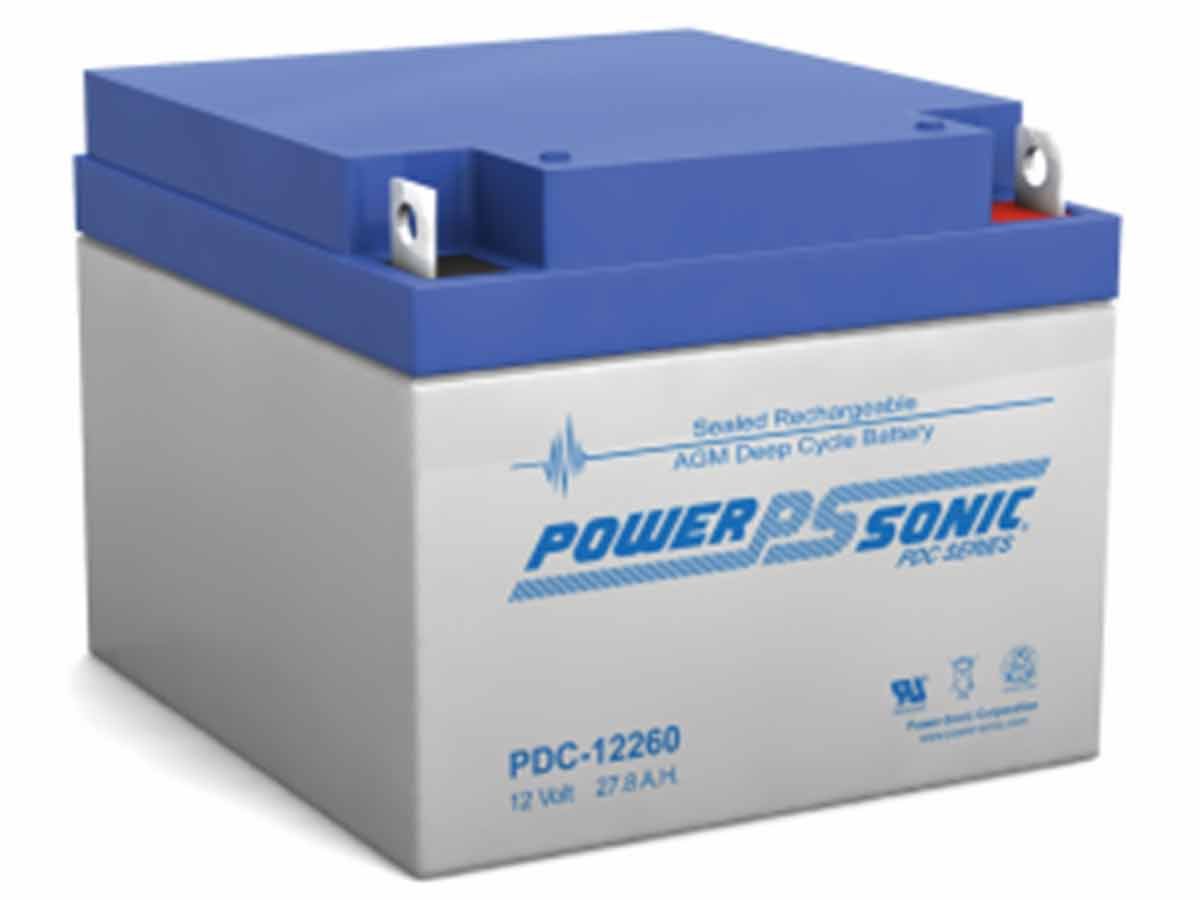

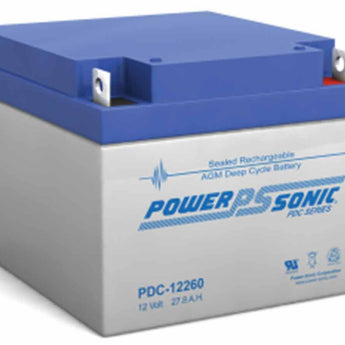

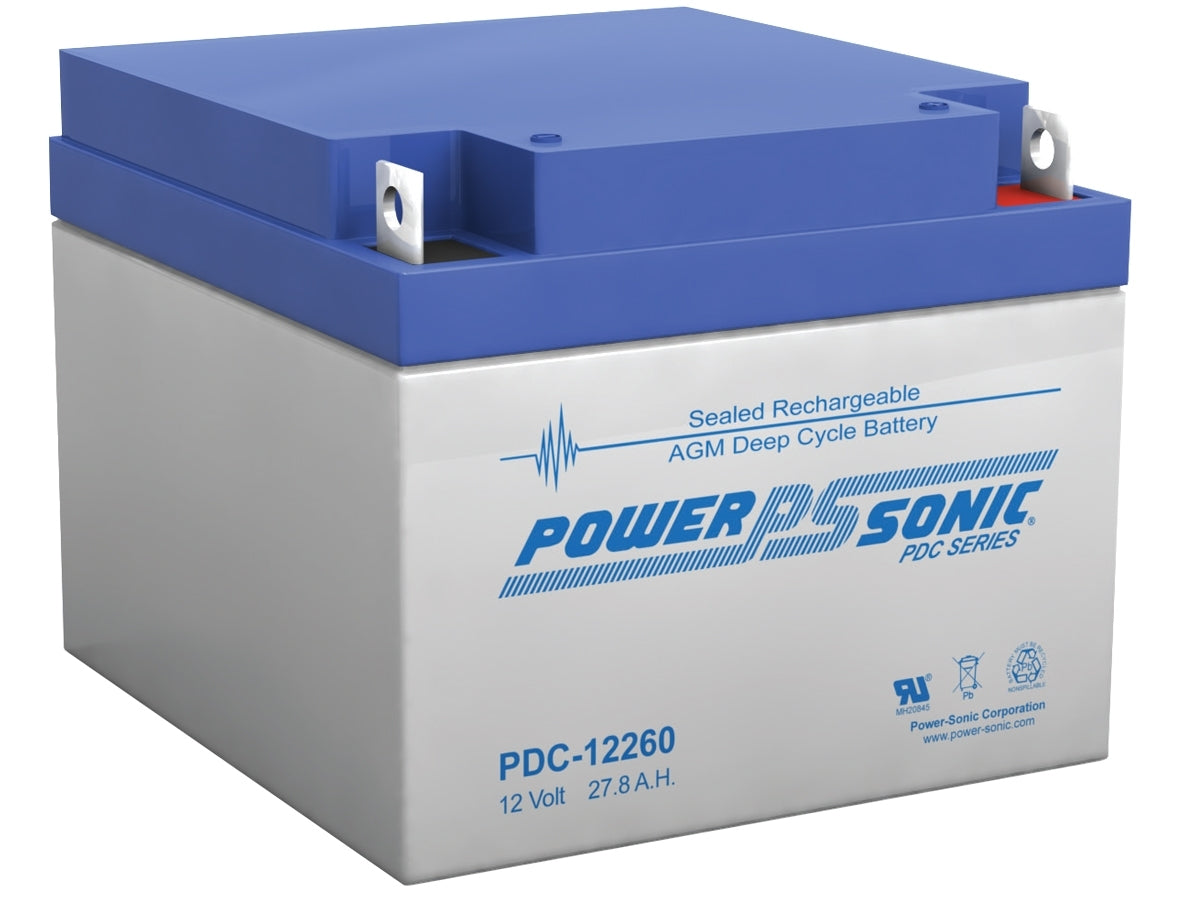

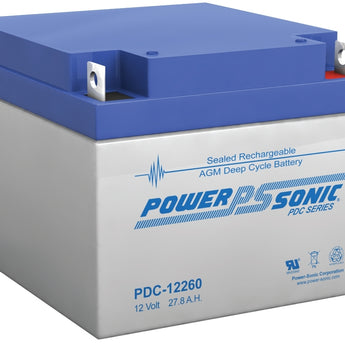

Power-Sonic AGM Deep Cycle PDC-12260 28Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - NB Terminal

Power-Sonic PDC-12260 AGM Deep Cycle SLA Battery 12-Volt 28-AH NB Terminal

One of the many potent lead acid batteries in Power-Sonic's PDC Deep Cycle Series, the Power-Sonic PDC-12260 provides astounding power in safe and stable form. Like its PDC series relatives, the PDC-12260 features Absorbent Glass Mat (AGM) technology, which allows for energy to be evenly dispersed and retained throughout the battery, allowing for optimal usage of the battery. The battery has an unrivaled energy density, able to store 1.41Wh per cubic inch, and features oversize negative plates and a specialized paste formulation that allows true deep cycle performance.

The PDC-12260 is as safe as it is potent, earning certifications from D.O.T., I.A.T.A., F.A.A., and C.A.B., more than enough evidence of its secure structure. The battery itself is completely spill-proof and valve-regulated, making it safe to operate in any position, and is enclosed in a rugged, impact resistant ABS Plastic case and cover, so it is always safe to transport and operate.

• Absorbent Glass Mat (AGM) technology provides superior performance
• Valve regulated, spill-proof for safe use in any position
• Remarkably rugged, impact resistant ABS Plastic case and cover
• Oversize negative plates and specialized paste formulation provide true deep cycle performance
• Astounding energy density

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: NB2
• Nominal Voltage: 12 Volts (6 Cells)
• Nominal Capacity:
  • 20-Hour (1.39A to 10.50V)........ 27.8 Ah
  • 10-Hour (2.60A to 10.50V)......... 26.0 Ah
  • 8-Hour (3.18A to 10.50V)......... 25.4 Ah
  • 5-Hour (4.56A to 10.20V)......... 22.8 Ah
  • 1-Hour (16.8A to 9.00V)......... 16.8 Ah
  • 15-Min. (42.3A to 9.00V)......... 10.6 Ah
• Energy Density (20-Hour Rate): 1.41 W-h/in³ (85.88 W-h/l)
• Specific Energy (20-Hour Rate): 15.15 W-h/lb (33.39 W-h/kg)
• Internal Resistance (approx.): 13 milliohms
• Max Discharge Current (7 Min.): 83.4 amperes
• Max Short-Duration Discharge Current (10 Sec.): 278.0 amperes
• Shelf Life (% of nominal capacity at 68°F (20°C)):
  • 1 Month ......... 97%
  • 3 Months ........ 91%
  • 6 Months ........ 83%
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (LxWxH): 6.54" x 6.89" x 4.92" (166mm x 175mm x 125mm)
• Approximate Weight: 20.6 lbs. (9.35 kg)
