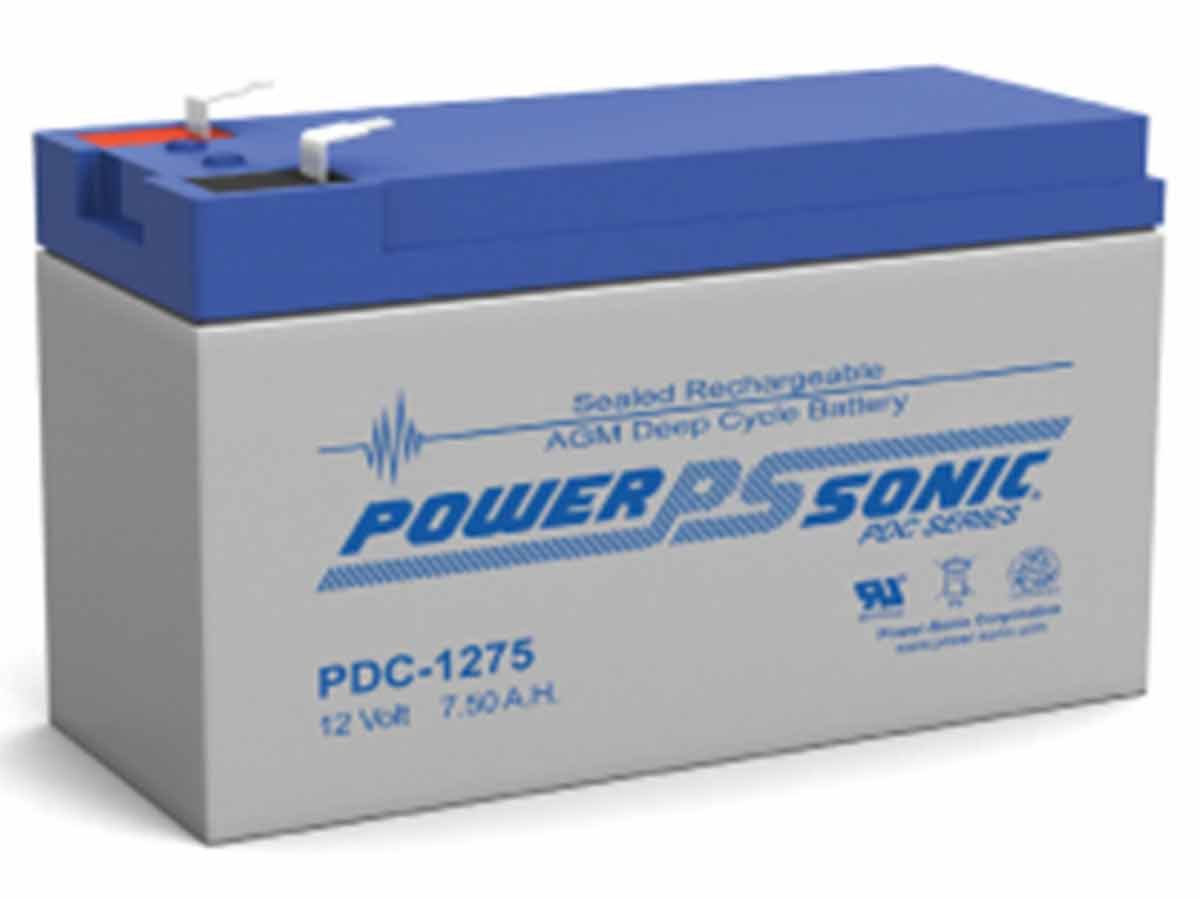

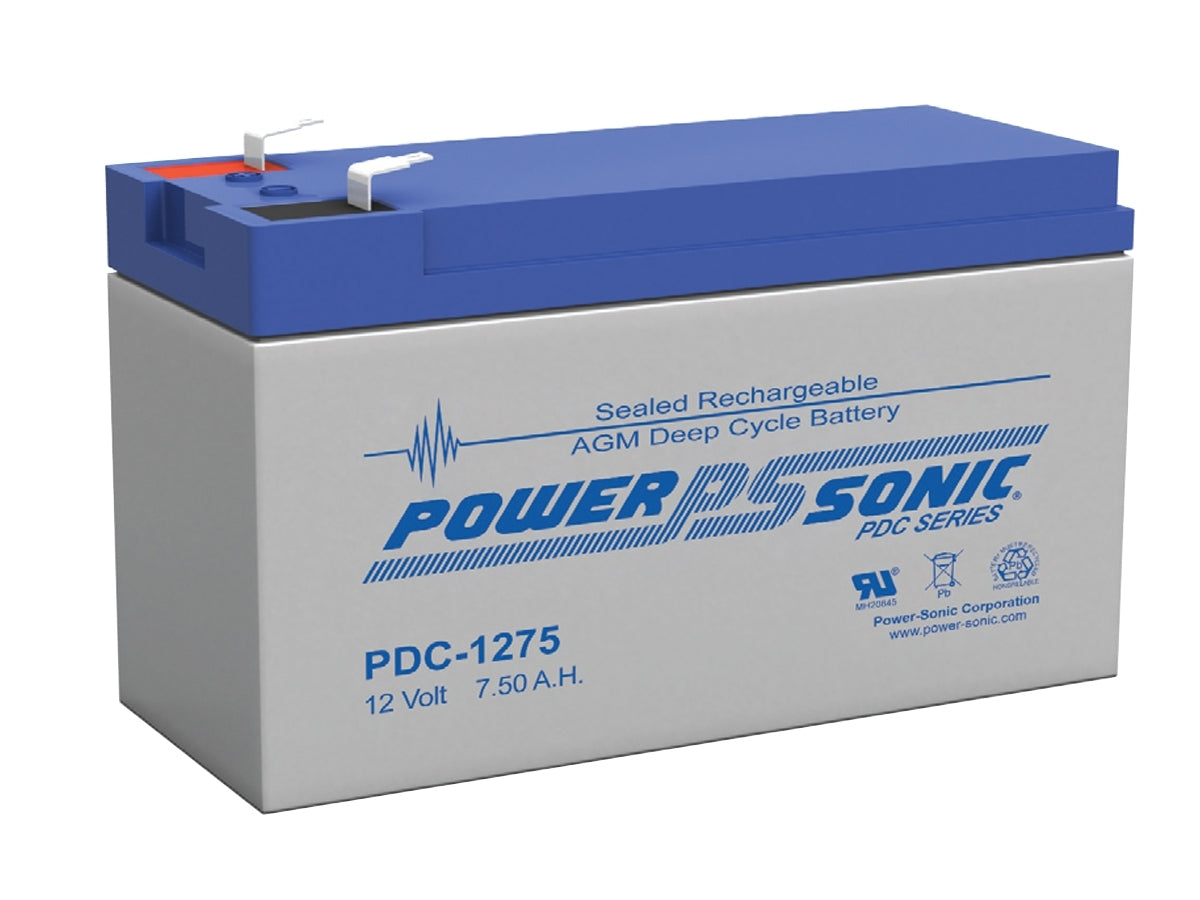

Power-Sonic AGM Deep Cycle PDC-1275 7.5Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - F2 Terminal

Power-Sonic PDC-1275 AGM Deep Cycle SLA Battery 12-Volt 7.5-AH F2 Terminal

In the field of lead acid batteries, Power-Sonic's PDC Deep Cycle Series lead the way in potency and stability, the PDC-1275 included. Like its PDC series relatives, the PDC-1275 utilizes Absorbent Glass Mat (AGM) technology, which helps energy disperse and store evenly throughout the battery, allowing for optimal storage. The energy density is unrivaled, able to store 1.52Wh per cubic inch, and features oversize negative plates and a specialized paste formulation that ensure true deep cycle performance.

The PDC-1275's design makes it not only a capable power source, but a stable one as well. The battery is completely spill-proof and valve-regulated, making it safe to operate in any position, and is enclosed in a rugged, impact resistant ABS Plastic case and cover, earning it certifications from D.O.T., I.A.T.A., F.A.A., and C.A.B..

Features:

• Absorbent Glass Mat (AGM) technology provides superior performance
• Valve regulated, spill-proof for safe use in any position
• Remarkably tough, impact resistant ABS Plastic case and cover
• Oversize negative plates and unique paste formulation provide true deep cycle performance
• Impressive energy density

Specifications:

• Chemistry:SLA (Sealed Lead Acid)
• Terminal Type: F2
• Nominal Voltage: 12 Volts (6 Cells)
• Nominal Capacity:
  • 20-Hour (375mA to 10.5V)............. 7.50 Ah
  • 10-Hour (720mA to 10.5V)............. 7.20 Ah
  • 5-Hour (890mA to 10.5V).............. 7.10 Ah
  • 3-Hour (1.26A to 10.2V).............. 6.31 Ah
  • 1-Hour (4.65A to 9.0V)............... 4.65 Ah
  • 15-Minute (14.2A to 9.0V)............ 3.55 Ah
• Energy Density (20-Hour Rate): 1.52 W-h/in³ (93.05 W-h/l)
• Specific Energy (20-Hour Rate): 15.68 W-h/lb (34.50 W-h/kg)
• Internal Resistance (approx.): 18.0 milliohms
• Max Discharge Current (7 Min.): 21.6A
• Max Short-Duration Discharge Current (10 Sec.): 72.0A
• Shelf Life (% of nominal capacity at 68°F (20°C)):
  • 1 Month ......... 97%
  • 3 Months ........ 91%
  • 6 Months ........ 83%
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (LxWxH): 5.95" x 2.56" x 3.94" (151mm x 65mm x 100mm)
• Approximate Weight: 5.51 lbs. (2.5 kg)
