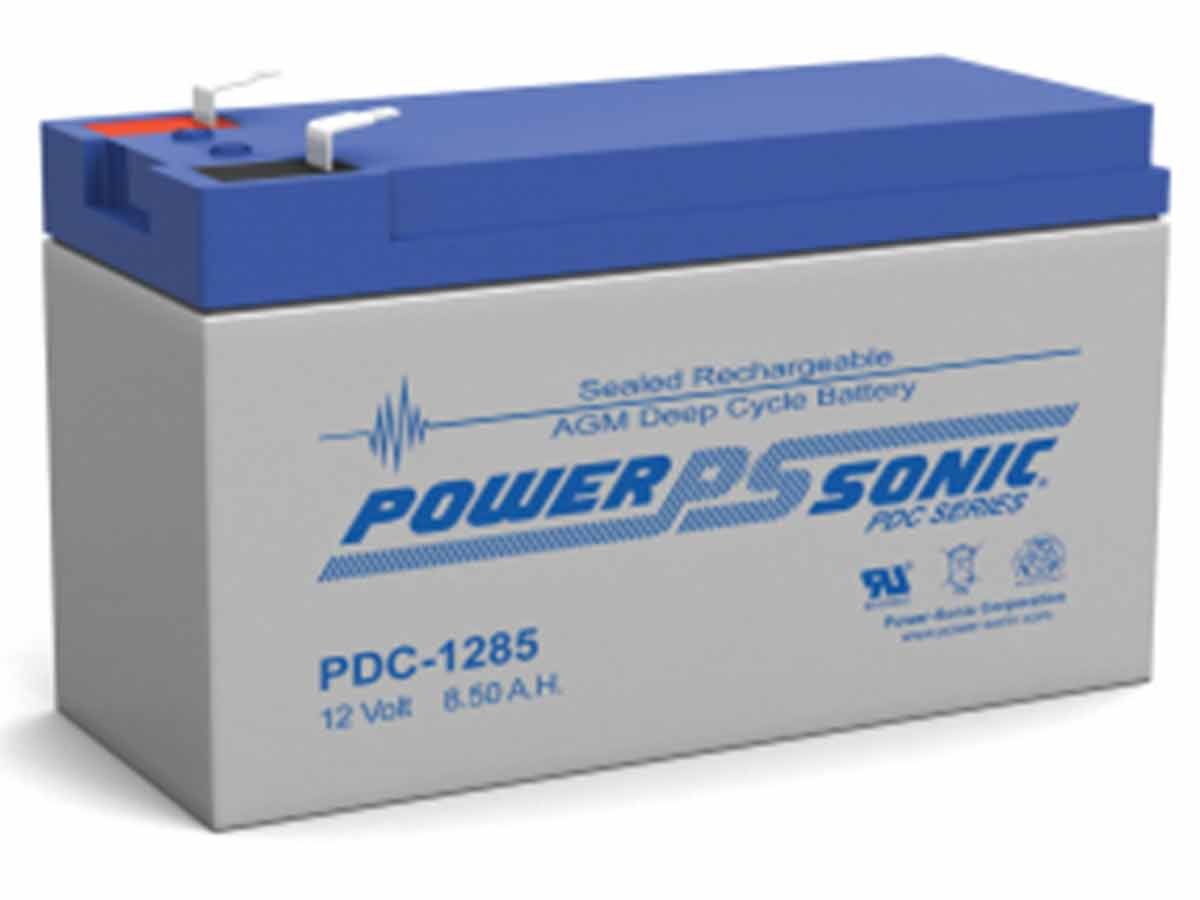

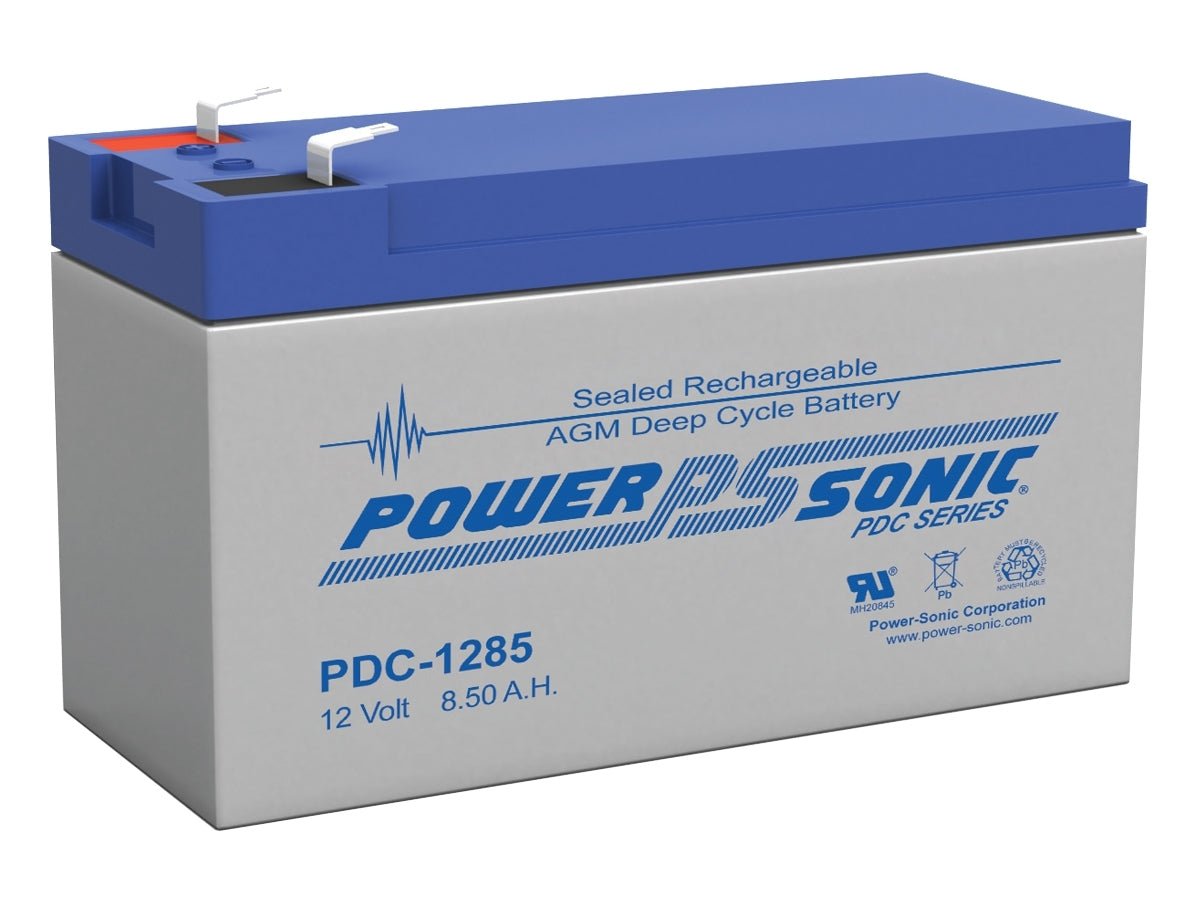

Power-Sonic AGM Deep Cycle PDC-1285 8.5Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - F2 Terminal

Power-Sonic PDC-1285 AGM Deep Cycle SLA Battery

Introducing the PDC-1285 12-Volt lead acid battery, one of the most efficient and stable lead acid batteries on the market. A member of Power-Sonic's PDC Deep Cycle Series, the PDC-1285 comes standard with Absorbent Glass Mat (AGM) technology that allows energy to be dispersed and retained evenly throughout the battery, allowing for maximized usage of the battery. The battery has an astounding energy density that is unrivaled by any competitors, able to store up to 1.74Wh per cubic inch. The battery also features oversize negative plates and a unique paste formulation that allow for true deep cycle performance.

The PDC-1285 is not only a powerful battery, but a stable one as well. The battery's design is completely spill-proof and valve-regulated, making it safe to operate in any position, and is enclosed in a rugged, impact resistant ABS Plastic case and cover, earning it certifications from D.O.T., I.A.T.A., F.A.A., and C.A.B..

• Absorbent Glass Mat (AGM) technology allows for superior performance
• Valve regulated, spill-proof for safe use in any position
• Remarkably rugged, impact resistant ABS Plastic case and cover
• Oversize negative plates and unique paste formulation provide true deep cycle performance
• Amazing energy density unrivaled by competitors

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: F2
• Nominal Voltage: 12 Volts (6 Cells)
• Nominal Capacity:
  • 20-Hour (425mA to 10.50V)........ 8.50 Ah
  • 10-Hour (800mA to 10.50V)......... 8.00 Ah
  • 8-Hour (980mA to 10.50V)......... 7.84 Ah
  • 5-Hour (1.40A to 10.20V)......... 7.02 Ah
  • 1-Hour (5.17A to 9.00V)......... 5.17 Ah
  • 15-Min. (15.8A to 9.00V)......... 3.95 Ah
• Energy Density (20-Hour Rate): 1.69 W-h/in³ (103.39 W-h/l)
• Specific Energy (20-Hour Rate): 15.84 W-h/lb (34.92 W-h/kg)
• Internal Resistance (approx.): 18.0 milliohms
• Max Discharge Current (7 Min.): 24 amperes
• Max Short-Duration Discharge Current (10 Sec.): 80 amperes
• Shelf Life (% of nominal capacity at 68°F (20°C)):
  • 1 Month ......... 97%
  • 3 Months ........ 91%
  • 6 Months ........ 83%
• Operating Temperature Range:
  • Charge: -4°F (-20°C) to 122°F (50°C)
  • Discharge: -40°F (-40°C) to 140°F (60°C)
• Dimensions (LxWxH): 5.94" x 2.56" x 3.94" (151mm x 65mm x 100mm)
• Approximate Weight: 6.06 lbs. (2.75 kg)
