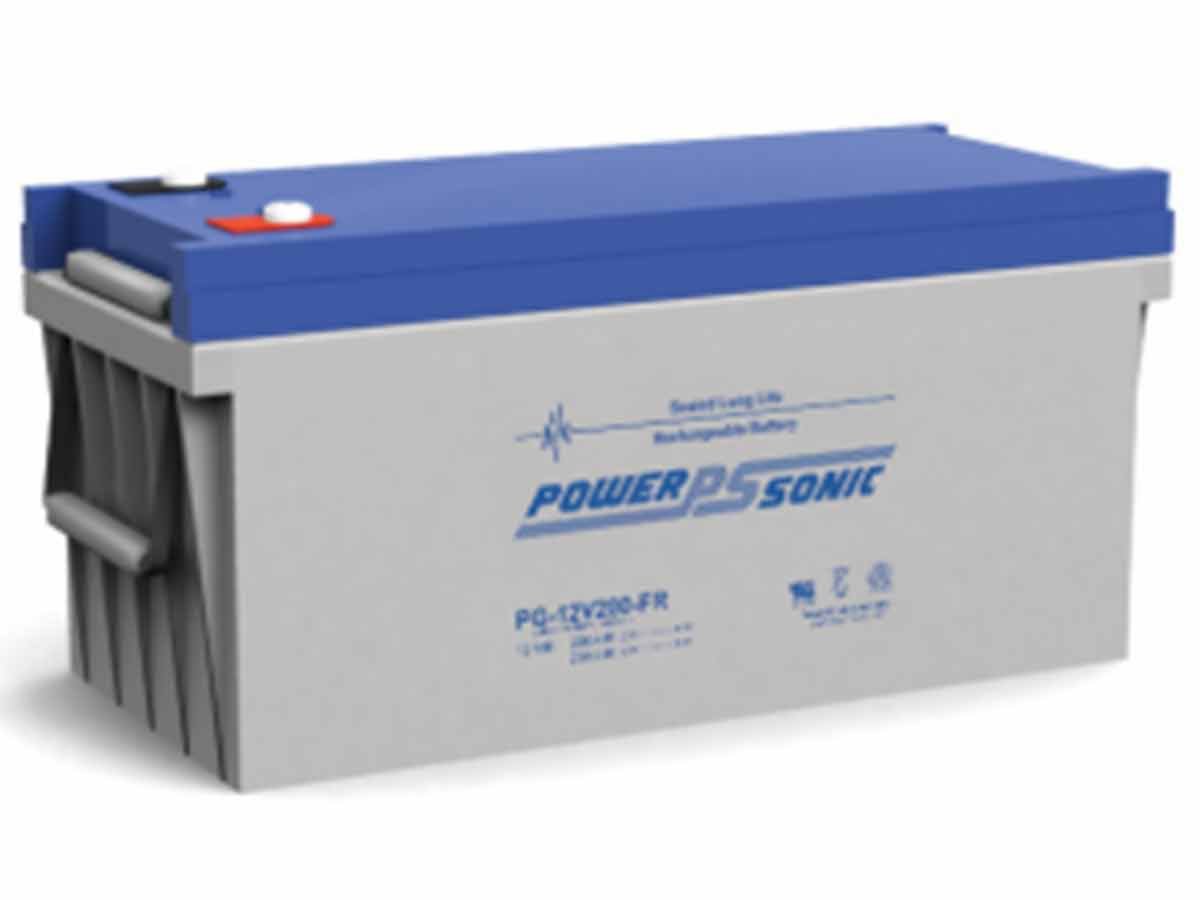

Power-Sonic PG-12V200 FR 210AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

Power-Sonic PG-12V200 FR 210AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

The Power-Sonic PG-12V200 is a sealed lead acid battery that combines powerful energy with efficiency. This battery is designed with cyclic, standby, and solar applications in mind, meaning that it is versatile and useful for more than one application. Don't forget about it's long service life of up to 10 years, which means that you will never be worried about if this battery will perform in a time of need, because it will. Plus, as a maintenance-free and non-spillable battery, the PG-12V200 is easy to care for because you won't have to think about it, Power-Sonic makes sure that it will be ready to go the second that you need it regardless of if its been a couple of years since you last looked at it. This battery is optimized for UPS purposes, with a low internal resistance that that will evenly disperse the energy in the battery which will minimalize discharge over the course of the PG-12V200's service life.

• Long Service Life: Thick plate design and efficient gas recombination yield a service life expectancy of up to 10 years in standby mode
• Low Internal Resistance: Superb high-rate discharge characteristics ensure reliable performance in UPS and Telecom applications
• Maintenance-Free, Non-Spillable: Proven VRLA technology guarantees safe operation without maintenance and 'non-restricted article' status for transportation
• Handles: Integral carrying handles
• Low Self-Discharge: Lead-calcium alloy grids and use of high purity lead account for superior shelf-life characteristics permitting storage for extended periods of time
• Designed-In Reliability: Cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: B
• Nominal Voltage: 12 volts
• Nominal Capacity:
• 20-Hour (11.30A to 10.80 volts) - 226.0AH
• 10-Hour (21.0A to 10.80 volts) - 210.0AH
• 8-Hour (25A to 10.50 volts) - 200.0AH
• 5-Hour (36.10A to 10.50 volts) - 180.5AH
• 3-Hour (54.60A to 10.50 volts) - 163.8AH
• 1-Hour (126.0A to 9.60 volts) - 126.0AH
• Energy Density (10-hr. rate): 1.51 W-h/in³
• Specific Energy (10-hr. rate): 17.50 W-h/in³
• Internal Resistance (approx.): 3.0 milliohms
• Max Short-Duration Discharge Current (10 Sec): 1200 amperes
• Shelf Life (% of nominal capcity at 68°F (20°C))
• 1 Month - 97%
• 3 Months - 91%
• 6 Months - 83%
• Operating Temperature Range
• Charge: -4°F (-20°C) to 122°F (50°C)
• Discharge: -40°F (-40°C) to 140°F (60°C)
• Case: ABS Plastic (UL94 V-O flame retardant)
• Dimensions (LxWxH): 20.55" x 9.45" x 8.82" (522mm x 240mm x 224mm)
• Approximate Weight: 144 lbs. (65.3kg)
