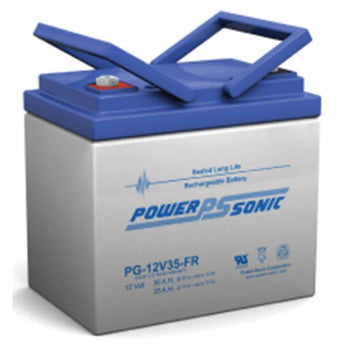

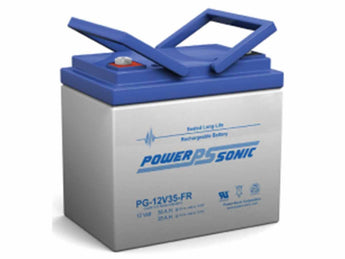

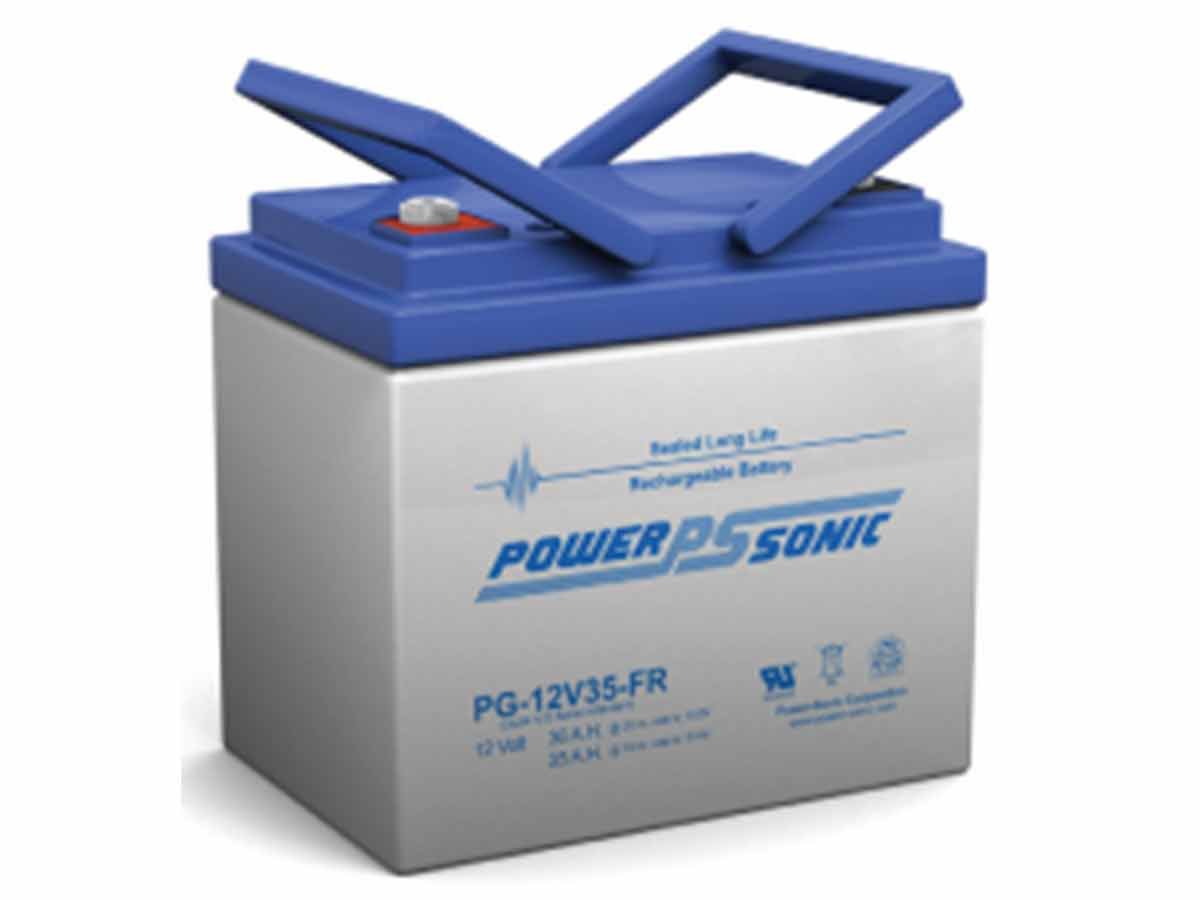

Power-Sonic PG-12V35 FR 35AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

Power-Sonic PG-12V35 FR 35AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

The Power-Sonic PG-12V35 is a rechargeable sealed lead acid battery that is designed for cyclic, standby, and solar applications. With low self-discharge, this battery will hold energy for long periods of time with very little charge released, so it is reliable to use in any emergency. The PG-12V35 also provides low internal resistance which enables high currents, so that it is the perfect back-up battery for Internet servers and emergency systems alike. Plus, this Power-Sonic PG-12V35 has proven Valve-Regulated Lead Acid (VRLA) technology, that provides a maintenance-free and non-spillable experience to assure safe operation and 'non-restricted article' status for transportation.

• Long Service Life: Thick plate design and efficient gas recombination yield a service life expectancy of up to 10 years in standby mode
• Low Internal Resistance: Superb high-rate discharge characteristics ensure reliable performance in UPS and Telecom applications
• Maintenance-Free, Non-Spillable: Proven VRLA technology guarantees safe operation without maintenance and 'non-restricted article' status for transportation
• Handles: Integral carrying handles
• Low Self-Discharge: Lead-calcium alloy grids and use of high purity lead account for superior shelf-life characteristics permitting storage for extended periods of time
• Designed-In Reliability: Cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: B
• Nominal Voltage: 12 volts
• Nominal Capacity:
• 20-Hour (1.80A to 10.80 volts) - 36.0AH
• 10-Hour (3.5A to 10.80 volts) - 35.0AH
• 8-Hour (4.2A to 10.50 volts) - 33.6AH
• 5-Hour (6.50A to 10.50 volts) - 32.5AH
• 3-Hour (10.00A to 10.50 volts) - 30.0AH
• 1-Hour (77.0A to 9.60 volts) - 27.0AH
• Energy Density (10-hr. rate): 1.66 W-h/in³
• Specific Energy (10-hr. rate): 17.14 W-h/in³
• Internal Resistance (approx.): 8.0 milliohms
• Max Short-Duration Discharge Current (10 Sec): 175 amperes
• Shelf Life (% of nominal capcity at 68°F (20°C))
• 1 Month - 97%
• 3 Months - 91%
• 6 Months - 83%
• Operating Temperature Range
• Charge: -4°F (-20°C) to 122°F (50°C)
• Discharge: -40°F (-40°C) to 140°F (60°C)
• Case: ABS Plastic (UL94 V-O flame retardant)
• Dimensions (LxWxH): 7.80" x 5.20" x 6.65" (198mm x 5.20mm x 169mm)
• Approximate Weight: 24.5 lbs. (11.1kg)
