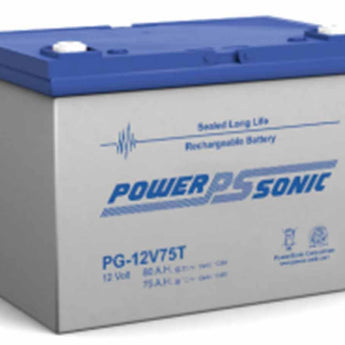

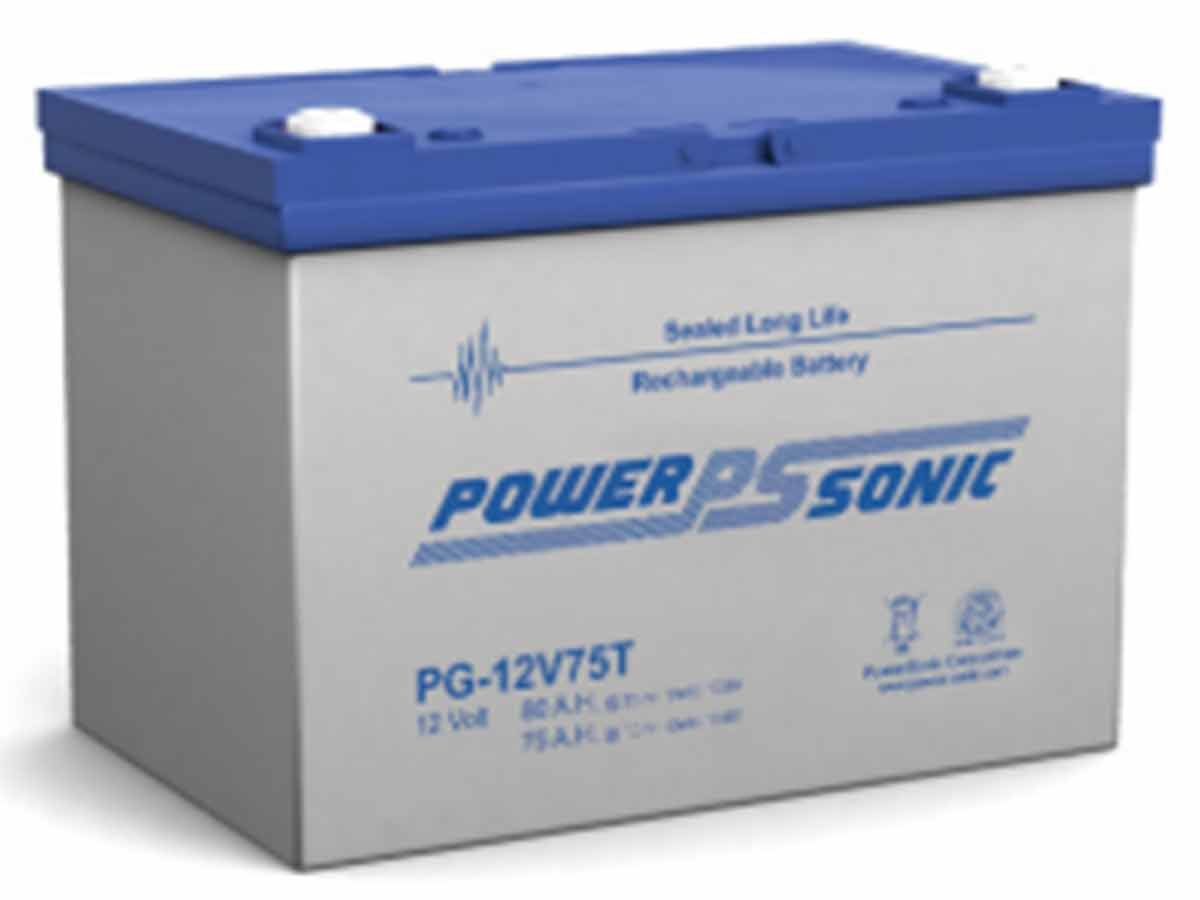

Power-Sonic PG-12V75T FR 75AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

Power-Sonic PG-12V75T FR 75AH 12V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

A rechargeable sealed lead acid battery dedicated and designed to work for cyclic, standby, and solar application, the Power-Sonic PG-12V75T is the best fit for you and your needs. Whether its for a back-up emergency system or for your own inventions, the quality of this battery is incomparable. With a service life of up to 10 years, this battery utilizes low self-discharge so that no matter when you use it, it will be ready to go. Never worry about this battery again, with a maintenance-free and non-spillable design that will negate any knicks, spills, or damage that could succumb other batteries. Not to mention, the PG-12V75T has a low internal resistance that disperses a high-rate discharge over the course of the battery's service life, it will ensure a reliable and outstanding performance from your battery whenever you need it, a perfect fit for Telecom or UPS purposes.

• Long Service Life: Thick plate design and efficient gas recombination yield a service life expectancy of up to 10 years in standby mode
• Low Internal Resistance: Superb high-rate discharge characteristics ensure reliable performance in UPS and Telecom applications
• Maintenance-Free, Non-Spillable: Proven VRLA technology guarantees safe operation without maintenance and 'non-restricted article' status for transportation
• Handles: Integral carrying handles
• Low Self-Discharge: Lead-calcium alloy grids and use of high purity lead account for superior shelf-life characteristics permitting storage for extended periods of time
• Designed-In Reliability: Cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: B
• Nominal Voltage: 12 volts
• Nominal Capacity:
• 20-Hour (4.00A to 10.80 volts) - 80.0AH
• 10-Hour (7.5A to 10.80 volts) - 75.0AH
• 8-Hour (9A to 10.50 volts) - 72.0AH
• 5-Hour (12.90A to 10.50 volts) - 64.5AH
• 3-Hour (19.50A to 10.50 volts) - 58.5AH
• 1-Hour (45.0A to 9.60 volts) - 45.0AH
• Energy Density (10-hr. rate): 1.43 W-h/in³
• Specific Energy (10-hr. rate): 17.65 W-h/in³
• Internal Resistance (approx.): 6.5 milliohms
• Max Short-Duration Discharge Current (10 Sec): 450 amps
• Shelf Life (% of nominal capcity at 68°F (20°C))
• 1 Month - 97%
• 3 Months - 91%
• 6 Months - 83%
• Operating Temperature Range
• Charge: -4°F (-20°C) to 122°F (50°C)
• Discharge: -40°F (-40°C) to 140°F (60°C)
• Case: ABS Plastic (UL94 V-O flame retardant)
• Dimensions (LxWxH): 13.70" x 6.57" x 6.73" (348mm x 167mm x 171mm)
• Approximate Weight: 51.0 lbs. (23.1kg)
