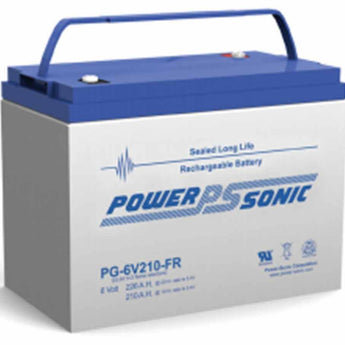

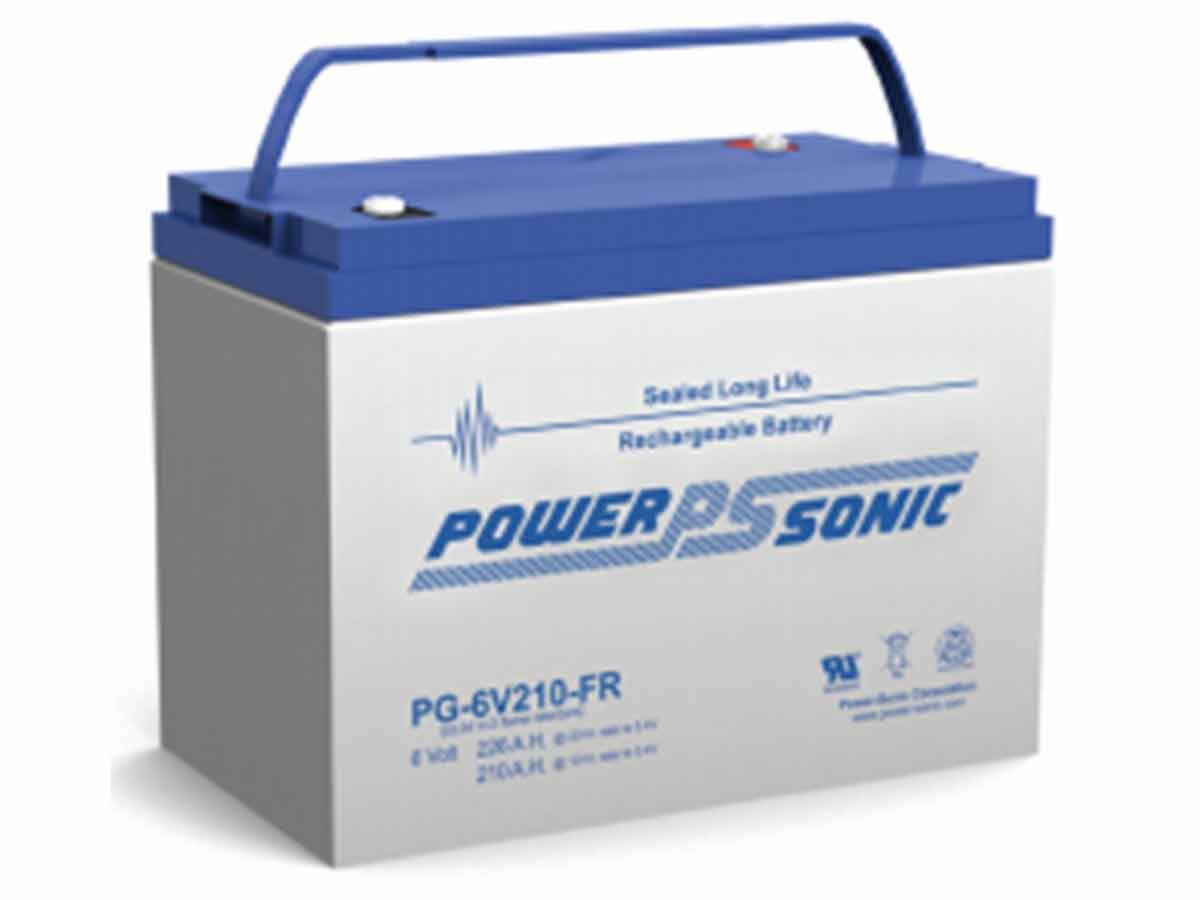

Power-Sonic PG-6V210 FR 210AH 6V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

Power-Sonic PG-6V210 FR 210AH 6V Long-Life Rechargeable Sealed Lead Acid (SLA) Battery - B Terminal

The Power-Sonic PG-6V210 is a sealed lead acid rechargeable battery that is designed for cyclic, standby, and solar applications. A battery that has a low internal resistance that provides high currents on demand while also storing energy evenly using its low self-discharge feature, it is able to be used in a pinch for UPS operations that will back-up systems in a flash. The PG-6V210 boasts a long service life expectancy of up to 10 years while in standby mode and also has a maintenance-free, non-spillable design, Power-Sonic guarantees a safe operation and with these features you will find it unnecessary to check up on this battery.

• Long Service Life: Thick plate design and efficient gas recombination yield a service life expectancy of up to 10 years in standby mode
• Low Internal Resistance: Superb high-rate discharge characteristics ensure reliable performance in UPS and Telecom applications
• Maintenance-Free, Non-Spillable: Proven VRLA technology guarantees safe operation without maintenance and 'non-restricted article' status for transportation
• Handles: Integral carrying handles
• Low Self-Discharge: Lead-calcium alloy grids and use of high purity lead account for superior shelf-life characteristics permitting storage for extended periods of time
• Designed-In Reliability: Cutting-edge manufacturing and process control combined with meticulous quality assurance procedures guarantee consistent and dependable

• Chemistry: SLA (Sealed Lead Acid)
• Terminal Type: B
• Nominal Voltage: 6 volts
• Nominal Capacity:
• 20-Hour (11.30A to 5.40 volts) - 226.0AH
• 10-Hour (21.0A to 5.40 volts) - 210.0AH
• 8-Hour (25A to 5.25 volts) - 200.0AH
• 5-Hour (36.10A to 5.25 volts) - 180.5AH
• 3-Hour (54.60A to 5.25 volts) - 163.8AH
• 1-Hour (126.0A to 4.80 volts) - 126.0AH
• Energy Density (10-hr. rate): 1.58 W-h/in³
• Specific Energy (10-hr. rate): 17.60 W-h/in³
• Internal Resistance (approx.): 1.4 milliohms
• Max Short-Duration Discharge Current (10 Sec): 630 amps
• Shelf Life (% of nominal capcity at 68°F (20°C))
• 1 Month - 97%
• 3 Months - 91%
• 6 Months - 83%
• Operating Temperature Range
• Charge: -4°F (-20°C) to 122°F (50°C)
• Discharge: -40°F (-40°C) to 140°F (60°C)
• Case: ABS Plastic (UL94 V-O flame retardant)
• Dimensions (LxWxH): 12.70" x 7.00" x 9.21" (323mm x 178mm x 234mm)
• Approximate Weight: 71.6 lbs. (32.5kg)
