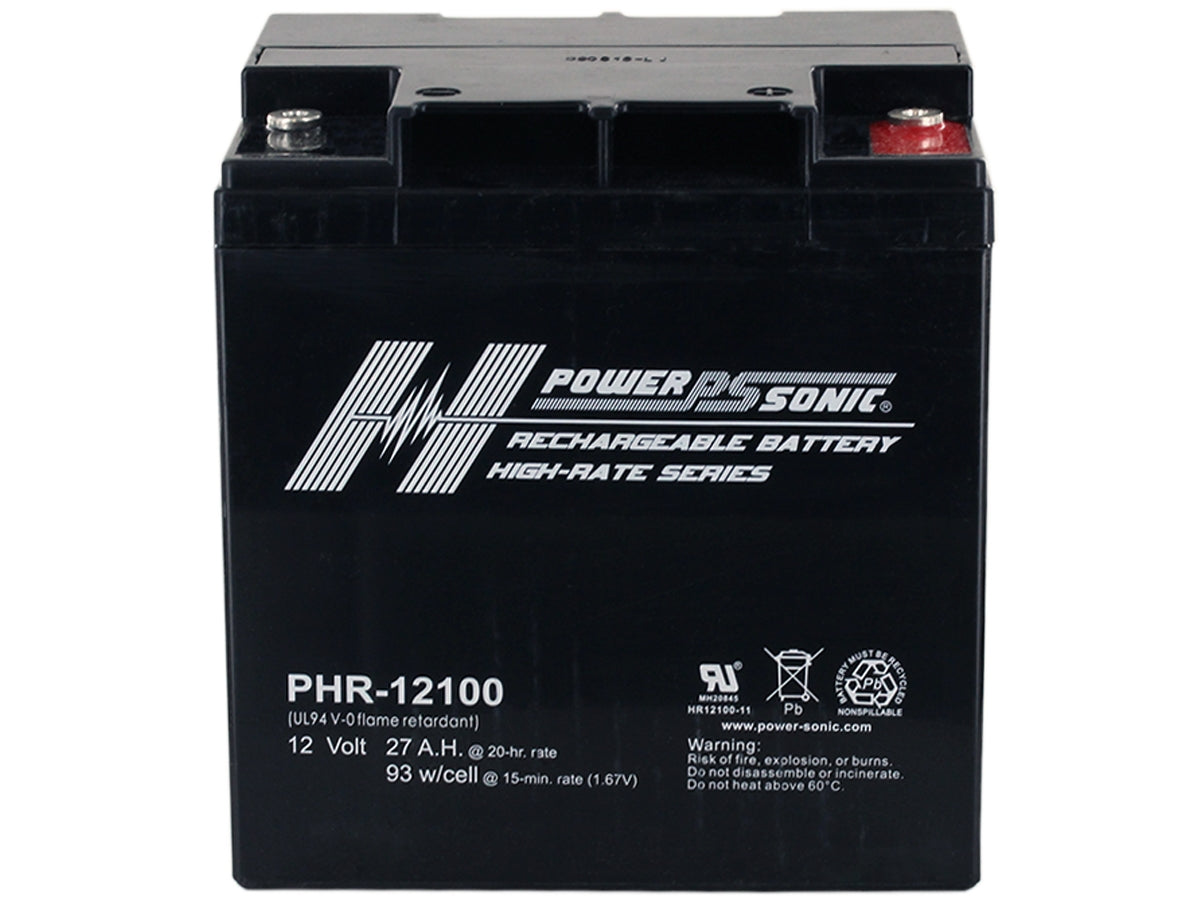

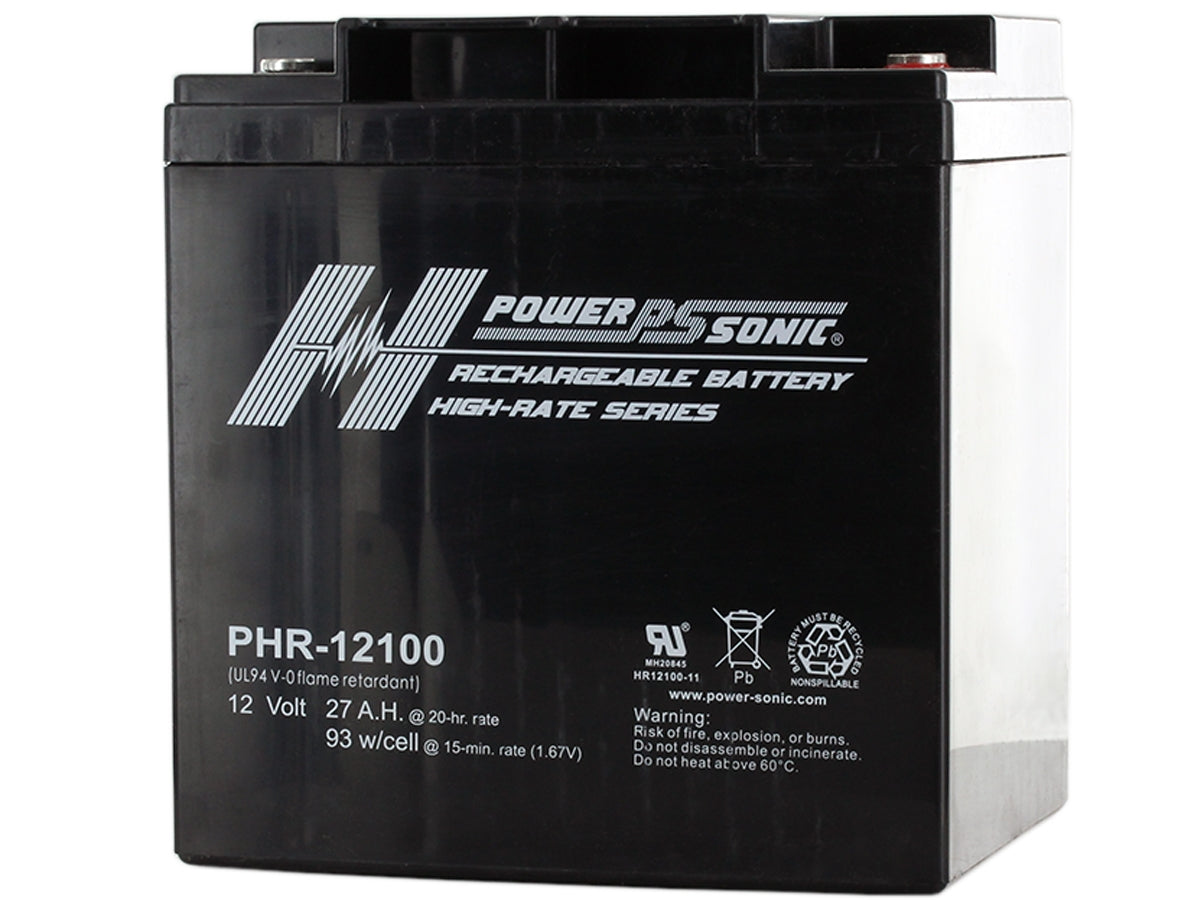

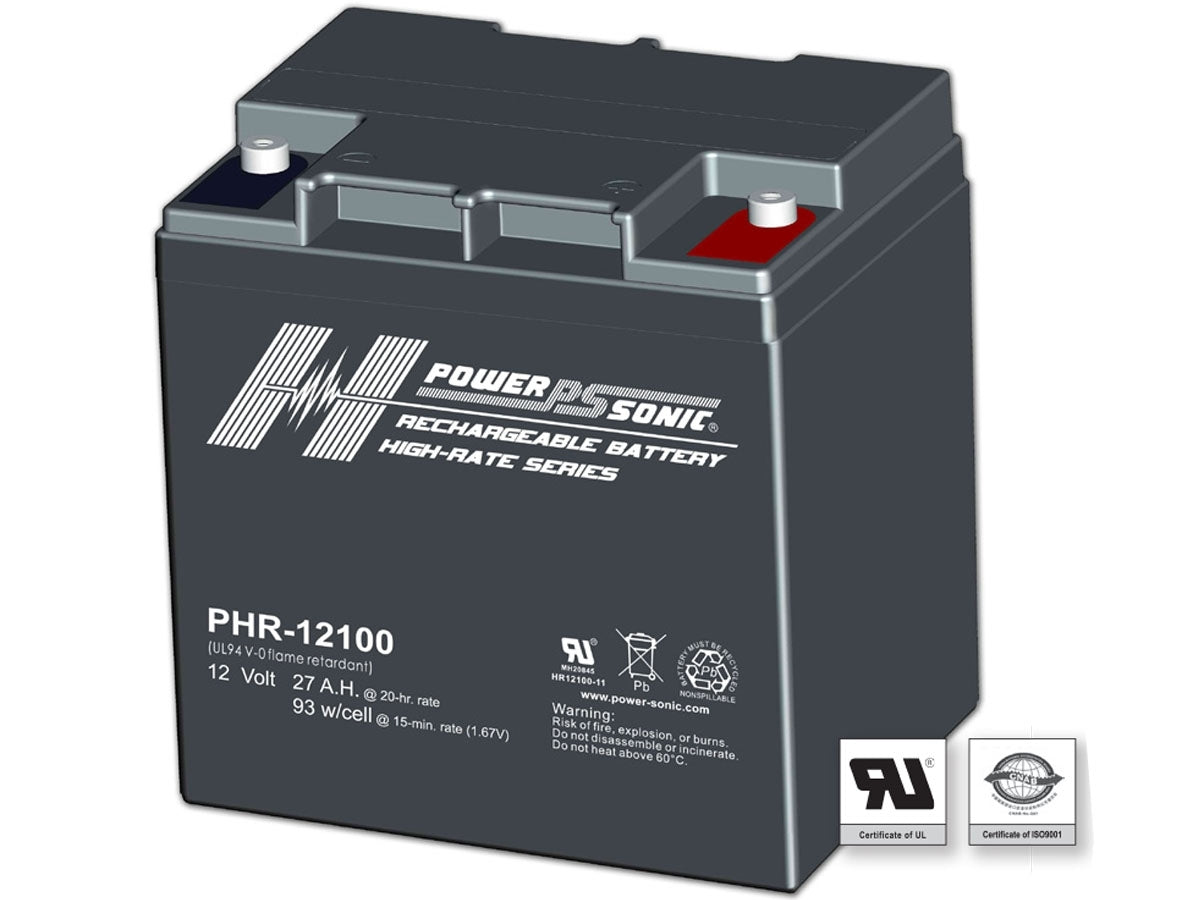

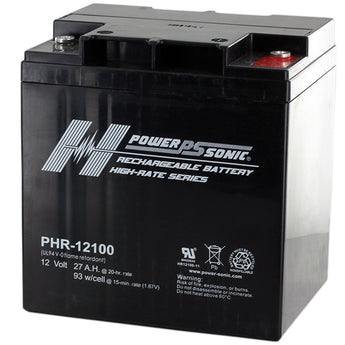

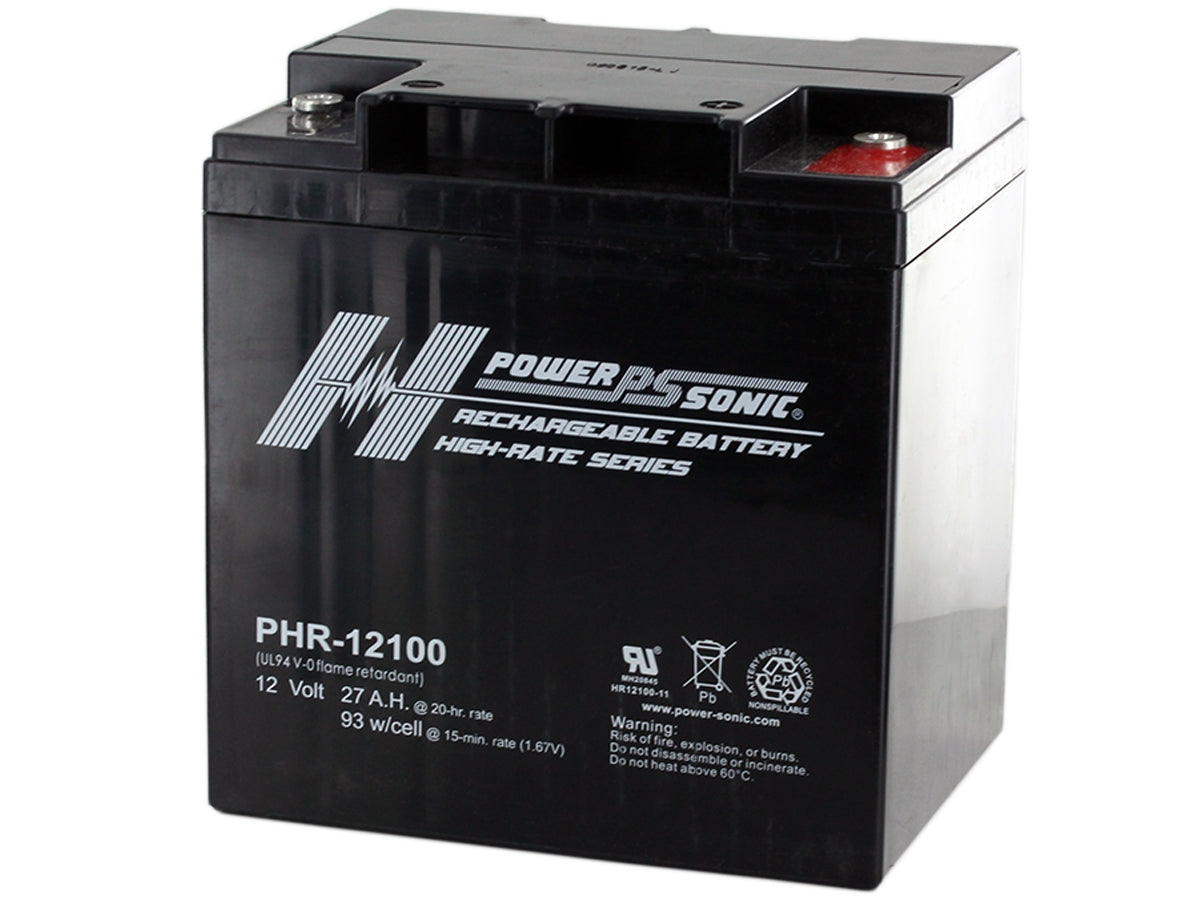

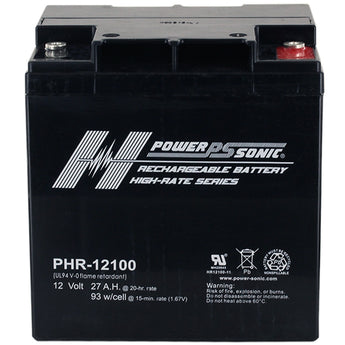

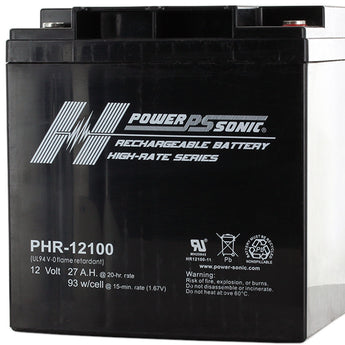

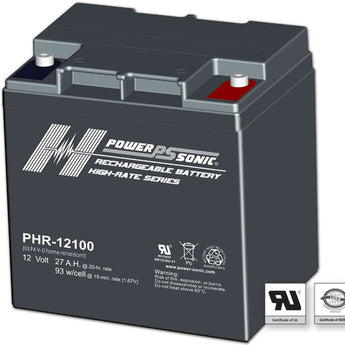

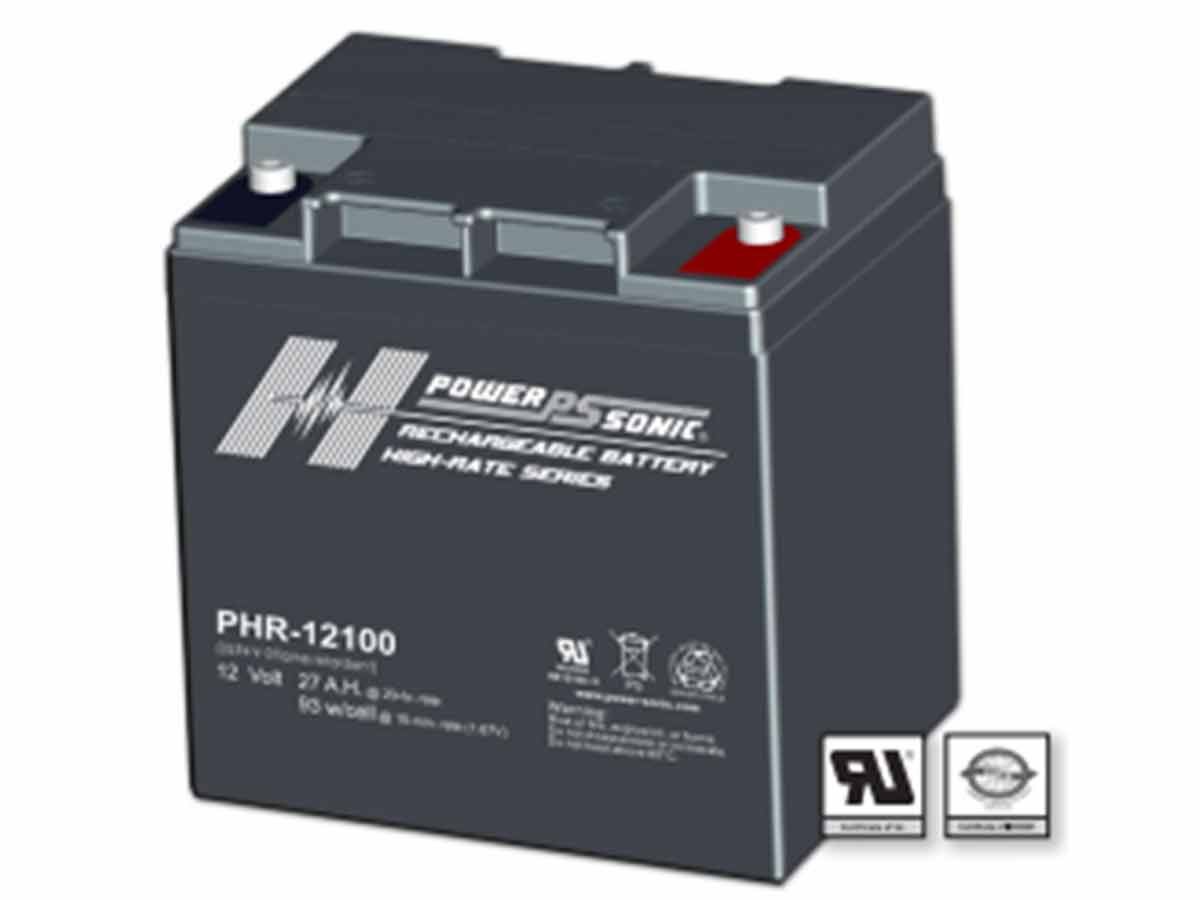

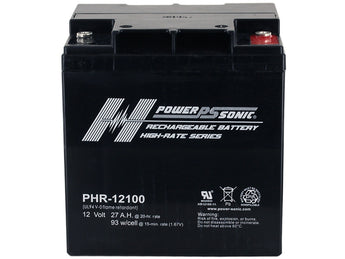

Power-Sonic PHR-12100 High Rate VRLA Battery
With no maintenance required, Power-Sonic's High Rate Series batteries outperform the competition
Power-Sonic ups the ante with their VRLA High Rate Series Battery. Utilizing AGM technology, these VRLA batteries discharge at a higher rate for an overall improved performance. Power-Sonic designers house this powerful sealed lead acid battery in ABS plastic, a highly durable, flame retardant material. These batteries are rechargeable over several hundred cycles, fueling UPS, ATV, and other portable power needs across the map for up to a decade.
Improved Design
Power-Sonic high rate batteries use special inner construction and other processes to improve overall performance.
AllVRLA High Rate Batteries use high-quality parts and chemistry to produce such a superior battery. Precision plate pasting creates a higher consistency of electrolytes for use. Patented plate pasting improves active material bonding in the overall power process.
AGM Technology
Power-Sonic designs batteries that transport safely and work effectively.
The Power-Sonic PHR-12100 is a sealed lead acid battery on a mission. Special AGM technology weaves glass fibers into strong receptors that house electrolytes waiting to be used. This allows Power-Sonic High Rate SLA batteries the power to burst off large amounts of energy from storage. Along with better energy distribution and storage, AGM technology is a safer way to store SLA power. There is no free liquid inside these batteries, minimizing risk and chance of accident.
Features:
- Superb high-rate discharge characteristics that ensure reliable performance in UPS applications for up to 10 years. UL recognized
- Flame retardant ABS case and cover to UL 94 V-O for superior performance
- VRLA Absorbent Glass Mat(AGM) Technology guarantees safe operation without maintenance and "non-restricted article" status for transportation. Approved for transport by air. D.O.T., I.A.T.A. and F.A.A. certified
- Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
- Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
- Patented dual-paste process for enhanced active material bonding, and computer guided volumetric electrolyte control for precision filling
- Lead-calcium alloy grids and the use of high purity lead account for superior shelf-life characteristics
Specifications:
-
Chemistry:SLA (Sealed Lead Acid)
-
Terminal Type: T12
-
Nominal Voltage: 12 Volts (6 Cells)
-
Nominal Power: 93.0W / Cell
-
Rated Capacity:
- 20-Hour (1.35A to 10.8V)............. 27.0 Ah
- 10-Hour (2.66A to 10.5V)............. 26.6 Ah
- 8-Hour (3.22A to 10.5V).............. 25.8 Ah
-
Internal Resistance (approx.): 10.0 milliohms
-
Max Charge Current: 8.1A
-
Max Discharge Current (5 Sec.): 540.0A
-
Shelf Life (% of nominal capacity at 68°F (20°C)):
- 1 Month ......... 97%
- 3 Months ........ 91%
- 6 Months ........ 83%
-
Charging Voltage (at 68°F (20°C)):
-
Standby Use: 2.275±0.025 V/Cell, (-3.3mV/°C/Cell)
-
Cycle Use: 2.45±0.05 V/Cell, (-5mV/°C/Cell)
-
Dimensions (LxWxH): 6.46" x 4.92" x 6.89" (164mm x 125mm x 175mm)
-
Approximate Weight: 20.9 lbs. (9.48 kg)
