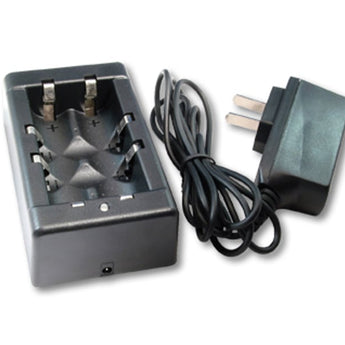

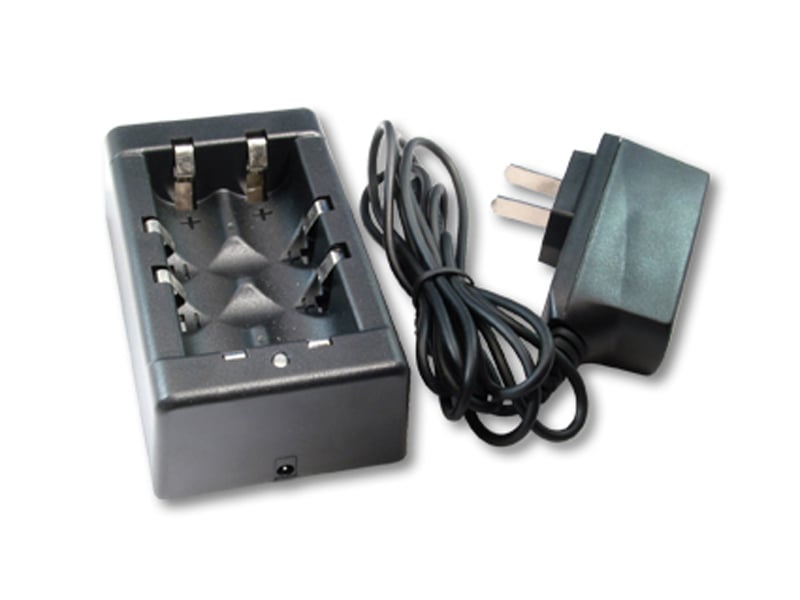

TL-100 Universal Li-Ion Charger for 18650, 17670 & 16340 cells

Features and Benefits:

• Universal Li-Ion battery charger for 18650, 18350, 16340 (CR123A sized), 17670 3.6V/3.7V Li-Ion cells.
• Can be used anywhere worldwide with 100-240 V input. Good for oversea travel.
• Smart charger automatic cut-off.

Product Specifications:

• Power Input: AC110~240V, 50/60Hz
• Power Output: DC5.5V-350mA
• Charging time:
  • 800mAh: 3 hours
  • 2000mAh: 8.5 hours
  • 2200mAh: 9.5 hours
• Dimension: 3 13/16" x 2 3/8" x 1 5/16"
• Weight: 3.9oz charger and adaptor together

Instructions for Use:

• Insert cell(s) into the charger before connecting charger to power.
• Plug in Charger.
• If batteries are removed during charge, unplug charger and re-insert batteries.
• LED light for charging status indication:
  • When charger is plugged in and received power the LED strobes Red/Green.
  • LED is Red when charging, Green when charging is completed.
  • If LED is off or flashing at an extremely fast rate, the cell/s are not suitable for charging with unit and should be removed immediately. If cells are installed with polarity reversed, LED will also be off - simply reverse polarity of cell.

NOTE: The power output of this charger is incorrect for the protected 3V 750 & 900mah RCR123A cells that we carry. We specifically do not recommend using this charger for those cells. Only use this charger with 3.6 & 3.7V cells.
