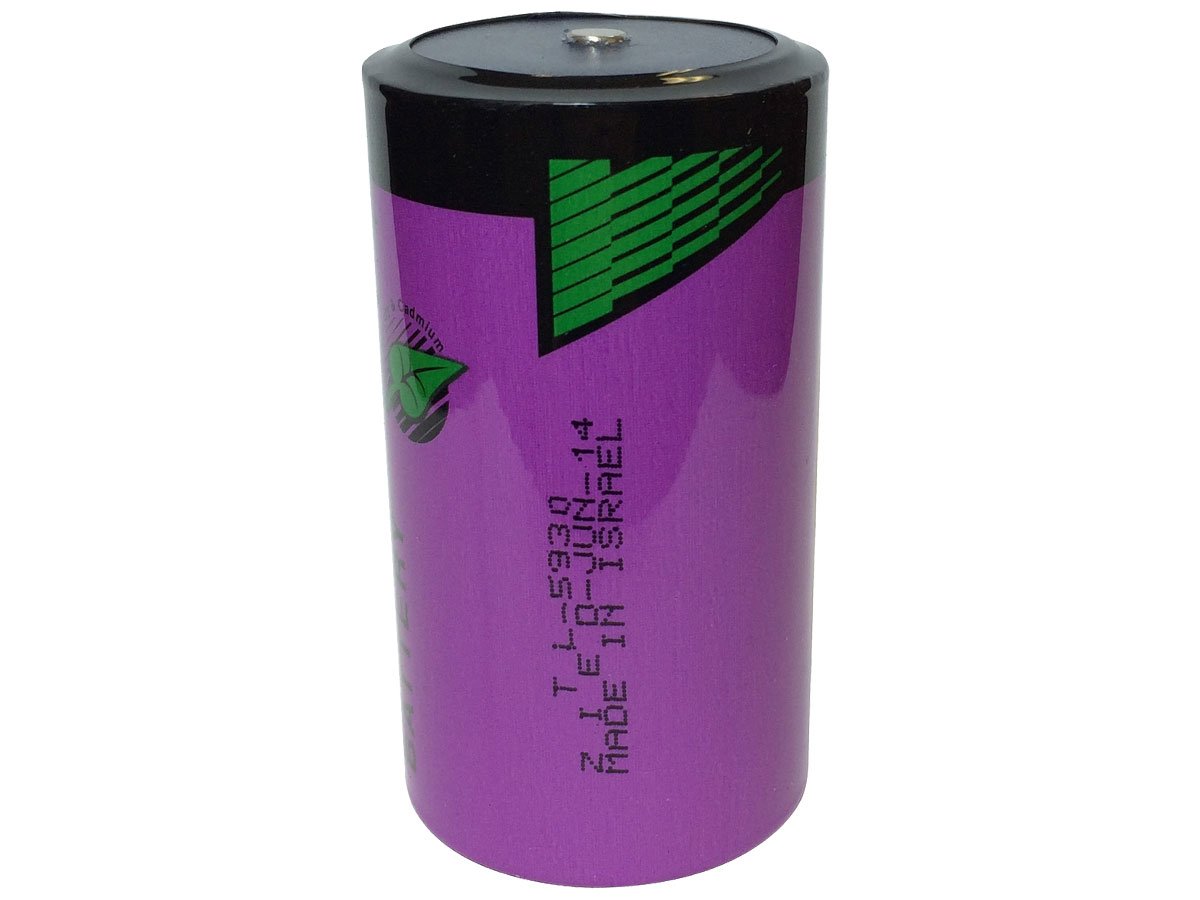

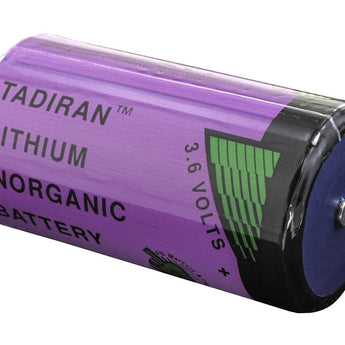

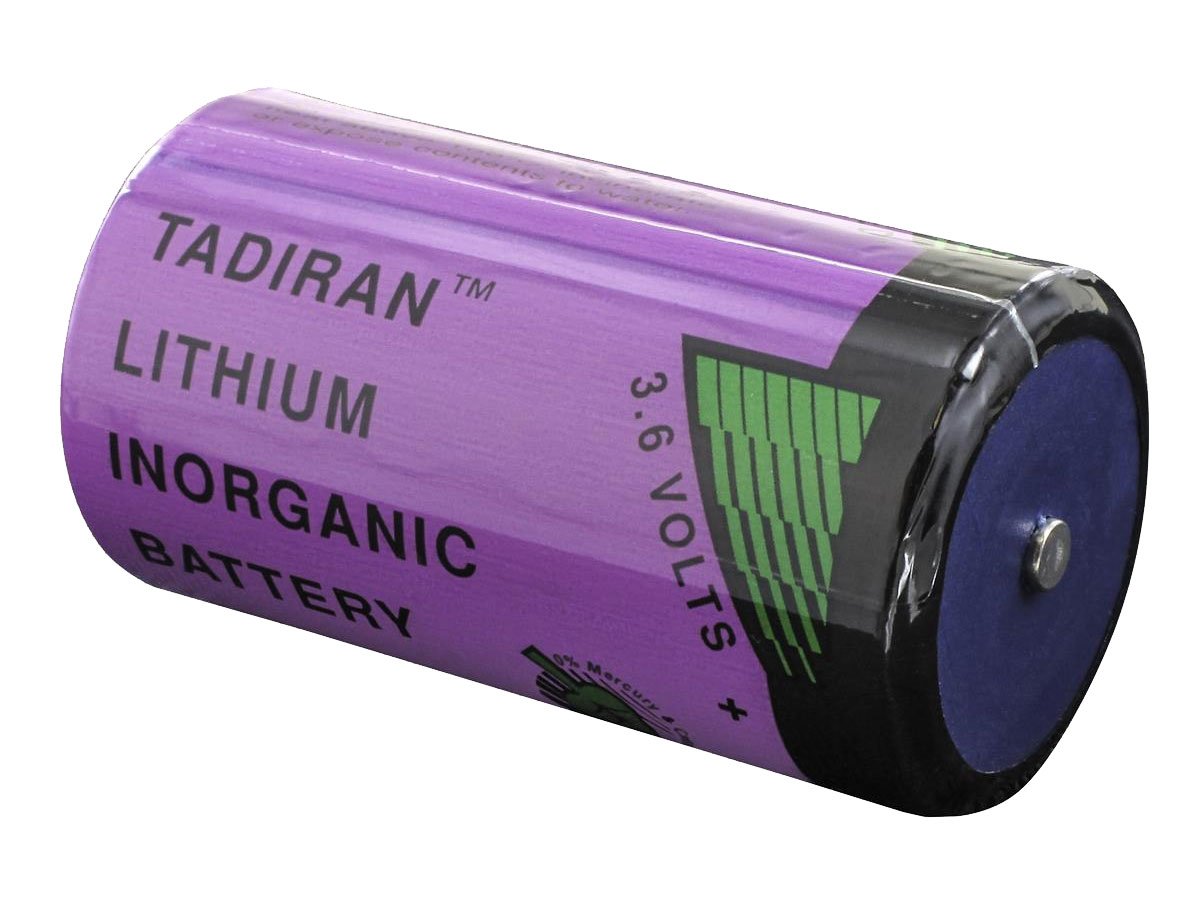

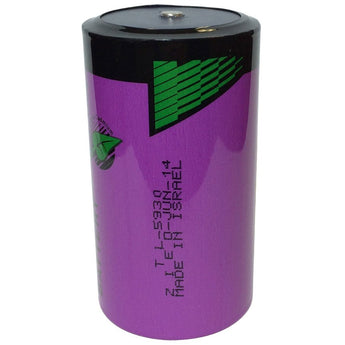

Tadiran iXtra Series D 19Ah 3.6V Lithium Thionyl Chloride (Li-SOCI2) Button Top Battery (TL-5930)

$32.67

Tadiran iXtra Series D 19Ah 3.6V Lithium Thionyl Chloride (Li-SOCI2) Button Top Battery (TL-5930)

Brand:Tadiran
MPN:TL-5930
Buy more save more!
$32.67
100+ $28.38 ea
Need more? RFQ
  • Size: D
  • Voltage: 3.6
  • Rechargeable: No
  • Chemistry: Lithium Thionyl Chloride
  • Capacity (mAh): 19000
  • Terminal Type: Button Top
View Full Details

Pickup available at Shop location

Usually ready in 24 hours

$32.67
In Stock
Standard Shipping Rates Apply
BUYMORE
SAVEMORE
Request a Volume Quotation

Recently viewed

Description

Tadiran iXtra Series D Lithium Batteries - Tray of 20

3.6V, 19 Ah

Made for use in utility meters, security systems, and other important systems, the Tadiran iXtra Series D Lithium Battery is one of the most reliable primary batteries available. The powerful cells features a sizable 19 Ah capacity and a low self-discharge rate, all thanks to its sophisticated Lithium Thionyl Chloride chemistry (LiSOCl2). The battery experiences little to no voltage delay, meaning the cell will always begin working at its typical operating voltage, even in extreme low temperatures. The D battery also features rapid voltage recovery after extended storage or long-term use, so your batteries are always ready to supply power when you need them.

Features & Specifications:

  • Extremely low self-discharge rate
  • Fast voltage recovery after long-term storage or extended use
  • Minimal voltage delay
  • Battery Size: D
  • Tray Quantity: 20 Cells
  • Battery Chemistry: Lithium Thionyl Chloride (LiSOCl2) (Primary)
  • Nominal Voltage: 3.6V
  • Nominal Capacity: 19000 mAh
  • Max Continuous Discharge Current: 230 mA
  • Max Pulse Discharge Current: 500 mA
  • Operating Temperature Range: -67°F to 185°F (-55°C to 85°C)
  • Shelf Life: 10 Years
  • Dimensions:
    • Length - 2.42" (61.5 mm)
    • Diameter - 1.3" (32.9 mm)
  • Weight: 3.28 oz. (93 g)

PLEASE NOTE: These batteries are LITHIUM PRIMARY batteries, which are NOT rechargeable. Do not attempt to charge these cells, as any attempt to do so may cause severe damage to both the battery and charger.

collection: Batteries; product type: Batteries - Lithium Primary
CAUTION: These primary batteries are not rechargeable.
Risk of fire, explosion and burns, do not recharge, disassemble, incinerate, or heat above 212F°/100C°. Do not mix used & new or any other battery types. Keep away from children. Misuse of primary lithium batteries can pose a serious risk of injury or property damage. Dispose of used batteries properly, following local guidelines.
Item Details
Brand Tadiran
SKU TADIRAN-TL-5930
Series iXtra
MPN TL-5930
Size D
Voltage 3.6
Battery Rechargeable No
Capacity (mAh) 19000
Chemistry Lithium Thionyl Chloride
Shelf Life 10 Years
Packaging Bulk
QTY Per Package 1
Master Case 100
California Residentssee Prop 65 WARNINGS
Specifications
Size D
Voltage 3.6
Battery Rechargeable No
Capacity (mAh) 19000
Terminal Type Button Top
Integrated Charge Port No
Max. Discharge Rate 0.5
Equivalent Types 13A, 13D, 813, AL-D, AM1, D, E95, EN95, KD, LR20, LR20XWA, MN1300, MX1300, PC1300, R20
Unit Dimensions
Length 2.42 in (61 mm)
Diameter 1.3 in (33 mm)
Weight 3.28 oz (93 g)
Packaging/Shipping Dimensions
Shipping Weight 0.5 lb
