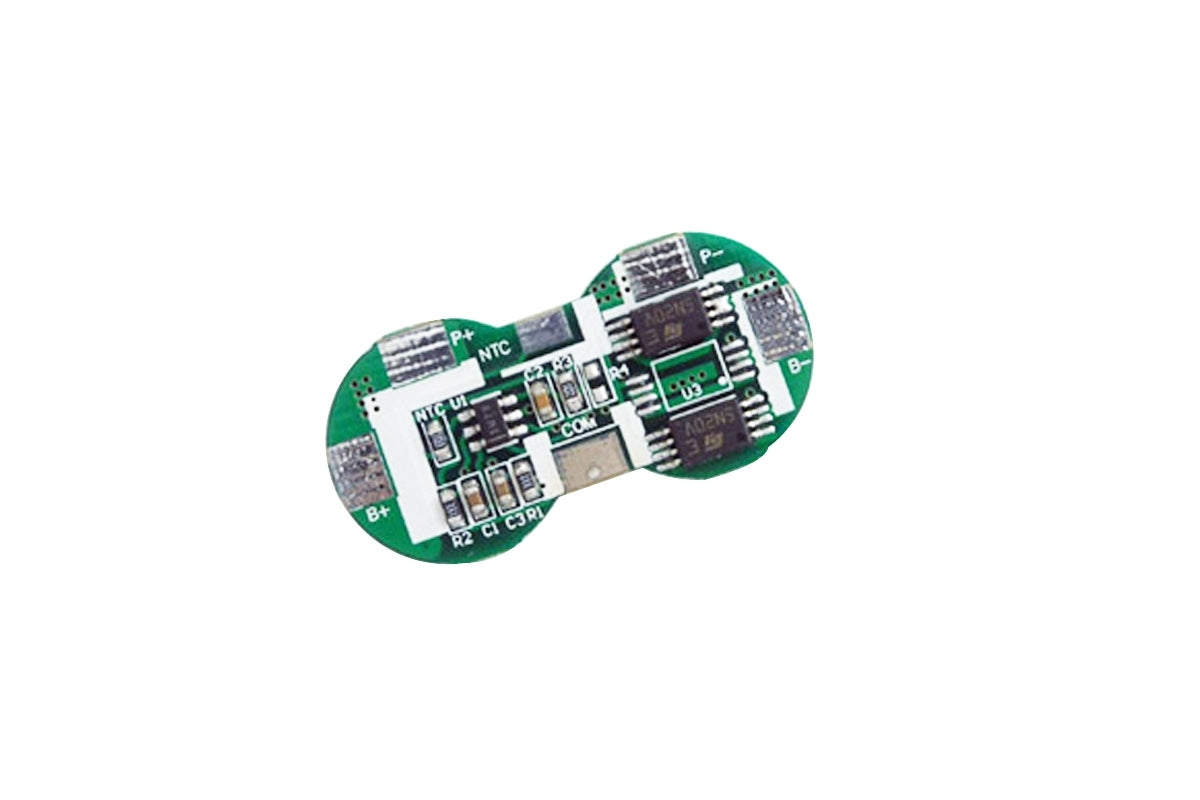

Tenergy 32004 Protection Circuit Module (PCM) for 7.2V / 7.4V Li-ion 18650 / 18500 Battery Packs
Brand:Tenergy
MPN:32004
Buy more save more!
- Batteries Included?: No
$5.20
Recently viewed
Description
Protection Circuit Module
The Tenergy 32004 protection circuit module is designed for use with 7.4V Li-ion battery packs. The purpose of the PCM is to prevent a pack from overcharging and over-discharging. The Tenergy 32004 therefore keeps you safe and prevents your electronic device from damage. This protection circuit module has a discharge current cutoff of 5A.
Specifications:| Item | Content | Criteria |
| Over Charge Protection | Over Charge Detection Voltage | 4.35±0.025V |
| Over Charge Release Voltage | 4.15±0.05V | |
| Rated Current | 3.5A | |
| Over Discharge Protection | Over Discharge Detection Voltage | 2.3±0.06V |
| Over Discharge Release Voltage | 3.0±0.075V | |
| Rated Discharge Current | 3.5A | |
| Over Current Detection Current | 5-7A | |
| Short Circuit Protection | Short Protection | Implemented |
| Release Condition | Cut Load | |
| Interior Resistance | P+, P- Conduction Resistance | ≤60mΏ |
| Current Consumption | Current Consumed in normal Operation | ≤10µA |
| Dimension | 30.5 x 15 x 2.4 mm | |

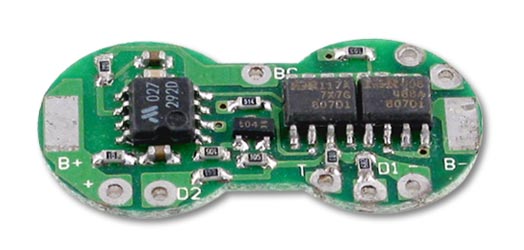

Note: Orientation may be different on PCB. Make sure to use correct contacts as labeled on PCB.
Warning: Because of the very high energy density, Li-Ion Battery pack must be connected to a protection circuit module to prevent accidental battery explosion caused by over-charging or over-discharging.Application Notes: We do NOT provide engineering support for this item. It is up to the purchaser to determine the suitability and manage the use of this product. If this product is modified (soldered onto) it cannot be returned.
Item Details
| Brand | Tenergy |
| SKU | TENERGY-32004-LI-PCB-7V2 |
| Manufacturer Part Number | 32004 |
| UPC | 0844949016001 |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Weight | 0.16 oz (5 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.01 lb |
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
