Tenergy 32003 Protection Circuit Module (PCB) for 3.7V Li-Polymer Battery (15A limit)
Brand:Tenergy
MPN:32003
Buy more save more!
$12.50
1 - 4
$11.94 ea
5 - 9
$11.76 ea
10 - 19
$11.40 ea
20 - 49
$11.22 ea
50 - 99
$11.04 ea
100+
$10.74 ea
Need more?
RFQ
- Batteries Included?: No
$12.50
Recently viewed
Description

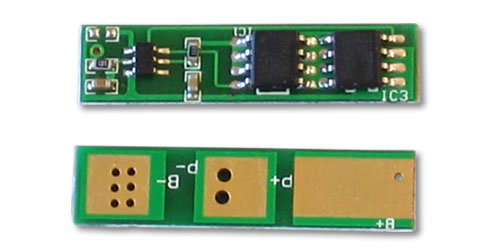

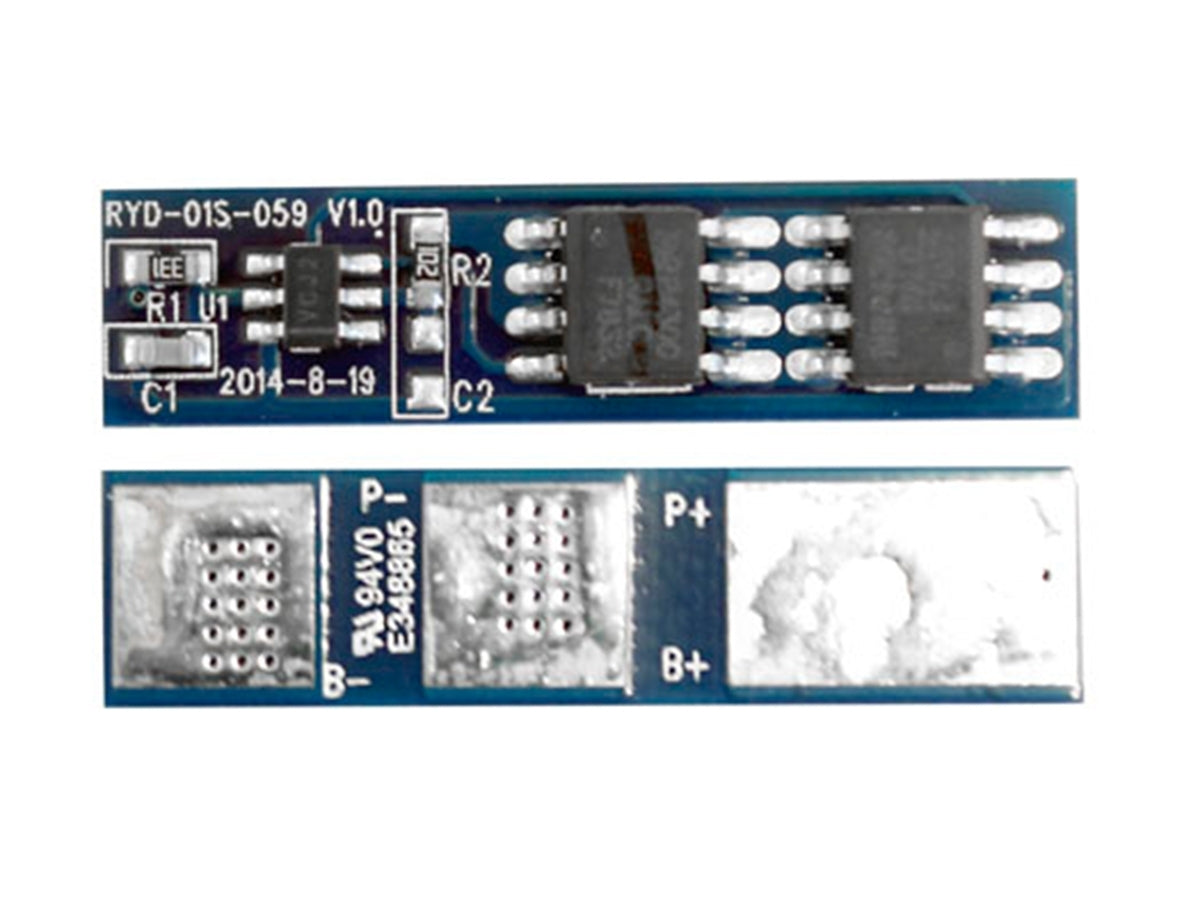

Tenergy 32003 Battery Protection Circuit
The Tenergy 32003 battery protection circuit is designed for use within Li-ion and Li-polymer packs. The PCB prevents a pack from overcharging and over-discharging, therefore keeping you and your equipment safe, while in use. The Tenergy 32003 provides a discharge current cutoff of 15A for added safety.
Specifications:| Item | Content | Criteria |
|---|---|---|
| Over Charge Protection | Over Charge Detection Voltage | 4.25±0.025V |
| Over Charge Release Voltage | 4.05±0.05V | |
| Over Discharge Protection | Over Discharge Detection Voltage | 2.5±0.063V |
| Over Discharge Release Voltage | 3.0±0.075V | |
| Rated Operational Current | <6A | |
| Over Current Protection | Over Current Detection Current | 15±3A |
| Detection Delay Time | 8~16ms | |
| Release Condition | Cut Load | |
| Short Circuit Protection | Detection condition | Exterior short circuit |
| Release Condition | Cut Load | |
| Interior Resistance | Main Loop Electrify Resistance | Rss<30mΩ |
| Current Consumption | Current Consumed in normal Operation | 8μA Max. |
| Dimension (L x W x H) | 28 x 7 x 2.45 mm | |
Application Notes: We do NOT provide engineering support for this item. It is up to the purchaser to determine suitability and manage the use of this product. If this product is modified (soldered onto) it cannot be returned.
Item Details
| Brand | Tenergy |
| SKU | TENERGY-32003-LIPO-PCB-3V6 |
| Manufacturer Part Number | 32003 |
| UPC | 0844949016018 |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Weight | 1.76 oz (50 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.11 lb |
Documents
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
