Tenergy 32002 Protection Circuit Module (PCB) Round for 3.7V Li-Polymer Battery 3.5A Working (6A cut-off)
Brand:Tenergy
MPN:32002
Buy more save more!
- Batteries Included?: No
$7.50
Recently viewed
Description
Protection Circuit Module (PCB)

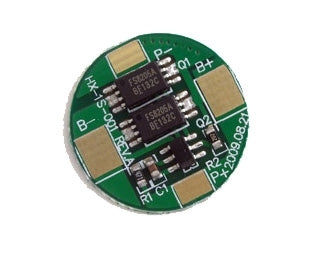

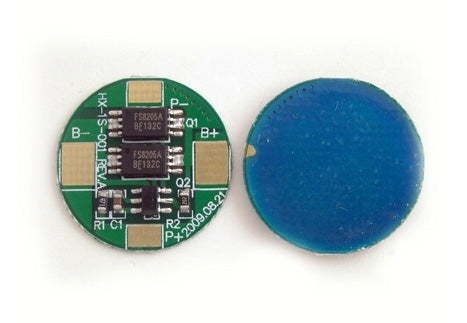

Li-Ion and Li-Poly battery packs should always use a protection circuit to prevent the cell from overcharging or over-discharging. The Tenergy 32002 protection circuit module is designed for use within a single-cell battery pack and has a working current of 3.5A with a cut-off at 6A. The round circuit fits nicely on the bottom of your Li-Ion or Li-Poly 3.6/3.7V 18650 cell for a neat, streamlined battery pack.

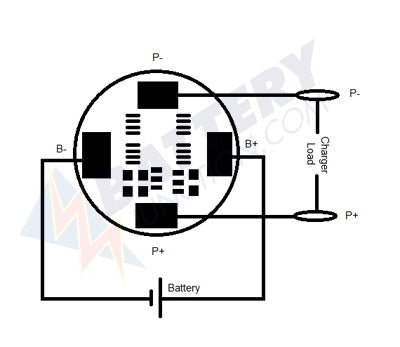

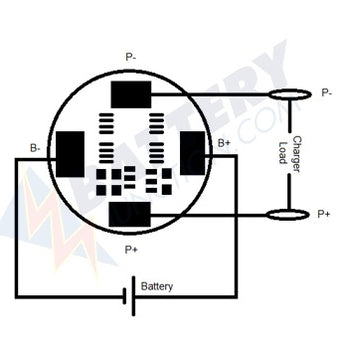

| Connections | |
| B+ | Connect to cell's anode |
| B- | Connect to cell's cathode |
| P+ | Connect to the cell's output or charger's anode |
| P- | Connect to the cell's output or charger's cathode |
| Item | Content | Criterion |
| Over-charge Protection | Over-charge protection voltage | 4.325 ± 0.05V |
| Over-charge protection relief voltage | 4.125 ± 0.10V | |
| Delay time for over-charge protection | 960-1400ms | |
| Charge protection | Rated charge current | ≤ 3.5A |
| Over-discharge protection | Over-discharge protection voltage | 2.5 ± 0.10V |
| Over-discharge protection relief voltage | 2.9 ± 0.10V | |
| Rated discharge current | ≤ 4A | |
| Discharge current protection | 5~7A | |
| Delay time for over-discharge protection | 115-173ms | |
| Over-current protection | Condition to release over-current protection | Cut off load |
| Peak current protection split second | 6.9A | |
| Delay time for split second protection | 7.1-11ms | |
| Short protection | Short circuit protection | PASS |
| Condition to release short circuit protection | Cut off load | |
| Interior resistance | Working impedance between P+ & P- | VC = 4.2V; RDS ≤ 60mΩ |
| Current consumption | Self consumption | 6.0μA Max |
| Dimensions (R x H) | 0.34" x 0.02" (8.65 x 0.5 mm) | |
Application Notes: We do NOT provide engineering support for this item. It is up to the purchaser to determine suitability and manage the use of this product. If this product is modified (soldered onto) it cannot be returned.
