Tenergy 32005 PCB for 7.2V / 7.4V Li-PO and Li-ion 18650 / 18500 7.2V Battery Packs
Brand:Tenergy
MPN:32005
Buy more save more!
$17.50
1 - 4
$17.40 ea
5 - 9
$16.68 ea
10 - 19
$15.90 ea
20 - 49
$15.42 ea
50 - 99
$15.18 ea
100+
$14.94 ea
Need more?
RFQ
- Batteries Included?: No
$17.50
Recently viewed
Description

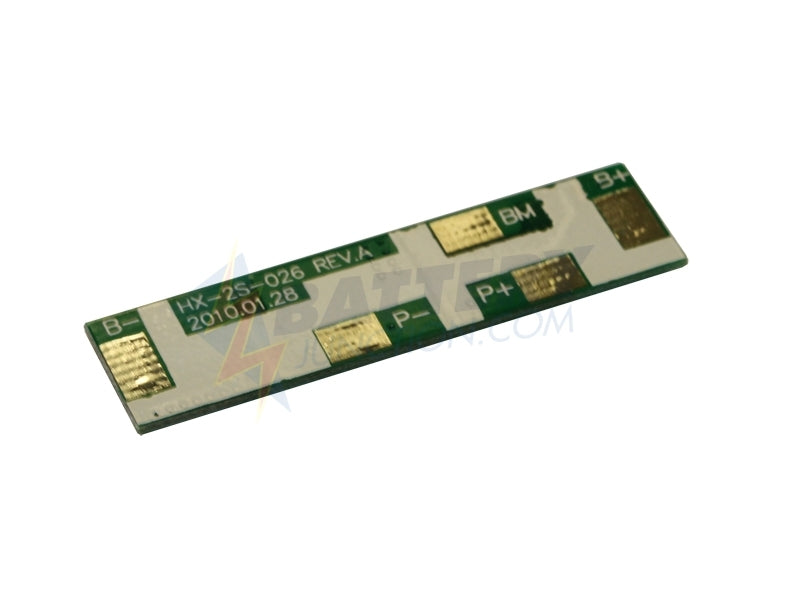

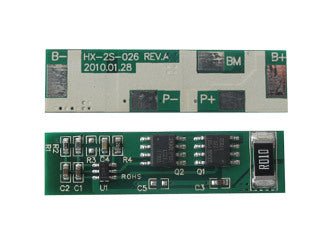

Tenergy PCB
The Tenergy 32005 protection circuit module (PCM) works with 7.2V and 7.4V Li-ion battery packs (raw cells sold separately). A protection circuit is designed to prevent a pack from being overcharged or over discharged.
Specifications:| Item | Content | Criteria |
| Over Charge Protection | Over Charge Detection Voltage | 4.25±0.025V |
| Over Charge Release Voltage | 4.05±0.05V | |
| Over Discharge Protection | Over Discharge Detection Voltage | 2.4±0.025V |
| Over Discharge Release Voltage | 3.0±0.08V | |
| Over Current Detection Current | 11A | |
| Short Circuit Protection | Implemented | |
| Release Condition | Cut Load | |
| Interior Resistance | P+, P- Conduction Resistance | ≤30mΏ |
| Current Consumption | Current Consumed in normal Operation | ≤20µA |
| Dimension | 38 x 10 x 0.8 mm | |
| Operating Temperature Range | -40°C to 85°C | |
| Storage Temperature Range | -40°C to -125°C | |
Application Notes: We do NOT provide engineering support for this item. It is up to the purchaser to determine the suitability and manage the use of this product. If this product is modified (soldered onto) it cannot be returned. This circuit module offers a minimum discharge current cutoff of 11A.
Item Details
| Brand | Tenergy |
| SKU | TENERGY-32005-PCB |
| Manufacturer Part Number | 32005 |
| UPC | 0844949016070 |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Weight | 1.6 oz (45 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.1 lb |
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
