Sielo (previously known as TerraLUX) Line Voltage 4 Inch Linear LED Engine for 120V AC Phase Dimming with 3000k Color Temperature (TLM-L04A-A043012R)
- Batteries Included?: No
- Rechargeable: No
Recently viewed
Description
TerraLUX Linear LED Modules - Upgrade your light fixtures to 21st-century technology!

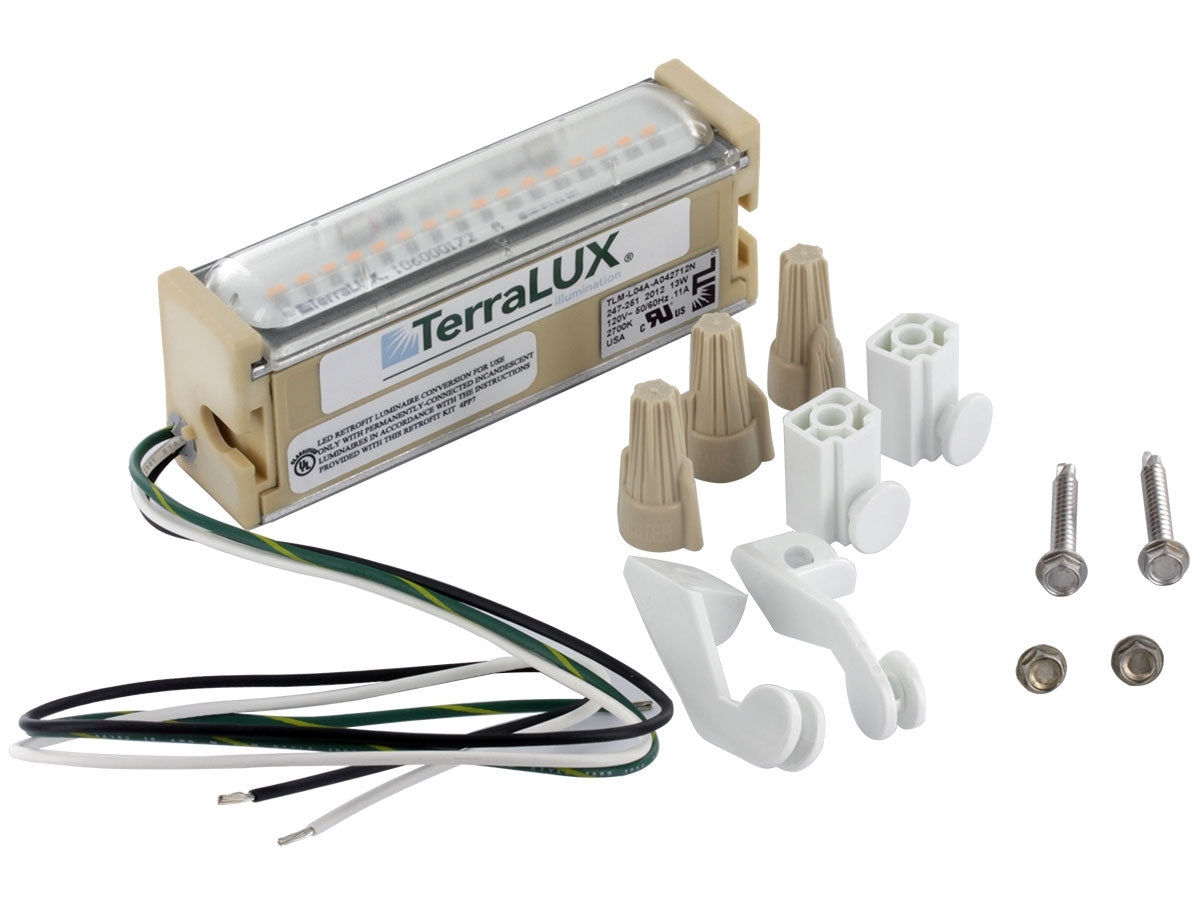

The TerraLUX Linear LED Module is a fully-integrated, self-contained, plug-and-play LED solution to retrofit your lighting fixtures. The module is AC compatible, dimmable, and requires no additional drivers or special sockets.
TerraLUX's patented LEDSense® Thermal Management Technology automatically provide maximum light output in various fixtures and operating conditions. The lower current draw of these LEDs generates less heat so the modules will stay within peak performance ranges. To further prevent heat degradation, a thermal pad unifies the module to the fixture body for additional head sinking.
These modules are available with many different options so you can find a unit that fits your exact needs. Choose the voltage, color tint, and size that works for you.
Voltage and Dimming
Depending on the voltage and dimmer style you application requires, there is a 120V AC version that uses phase dimming and a 100-277V AC version that uses the 0-10V DC standard for dimming control.
Color Tint
To better match the ambiance of the area you are lighting, TerraLUX offers four color temperatures so you can select a cooler or warmer tint to the white light. The four temperatures offered are 2700K, 3000K, 3500K, and 4000K, all with a high CRI (Color Rendering Index). Clip on diffusers are also available to better disperse the light depending on the type of fixture it is used in.
Size
The units are available in 4" (8 Watt), 6" (11 Watt), or 8" (13 Watt) configurations. Choose a size that best fits your fixture.

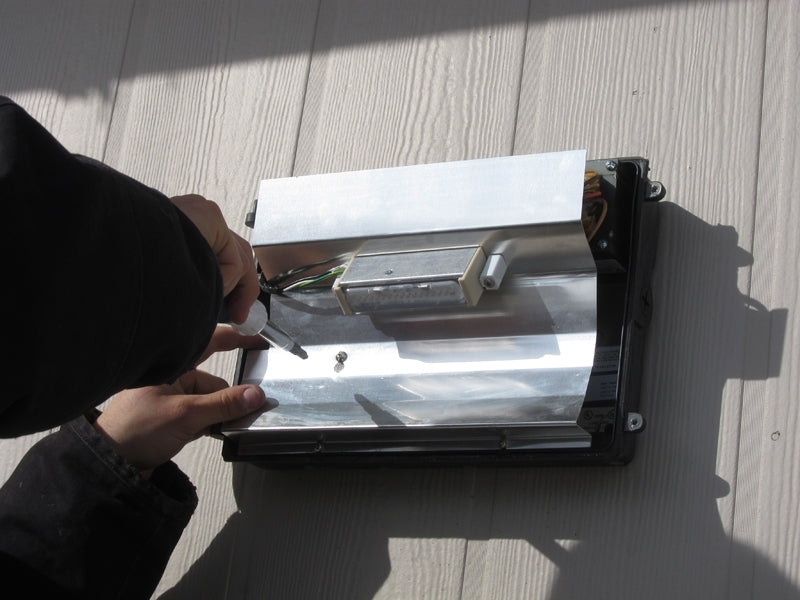

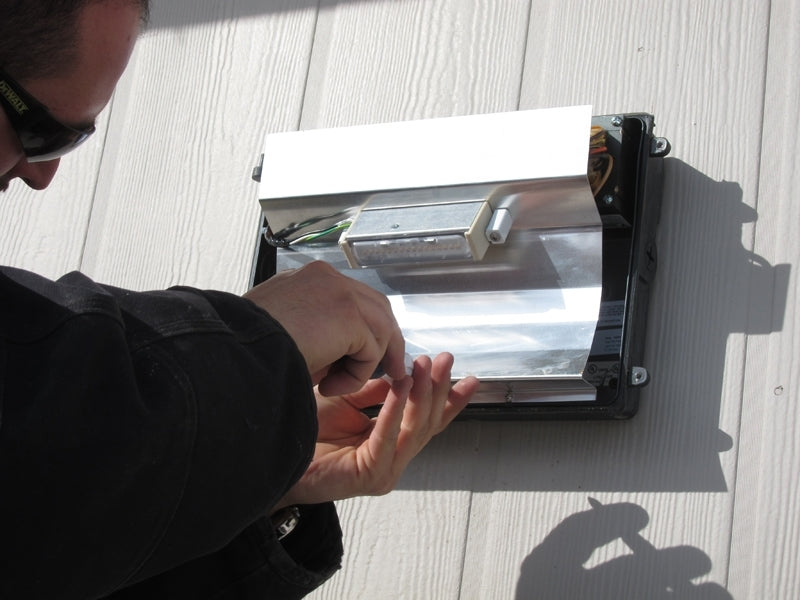

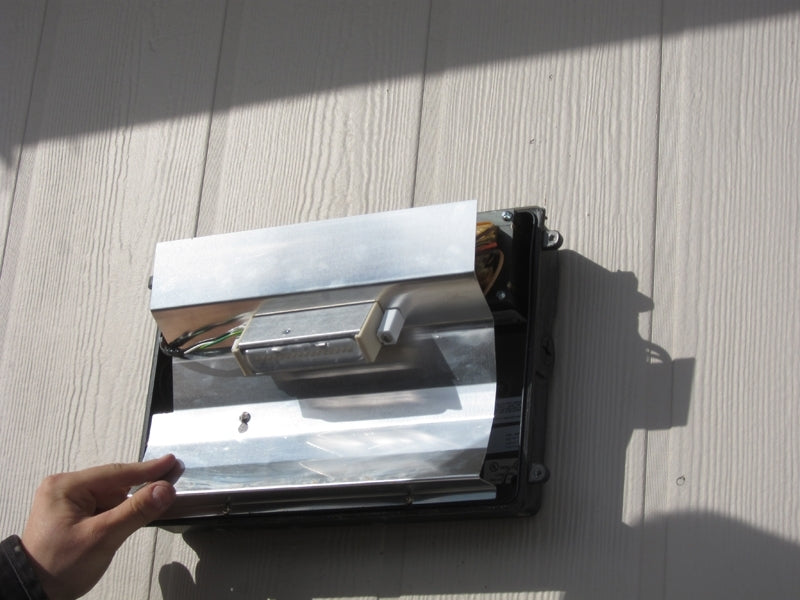

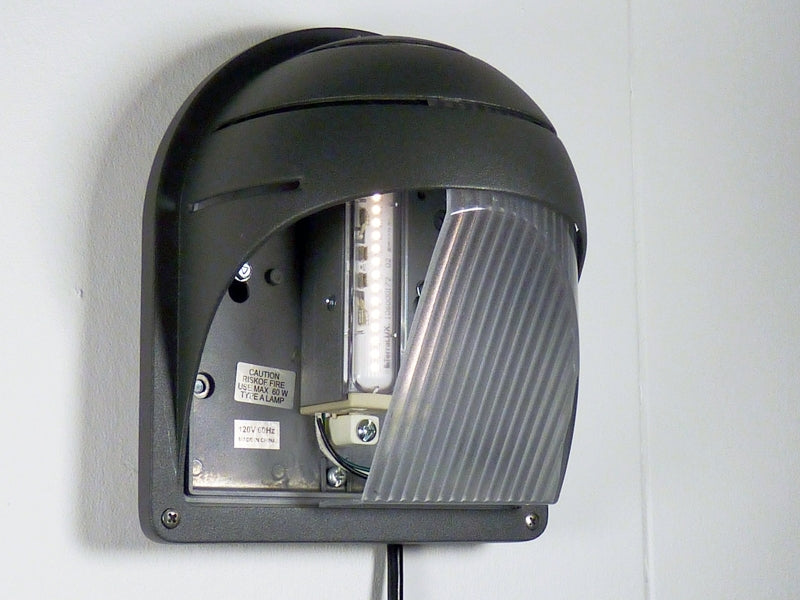

Installation is straightforward with these units and can be done by an electrician or anyone handy with home repair. These are ideal for a wide variety of applications, including wall sconces, ceiling fixtures, and recessed lighting applications. The TerraLUX Linear LED Modules are the most diverse and universally adaptive 60,000-hour LED Lighting product on the market!
Features:
- More efficient than traditional light bulbs
- Dimmable - no need to change your switches
- Patented LEDSense® Thermal Management simplifies integration and ensures reliability and lumen maintenance
- 85 CRI (Color Rendering Index)
- Long-lasting LEDs means no changing bulbs (lumen maintenance L70 = 60,000 hours)
- IP-65 Rated
- UL Recognized Component
- UL 1598C Classified (LED Retrofit Kit, 100-277V Pending)
- ENEC Certified Product
- 5-year manufacturer's warranty through TerraLUX
- FCC Compliant
- RoHS Compliant, Pb free
- Dimensions:
- Length: 1.5"
- Width: 1"
- Height: 4"
- Weight: .390 lbs. (6.24 .oz.)
- Color Temperature: 3000K
- Voltage: 120V
- Output: 430 Lumens
- Power Usage*: 8W
- Efficacy: 54 Lumens/Watt
Item Details
| Brand | Sielo |
| SKU | SIELO-TLM-L04A-A043012R |
| Max Lumens (lm) | 430 |
| Rechargeable | No |
| Batteries Included? | No |
| Light Color | Natural White |
| Color Temperature | 3000K |
| Length | 1.5 in (38 mm) |
Specifications
Output Details
| Max Lumens | 430 |
| Light Color | Natural White |
| Color Temperature | 3000K |
Power Details
| Batteries Included? | No |
| Rechargeable | No |
Unit Dimensions
| Length | 1.5 in (38 mm) |
| Width | 1.0 in (25 mm) |
| Height | 4.0 in (102 mm) |
| Weight | 6.24 oz (177 g) |
Certifications & Transport
| Certifications/Standards | FCC, RoHS, UL |
| Country Of Origin | China |
| HTS Code | 85131020 |
Additional Details
| Warranty |
TerraLUX 5 Year Warranty Battery Junction Warranty |
| Return Policy | Return Policy |
| Glossary | Flashlight Glossary |
