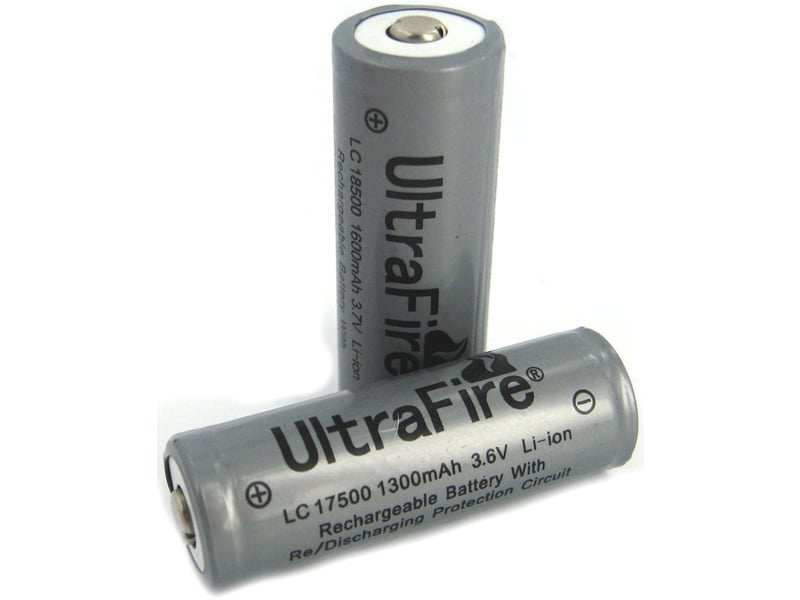

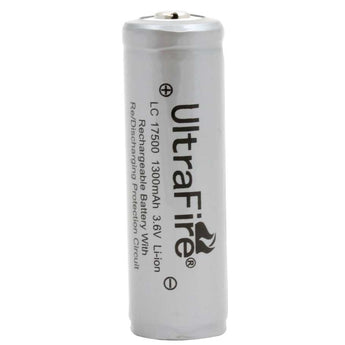

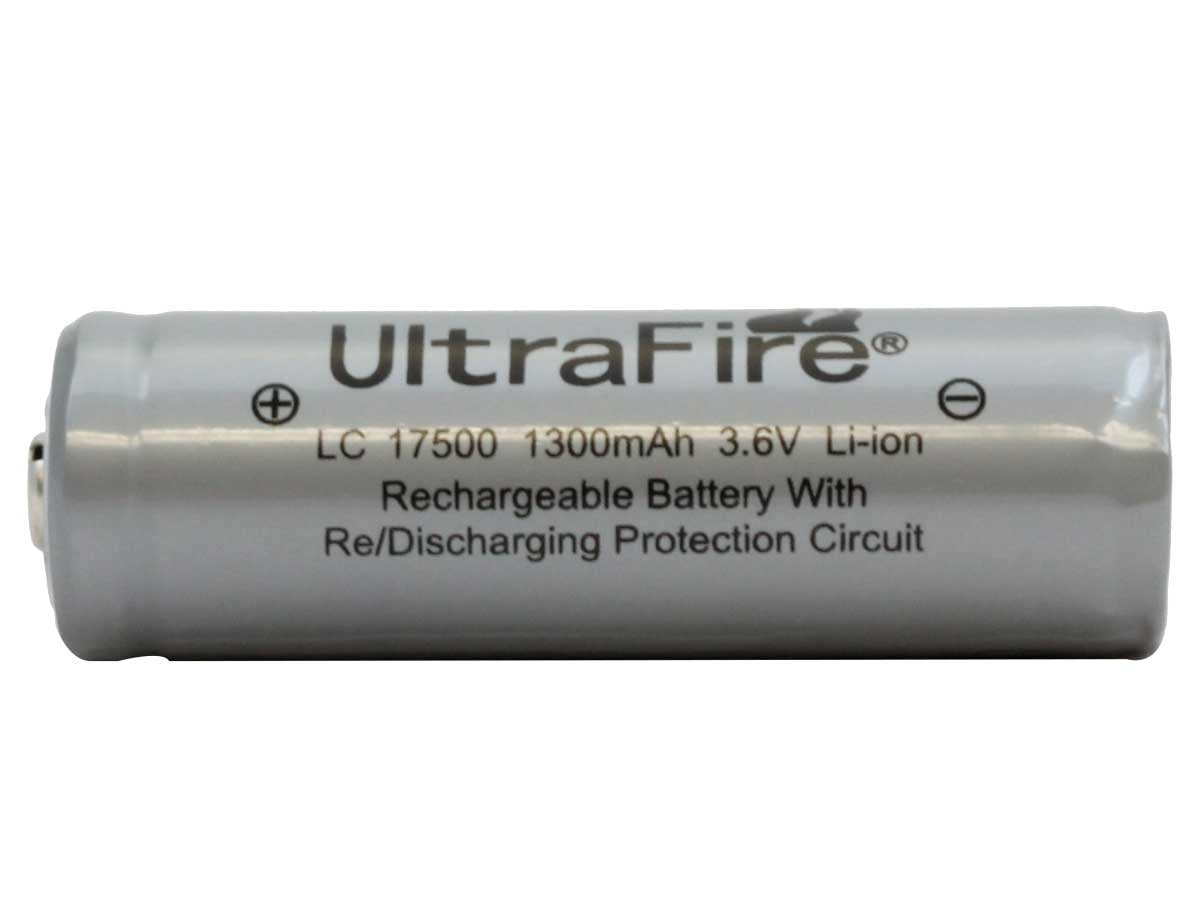

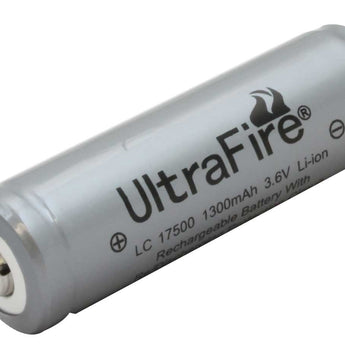

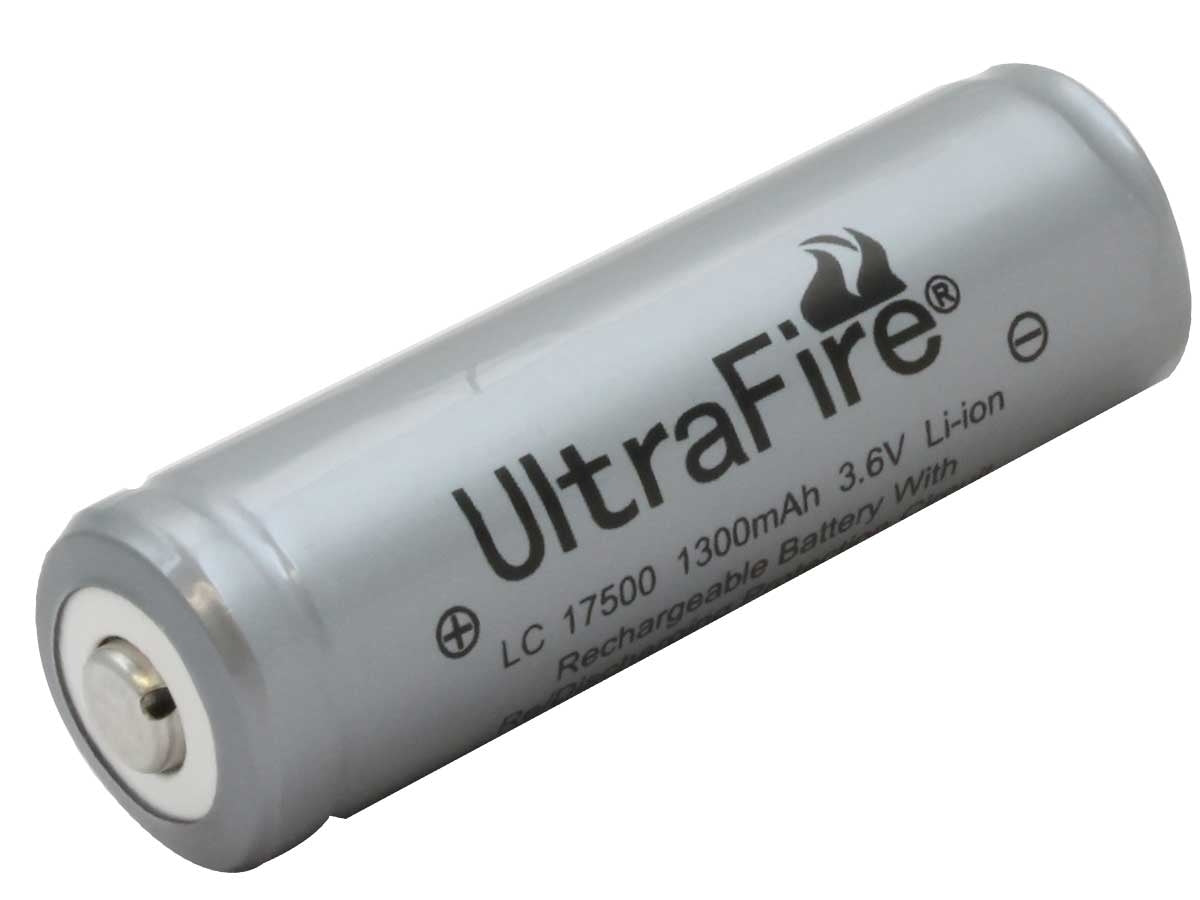

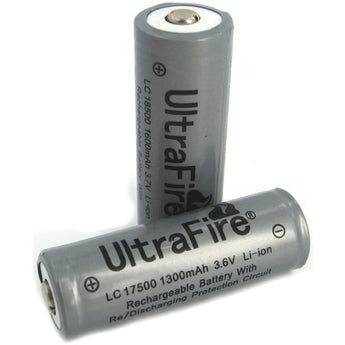

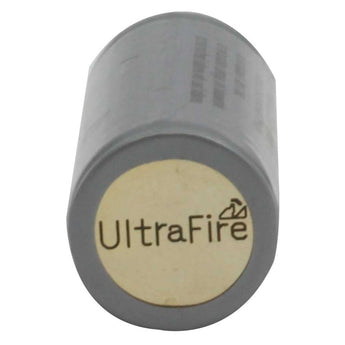

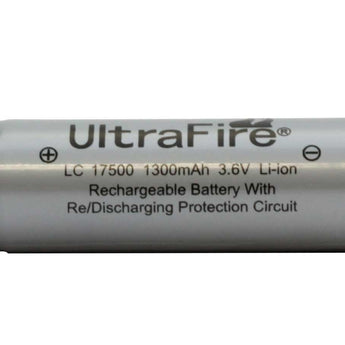

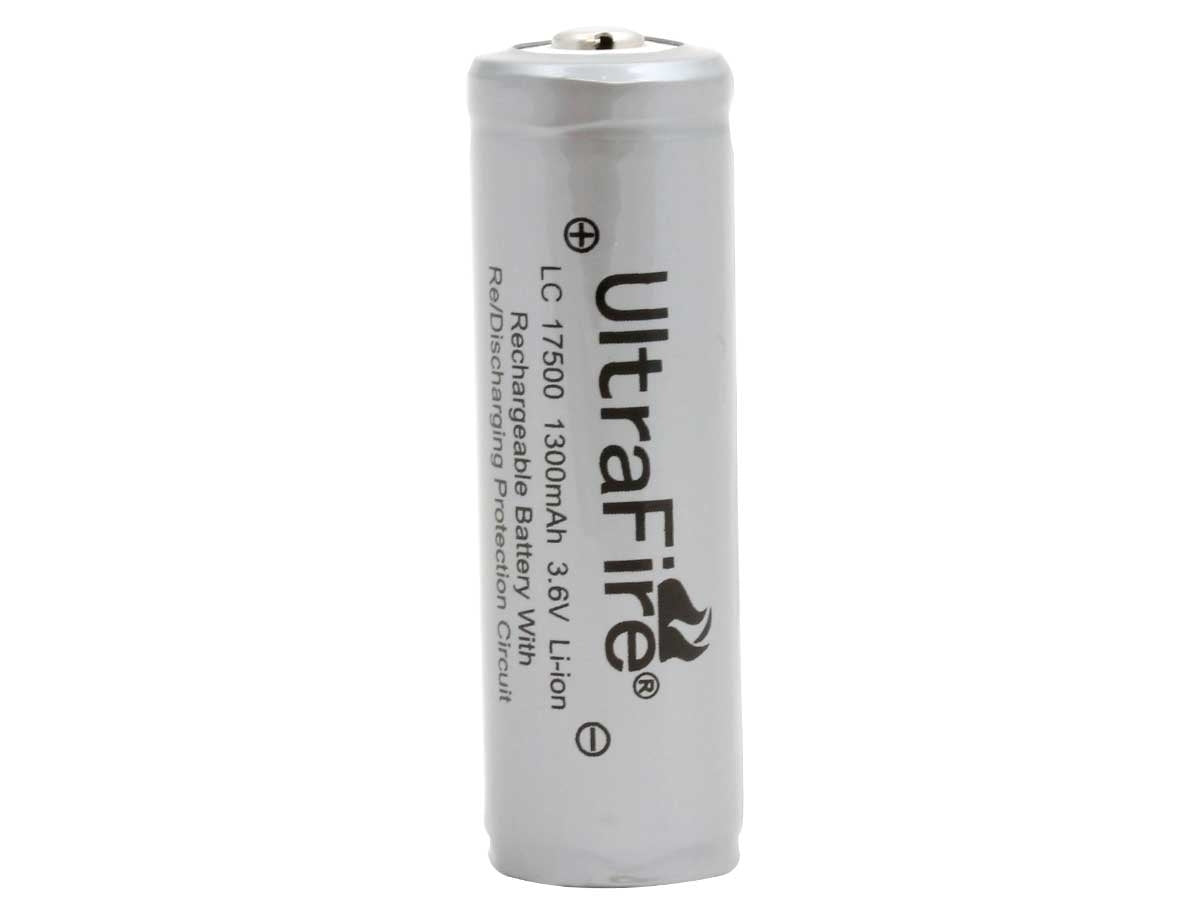

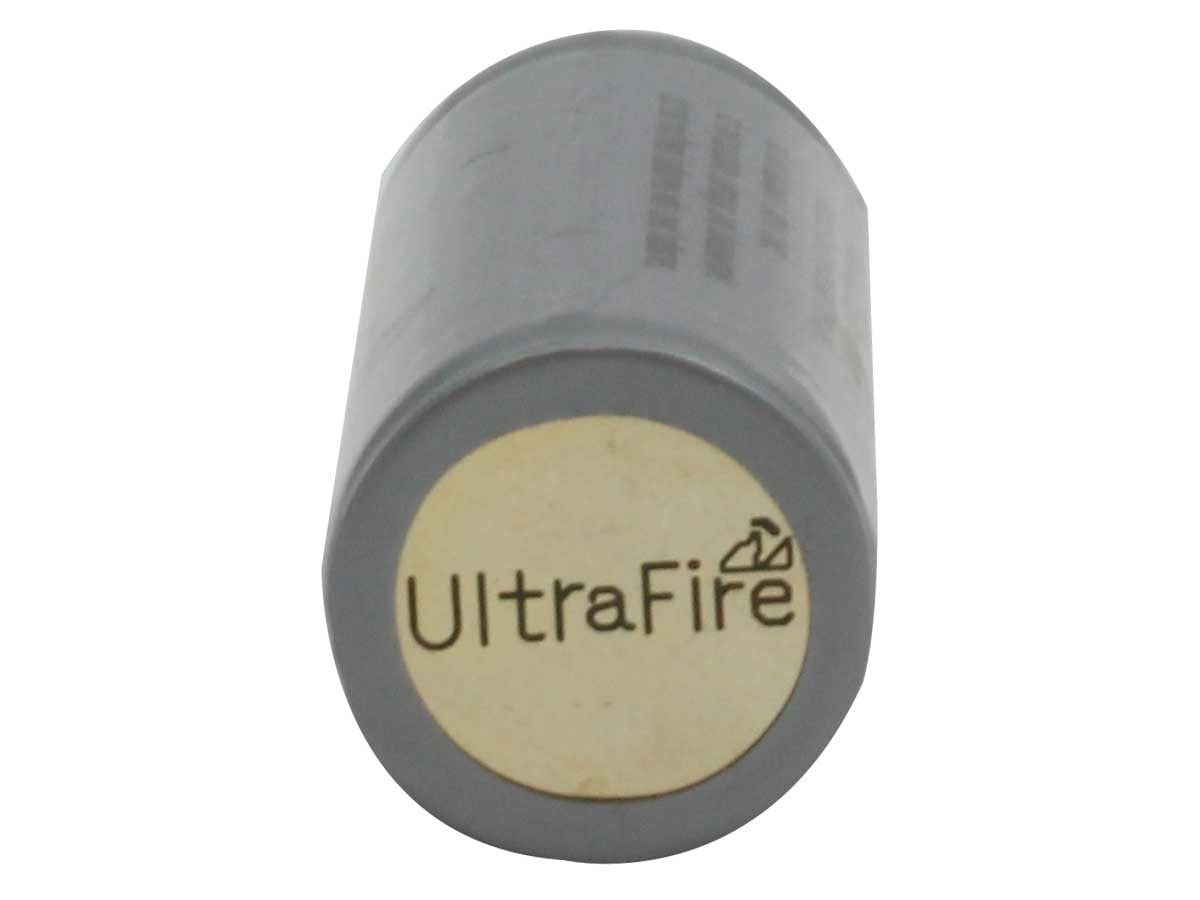

UltraFire UF 17500 1300mAh 3.7V Protected Lithium Ion (Li-ion) Button Top Battery - Bulk
- Size: 17500
- Voltage: 3.7
- Rechargeable: Yes
- Chemistry: Li-Ion
- Capacity (mAh): 1300
- Terminal Type: Button Top
Recently viewed
Description
UltraFire UF 17500 1300mAh 3.7V Protected Lithium Ion (Li-ion) Button Top Battery - Bulk
Ultrafire 17500 1300mah 3.6v PROTECTED BUTTON TOP Protected Rechargeable Lithium Battery Li-Ion UF17500Batteries sold individually.The advantage of this cell is that it features a button top making it particularly compatible with many flashlight applications.Rechargeable Lithium batteries are rapidly becoming a very economical way to lower the operating costs of Lithium-Powered flashlights. We offer a number of different options in order to meet any rechargeable needs. These are Protected batteries. These fully protected cells simplify usage with their integrated PCB. a pair of these cells is about the same size as 3 CR123A batteries and can be used as a rechargeable substitute in some lights which use 3 CR123A batteries. These cells are not for pack building as doing so may defeat or damage the PCB protection which is matched to the correct voltage on a single cell - nor can these cells be welded or soldered upon. If you are building a pack please choose one of our other cells and the appropriate PCB.
STRONG>Features and Benefits
- Unique and New! With integrated PCB Protection!
- Lithium Ion 17500 cylindrical rechargeable batteries
- Internal PCB protection prevents discharge below 2.5V and overcharge past over 4.25V.
- Unique PCB design and patent pending.
- Higher energy density and lower weight than other types rechargeable batteries
- Manufactured under ISO9001-2000 to assure quality
- Lighting or other device needing 3.6V power
- Building portable power device needing high energy density and low weight
- Capacity: 1300mAh
- Rechargeable for 600-800 times
- Voltage: 3.6V
- Temparature: -40C~60C
- Dimensions:
- Diameter 16.7 +/-0.5 mm
- Height 52.5 +/-0.5 mm
- Maximum charge/drain rate: 1.5C
- Over-charging protection point: 4.2V
- Over-discharge protection point: 2.75V
- Internal resistance: <= 120 mohm
- Protection Kicks In: @2.75V and @4.2V
- Optimal charging temperature: 0~45'C
- Optimal usage temperature: -20~60'C
- Optimal storage temperature: -20~60'C (65% humidity)
Item Details
| Brand | UltraFire |
| SKU | ULTRAFIRE-17500-1300-PTD |
| MPN | ULTRAFIRE-17500-1300-PTD |
| Size | 17500 |
| Voltage | 3.7 |
| Battery Rechargeable | Yes |
| Capacity (mAh) | 1300 |
| Chemistry | Li-Ion |
| Sub-Chemistry | LiCoO2 ICR |
| Shelf Life | 3 Years |
| Packaging | Bulk |
| QTY Per Package | 1 |
| California Residents | see Prop 65 WARNINGS |
Specifications
| Size | 17500 |
| Voltage | 3.7 |
| Battery Rechargeable | Yes |
| Capacity (mAh) | 1300 |
| Terminal Type | Button Top |
| Protected | true |
| Integrated Charge Port | No |
| Equivalent Types | 17500, A |
Unit Dimensions
| Length | 2.07 in (53 mm) |
| Diameter | 0.66 in (17 mm) |
| Weight | 0.959 oz (27 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.06 lb |
Additional Details
| Packaging | Bulk |
| Warranty | Battery Junction Warranty |
