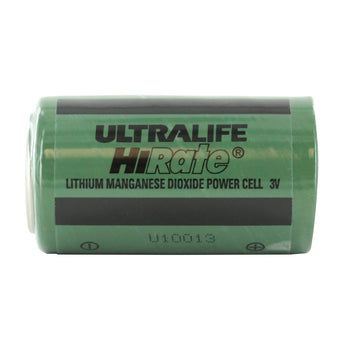

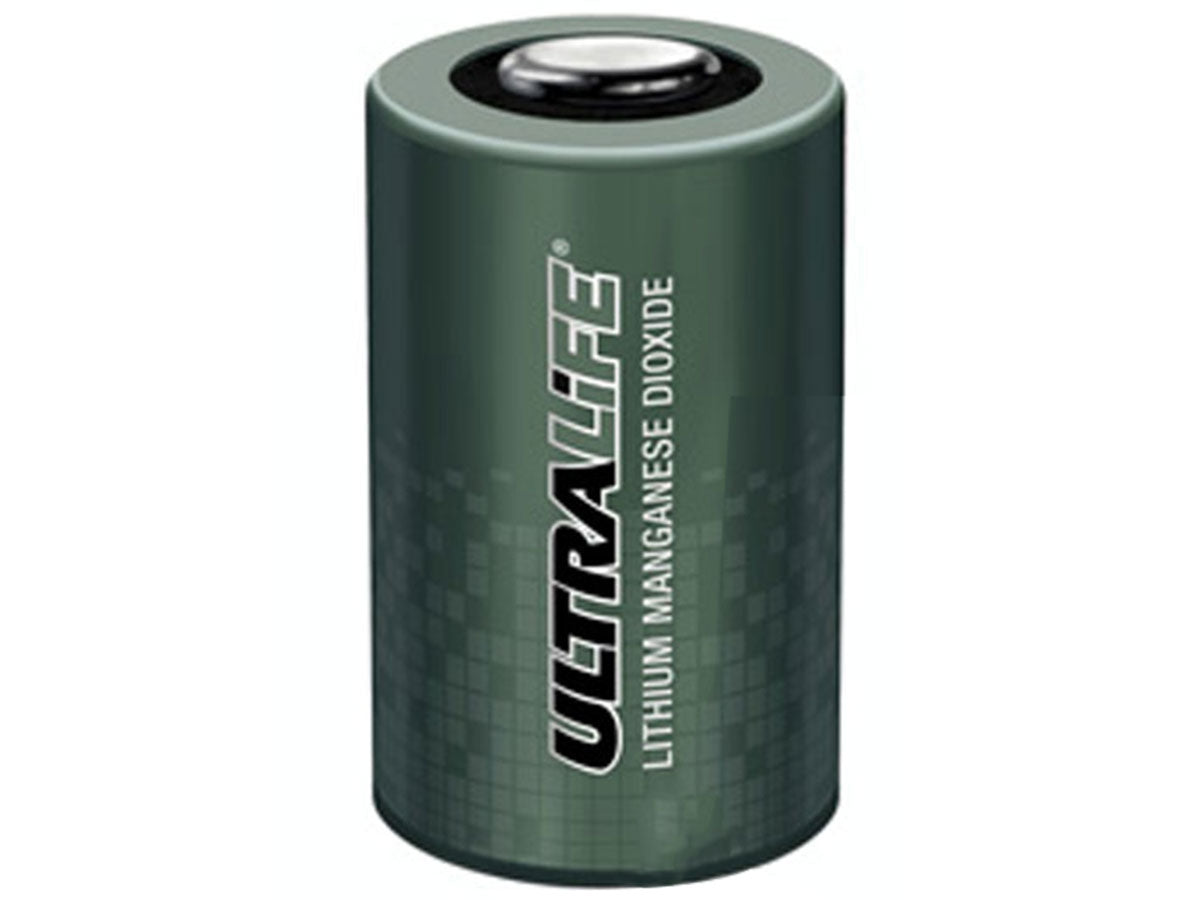

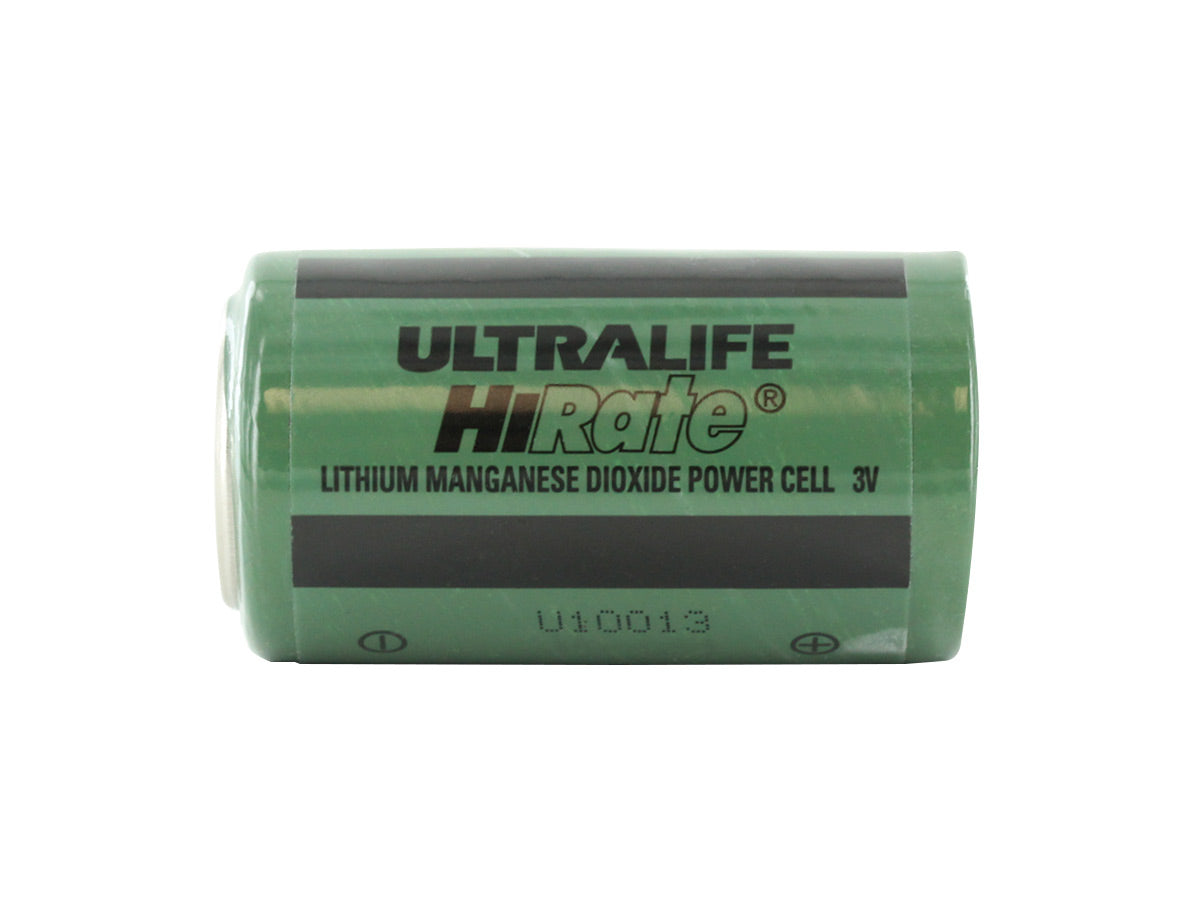

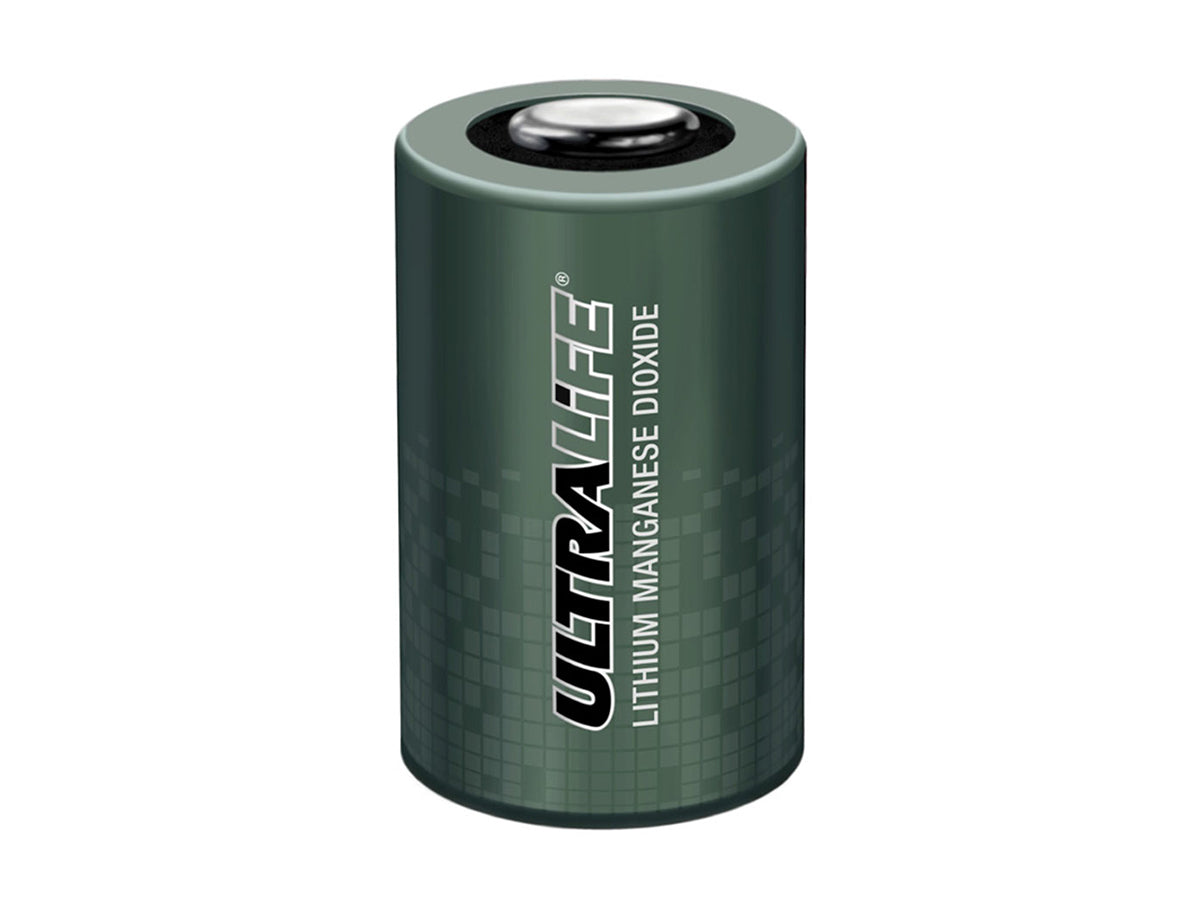

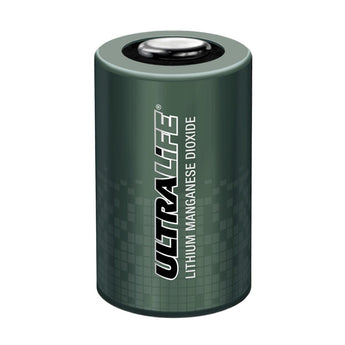

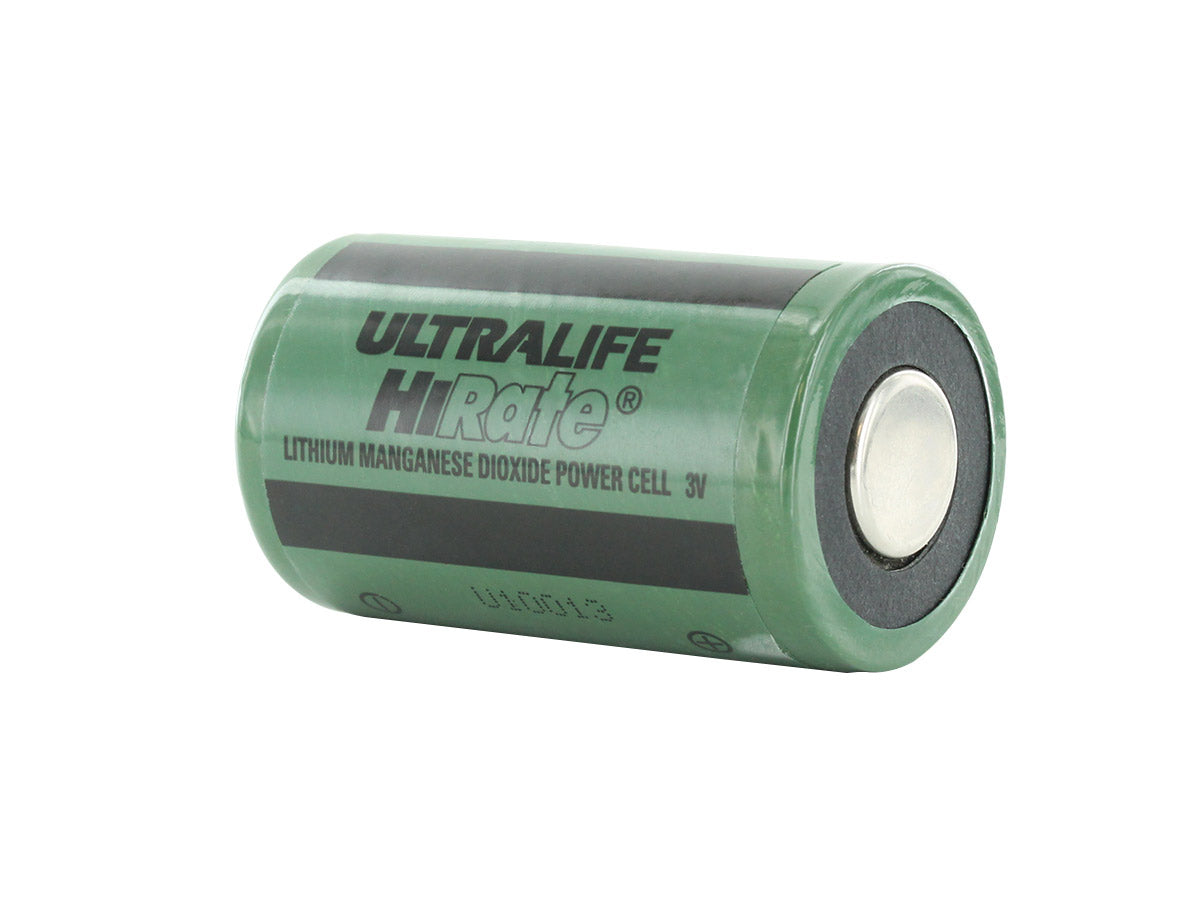

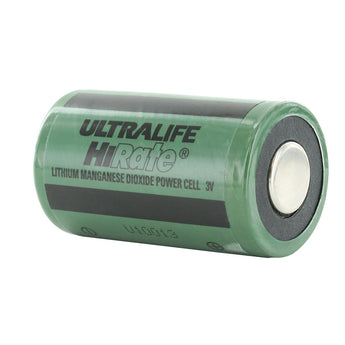

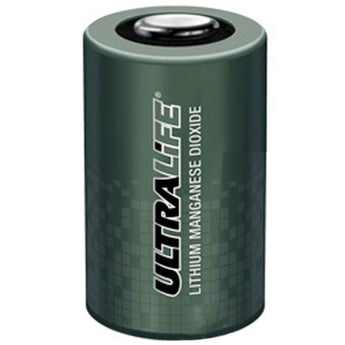

The Ultralife UHR-CR34610 transmitter battery is specifically designed for use in telecommunication and imaging applications. This non-rechargeable D-cell offers a high energy density and an impressive runtime, both of which are required by surveillance and emergency locator transmitters (ELTs). ELTs are carried on a majority of US aircraft and are utilized in the event of an accident. The emergency locator transmitter sends out a distress signal to notify the appropriate authorities. This cell is a suitable replacement for use in the commonly-used AK-451, which requires four batteries to run. The UHR-CR34610 is a non-rechargeable D-cell battery and provides an impressive 11.1Ah to keep those electronic transmitters and telecommunication devices running for long periods of time.
This impressive transmitter battery has a lithium chemistry, which is one of the more versatile chemistries when it comes to dealing with fluctuating temperatures. Its long shelf life is made possible by the hermetically-sealed nickel plated steel container and high energy density. The Ultralife UHR-CR34610 comes with a variety of choices in PTC protection and tab terminals to make sure that it can fit whatever application you need it for.
Part Numbers:

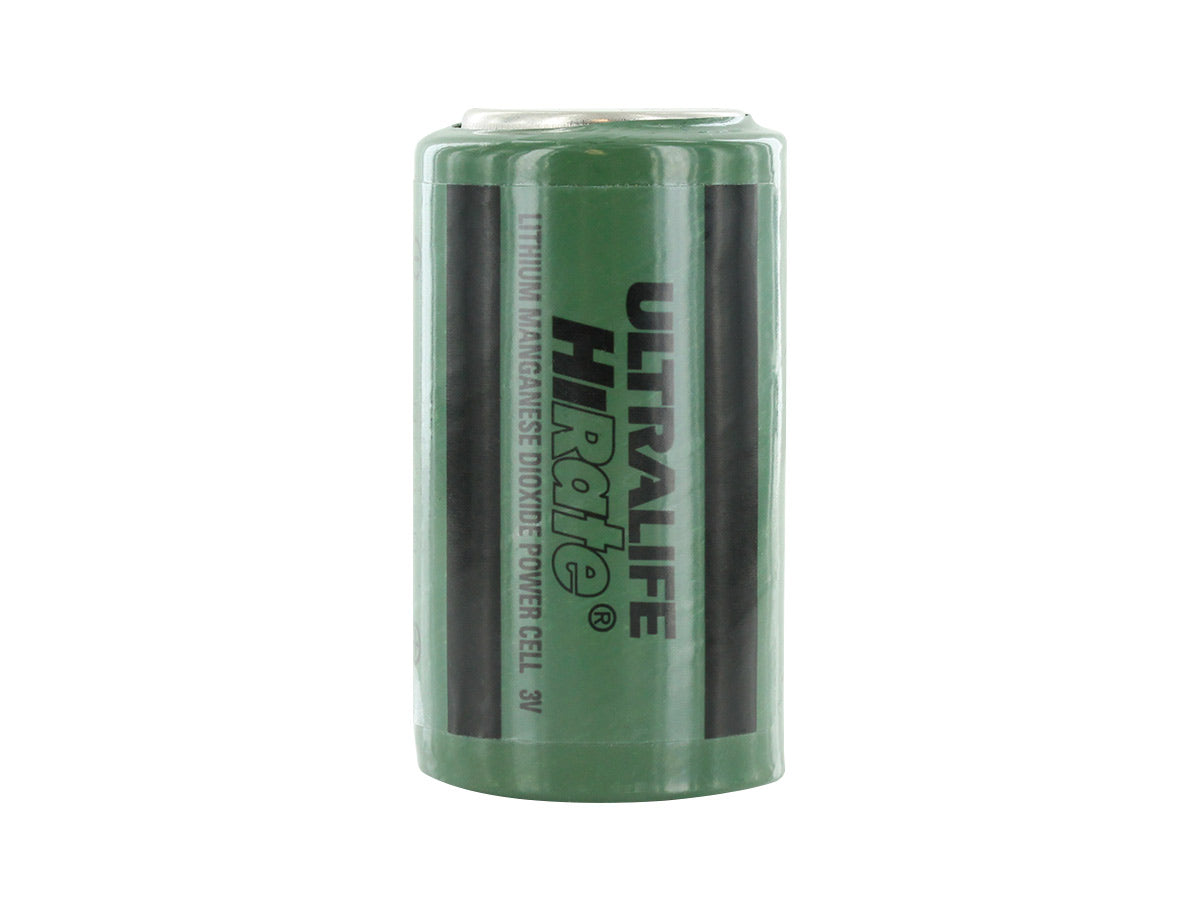

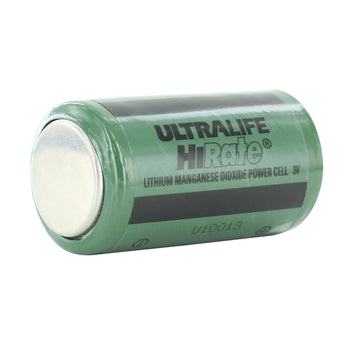

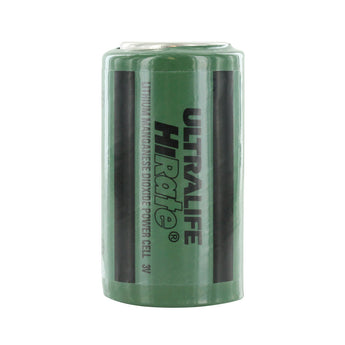

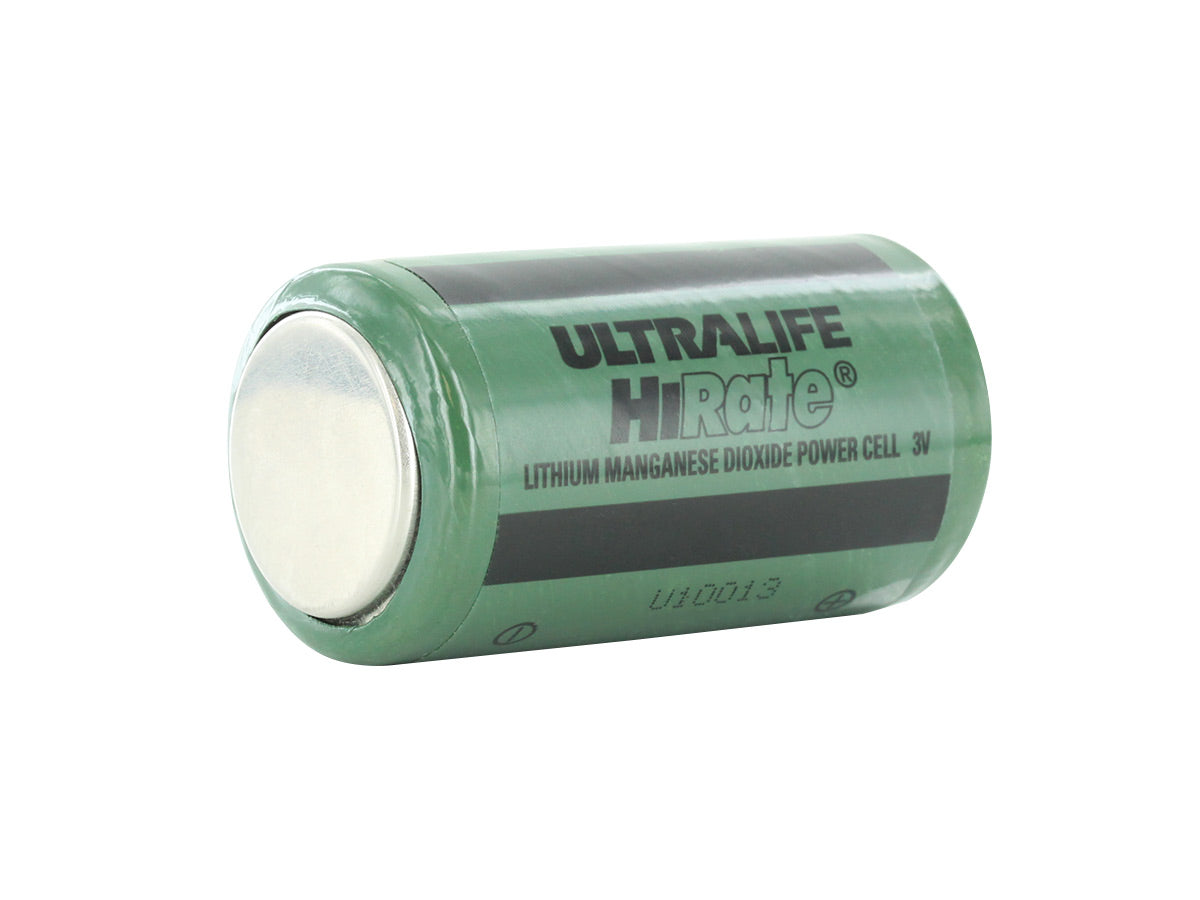

Ultralife U10013: UHR-CR34610 - End Caps, No Tabs, No PTC
Ultralife U10014: UHR-CR34610 - End Caps, No Tabs, Integrated PTC

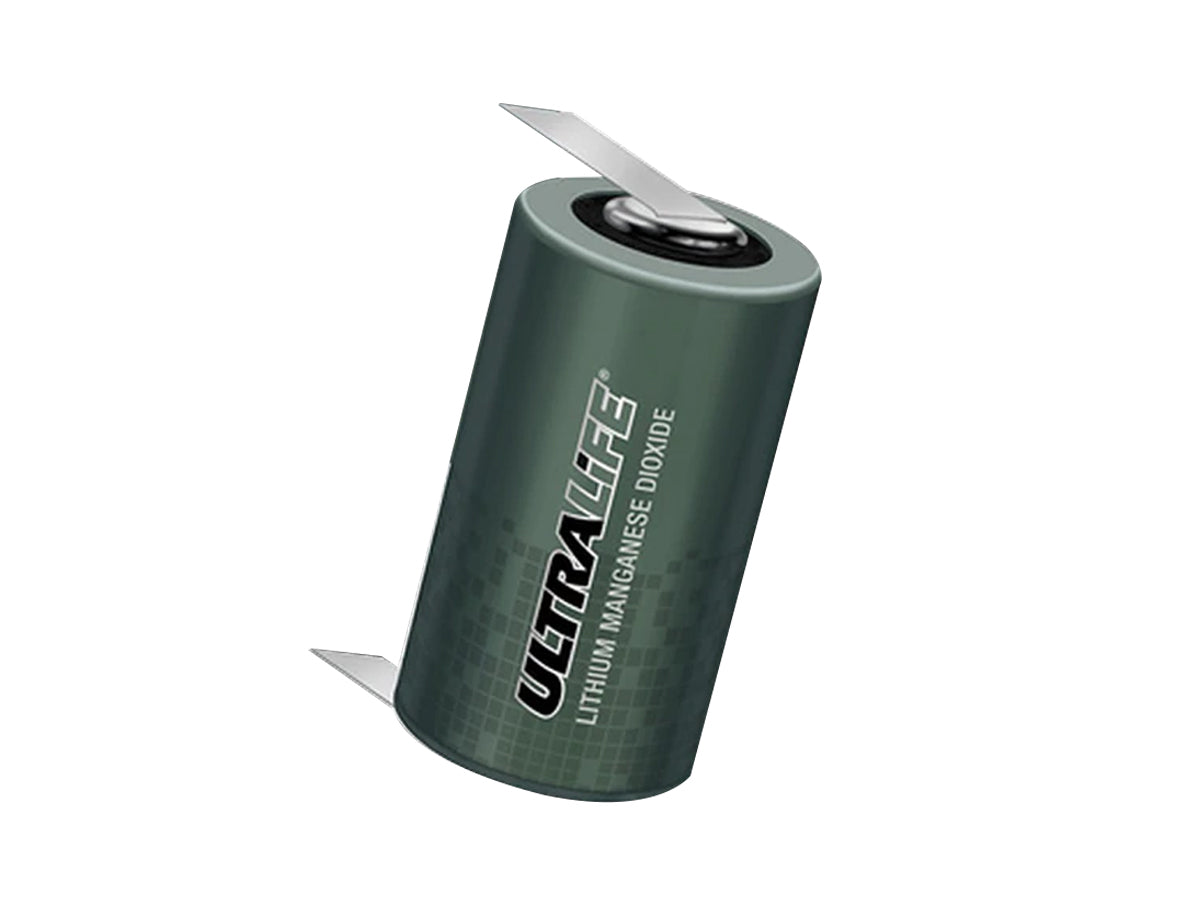

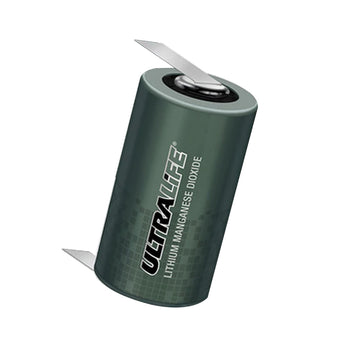

Ultralife U10015: UHR-CR34610 - End Caps, Nickel Tabs, No PTC
Ultralife U10016: UHR-CR34610 - End Caps, Nickel Tabs, with PTC
Features:
High 11.1 Ah capacity powers transmitters and telecommunication electronics for longer
No voltage delay provides power on which you can rely
Wide operating temperature is compatible with almost any environment
Long operating life keeps life-saving electronics powered, for when they are needed the most
Hermetically-sealed Ni-plated steel container maintains a long shelf life
10 year shelf life
PTC and Tab options available
Applications:
Consumer Telematics
Commercial Telematics
Search & Rescue Devices
Military Communications, Detectors, & Imaging
Medical Devices
Specifications:
Battery Size: D
Battery Chemistry: Lithium Primary (LiMnO2)
Nominal Voltage: 3V
Voltage Range: 1.5 to 3.3V
Nominal Capacity: 11.1Ah @ 250mA to 2.0V @ 23°C
Max Discharge Current: 3.3A continuous
Pulse Capability: up to 7A
PTC: U10014 and U10016 models have PTCs
Operating Temperature Range: -40°F to 161.6°F (-40°C to 72°C)
Terminals: Pressure Contacts or Tabs
Safety: Class 9 Hazmat - US and International
Certifications: UL 1642, UN 38.3
Dimensions:
Height without Tabs: 2.38" (60.45mm)
Height with Tabs: 2.39" (60.71mm)
Diameter: 1.34" (34.01)
Weight:
U10013: 4.27 oz (121.12g)
U10014: 4.28 oz (121.37g)
U10015: 4.34 oz (123.18g)
U10016: 4.35 oz (123.43g)
Please Note: This battery is rated Class 9 Hazmat and cannot be shipped via air. Expedited shipping will be delayed.
This primary cell is NOT rechargeable. Under no circumstances should it be placed in a charger. When fully discharged, please dispose of the cell according to your local regulations.
CAUTION: These primary batteries are not rechargeable.
Risk of fire, explosion and burns, do not recharge, disassemble, incinerate, or heat above 212F°/100C°. Do not mix used & new or any other battery types. Keep away from children. Misuse of primary lithium batteries can pose a serious risk of injury or property damage. Dispose of used batteries properly, following local guidelines.
