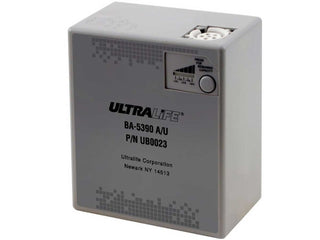

Ultralife UB0023 11.1Ah 15V BA-5390A/U Non-Rechargeable Lithium (LiMnO2) Battery with LED Display
Brand:Ultralife
MPN:UB0023
Buy more save more!
- Dual-function lithium battery with 50+ military applications
- Integrated LED status display
- Operates at 15V/22.2Ah or 30V/11.1Ah levels
- Ultra-wide temperature range functionality
- Rugged, relatively lightweight non-rechargeable design
- Size: BA-5390A/U
- Voltage: 15
- Rechargeable: No
- Chemistry: Lithium
- Capacity (mAh): 22200
- Terminal Type: Connector SC-C-179492
$270.00
Recently viewed
Description
Ultralife UB0023 Lithium Battery
Dual Voltage Battery with Digital Display
The Ultralife UB0023 lithium battery is an alternative power source for the BA-5590/U battery. This non-rechargeable battery offers almost 50% more energy than the BA-5590 lithium sulfur dioxide cell and also features a safer chemical makeup. The UB0023 provides two voltage modes to accommodate the varying needs of the military. The 15-volt option offers an outstanding, high energy density of 22.2Ah for use with higher drain electronics. The Ultralife UB0023 military battery may also be used at the higher 30 voltage option with a lower, yet still impressive 11.1Ah capacity. How does the BA-5390A/U offer two power options? Within the plastic casing are two independent battery sections that allow for connection in either series or parallel. When in series formation, the voltage of the two batteries is doubled to 30V. When connected in parallel, the voltage remains the same; however, the capacity is doubled.
The UB0023 military battery, from Ultralife, features a lithium chemistry, thus making it capable of use in a wide range of temperatures, from -30°C to 72°C. Another great feature of this power source is the built-in LED notification system. This charge indicator notifies users of the battery's power, in 20% increments, with a five-segment, LED display with push-button activation. The Complete Discharge Device (CDD) indicates when the UB0023 battery is fully discharged and requires replacement. This non-rechargeable military battery offers a ten-year shelf life, which allows for long-term storage for use when the battery eventually does drain.
Features:- LED display notifies users of the battery's power - 5 distinct ranges from 90% to 10%
- Complete Discharge Device (CDD) indicates when the battery is ready for disposal
- Dual modes: 15V or 30V
- High energy density
- No voltage delay
- Wide operating temperature range
- Lightweight
- Long operating life: 50 - 100% more runtime than BA-5590/U
- Safe: non-pressurized system, hermetic Ni-plated steel cans
- Applications:
- Alternative for BA-5590/U Li-SO2 (NSN: 6135-01-036-3495) battery
- AN/PRC-117G, AN/PRC-117F, AN/PRC119, AN/PSC-5D
- Javelin Medium Anti-Tank CLU
- More than 50 other military applications
- Battery Size: Battery Pack
- Battery Chemistry: Lithium (LiMnO2)
-
Voltage Range:
- 30V Mode - 33.0V max, 20.0V final
- 15V Mode - 16.5 max, 10.0V final
-
Average Voltage:
- 30V Mode - 27.0 Volts
- 15V Mode - 13.5 Volts
-
Capacity:
- 30V Mode - 11.1Ah @ 250mA to 20V @ 23°C
- 15V Mode - 22.2Ah @ 250mA to 10V @ 23°C
-
Max Discharge:
- 30V Mode - 2.0A continuous
- 15V Mode - 4.0A continuous
-
Max Pulse Capability:
- 30V Mode - 2.5A continuous
- 15V Mode - 5.0A continuous
- Operating Temperature Range: -22°F to 161.6°F (-30°C to 72°C)
- Certifications: UN 38.3
- Shelf Life: 10 Years
-
Dimensions:
- Length - 2.45" (62.2 mm)
- Width - 4.4" (111.8 mm)
- Height - 5" (127 mm)
- Weight: 46.914 oz. (1330 g)
Please Note: This battery is rated Class 9 Hazmat and cannot be shipped via air. Expedited shipping will be delayed.
This primary cell is NOT rechargeable. Under no circumstances should it be placed in a charger. When fully discharged, please dispose of the cell according to your local regulations.
This primary cell is NOT rechargeable. Under no circumstances should it be placed in a charger. When fully discharged, please dispose of the cell according to your local regulations.
Item Details
| Brand | Ultralife |
| SKU | ULTRALIFE-UB0023 |
| Manufacturer Part Number | UB0023 |
| Color | Gray |
| Length | 2.45 in (62 mm) |
| QTY Per Package | 1 |
Specifications
Power Details
Unit Dimensions
| Length | 2.45 in (62 mm) |
| Width | 4.4 in (112 mm) |
| Height | 5.0 in (127 mm) |
| Weight | 46.914 oz (1330 g) |
Certifications & Transport
| Certifications/Standards | UN 38.3 |
| Country Of Origin | United States |
Packaging/Shipping Dimensions
| Length | 5 in |
| Width | 4.4 in |
| Height | 2.4 in |
| Shipping Weight | 3.5 lb |
Documents
Additional Details
| Packaging | Bulk |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
