Description

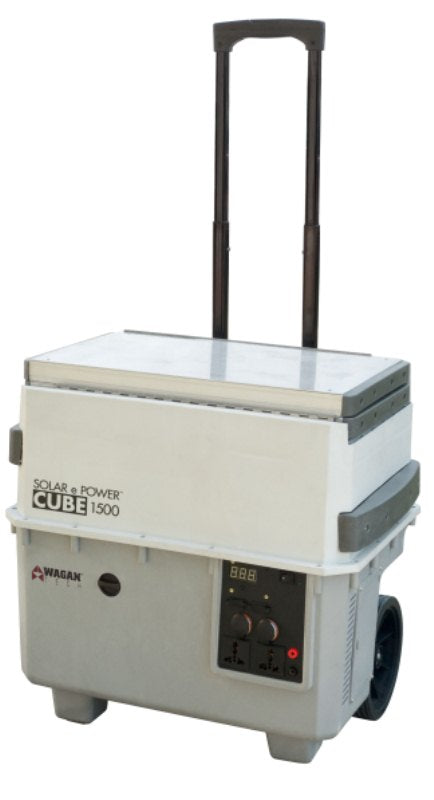

Wagan 2546 Solar ePower™ Cube 1500W Other Fees Apply

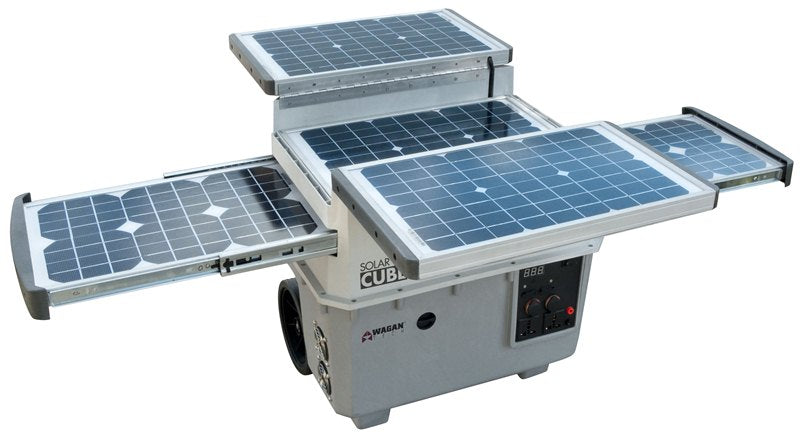

Wagan Tech's 1500W Solar Cube is perfect for anyone looking for a solar charger that is vastly expandable. The Solar Cube comes with a 55 Amp hour battery and 1500W inverter, and has 80 Watts of solar panels built-in. A sturdy luggage handle as well as durable wheels for transportation and compact, and folding panels make the unit incredibly easy to store. The battery disconnect switch allows for easy transport and prevention of unintentional discharge. The two built-in AC universal outlets are standard equipped with a 120 V capacity but can be produced with 220 by special order. The unit also comes with two solar terminals should you want to expand your solar capacity for shorter charging times.

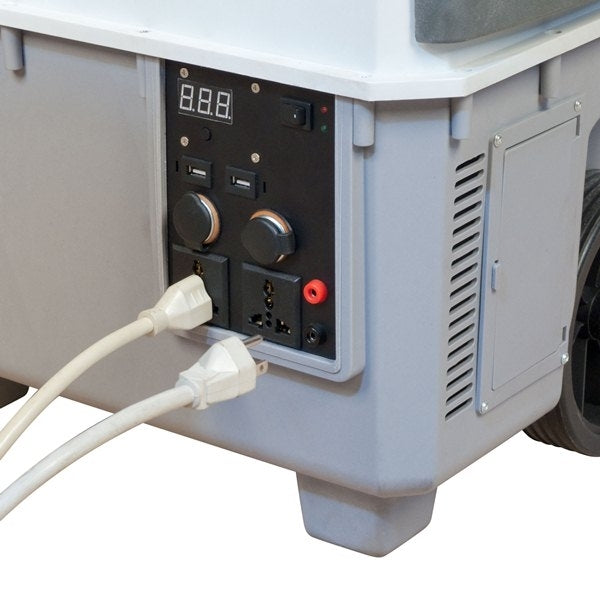

Features and Specifications:- 2 Universal AC outlets
- 2 DC outlets with auto-reset, circuit breaker
- 2 USB outlets
- Digital voltmeter displays battery status
- AC recharging adapter and fused DC recharging adapter
- Terminals for solar panel expansion
- Collapsible handle and wheels for easy transport
- Hidden storage compartment
- Dimensions: 20.9 x 20.9 x 14.6 inches (53 x 53 x 37 cm.)
- Weight: 84 lbs. (38.2 kg.)
- Two year warranty (excluding battery)
NOTE: Do not exceed 150 W when expanding your solar capacity, the solar controller is limited to 150 W. When expanding battery capacity, ONLY connect 55 Amp/Hr AGM batteries to the terminals. Using a different capacity battery or a different type of battery can damage the batteries.
| INVERTER SPECIFICATIONS | |
| AC Output Voltage (Nominal) | 115 V AC, 60 Hz +/- 4 Hz |
| AC Output Power Capacity (continuous) | 1500W (3600 peak) |
| AC Output Waveform | Modified Sine Wave |
| Operating/Storage Temperature | 32-104°F (0-40°C) |
| Maximum Inverter Efficiency | 90% |
| No Load Current | <0.7 Amps |
| Low Battery Alarm (nominal) | 10.5V +/- 0.5V |
| Low Battery Shutdown (nominal) | 9.5V +/- 0.5V |
| SAMPLE AC APPLIANCE TIMES | ||
| AC Powered Products | Watts | Est. Operating Time |
| 3 Watt LED Bulb | 3 | 165 hours |
| Radio | 4 | 123 hours |
| Wireless Router | 10 | 49 hrs. 30 min. |
| Portable Stereo | 20 | 20 hrs. 45 min. |
| 40 Watt Light Bulb | 40 | 12 hrs. 22 min. |
| Laptop Computer | 45 | 11 hours |
| Thermo-Fridge/Warmer | 60 | 8 hours |
| 19" TV (Cathode Ray Tube) | 70 | 7 hours |
| Fax Machine | 120 | 4 hrs. 24 min. |
| Computer with 15" monitor | 200 | 2 hrs. 28 min. |
| Conventional Refrigerator/Freezer (20 cu. ft.) | 540 | 55 minutes |
| Microwave Oven | 1000 | 10 minutes |
| SAMPLE DC APPLIANCE TIMES | ||
| DC Powered Products | Watts | Estimated Operating Time |
| Cellular Telephone | 6 | 82 hours |
| Fluorescent light | 8 | 61 hrs. 15 min. |
| Portable Cooler | 30 | 16 hrs. 30 min. |
| Tire Inflator | 100 | 4 hrs. 56 min. |
| 12-VOLT DC SPECIFICATIONS | |
| Internal Battery Type | Sealed AGM/Gel Hybrid |
| Interal Battery Voltage (nominal) | 12V DC |
| Internal Battery Capacity | 55 Ah |
| Maximum Load Current through 12V DC Socket | 15 Amps |
| DC Power Socket Circuit Breaker Rating (Internal, automatic reset) | 15 Amps |
| USB Maximum Output Current | 2.1 Amps |
| CHARGING SYSTEM SPECIFICATIONS | |
| Solar Panel Maximum Output | 5 x 16 W (80 W built in) |
| Solar Panel Type | Monocrystalline |
| Solar Panel Efficiency | 17% |
| Solar Charge Controller Max. Input | 10 Amps |
| AC Charger Rated Current | 100-240V AC, 50/60 Hz, 12V DC 5A |
| Max. Solar Panel Array Power | Expandable up to 150 W |
Item Details
| Brand | Wagan |
| SKU | WAGAN-2546 |
| Manufacturer Part Number | 2546 |
Specifications
Unit Dimensions
| Length | 20.9 in (531 mm) |
| Width | 20.9 in (531 mm) |
| Height | 14.6 in (371 mm) |
| Weight | 1344.0 oz (38102 g) |
Documents
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
