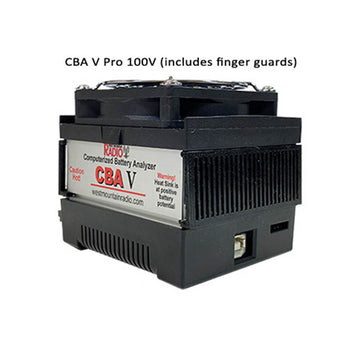

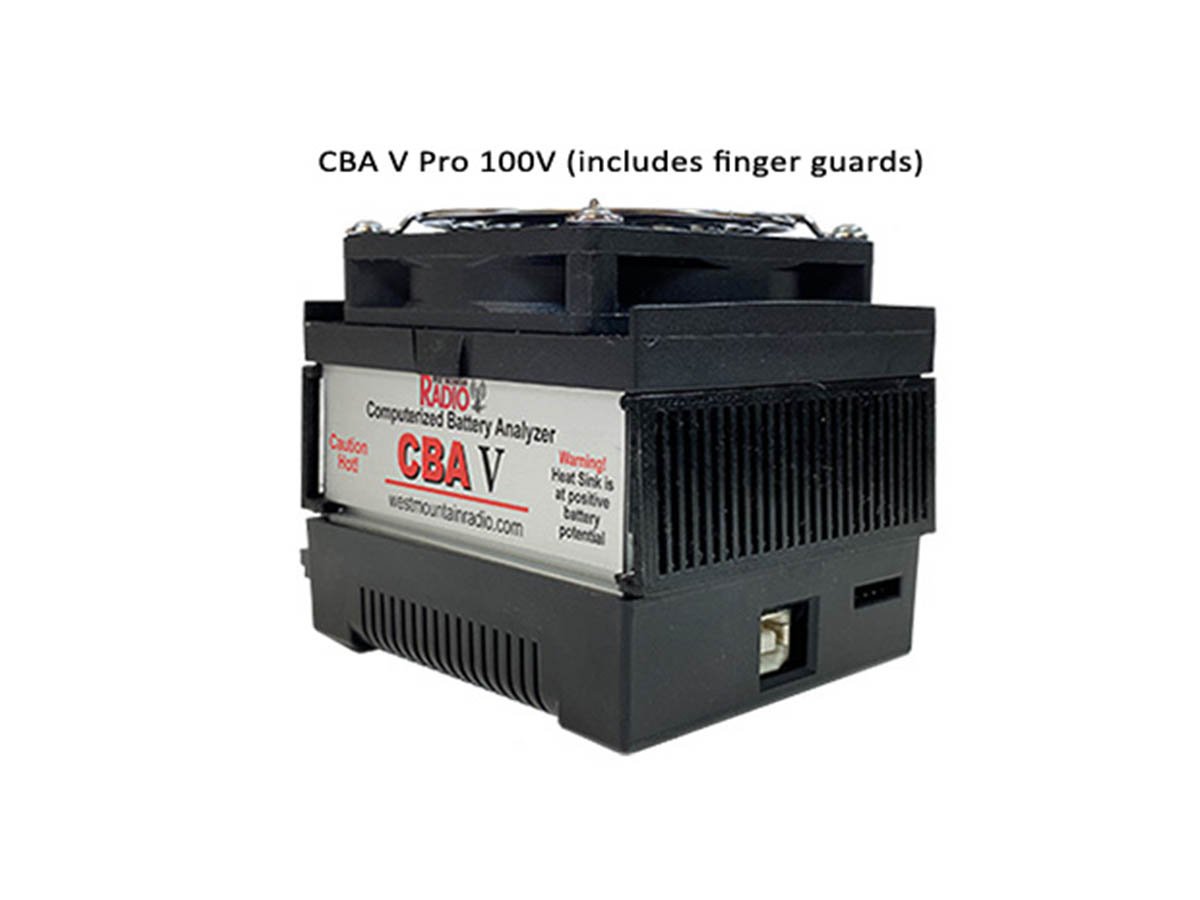

West Mountain Radio CBA V Pro - 100V - Computerized Battery Tester
- Increased voltage to 1-100V lets users perform tests on a wider variety of batteries
- Includes finger guards for improved safety during testing at higher voltages
- Discharge test current with selections from 0 to 40 Amps depending on the user's needs
- Fail safe protection for temperature, current, and power allows for greater longevity
- Batteries Included?: No
Recently viewed
Description
West Mountain Radio CBA V Pro 100V
Computerized Battery Analyzer
The CBA V Pro 100V is specially designed for power, taking all of the features from the CBA V Pro and nearly doubling its voltage to 1-100V from 1-57V. The CBA V Pro 100V performs true constant current tests to keep you updated on the overall performance of any compatible battery. With the higher voltage, you can even perform tests on batteries with nearly double the power demands. For added versatility, you can also use the CBA V Pro 100V to profile the capabilities of solar cells.
With the CBA V Pro 100V, users can perform battery tests on compatible units with some of the highest power demands without loss in efficiency. Just like the CBA V Pro, this product keeps readings within less than 1% accuracy by using remote voltage testing. Power profile tests can also be performed with ease in order to get a max power output reading at a fast pace. All of your results can be easily read thanks to the on-board computer's 12-bit resolution. This product's on-board computer also auto ranges for 2 current ranges and three voltages in order to ensure the greatest amount of accuracy which other brands don't account for.
| Typical | Max | ||
| Current Accuracy | 0.1A - 1.5A | +/-25ma | +/-75ma |
|---|---|---|---|
| Percentage Accuracy | 1.5-40A | +/-2% | +/-5% |
- Notable Features
- » Increased voltage to 1-100V allow users to perform tests on a wider variety of compatible batteries
- » Includes finger guards for improved safety during testing at higher voltages
- » Discharge test current with selections from 0 to 40 Amps for a wider range of uses depending on the user's needs
- » Fail safe protection for temperature, current, and power allows for greater longevity
Item Details
| Brand | West Mountain Radio |
| SKU | WEST-MOUNTAIN-CBA-V-PRO-100V |
| Manufacturer Part Number | CBA-V-PRO-100V |
| Color | Black |
| Length | 3.5 in (89 mm) |
Specifications
Power Details
| Batteries Included? | No |
Unit Dimensions
| Length | 3.5 in (89 mm) |
| Width | 2.8 in (71 mm) |
| Height | 3.6 in (91 mm) |
| Weight | 16.0 oz (454 g) |
Packaging/Shipping Dimensions
| Length | 8.5 in |
| Width | 6.5 in |
| Height | 4 in |
| Shipping Weight | 1.8 lb |
Additional Details
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
