XTAR VC2
"Works well. The display is great."
ARE YOU A PRO? Join for FREE!
XTAR VC2 2-Bay Smart Battery Charger - LCD Digital Display - Charges 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 3.6/3.7V Li-ion Batteries
Brand:XTAR
MPN:VC2
- LCD display for battery status
- Charges wide range of Li-Ion battery sizes
- Independent dual-bay charging
- Intelligent safety features
- Charger Channels: 2
- Compatible Battery Sizes: 10440, 14500, 16340 / RCR123A, 17670, 18650, 3V RCR123A
- Supported Chemistries: Li-Ion
$14.34
Recently viewed
Description
XTAR VC2 2-Bay Smart Battery Charger with LCD Digital Display - Charges 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 3.6/3.7V Li-ion Batteries

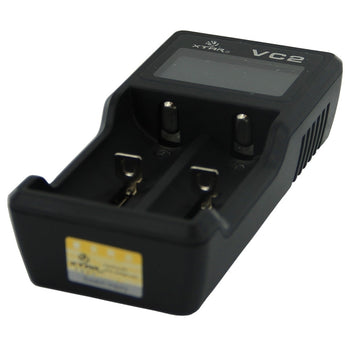

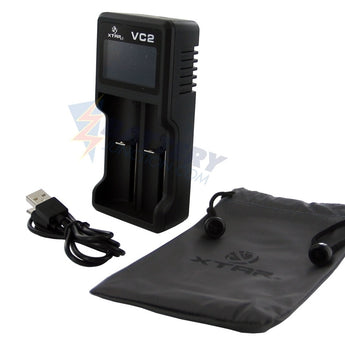

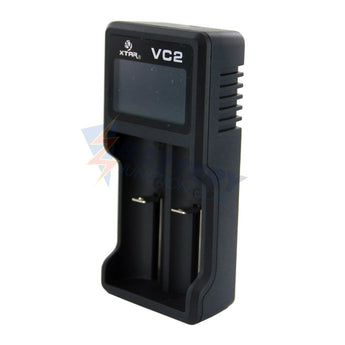

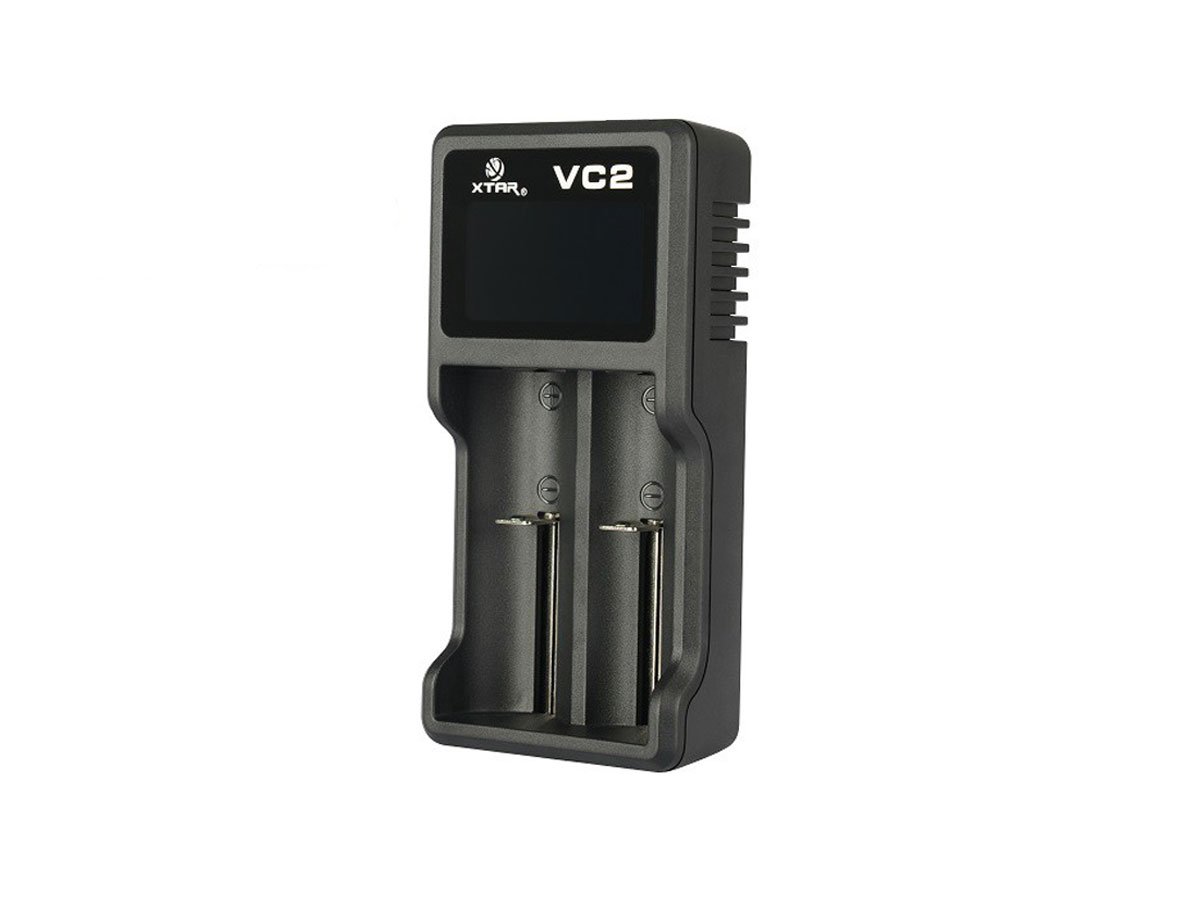

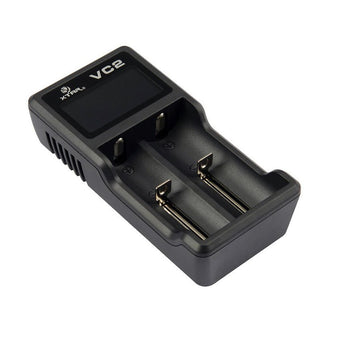

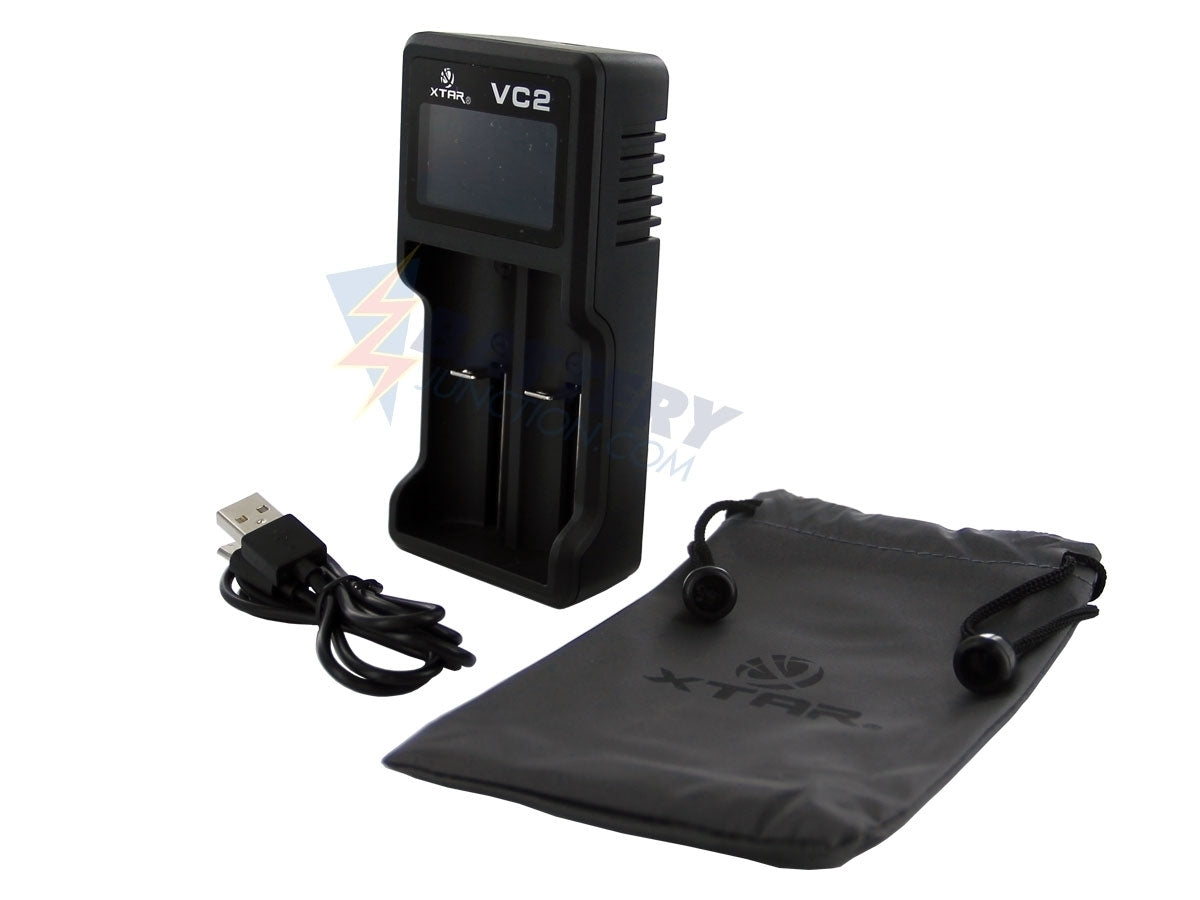

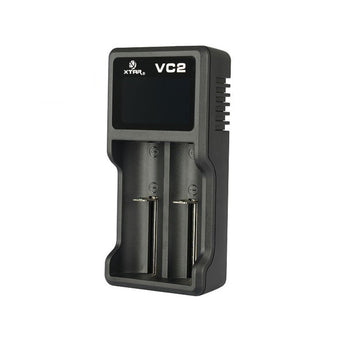

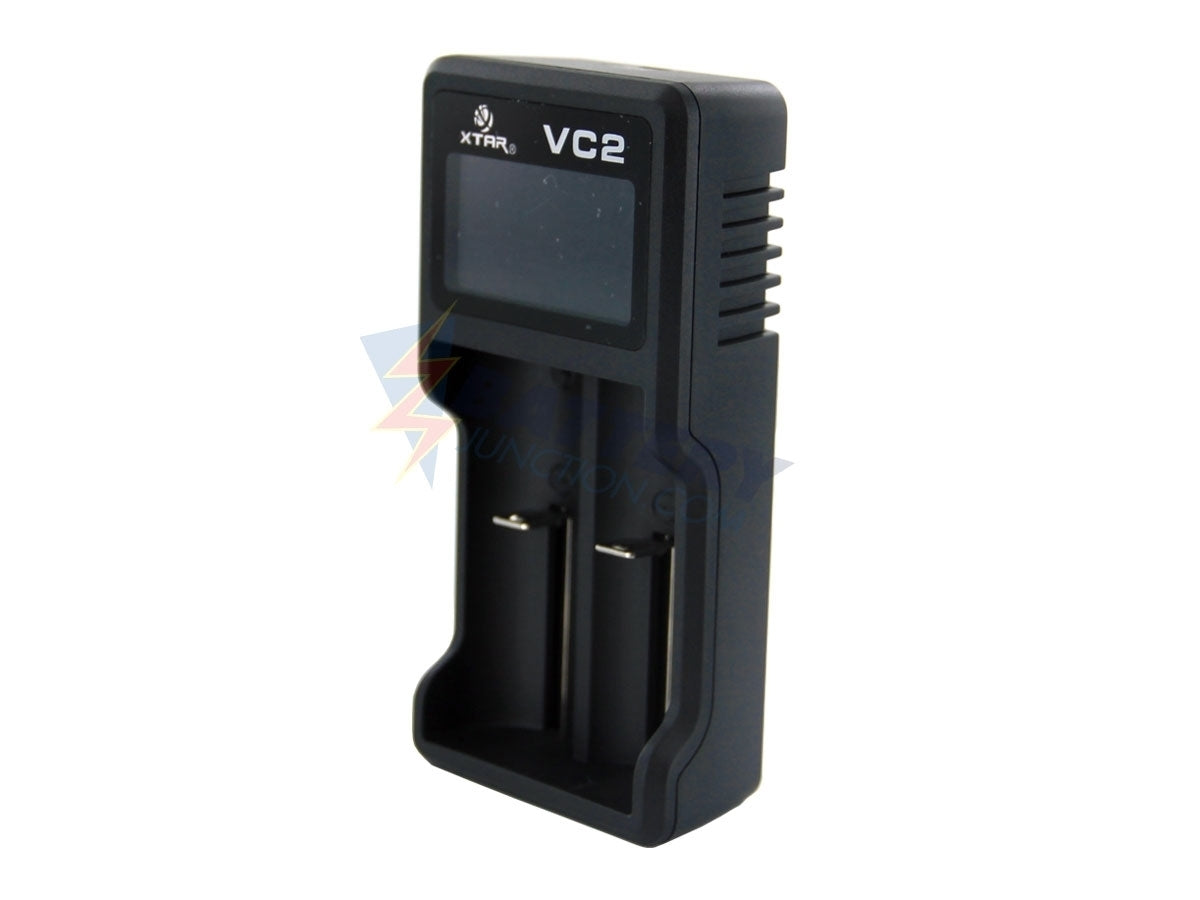

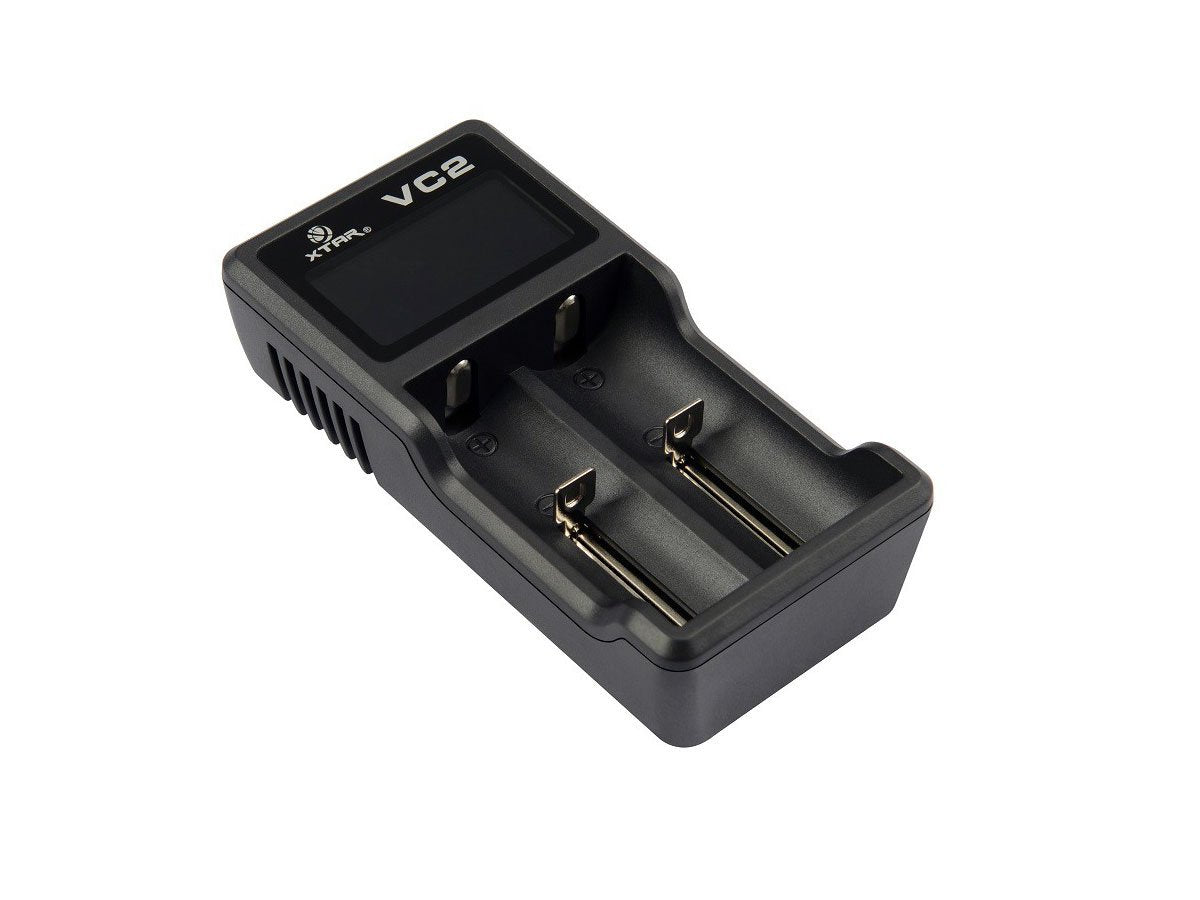

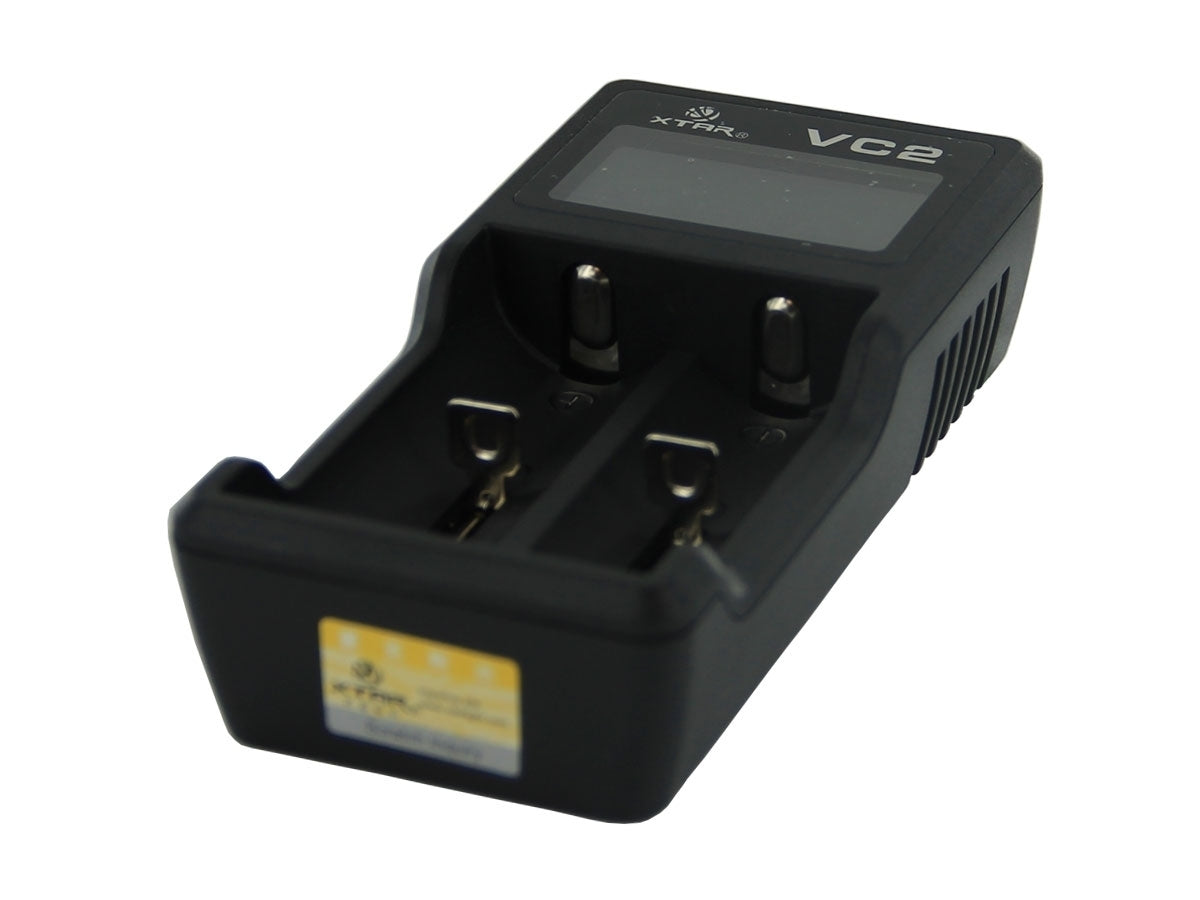

XTAR VC2 Smart Battery Charger
2-Bay w/ LCD Digital Display

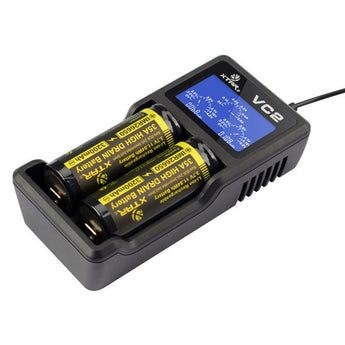

Introducing the VC2 Smart Battery Charger from XTAR, which is the world's first 2-bay li-ion battery charger that features an innovative tachometer-style LCD display screen. Compatible with both IMR lithium batteries and small capacity batteries, the VC2 will tell you the real time power of your battery. Assuming you put in a completely drained battery, the display will show you the mAh capacity, so you can see it charging as you wait. Both channels are independent, so you can charge one battery at a time or a pair of batteries. You can charge a multitude of li-ion batteries ranging from 10440 cells all the way up to 25500 cells. Gone are the days of worrying about overcharging, over-discharging, shorting out the circuit, or reverse polarity, as the VC2 will protect your batteries and charger. Also, you can revive overly discharged batteries with the VC2, so you can resurrect those old li-ion batteries. Pick up an XTAR VC2 Smart Battery Charger today!Features:- LCD displays each battery real time status

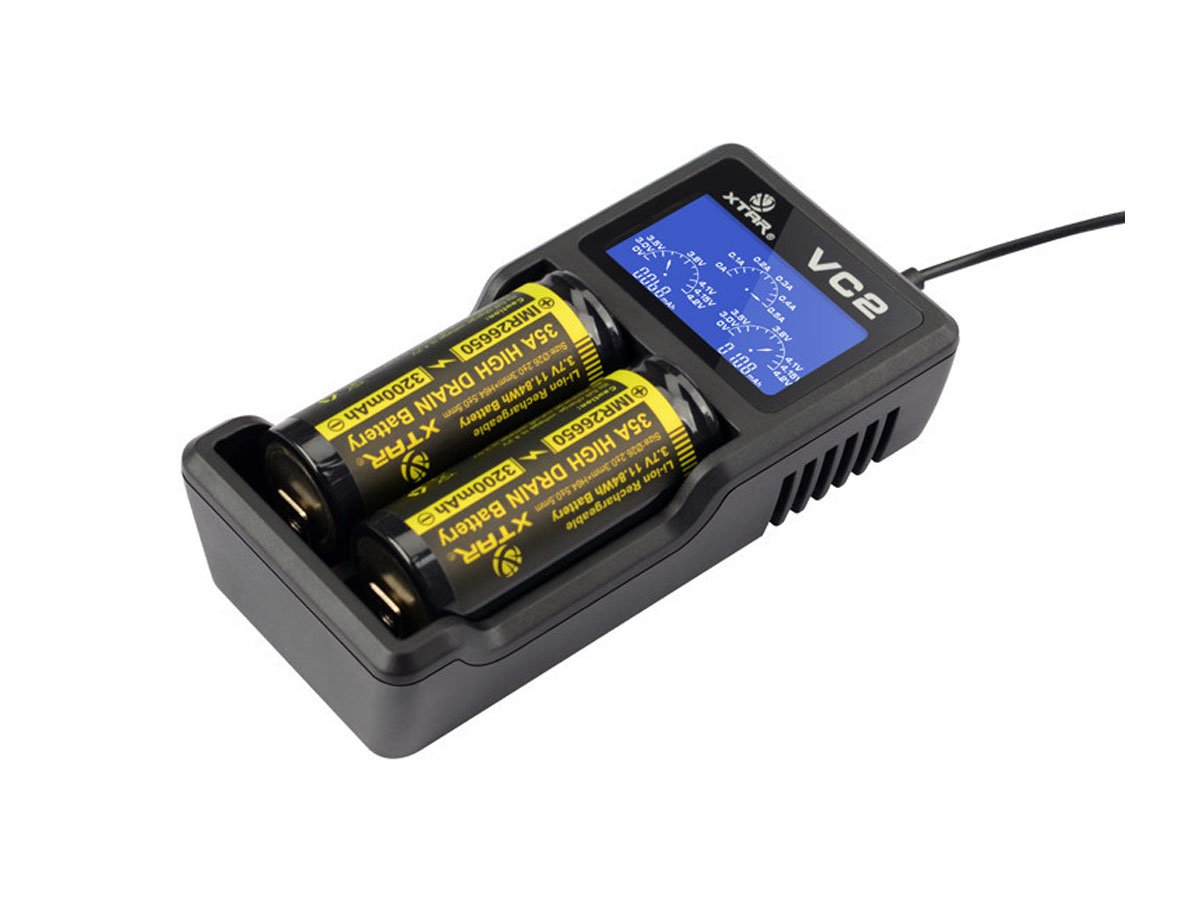

- 120°angle high definition VA screen to display the charging current ,voltage and power indicator
- Three-stage charge algorithm(TC-CC-CV)
- Each channel is independent
- Precision cut-off voltage at 4.2V
- Soft-start function, to avoid damage from large charge current while charging
- 0V activation function can wake up the over-discharged/sleeping batteries
- Automatically cut off when the battery is charged fully
- Built-in reverse-polarity and short-circuit protection circuit
- Over heat protection
- Use high power intelligent step-down DC - DC circuit, greatly reduce the energy loss
- Compatible with IMR lithium battery
- Certified by CE, RoHS
- Compatible with 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500,3.6/3.7V Li-ion batteries
- Input DC: 5V 1.0A
- Max Constant Charging Current: 500 ± 50mA
- Min Constant Charging Current: 150 ± 50mA
- Cut-off Voltage (Output Voltage): 4.2V ± 0.05V
- Auto Recharging Threshold Value Voltage: 3.9V ± 0.15V
- Cut-off Current: 80mA
- Working Temp: 0-40°C
- Dimensions: 5.15" x 2.6" x 1.3" (131 x 66 x 33mm)
- Net Weight: 3.8 oz (109g)
Item Details
| Brand | XTAR |
| SKU | XTAR-VC2 |
| Manufacturer Part Number | VC2 |
| UPC | 6952918320388 |
| Charger Channels | 2 |
| Compatible Battery Sizes | 10440, 14500, 16340 / RCR123A, 17670, 18650, 3V RCR123A |
| Supported Chemistries | Li-Ion |
Specifications
| Charge Rate | 500 |
| Charger Channels | 2 |
| Compatible Battery Sizes | 10440, 14500, 16340 / RCR123A, 17670, 18650, 3V RCR123A |
Unit Dimensions
| Length | 5.15 in (131 mm) |
| Width | 2.6 in (66 mm) |
| Height | 1.3 in (33 mm) |
| Weight | 3.8 oz (108 g) |
Packaging/Shipping Dimensions
| Shipping Weight | 0.38 lb |
Additional Details
| Packaging | Boxed |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
