Description

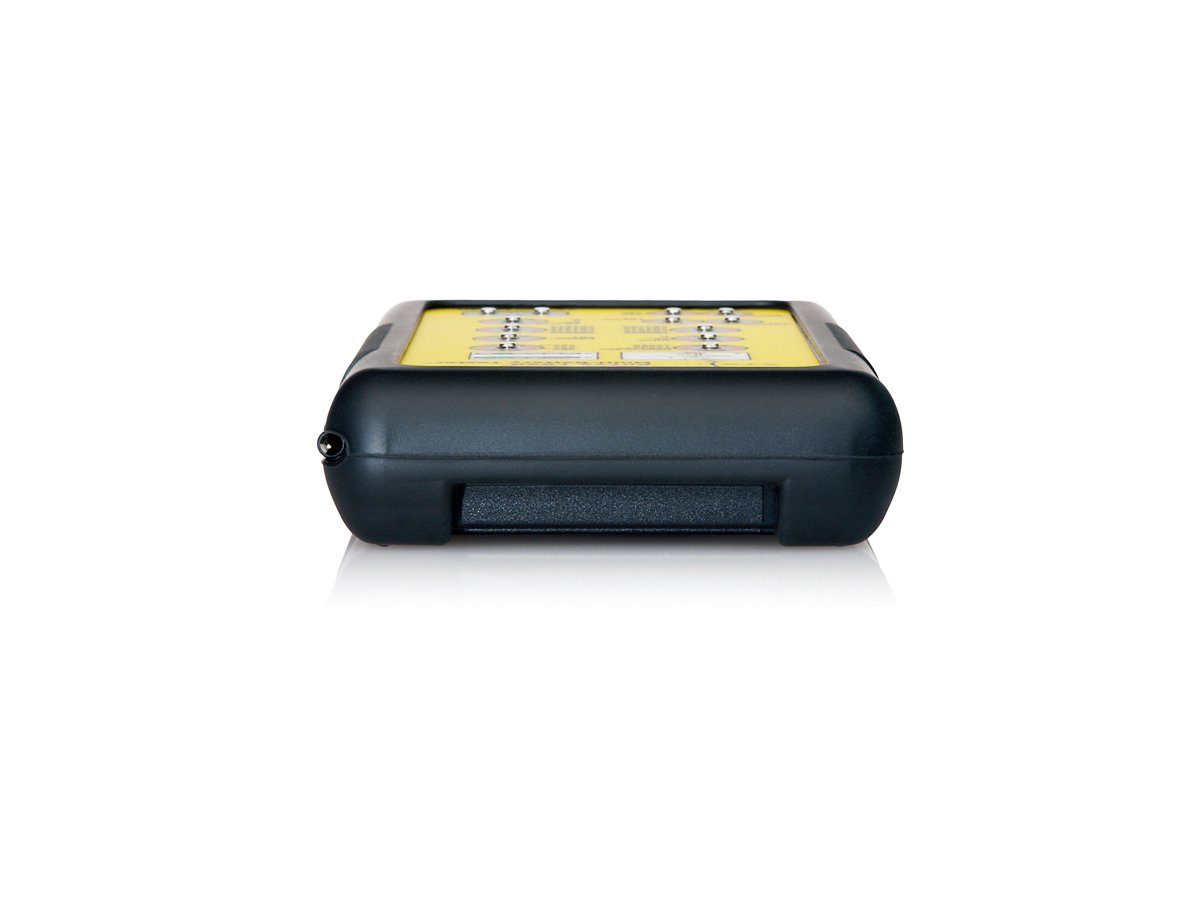

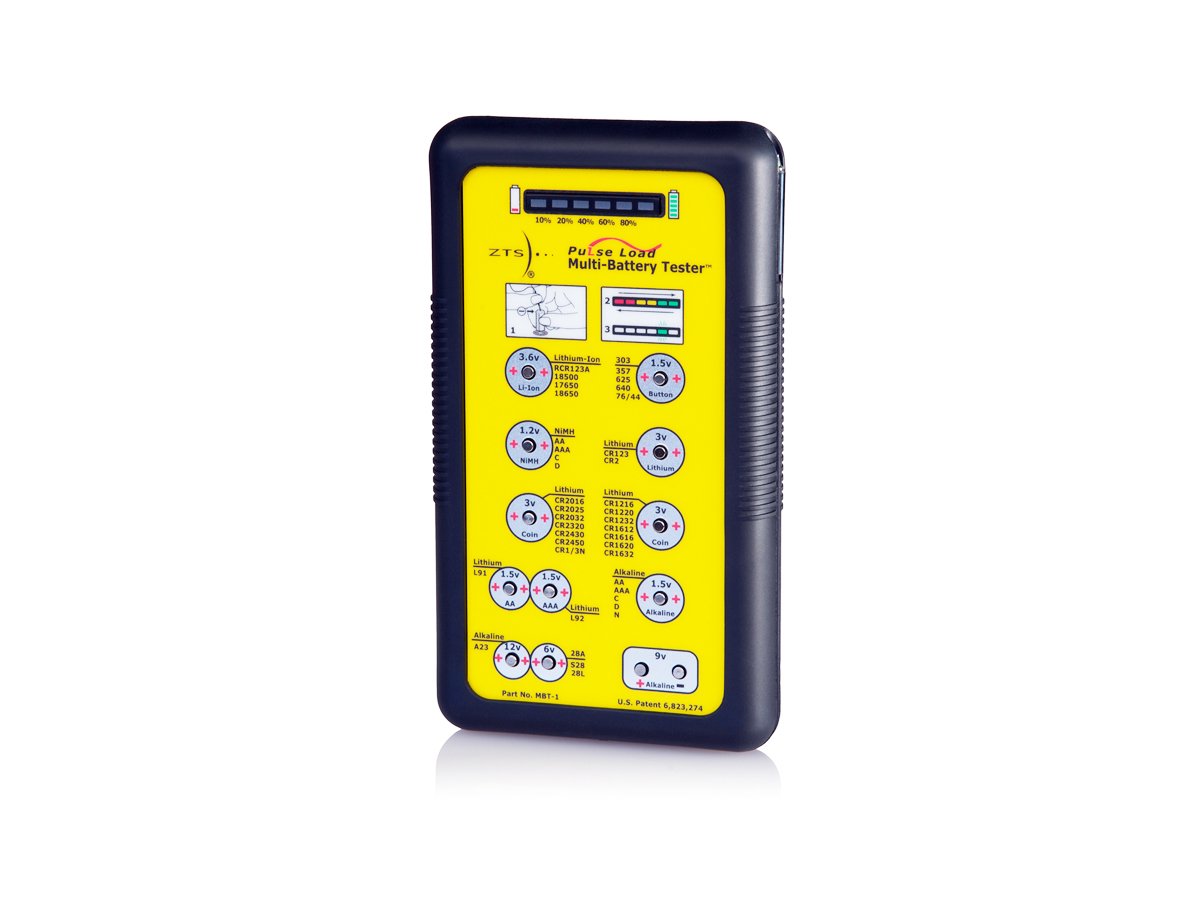

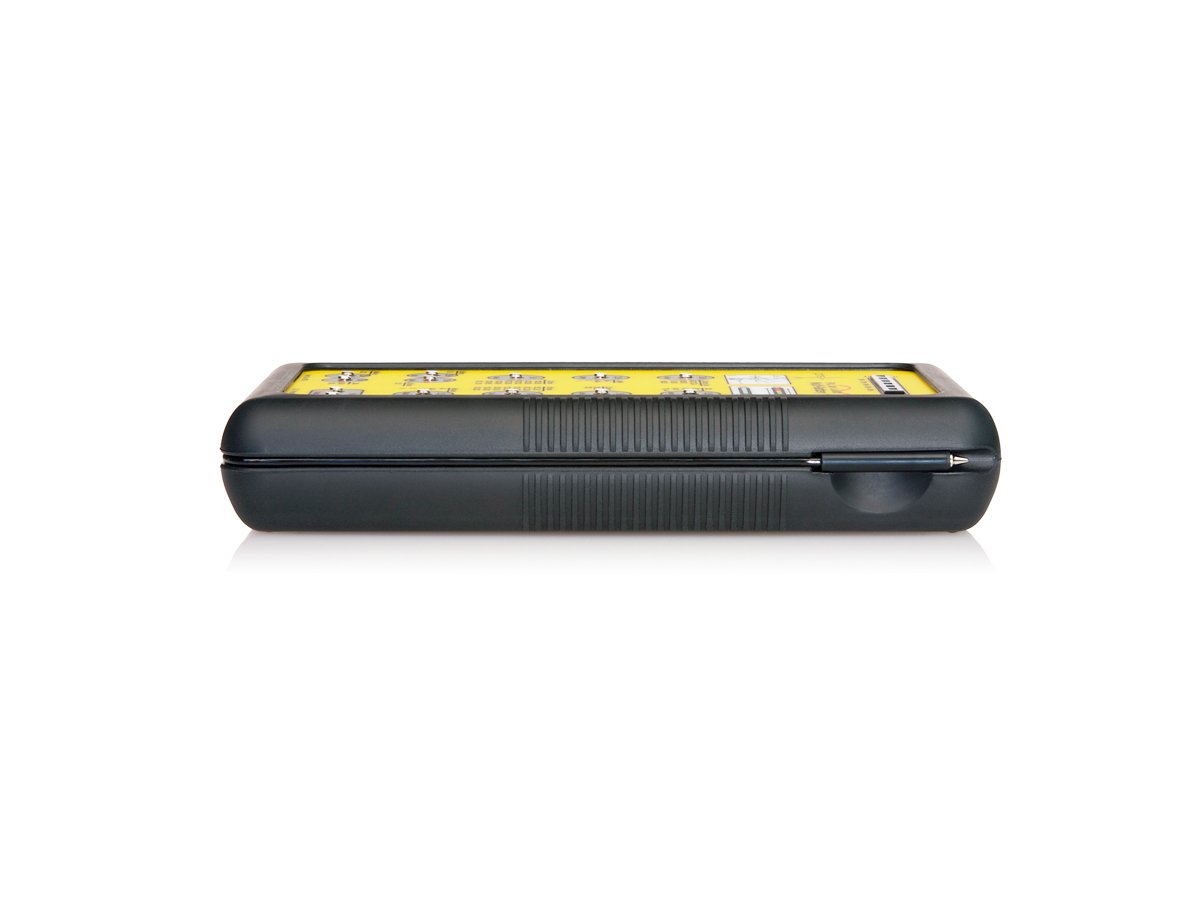

ZTS Multi-Battery Tester (ZTS-MBT-1-R3)The ZTS Multi-Battery Tester™ (MBT-1-R3) provides a comprehensive means of testing the state of charge or state of power for more than 30 battery types. This microprocessor-controlled instrument is designed to test popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. Negative test lead/probe conveniently stores in seam at side. There are no switches or settings, and test results are easy to understand. Test NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more. Uses 4AA batteries (not included) Made in U.S.A. Patent 6,823,274
Features:
Features:- Easy to use - no switches or settings
- Quickly and easily identify weak or failing batteries
- Patented high accuracy Pulse Load Test
- Ideal for battery management and cell matching
- Made in U.S.A.
- Battery management
- Industrial
- Electronics
- Safety
- Rechargeable
- Manufacturing
- Service
- Government
- Security
- Utilities
- Theater / music
- Remotes / wireless
- Medical appliances
- Military
- Office
- Scientific
- Manufacturer's Part Number: MBT-1
- Testing capability (battery list):
- 3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
- 1.5v button cell [S76, A76, A625, A640, LR44]
- 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
- 1.5v lithium [AA L91, AAA L92]
- 3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1632, CR1620, CR2016, CR2025, CR2320, CR2032, CR2430, CR2450, 58L, 1/3N]
- 6v '28' series [28A, S28, 28L, 544, 4LR44]
- 3v lithium cylindrical [CR123, CR2]
- 1.5v alkaline [AA, AAA, C, D, N]12v alkaline [A23]
- 9v alkaline & carbon zinc
- Power (internal): 4 AA batteries
- Display: 6 LEDs - colors green, yellow, red
- Pulse Load: magnitude varies according to battery type
- Operation: microprocessor-controlled test cycle
- Test duration: 2-3 seconds, varies according to battery type
- Contact terminals: solid brass, nickel-plated
- Dimensions: 8 x 4.5 x 1.25 inches
- Weight: approx. 14.5 oz. / 400g (without batteries)
- UPC: 856777000169
Item Details
| Brand | ZTS |
| SKU | ZTS-MBT-1-R3 |
| Manufacturer Part Number | MBT-1-R3 |
| Color | Yellow |
| Length | 8.0 in (203 mm) |
Specifications
| Primary Material | Plastic |
Power Details
Unit Dimensions
| Length | 8.0 in (203 mm) |
| Width | 4.5 in (114 mm) |
| Height | 1.25 in (32 mm) |
| Weight | 14.5 oz (411 g) |
Additional Details
| Packaging | Clam Shell |
| Warranty | Battery Junction Warranty |
| Return Policy | Return Policy |
