Power-Sonic AGM Deep Cycle PDC-121000 100Ah 12V Rechargeable Sealed Lead Acid (SLA) Battery - T14/U Terminal

Item #: POWERSONIC-PDC-121000-U-T14
Brand: Power-Sonic
Item #: POWERSONIC-PDC-121000-U-T14
Brand: Power-Sonic
  • Minimum order quantity of 96 pieces
Description

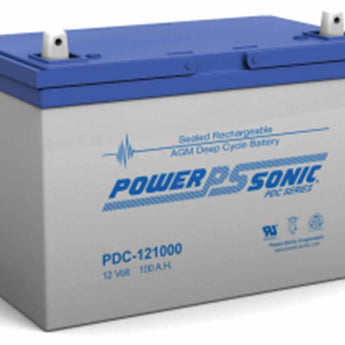

Power-Sonic PDC-121000 AGM Deep Cycle SLA Battery

Power-Sonic's PDC Deep Cycle Series of lead acid batteries have proven to be powerful and dependable power sources for a wide range of different devices, the PDC-121000 included. Like all PDC series batteries, the PDC-121000 features the advanced Absorbent Glass Mat (AGM) technology, which allows for energy to be circulated and stored evenly throughout the battery, allowing for more efficient storage. The battery's energy density is unrivaled among lead acid batteries, holding an astounding 1.68Wh per cubic inch, and its oversize negative plates and unique paste formulation allow for true deep cycle performance.

The PDC-121000 is D.O.T., I.A.T.A., F.A.A., and C.A.B. certified so no need to worry about transporting it. The battery itself is spill-proof and valve-regulated, making them safe to operate in any position, and is encased in the sturdy, impact resistant ABS Plastic case and cover, so it is very safe to operate even in rugged conditions.

Features:
  • Absorbent Glass Mat (AGM) technology provides superior performance
  • Valve regulated, spill-proof for safe use in any position
  • Sturdy, impact resistant ABS Plastic case and cover
  • Oversize negative plates and specialized paste formulation provide true deep cycle performance
  • Unrivaled energy density
Specifications:
  • Chemistry: SLA (Sealed Lead Acid)
  • Terminal Type: T14/U
  • Nominal Voltage: 12 Volts (6 Cells)
  • Nominal Capacity:
    • 20-Hour (5.0A to 10.5V)........ 100.0 Ah
    • 10-Hour (9.2A to 10.5V)......... 92.0 Ah
    • 8-Hour (11.0A to 10.5V)......... 88.0 Ah
    • 5-Hour (15.8A to 10.2V)......... 58.1 Ah
    • 1-Hour (58.1A to 9.0V)......... 58.1 Ah
    • 15-Min. (177.7A to 9.0V)......... 44.4Ah
  • Energy Density (20-Hour Rate): 1.68 W-h/in³ (102.62 W-h/l)
  • Specific Energy (20-Hour Rate): 16.91 W-h/lb (37.29 W-h/kg)
  • Internal Resistance (approx.): 5 milliohms
  • Shelf Life (% of nominal capacity at 68°F (20°C)):
    • 1 Month ......... 97%
    • 3 Months ........ 91%
    • 6 Months ........ 83%
  • Operating Temperature Range:
    • Charge: -4°F (-20°C) to 122°F (50°C)
    • Discharge: -40°F (-40°C) to 140°F (60°C)
  • Dimensions (LxWxH): 12.05" x 6.61" x 8.50" (306mm x 168mm x 216mm)
  • Approximate Weight: 61.0 lbs. (27.5 kg)
