Klein Tools 400A Digital Clamp Meter (CL220)
- Measures AC current with no-contact clamp meter
- Automatic ranging True Root Mean Squared Measurement Technology for accuracy
- Auto-power off and multiple safety certifications
- Low battery indicator and backlit LCD screen
| Brand | Klein Tools |
|---|---|
| MPN | CL220 |
| Gear Type | Auto Ranging TRMS Clamp with Temperature |
| Color | Black and Orange |
| Application | |
| Measures AC Current | NCVT through Clamp for AC Voltage |
| Measures DC Voltage | Via included test leads |
| Measures | Resistance |
| Measures | Continuity through Test Leads |
| Measures | Temperature with Thermocouple |
| Material | ABS Plastic and Electronic Components |
| Power Source | 3 x AAA Batteries |
| Display | 2000 Count Backlit LCD Screen |
| Auto-Power Off | Yes |
| Voltage | 600 V AC / DC |
|---|---|
| Current | 400 A AC |
| Ohms or Resistance | 20 MΩ |
| AC Voltage | 600 V |
| DC Voltage | 600 V |
| DC Polarity Indicator | Yes |
| Temperature Range | -40°F to 1832°F (-40°C to 1000°C> |
| Safety Compliance | |
| CATIII 600V | |
| Class 2 | |
| Double Insulation Safety Rating | |
| CE Certified | |
| Drop Resistance | 2 meters / 6.6 feet |
| Overall Length | 8.45" / 214.63mm |
|---|---|
| Overall Width | 3.5" / 88.9mm |
| Overall Height | 1.5" / 38.1mm |
| Jaw Size | 1.6" / 40.64mm |
| Weight | 11 oz / 314 g |
| Klein Tools CL220 Carrying Case |
| Klein Tools CL220 Clamp Meter |
| Klein Tools CL220 Test Leads |
| Klein Tools Thermocouple |
| 3 x AAA Batteries |
| User Instructions |
| Country of Origin | USA |
|---|---|
| Warranty | Klein Tools Limited Warranty |
| Battery Junction 30-Days | |
| Return Policy | Battery Junction Return Policy |
| Never attempt to measure resistance or continuity on live circuits |
| Verify meter operation before each use |
| Do not use during electrical storms or wet weather |
| Do not use meter in any way other than specified by manufacturer |

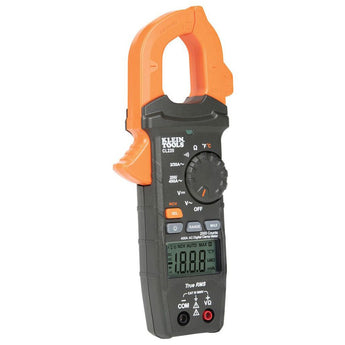

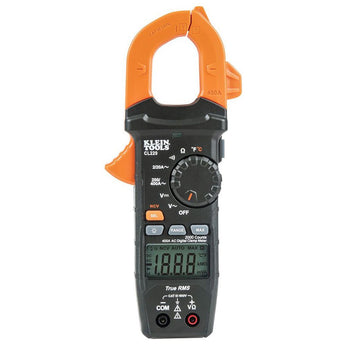

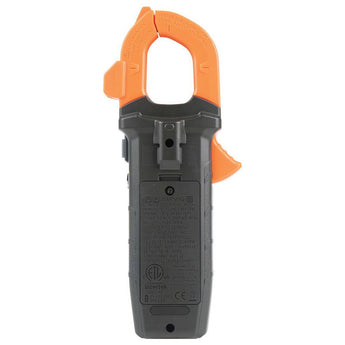

Klein Tools Digital Clamp Meter
AC Auto-Ranging 400 Amp with Temperatures
The Klein Tools CL220 400A Digital Clamp Meter easily measures AC current and AC voltage through the no-contact clamp and DC voltage with the included test leads. Equipped with TRMS (True Root Mean Squared technology), the CL220 can accurately read alternating currents or dirty power for reliable measurements no matter where you are. The included test leads measure continuity while its thermocouple tests for temperature. This all-in-one tool can reduce on-site work time by integrating these electronics in one device and putting it in one small package.
The Klein Digital 400A Clamp Meter has an ergonomic body design for one-handed use as well as an optional magnetic hanger for hands-free operation if needed. All units are clearly marked as well as having a backlit LCD screen for easy reading even in a low-lit area. This meter has a battery indicator and has included required batteries so it can be used right out of the box.
- Notable Features
- » Proudly made in the USA
- » Measures AC current, AC-DC Voltage, resistance and temperature
- » No-contact voltage tester located in the clamp jaw

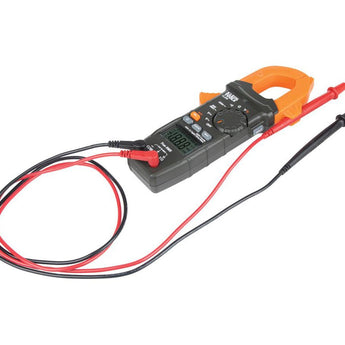

- » DC voltage measured with the included test leads
- » Magnetic hanger for hands-free use
- » Auto-power off function for safety and battery preservation
- » Auto Ranging True Root Mean Squared (TRMS) technology for accuracy
- » Measure temperature through K-Type thermocouple probe
- » Backlit LCD screen and battery indicator for user convenience
- » Meets multiple safety certifications and standards
- » Drop resistant up to 6.6 feet
-
